DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

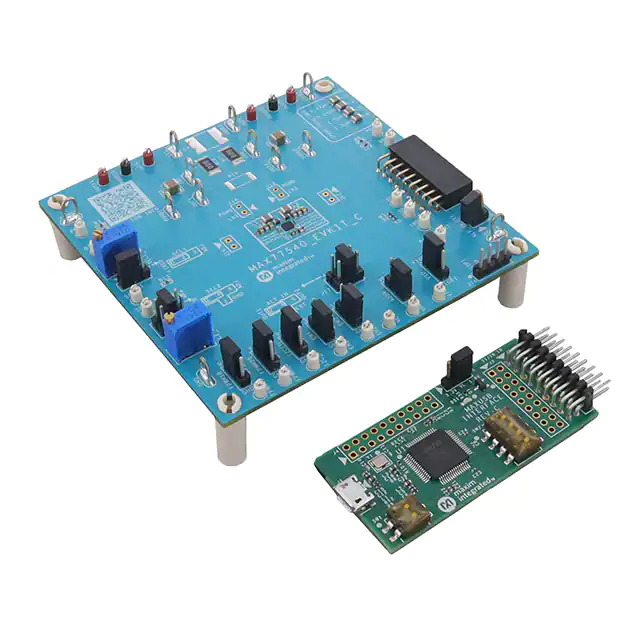

MAX77540EVKIT#EVAL BOARD FOR MAX77540 |
4,648 | 72.88 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4V ~ 16V | Buck | 1MHz | Board(s), Accessories | MAX77540 |
|

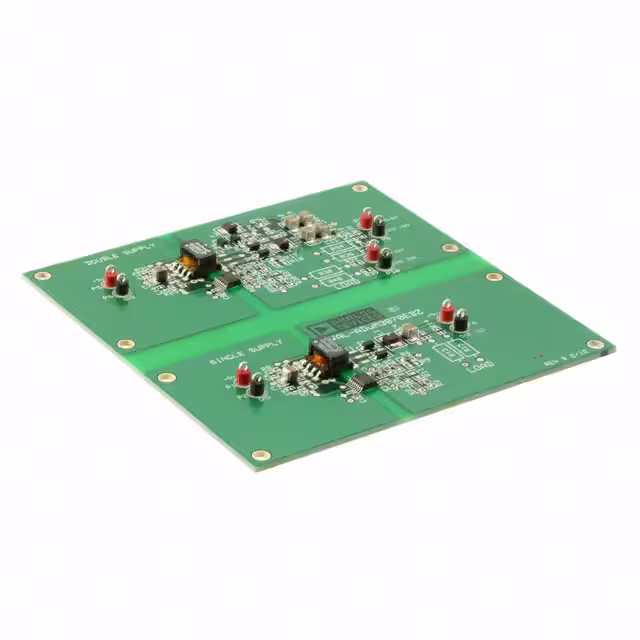

EVAL-ADUM3070EBZEVAL BOARD FOR ADUM3070 |
2,651 | 79.45 |
|
Datasheet |
iCoupler® | Bulk | Active | DC/DC Isolated Power Supply | 3 Isolated Outputs | - | 5V, 7.5V, 15V | - | 5V | - | 500kHz | Board(s) | ADuM3070 |
|
MAX17690EVKITA#EVAL BOARD FOR MAX17690 |
2,311 | 76.52 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | 5 W | 5V | 1A | 18V ~ 36V | Flyback | 150kHz | Board(s) | MAX17690 |
|
ADM00947EVAL BOARD FOR SR087 |
2,601 | 72.91 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 2 Non-Isolated Outputs | - | 5V, 12.6V | 100mA, 60mA | 90 ~ 270 VAC | - | - | Board(s) | SR087 |
|

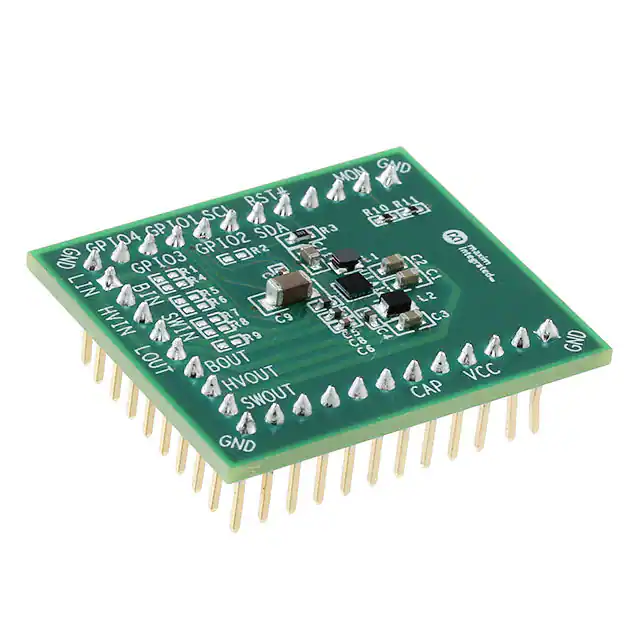

MAX14750EVKIT#EVAL BOARD FOR MAX14720 MAX14750 |
1,072 | 76.52 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | - | 1.8V ~ 5.5V | - | - | Board(s) | MAX14720, MAX14750 |
|

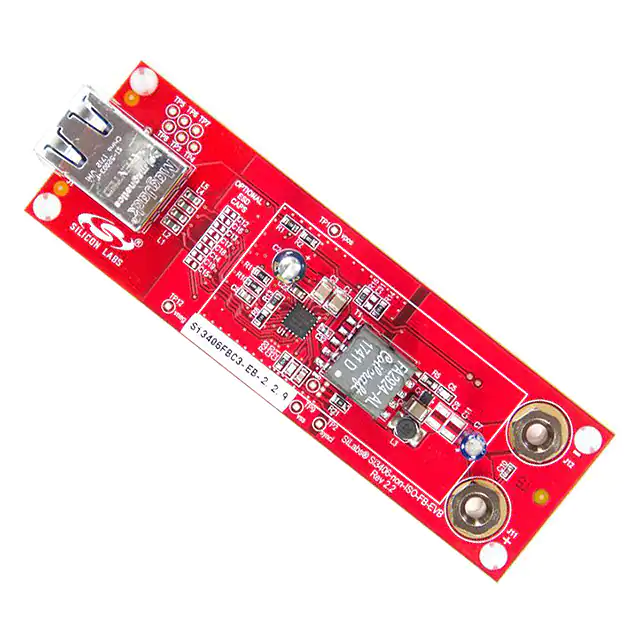

SI3406FBC3-KITEVAL BOARD FOR SI3406 |
4,560 | 83.75 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | - | - | - | - | Flyback | - | Board(s) | Si3406 |
|

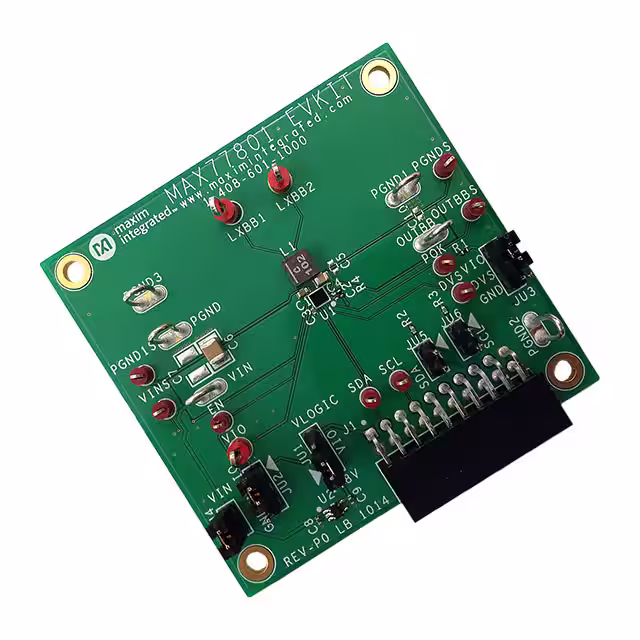

MAX77801EVKIT#EVAL BOARD FOR MAX77801 |
2,518 | 78.18 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.6V ~ 4.1875V | 2A | 2.3V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | MAX77801 |
|
ADM00987EVAL BOARD FOR MCP19035 |
2,584 | 74.04 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5.5V | 8A | 6V ~ 16V | Buck | - | Board(s) | MCP19035 |
|

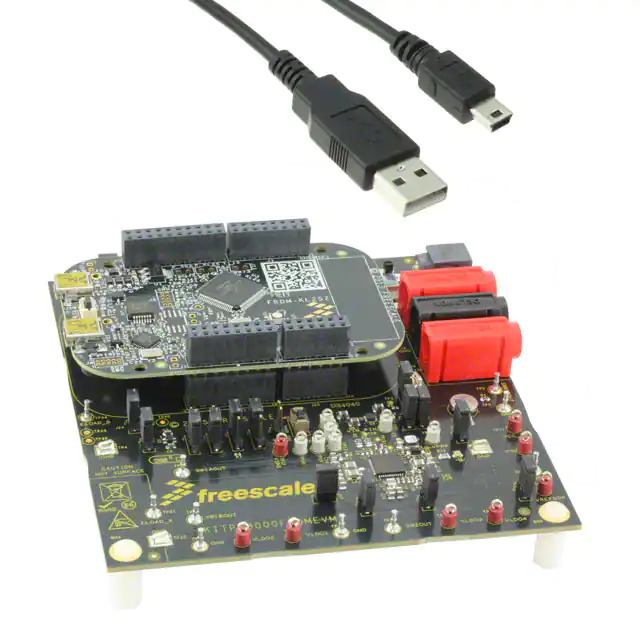

KITPF3000FRDMEVMEVAL BOARD FOR PF3000 |
4,923 | 75.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down with LDO | 12 Non-Isolated Outputs | - | - | 1.75A, 1.5A, 1.25A, 1A, 600mA, 350mA, 350mA, 250mA, 100mA, 100mA, 100mA, 1mA | 2.8V ~ 5.5V | Boost, Buck | - | Board(s) | PF3000 |
|

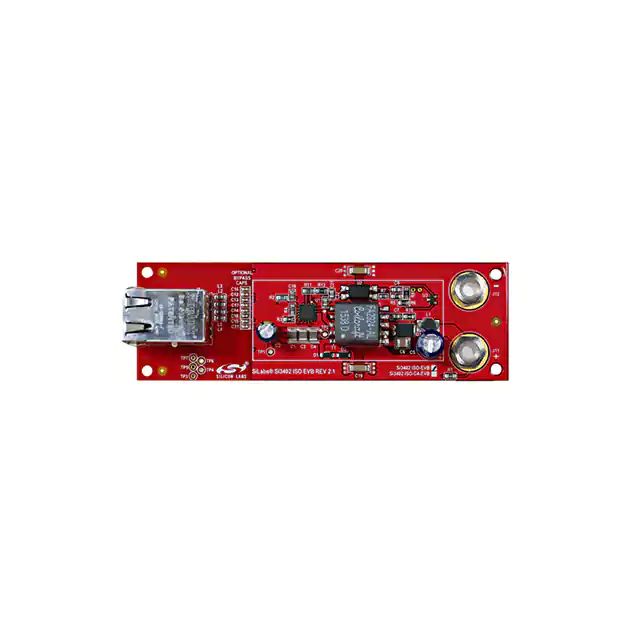

SI3402BISO-EVBEVAL BOARD FOR SI3402B |
2,241 | 87.50 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 5V | - | 44V ~ 57V | Flyback | 350kHz | Board(s) | Si3402-B |
|

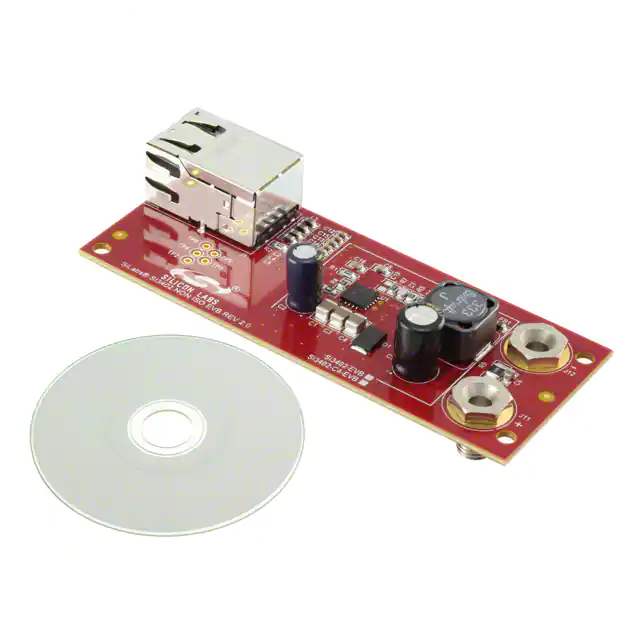

SI3402B-EVBEVAL BOARD FOR SI3402B |
2,451 | 87.50 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Non-Isolated Output | - | 5V | - | 44V ~ 57V | Buck | 350kHz | Board(s) | Si3402-B |
|
DC2702B-AEVAL BOARD FOR LTM4700 |
4,060 | 0.00 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 50A, 50A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4700 |
|

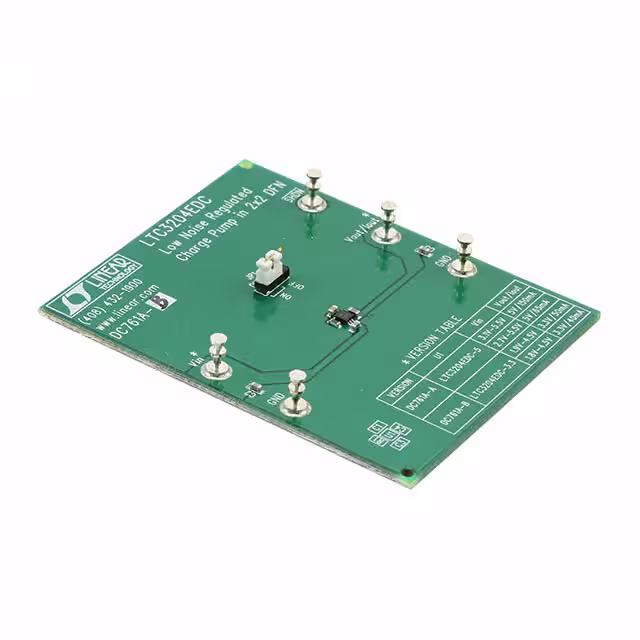

DC761A-BEVAL BOARD FOR LTC32043.3 |
4,534 | 80.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 50mA | 1.8V ~ 4.5V | Boost | 1.2MHz | Board(s) | LTC3204-3.3 |
|

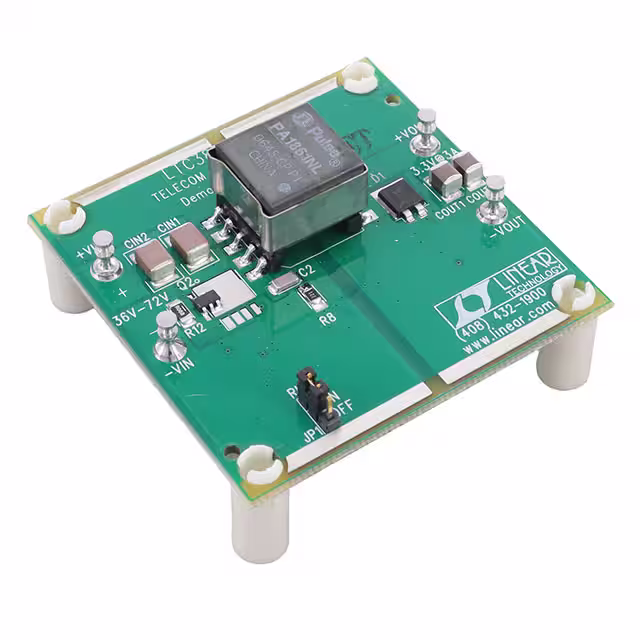

DC1154AEVAL BOARD FOR LTC3873 |
2,316 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 3A | 36V ~ 72V | Buck | 200kHz | Board(s) | LTC3873 |
|

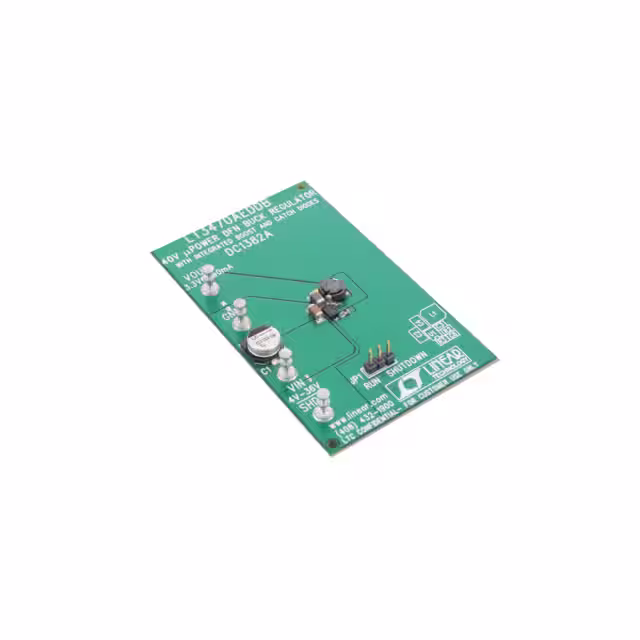

DC1382AEVAL BOARD FOR LT3470A |
4,981 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 250mA | 4V ~ 36V | Buck | - | Board(s) | LT3470A |
|

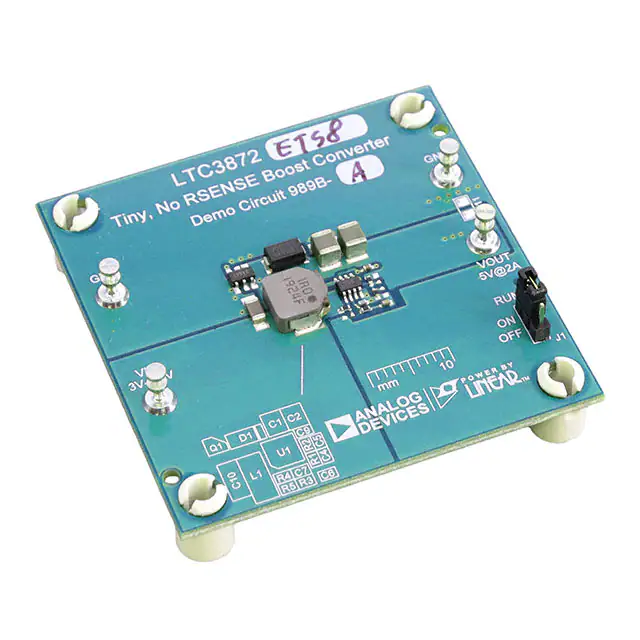

DC989B-AEVAL BOARD FOR LTC3872 |
4,957 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2A | 3V ~ 4.5V | Boost | 550kHz | Board(s) | LTC3872 |
|
DC3016AEVAL BOARD FOR LTM4693 |
4,841 | 88.28 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V, 2.5V, 3.3V or 5V | 2A | 2.6V ~ 5.5V | Buck-Boost | 2.2MHz | Board(s) | LTM4693 |
|

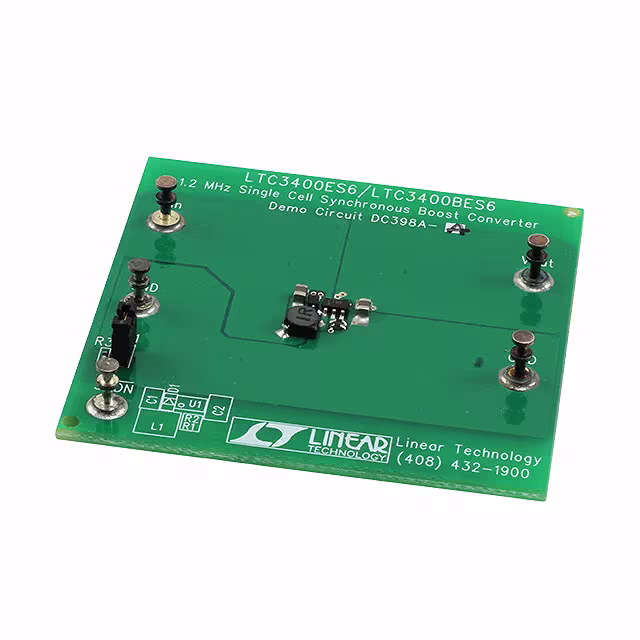

DC398A-AEVAL BOARD FOR LTC3400 |
4,532 | 88.28 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 90mA | 1V ~ 3V | Boost | 1.2MHz | Board(s) | LTC3400 |
|
LM5060EVAL/NOPBEVAL BOARD FOR LM5060 |
1,482 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 5A | 9V ~ 36V | Buck | - | Board(s) | LM5060 |
|
LM5155EVM-SEPICEVAL BOARD FOR LM5155Q1 |
4,815 | 90.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 6V ~ 18V | Boost, SEPIC | 2.2MHz | Board(s) | LM5155-Q1 |
