DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

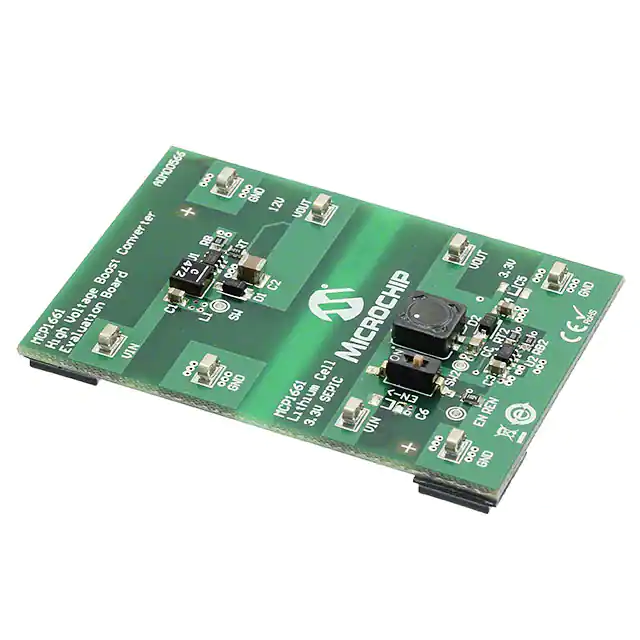

ADM00566EVAL BOARD FOR MCP1661 |
3,223 | 54.96 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 12V | 125mA | 2.4V ~ 5.5V | Boost, SEPIC | 500kHz | Board(s) | MCP1661 |
|

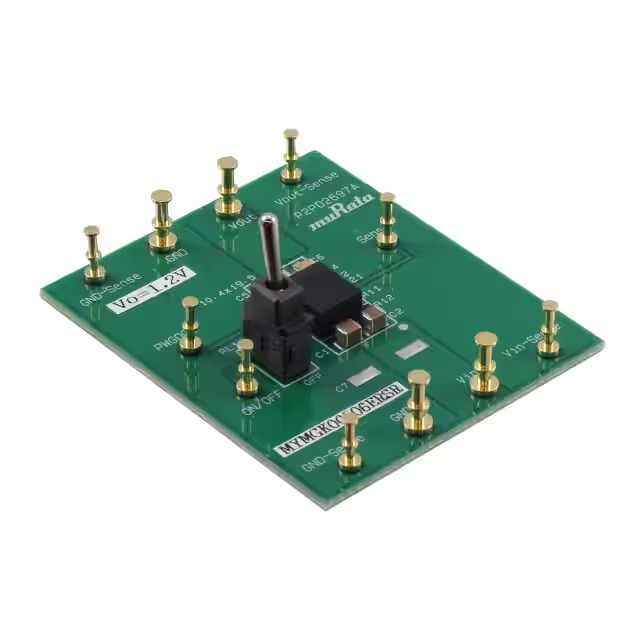

MYMGK00506ERSR-EVMEVAL BOARD FOR MYMGK00506ERSR |
4,254 | 62.50 |
|
Datasheet |
MGK | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 5V | 6A | 8V ~ 14V | - | 300kHz | Board(s) | MYMGK00506ERSR |
|
MXC 292C1-EB3P-10EVAL BOARD FOR 2D048015B |
2,603 | 62.50 |
|
Datasheet |
MxC® 200 | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | - | 48V | Buck | - | Board(s) | 2D-048-015B |
|
AP72200WLCSP-20-EVMEVAL BOARD FOR AP72200 |
3,490 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.6V ~ 5.14V | 2A | 2.3V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | AP72200 |
|
ADP5037CP-EVALZEVAL BOARD FOR ADP5037 |
3,250 | 62.91 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 800mA, 800mA, 300mA, 300mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5037 |
|

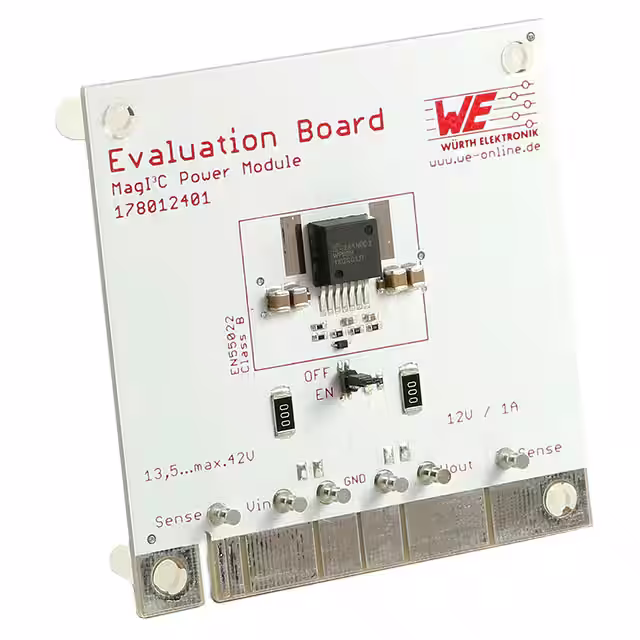

178012401EVAL BOARD FOR WPMDH1102401 |
3,095 | 61.69 |
|
Datasheet |
MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V ~ 24V | 1A | 6V ~ 42V | Buck | - | Board(s) | WPMDH1102401 |
|
MAX15005AEVKIT+EVAL BOARD FOR MAX15005A |
3,444 | 55.65 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 3 Isolated Outputs | - | 3V, 60V, 110V | 650mA, 55mA, 12mA | 6.5V ~ 16V | Flyback | 100kHz | Board(s) | MAX15005A |
|

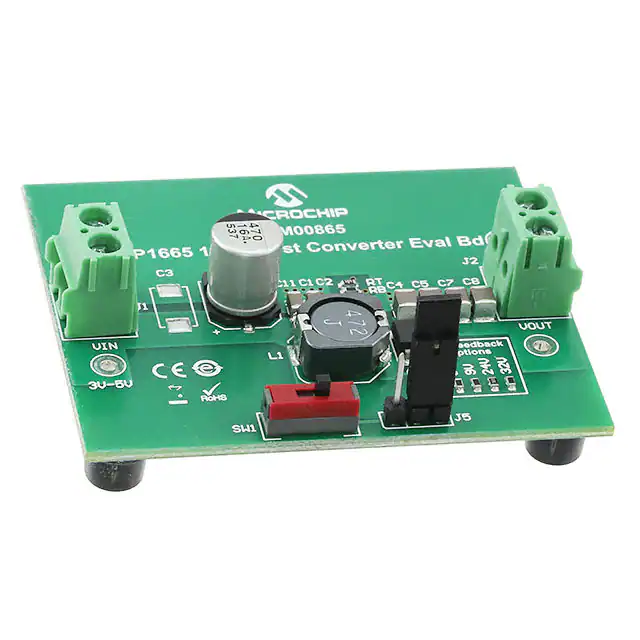

ADM00865EVAL BOARD FOR MCP1665 |
2,469 | 58.33 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1A | 3V ~ 5V | Boost | 500kHz | Board(s) | MCP1665 |
|

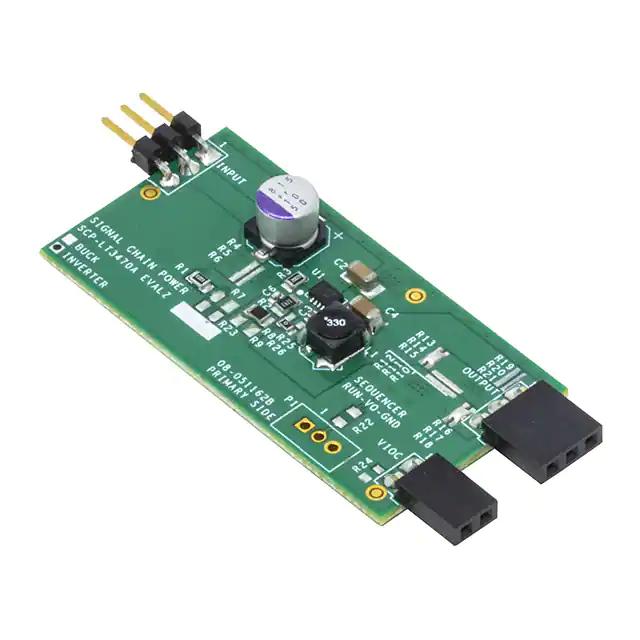

SCP-LT3470A-IEVALZEVAL BOARD FOR LT3470A |
1,012 | 66.21 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | -3.3V | 250mA | 4V ~ 36V | Buck | - | Board(s) | LT3470A |
|

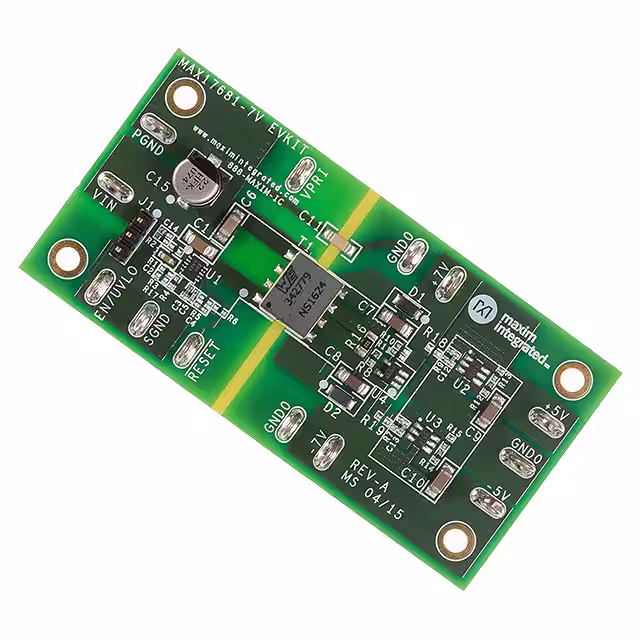

MAX17681EVKITB#EVAL BOARD 750342779 MAX17681 |
4,657 | 63.06 |
|
- |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±7V | 100mA | 17V ~ 36V | Buck | 200kHz | Board(s) | 750342779, MAX17681 |
|

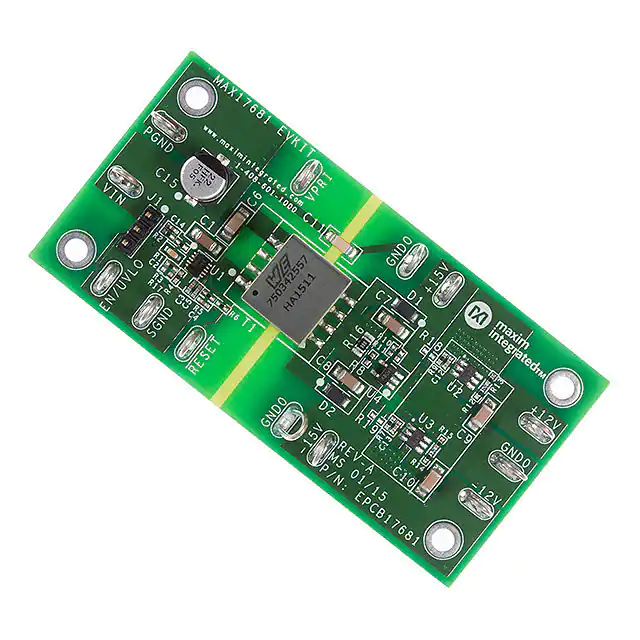

MAX17681EVKIT#EVAL BOARD 750342557 MAX17681 |
3,247 | 63.06 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | ±15V | 100mA | 17V ~ 32V | Buck | 200kHz | Board(s) | 750342557, MAX17681 |
|
|
DC2898AEVAL BOARD FOR LTM4655 |
1,264 | 69.55 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 12V, 12V | 4A, 4A | 13V ~ 40V | Buck | 1.2MHz | Board(s) | LTM4655 |
|

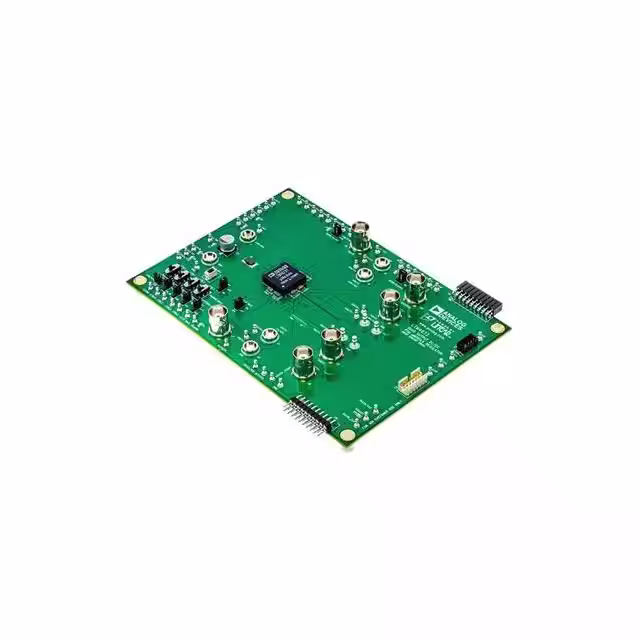

DC2810AEVAL BOARD FOR LTM4673 |
4,006 | 69.55 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.9V, 1V, 1.2V, 1.8V | 12A, 12A, 5A, 5A | 4.5V ~ 16V | Buck | - | Board(s) | LTM4673 |
|

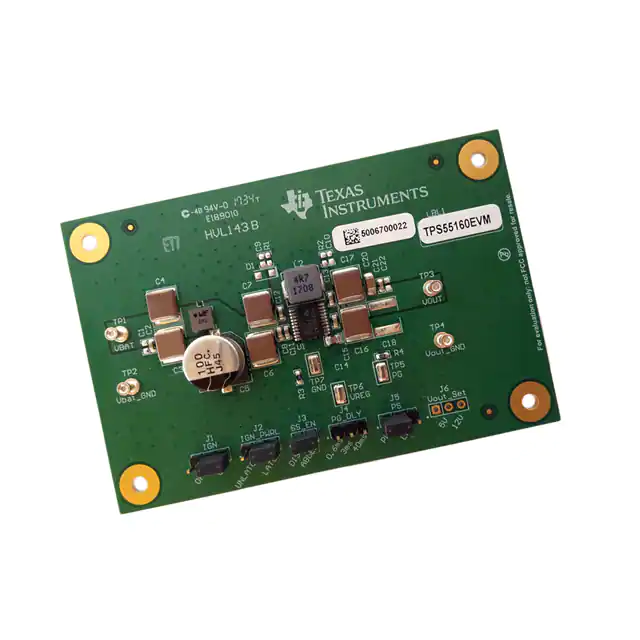

TPS55160Q1-EVMEVAL BOARD FOR TPS55160Q1 |
3,578 | 70.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 8V | 1A | - | Buck-Boost | 2MHz | Board(s) | TPS55160-Q1 |
|
TPS61390EVM-020EVAL BOARD FOR TPS61390 |
1,101 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 60V | 10mA | 2.5V ~ 5.5V | Boost | - | Board(s) | TPS61390 |
|
LM5158EVM-FLYEVAL BOARD FOR LM5158Q1 |
1,773 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 4 Isolated Outputs | 8.5 W | 10V, 20V, 20V, 20V | 250mA, 150mA, 75mA, 75mA | 8V ~ 16V | Flyback | 250kHz | Board(s) | LM5158-Q1 |
|
LMR38020QEVMEVAL BOARD LMR38020 LMR38020Q1 |
4,560 | 70.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6V ~ 80V | Buck | 400kHz | Board(s) | LMR38020, LMR38020-Q1 |
|

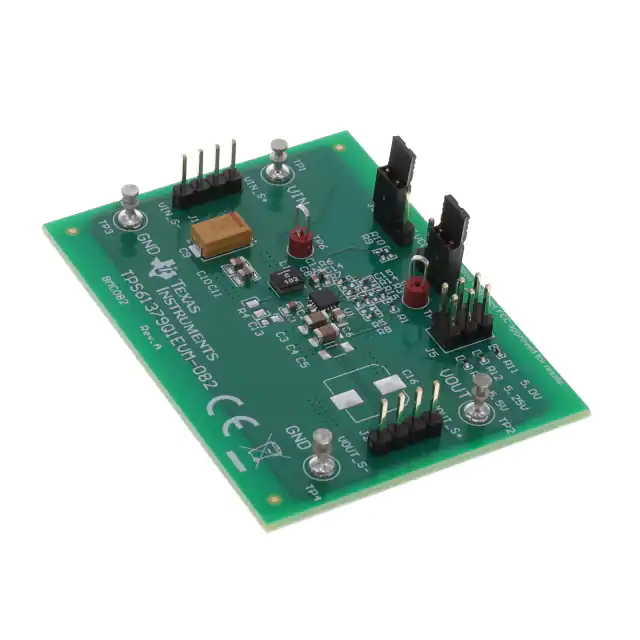

TPS61379Q1EVM-082EVAL BOARD FOR TPS61379Q1 |
4,482 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 4V ~ 18.5V | - | 2.3V ~ 14V | Boost | - | Board(s) | TPS61379-Q1 |
|

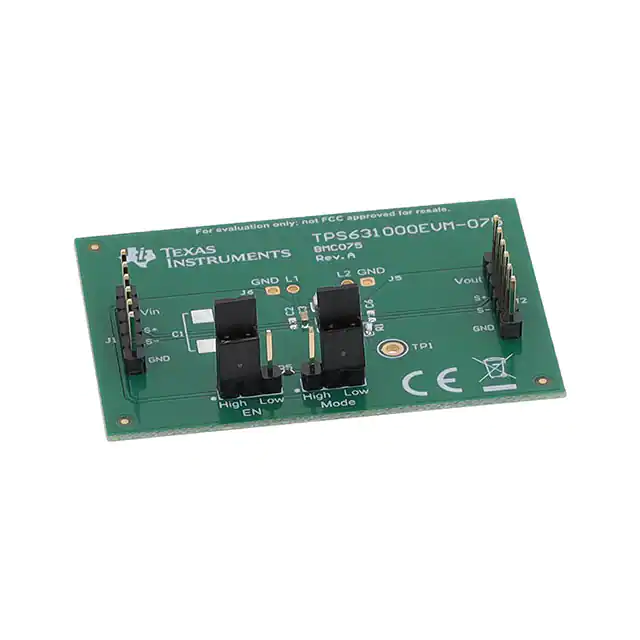

TPS631000EVM-075EVAL BOARD FOR TPS631000 |
3,729 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.2V ~ 5.3V | 2A, 1.5A | 1.5V ~ 5.5V | Buck-Boost | - | Board(s) | TPS631000 |
|

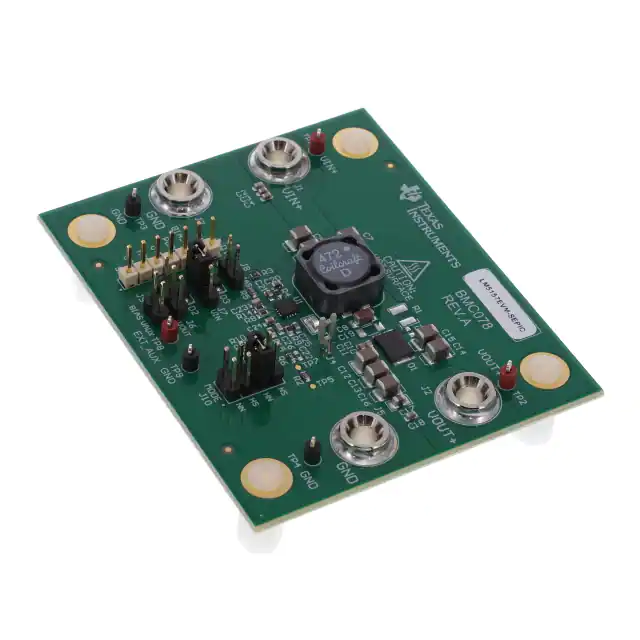

LM5157EVM-SEPICEVAL BOARD FOR LM5157 |
4,201 | 70.80 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 12 W | 12V | 1A | 4V ~ 32V | SEPIC | 2.1MHz | Board(s) | LM5157 |
