DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX15020EVKIT+EVAL BOARD FOR MAX15020 |
4,818 | 59.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 30V | 2A | 7.5V ~ 40V | Buck | - | Board(s) | MAX15020 |
|

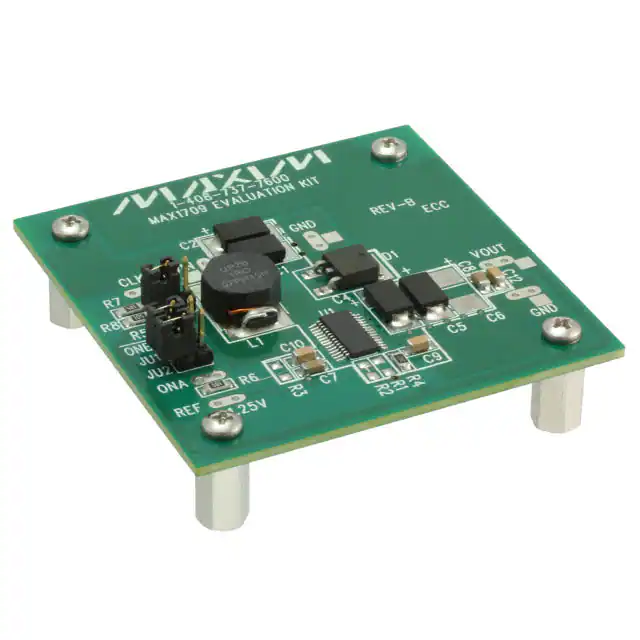

MAX1709EVKITEVAL BOARD FOR MAX1709 |
2,488 | 66.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | - | Boost | 600kHz | Board(s) | MAX1709 |
|

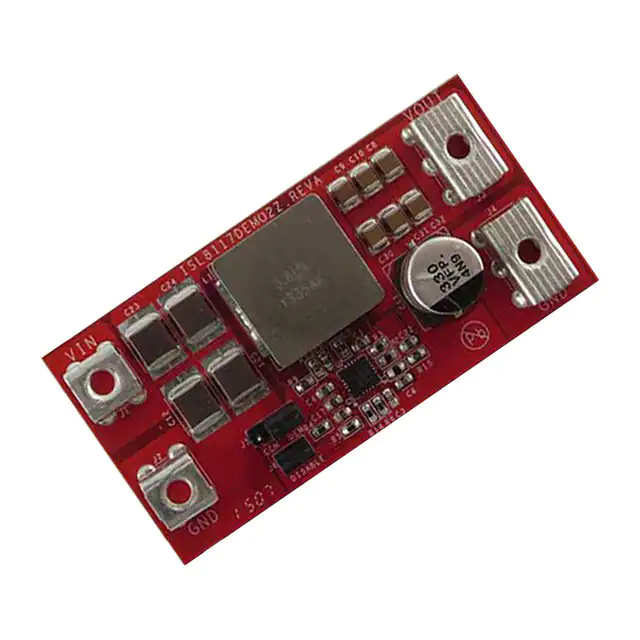

ISL8117DEMO2ZEVAL BOARD FOR ISL8117 |
1,743 | 75.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 20A | 18V ~ 60V | Buck | 200kHz | Board(s) | ISL8117 |
|

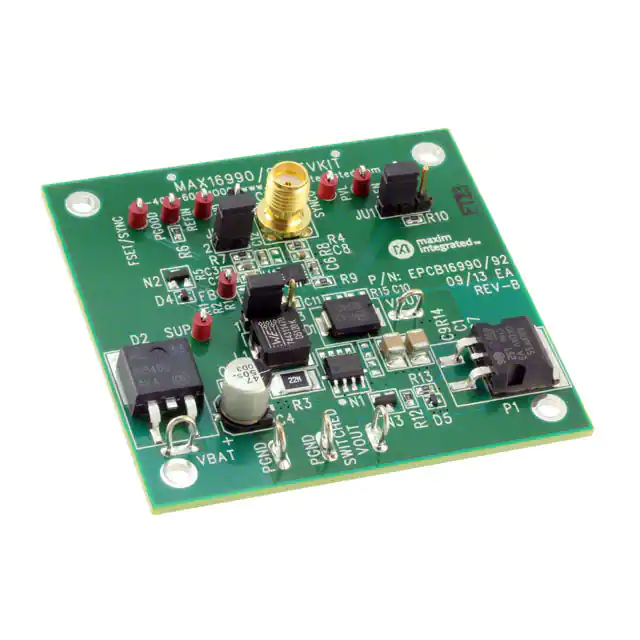

MAX16990EVKIT#EVAL BOARD FOR MAX16990 |
3,698 | 68.88 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 8V | 2A | 4.5V ~ 36V | Boost | 400kHz | Board(s) | MAX16990 |
|

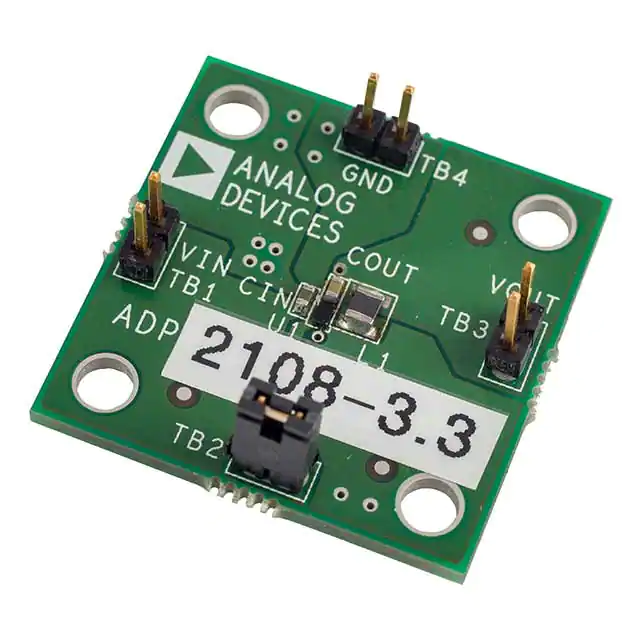

ADP2108-3.3-EVALZEVAL BOARD FOR ADP2108 |
4,986 | 66.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | ADP2108 |
|

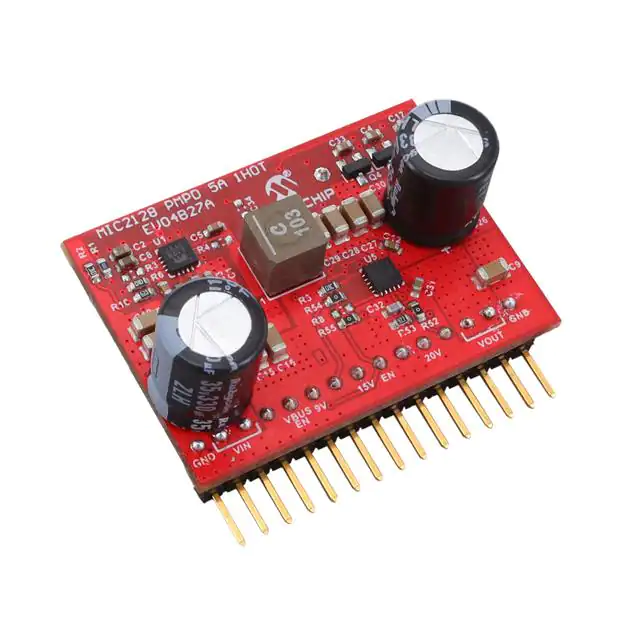

EV04B27AEVAL BOARD FOR MIC2128 UCS3205 |
4,467 | 65.00 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 100 W | 5V, 9V, 15V or 20V | 5A | 24V | Buck | - | Board(s) | MIC2128, UCS3205 |
|

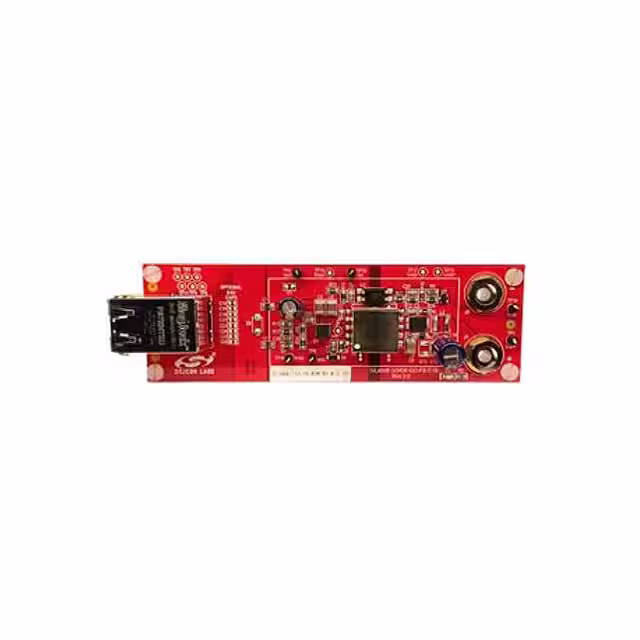

SI3404FB5V3KITEVAL BOARD FOR SI3404 |
2,377 | 73.75 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 15 W | 5V | 2.5A | 37V ~ 57V | Flyback | 220kHz | Board(s) | Si3404 |
|
MAX22258EVKIT#EVAL BOARD FOR MAX22258 |
1,487 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 24V | 200mA | 5V ~ 36V | - | - | Board(s) | MAX22258 |
|

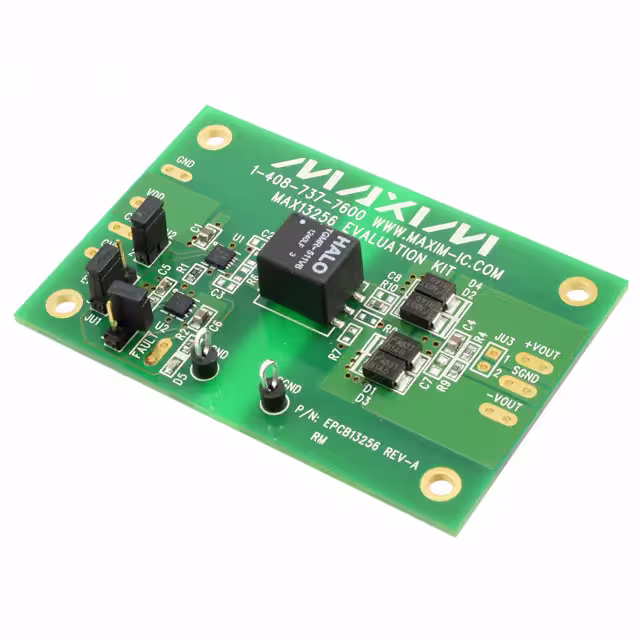

MAX13256EVKIT#EVAL BOARD FOR MAX13256 |
4,263 | 69.56 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 6.8V ~ 34.8V | 300mA | 8V ~ 36V | Full-Bridge | 425kHz | Board(s) | MAX13256 |
|

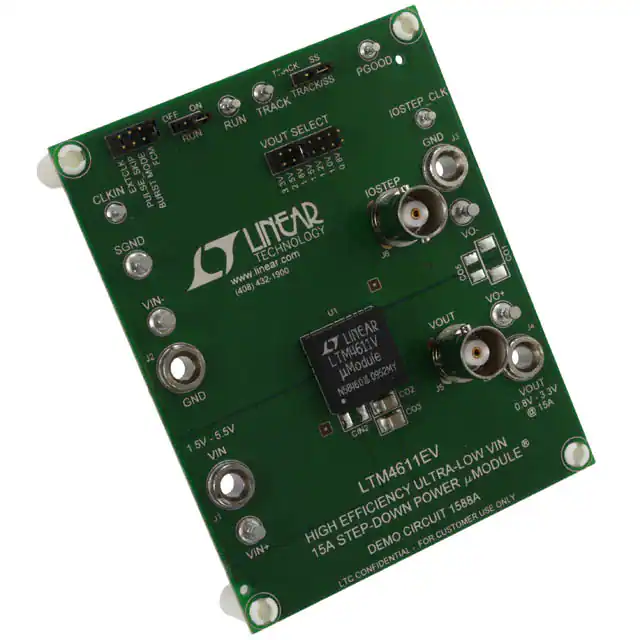

DC1588AEVAL BOARD FOR LTM4611 |
3,301 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 15A | 1.5V ~ 5.5V | Buck | 500kHz | Board(s) | LTM4611 |
|

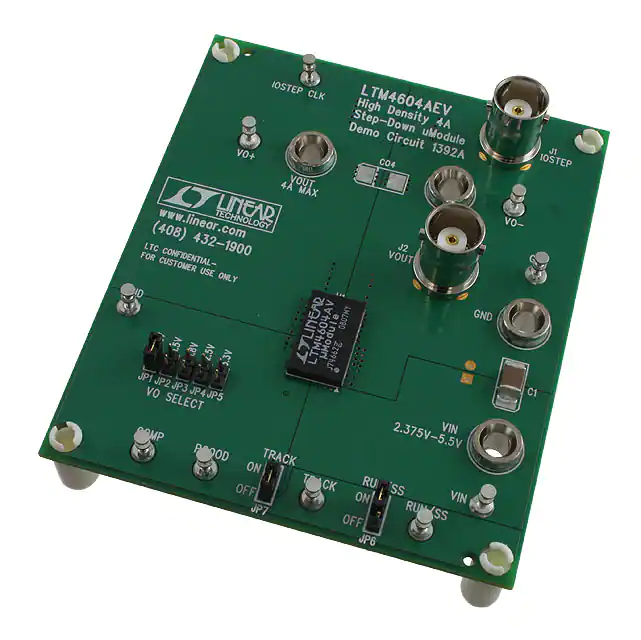

DC1392AEVAL BOARD FOR LTM4604A |
3,047 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 4A | 2.375V ~ 5.5V | Buck | 1.25MHz | Board(s) | LTM4604A |
|
DC2081A-BEVAL BOARD FOR LTM46301 |
4,330 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 36A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630-1 |
|

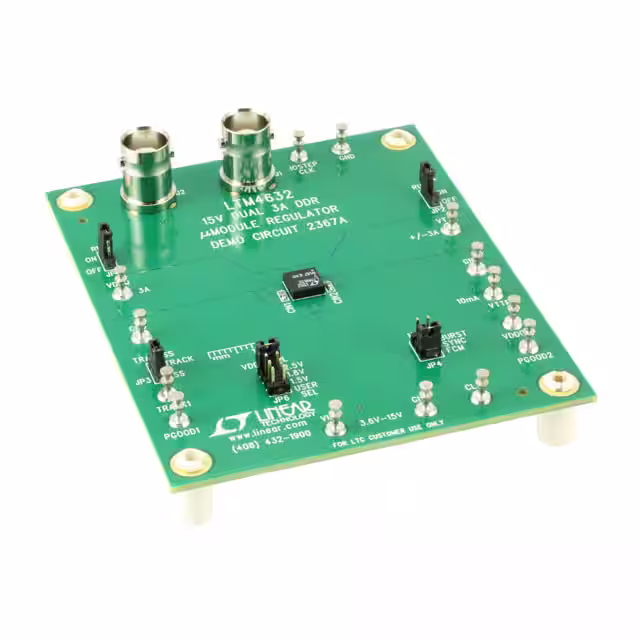

DC2367AEVAL BOARD FOR LTM4632 |
3,510 | 76.50 |
|
Datasheet |
µModule® | Box | Active | Special Purpose DC/DC, DDR Memory Supply | 3 Non-Isolated Outputs | - | - | 3A, 3A, 10mA | 3.6V ~ 15V | Buck | 1MHz | Board(s) | LTM4632 |
|
DC2569AEVAL BOARD FOR LTM4661 |
1,219 | 76.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1A | 1.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTM4661 |
|

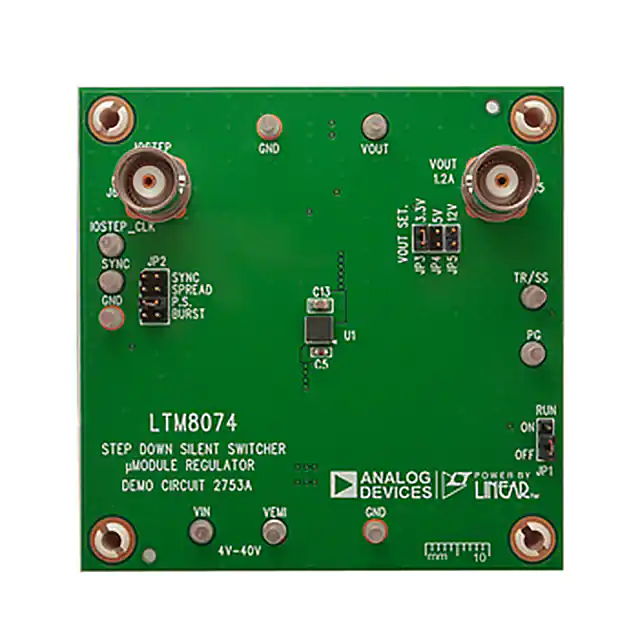

DC2753AEVAL BOARD FOR LTM8074 |
4,309 | 76.50 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 3.4V ~ 40V | Buck | 2MHz | Board(s) | LTM8074 |
|

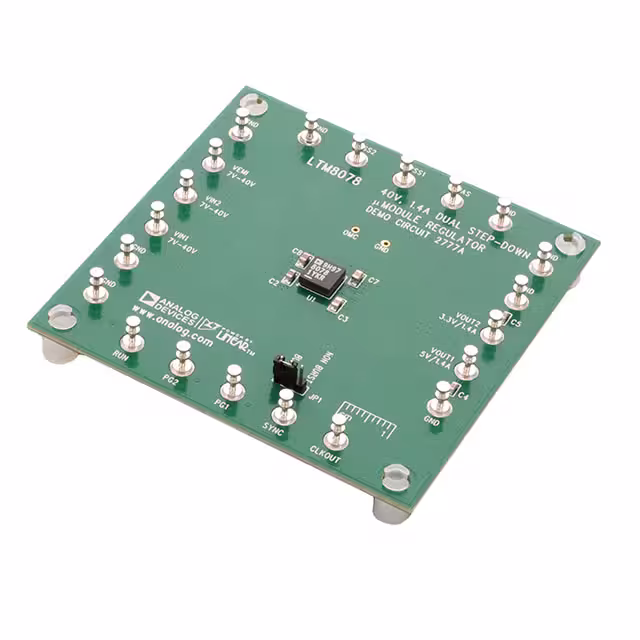

DC2777AEVAL BOARD FOR LTM8078 |
4,889 | 76.50 |
|
Datasheet |
Silent Switcher®, µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1.4A, 1.4A | 7V ~ 40V | Buck | 1.6MHz | Board(s) | LTM8078 |
|
ISL9120IRN-EVZEVAL BOARD FOR ISL9120IR |
3,560 | 77.62 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 800mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | ISL9120IR |
|

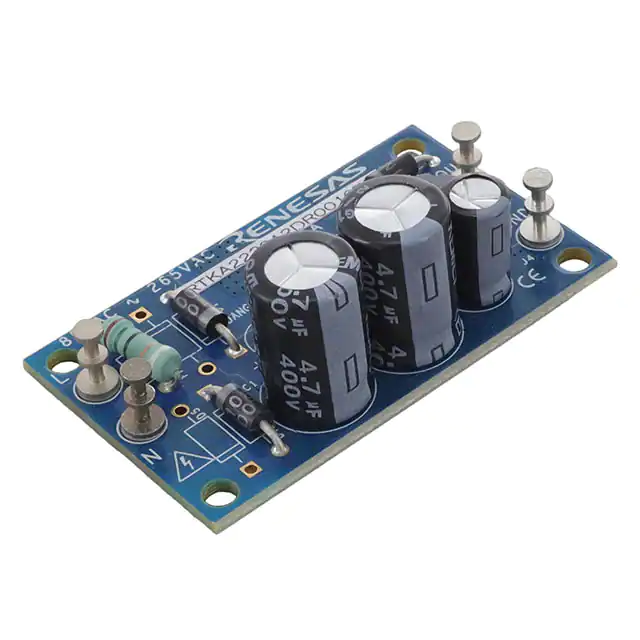

RTKA223012DR0010BUEVAL BOARD FOR RAA223012 |
2,269 | 77.62 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 750 mW | 5V | 150mA | 85 ~ 265 VAC | Buck | - | Board(s) | RAA223012 |
|

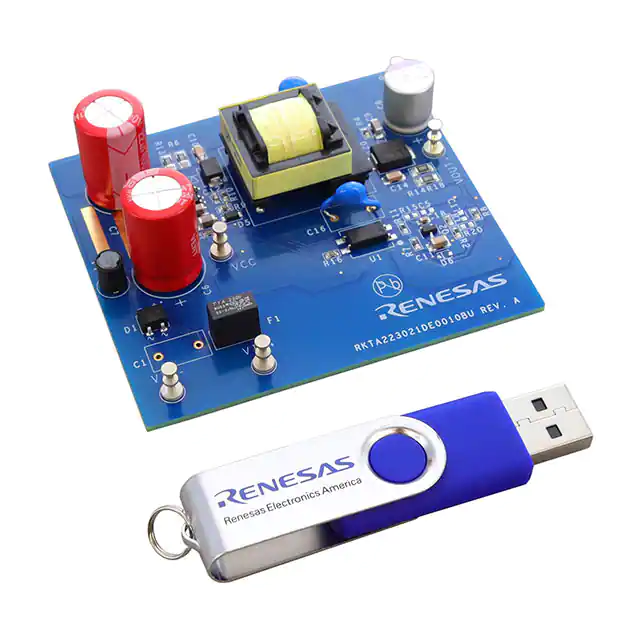

RTKA223021DE0010BUEVAL BOARD FOR RAA223021 |
3,667 | 77.62 |
|
- |
- | Bulk | Active | AC/DC Converter | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | RAA223021 |
|
|
RTKA223011DR0040BUEVAL BOARD FOR RAA223011 |
2,530 | 77.62 |
|
- |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | 24V | 200mA | 85 ~ 265 VAC | Buck | 30kHz | Board(s) | RAA223011 |
