DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AS1329C-TT_EK_STEVAL BOARD FOR AS1329C |
1,775 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 570mA | 0.85V ~ 5V | Boost | 1.2MHz | Board(s) | AS1329C |
|

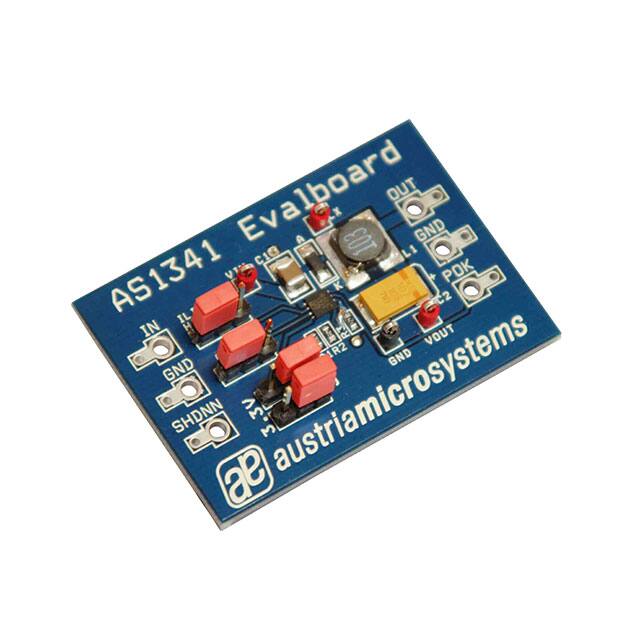

AS1341-TD_EK_STEVAL BOARD FOR AS1341 |
2,651 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 1 Non-Isolated Output | - | 3.3V | 600mA | 4.5V ~ 20V | Buck | 200kHz | Board(s) | AS1341 |
|

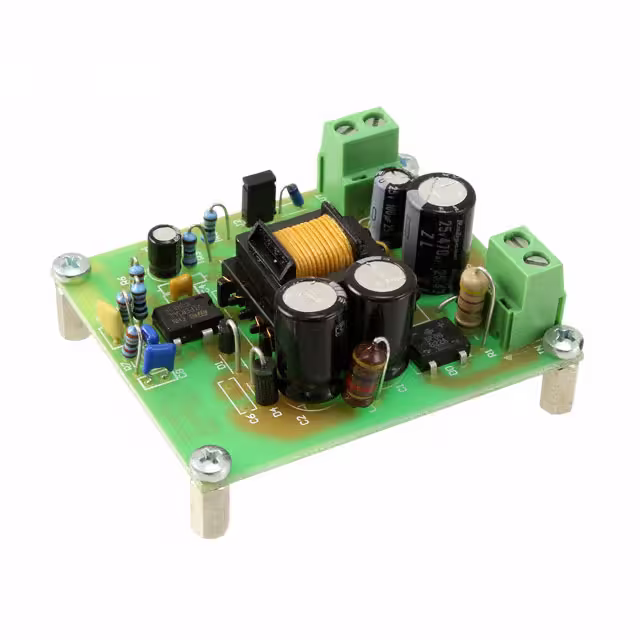

STEVAL-ISA118V1EVAL BOARD FOR VIPER16 |
2,928 | 58.75 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 6 W | - | - | - | Flyback | - | Board(s) | VIPer16 |
|

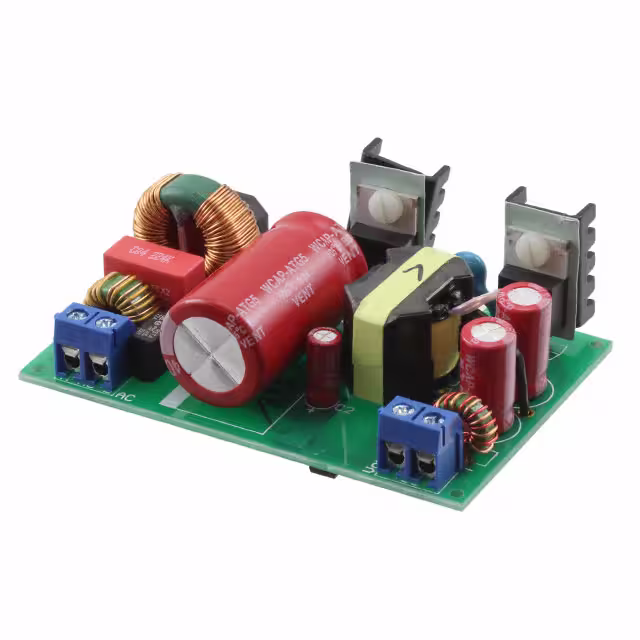

AP3301EV1EVAL BOARD FOR AP3301 |
1,688 | 58.75 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 42 W | 12V | 3.5A | 90 ~ 265 VAC | Flyback | - | Board(s) | AP3301 |
|

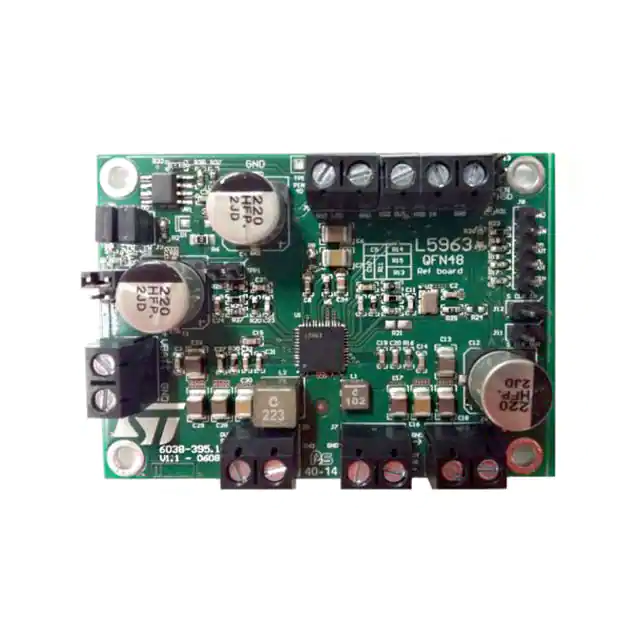

EVAL-L5963QEVAL BOARD FOR L5963 |
3,536 | 59.12 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1.2V, 3.3V, 5V | 3A, 3A, 250mA | 3.5V ~ 26V | Buck | - | Board(s) | L5963 |
|
ISL85403EVAL1ZEVAL BOARD FOR ISL85403 |
2,655 | 60.38 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2.5A | 4V ~ 40V | Buck-Boost | 500kHz | Board(s) | ISL85403 |
|
|
EVB_RTQ2105GQWT-QAEVAL BOARD FOR RTQ2105 |
3,213 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 25V | Buck | 2.1MHz | Board(s) | RTQ2105 |
|
|
EVB_RTQ2104BPGSP-QAEVAL BOARD FOR RTQ2104B |
4,676 | 0.00 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 3V ~ 36V | Buck | 2.1MHz | Board(s) | RTQ2104B |
|
STEVAL-ISA018V1EVAL BOARD FOR L6599 |
3,101 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 150 W | 24V | 6A | 85 ~ 265 VAC | Resonant | - | Board(s) | L6599 |
|

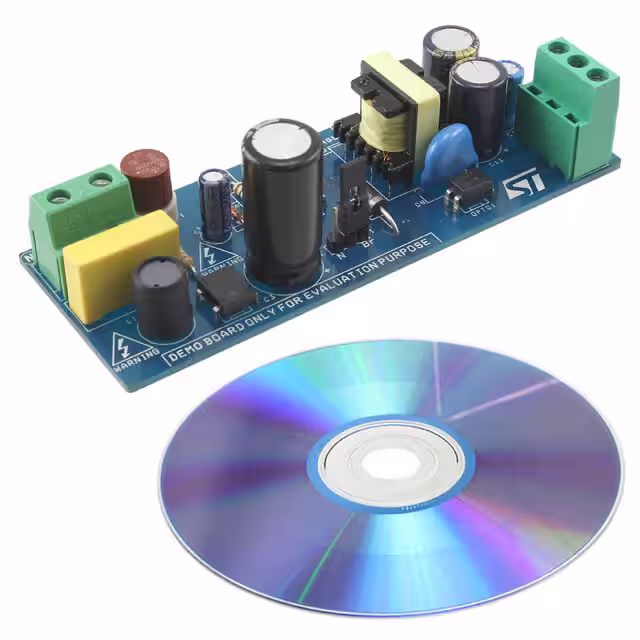

STEVAL-ISA062V1EVAL BOARD FOR VIPER17 |
4,867 | 60.00 |
|
Datasheet |
VIPer™ plus | Box | Active | AC/DC, Primary Side | 2 Isolated Outputs | 5.5 W | 5V, 12V | 500mA, 250mA | 85 ~ 264 VAC | Flyback | 115kHz | Board(s) | VIPer17 |
|
|
ADP1871-0.3-EVALZEVAL BOARD FOR ADP1871 |
2,031 | 60.00 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 2.95V ~ 20V | Buck | 300kHz | Board(s) | ADP1871 |
|
|
ADP1871-1.0-EVALZEVAL BOARD FOR ADP1871 |
2,555 | 60.00 |
|
Datasheet |
- | Box | Not For New Designs | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 2.95V ~ 20V | Buck | 1MHz | Board(s) | ADP1871 |
|
|
ADP1882-0.3-EVALZEVAL BOARD FOR ADP1882 |
1,681 | 60.00 |
|
Datasheet |
- | Bulk | Not For New Designs | DC/DC, Step Down | - | - | - | - | - | Buck | 300kHz | Board(s) | ADP1882 |
|

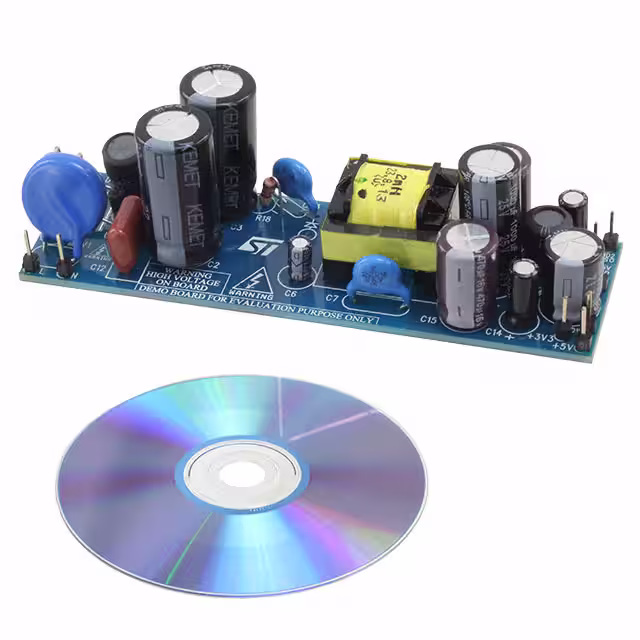

STEVAL-ISA105V1EVAL BOARD FOR ALTAIR04900 |
3,743 | 60.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 3 Isolated Outputs | - | 3.3V, 5V, 5V ,12V | 1A, 150mA, 100mA, 80mA | 90 ~ 265 VAC | Flyback | - | Board(s) | ALTAIR04-900 |
|
TPS40200EVM-001EVAL BOARD FOR TPS40200 |
3,775 | 58.80 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 8V ~ 16V | Buck | 300kHz | Board(s) | TPS40200 |
|
LM2735SD3.3EVALEVAL BOARD FOR LM2735 |
3,845 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 500mA | 3V ~ 5.5V | Boost | 1.6MHz | Board(s) | LM2735 |
|
LM2695EVALEVAL BOARD FOR LM2695 |
2,902 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 10V | 1A | 12V ~ 30V | Buck | 380kHz | Board(s) | LM2695 |
|

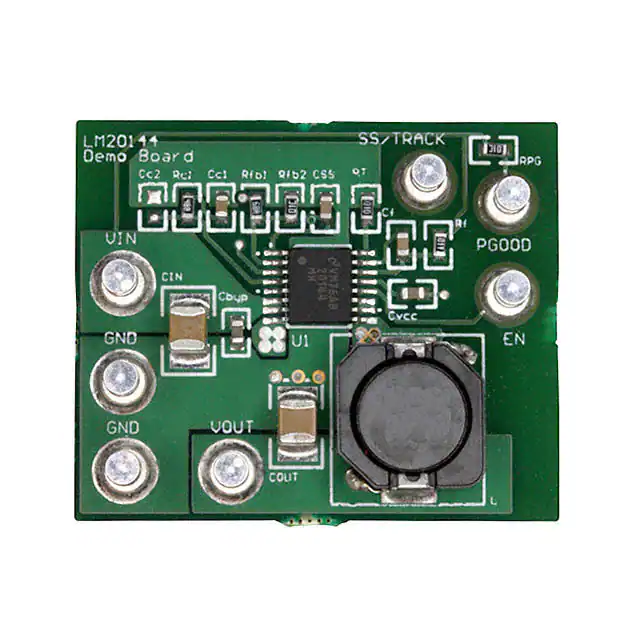

LM20144EVALEVAL BOARD FOR LM20144 |
1,974 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 2.95V ~ 5.5V | Buck | 1MHz | Board(s) | LM20144 |
|

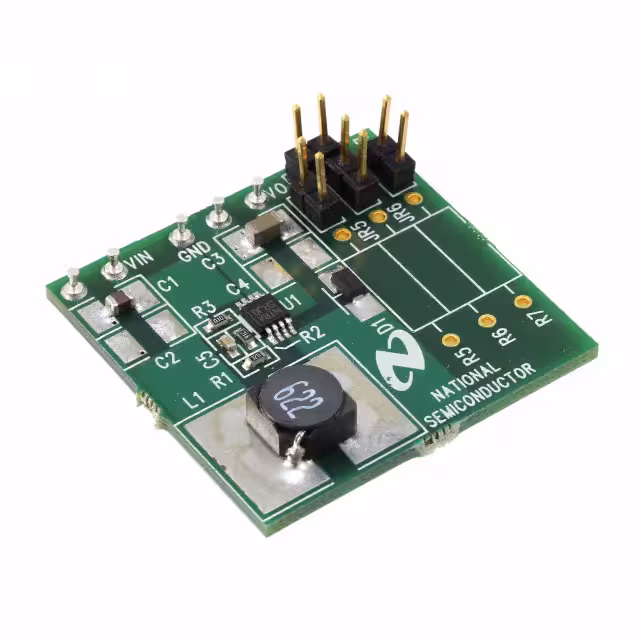

LM2735YMYEVALEVAL BOARD FOR LM2735 |
4,165 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 3V ~ 5.5V | Boost | 520kHz | Board(s) | LM2735 |
|

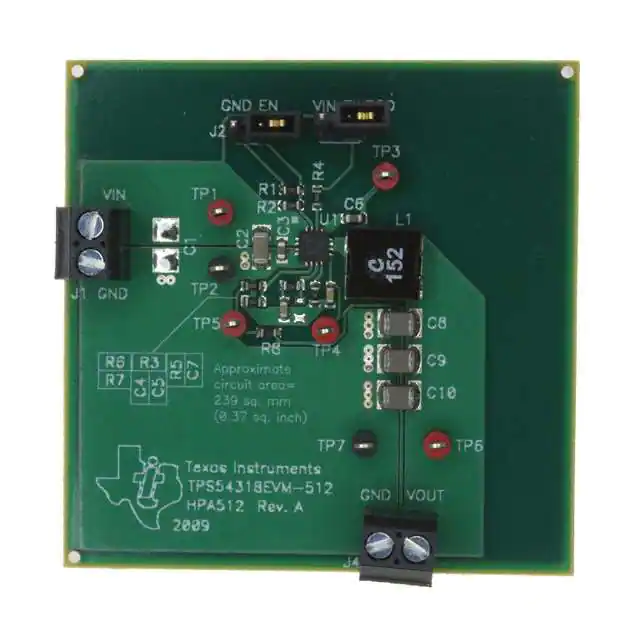

TPS54318EVM-512EVAL BOARD FOR TPS54318 |
1,906 | 57.33 |
|
Datasheet |
SWIFT™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 3V ~ 6V | Buck | 1MHz | Board(s) | TPS54318 |
