DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPS40040EVM-001EVAL BOARD FOR TPS40040 |
3,536 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 4.5V ~ 5.5V | Buck | 300kHz | Board(s) | TPS40040 |
|

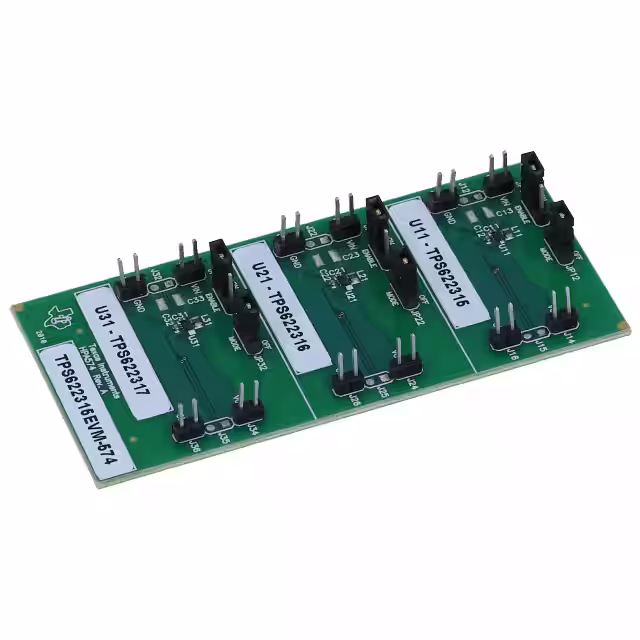

TPS622315EVM-574EVAL BOARD TPS622315 TPS622316 |
4,211 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.15V, 2.7V, 2.9V | 500mA, 500mA, 500mA | 2.05V ~ 6V | Buck | 3MHz | Board(s) | TPS622315, TPS622316, TPS622317 |
|

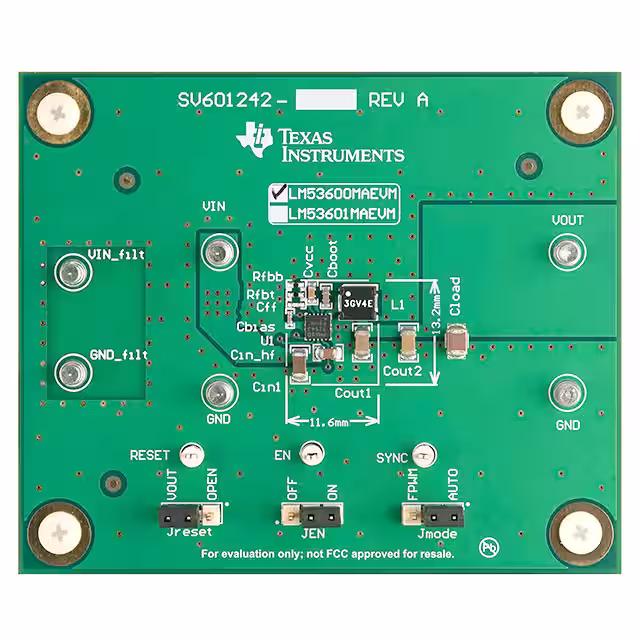

LM53600MAEVMEVAL BOARD FOR LM53600Q1 |
1,447 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.6V | 650mA | 3.8V ~ 36V | Buck | 2.1MHz | Board(s) | LM53600-Q1 |
|

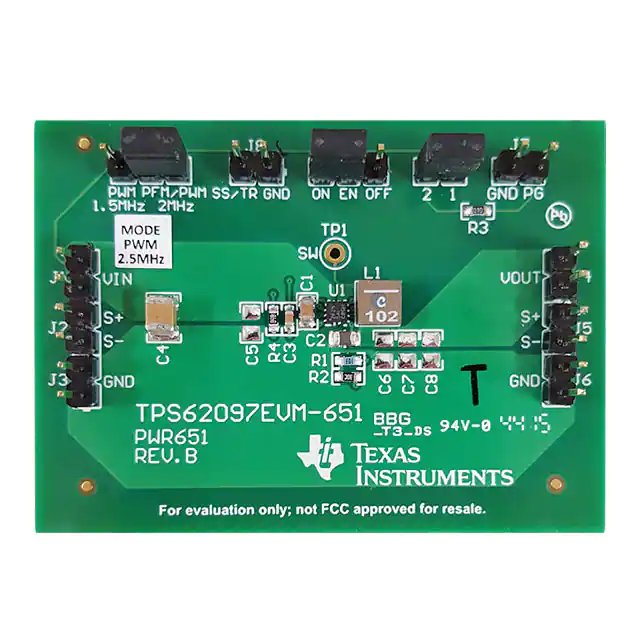

TPS62097EVM-651EVAL BOARD FOR TPS62097 |
1,602 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.5V ~ 6V | Buck | - | Board(s) | TPS62097 |
|
TPS62866EVM-051EVAL BOARD FOR TPS62866 |
2,668 | 0.00 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | TPS62866 |
|
TLV62080EVM-756EVAL BOARD FOR TLV62080 |
3,675 | 58.80 |
|
Datasheet |
DCS-Control™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 1.2A | 2.5V ~ 5.5V | Buck | - | Board(s) | TLV62080 |
|

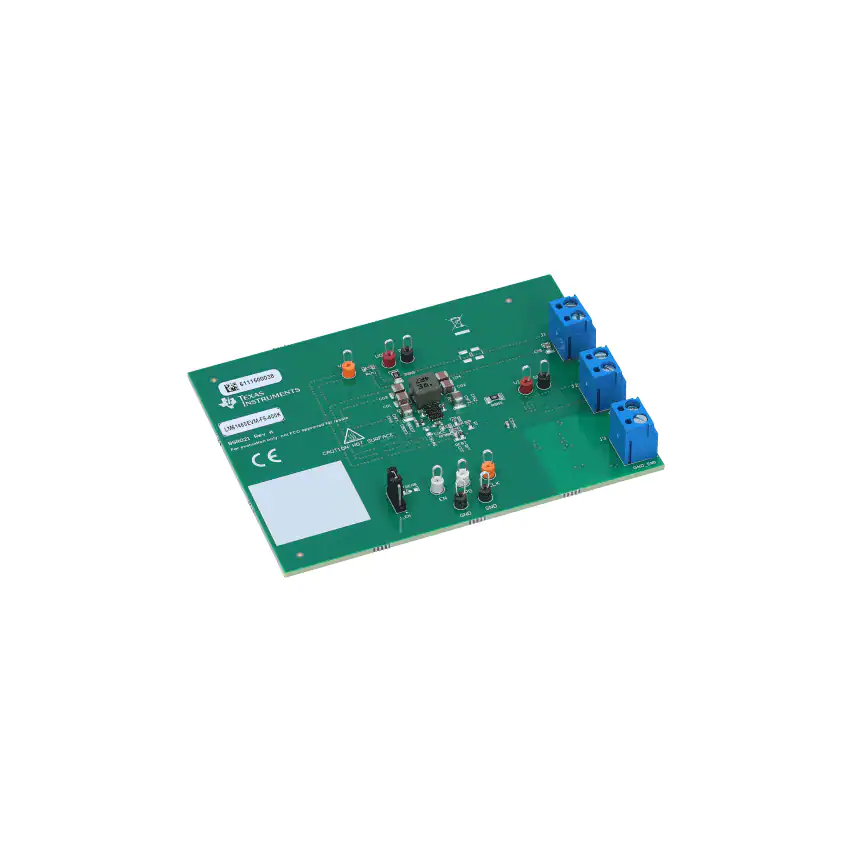

LM61460EVM-AS-400KEVAL BOARD FOR LM61460Q1 |
2,700 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 3V ~ 36V | Buck | 400kHz | Board(s) | LM61460-Q1 |
|
|
EV9218-GT-00AEVAL BOARD FOR MP9218 |
1,477 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 110mA | 2.8V ~ 5V | Boost | 1.35MHz | Board(s) | MP9218 |
|

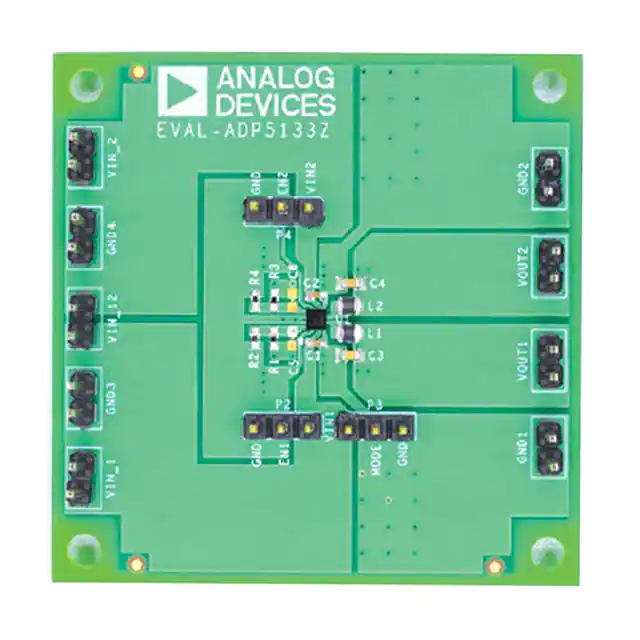

ADP5133CB-EVALZEVAL BOARD FOR ADP5133 |
2,287 | 57.68 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 800mA, 800mA | 4.2V ~ 5.5V | Buck | 3MHz | Board(s) | ADP5133 |
|
|
ISL85033EVAL2ZEVAL BOARD FOR ISL85033 |
2,003 | 58.94 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 4.5V ~ 28V | Buck | 500kHz | Board(s) | ISL85033 |
|
LM2736Y EVALEVAL BOARD FOR LM2736 |
2,156 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 750mA | 3V ~ 18V | Buck | 550kHz | Board(s) | LM2736 |
|
STEVAL-ISA035V1EVAL BOARD FOR VIPER22A |
3,773 | 0.00 |
|
Datasheet |
VIPER™ | Box | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 4.2 W | 12V | 350mA | 85 ~ 264 VAC | Buck | 60kHz | Board(s) | VIPer22A |
|
|
LM26480SQ-AAEVEVAL BOARD FOR LM26480 |
3,394 | 1.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1V, 1.2V, 1.8V, 3.3V | 1.5A, 1.5A, 300mA, 300mA | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LM26480 |
|
|
LM20333EVALEVAL BOARD FOR LM20333 |
4,654 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 25V | Buck | - | Board(s) | LM20333 |
|
178012402EVAL BOARD FOR WPMDH1152401 |
4,086 | 57.46 |
|
Datasheet |
MagI3C | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V ~ 24V | 1.5A | 6V ~ 42V | Buck | - | Board(s) | WPMDH1152401 |
|
|
AS1322A-TT_EK_STEVAL BOARD FOR AS1322 |
1,470 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.5V ~ 5V | 570mA | 1V ~ 5V | Boost | 1.2MHz | Board(s) | AS1322 |
|

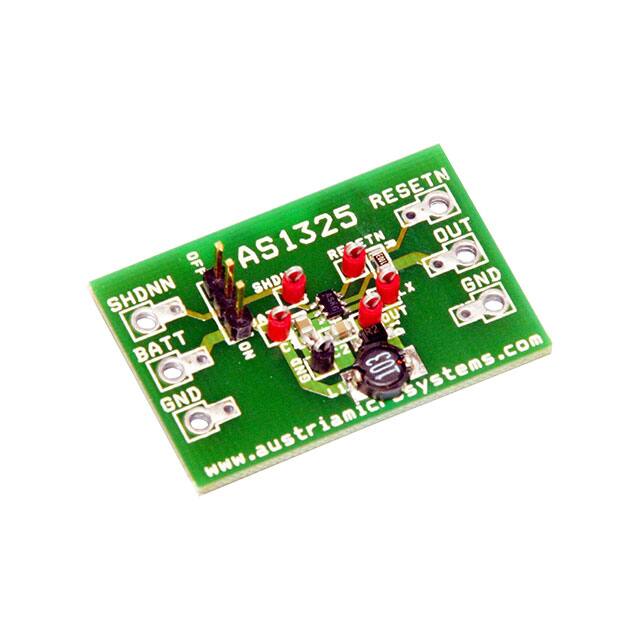

AS1325-33 EBEVAL BOARD FOR AS132533 |
2,092 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 300mA | 1.5V ~ 3.5V | Boost | 1.8MHz | Board(s) | AS1325-33 |
|
|
AS1325-50 EBEVAL BOARD FOR AS132550 |
1,051 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 185mA | 1.5V ~ 5.5V | Boost | 1.8MHz | Board(s) | AS1325-50 |
|
AS1329A EBEVAL BOARD FOR AS1329A |
1,979 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 570mA | 0.85V ~ 5V | Boost | 1.2MHz | Board(s) | AS1329A |
|
|
AS1329B-TT_EK_STEVAL BOARD FOR AS1329B |
1,742 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 570mA | 0.85V ~ 5V | Boost | 1.2MHz | Board(s) | AS1329B |
