DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

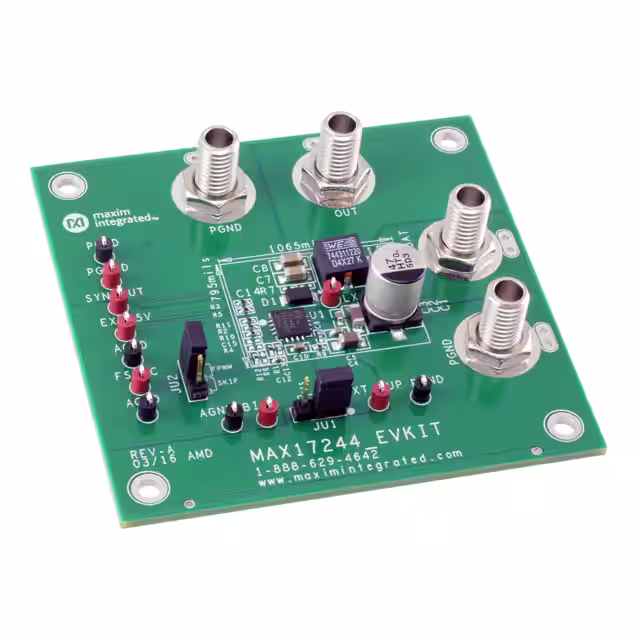

MAX17244EVKIT#EVAL BOARD FOR MAX17244 |
4,304 | 51.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 6V ~ 36V | Buck | - | Board(s) | MAX17244 |
|
MAX17231EVKIT#EVAL BOARD FOR MAX17231 |
2,744 | 51.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 5A, 5A | 3.5V ~ 36V | Buck | - | Board(s) | MAX17231 |
|
TLS41255VBOARDTOBO1EVAL BOARD FOR TLS4125D0EPV50 |
3,579 | 55.00 |
|
Datasheet |
OPTIREG™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 3.7V ~ 35V | Buck | - | Board(s) | TLS4125D0EPV50 |
|

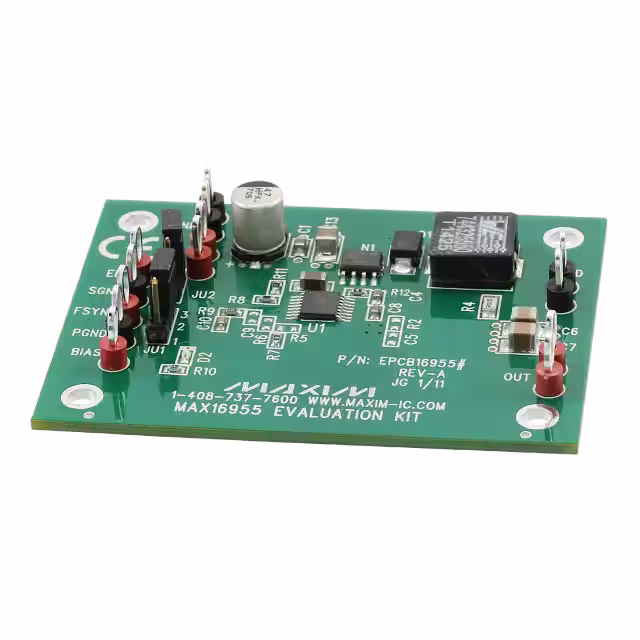

MAX16955EVKIT#EVAL BOARD FOR MAX16955 |
2,585 | 55.65 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 6V ~ 36V | Buck | 400kHz | Board(s) | MAX16955 |
|
|
SECO-PWRNCP6922C-R0-GEVBEVAL BOARD FOR NCP6922C |
4,661 | 55.83 |
|
- |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 0.6V ~ 3.3V | 800mA, 800mA, 150mA, 150mA | 2.3V ~ 5.5V | Buck | 3MHz | Board(s) | NCP6922C |
|

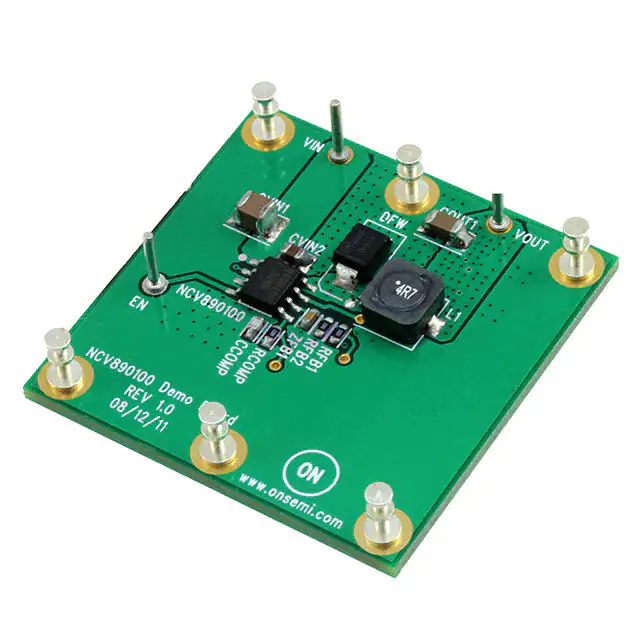

NV890100PDR2GEVBEVAL BOARD FOR NV890100 |
3,012 | 56.25 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.2A | 4.5V ~ 18V | Buck | 2MHz | Board(s) | NV890100 |
|

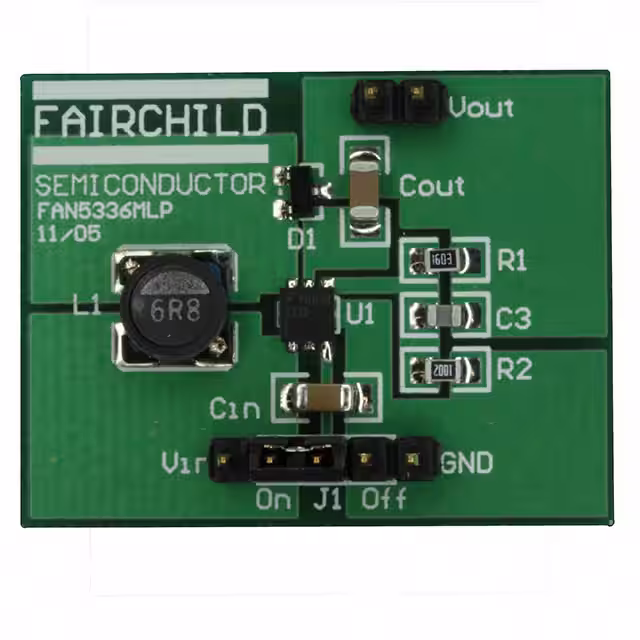

FEB173EVAL BOARD FOR FAN5336 |
3,570 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 9V ~ 33V | 1.5A | 2.7V ~ 5.5V | Boost | 1.5MHz | Board(s) | FAN5336 |
|
|
STEVAL-ISV004V2EVAL BOARD FOR SPV1020 |
2,868 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 40V | 4A | 6.5V ~ 40V | Boost | 100kHz | Board(s) | SPV1020 |
|
|
IRDC3710-DFEVAL BOARD FOR IR3710 |
2,632 | 56.25 |
|
Datasheet |
SupIRBuck® | Tube | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 24A | 8V ~ 19V | Buck | 300kHz | Board(s) | IR3710 |
|
|
IRDC3710-QFNEVAL BOARD FOR IR3710 |
3,555 | 56.25 |
|
Datasheet |
SupIRBuck® | Tube | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 20A | 8V ~ 19V | Buck | 300kHz | Board(s) | IR3710 |
|

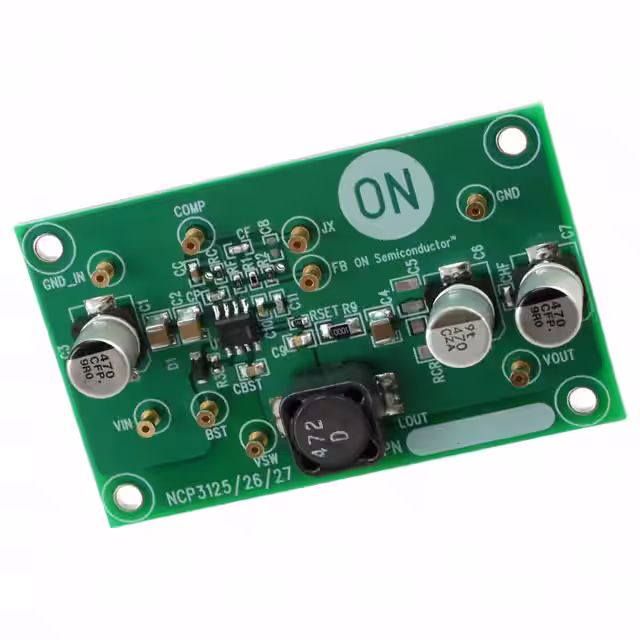

NCP3125AGEVBEVAL BOARD FOR NCP3125A |
4,880 | 0.00 |
|
- |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 4.5V ~ 13.2V | Buck | 350kHz | Board(s) | NCP3125A |
|

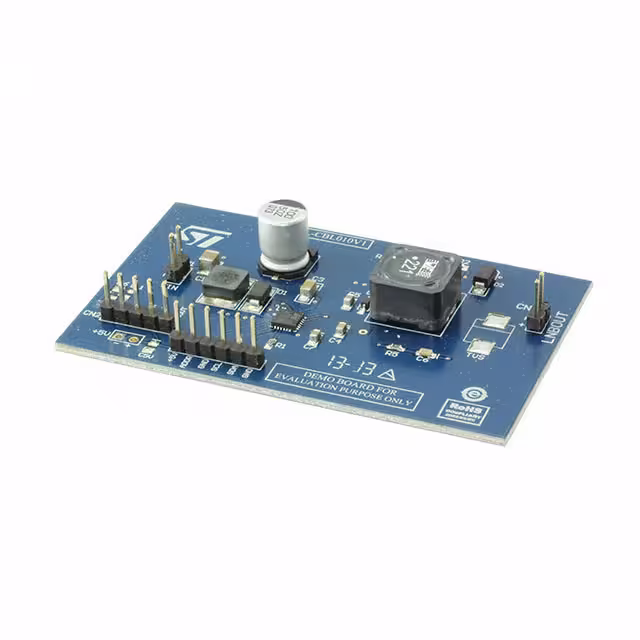

STEVAL-CBL010V1EVAL BOARD FOR LNBH25 |
4,734 | 56.25 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | - | - | 8V ~ 16V | Boost | - | Board(s) | LNBH25 |
|
|
MAX17682EVKITB#EVAL BOARD FOR MAX17682 |
4,032 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 24V | 400mA | 17V ~ 36V | Buck | 250kHz | Board(s) | MAX17682 |
|
|
MAX17597FBEVKIT#EVAL BOARD FOR MAX17595 |
4,958 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Isolated Output | 20 W | 4.7V ~ 5.1V | 833mA | 18V ~ 36V | Boost, Flyback | 200kHz | Board(s) | MAX17595 |
|

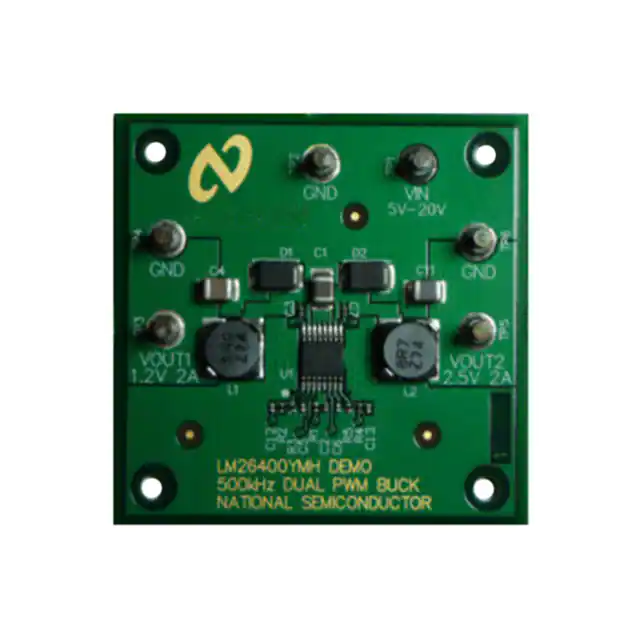

LM26400YEVALEVAL BOARD FOR LM26400Y |
3,693 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 2A, 2A | 5V ~ 20V | Buck | 500kHz | Board(s) | LM26400Y |
|
LM3674MF-1.5EVEVAL BOARD FOR LM3674 |
2,305 | 54.76 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 600mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | LM3674 |
|
PI3542-00-EVAL1EVAL BOARD FOR PI354200 |
2,594 | 58.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 2.5V | 10A | 36V ~ 60V | Buck-Boost | 400kHz | Board(s) | PI3542-00 |
|
|
PI3543-00-EVAL1EVAL BOARD FOR PI354300 |
4,891 | 58.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 10A | 36V ~ 60V | Buck-Boost | 400kHz | Board(s) | PI3543-00 |
|
STEVAL-VP26K01FEVAL BOARD FOR VIPER267KDTR |
3,142 | 57.50 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 3 Isolated Outputs | - | 3.3V, 5V, 15V | 100mA, 60mA | 90 ~ 264 VAC | Flyback | 60kHz | Board(s) | VIPER267KDTR |
|

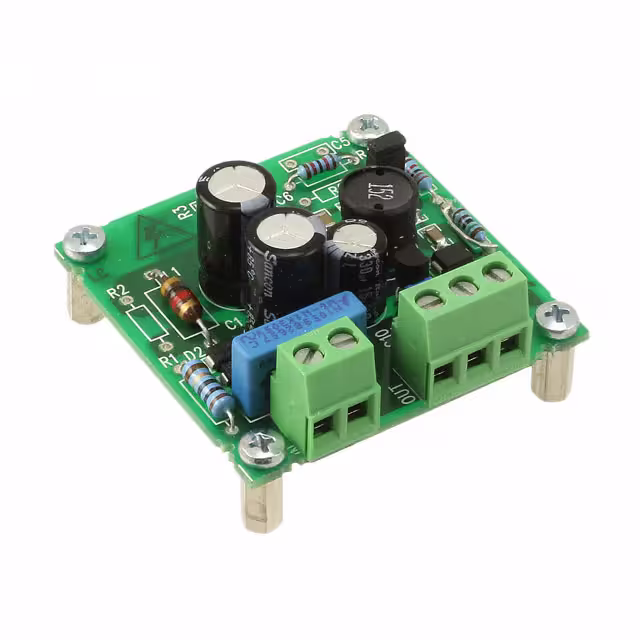

STEVAL-ISA119V1EVAL BOARD FOR VIPER16 |
1,490 | 57.50 |
|
Datasheet |
VIPER™ | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 1.5 W | 5V, 12V | 100mA, 50mA | 90 ~ 265 VAC | Buck | 60kHz | Board(s) | VIPer16 |
