DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

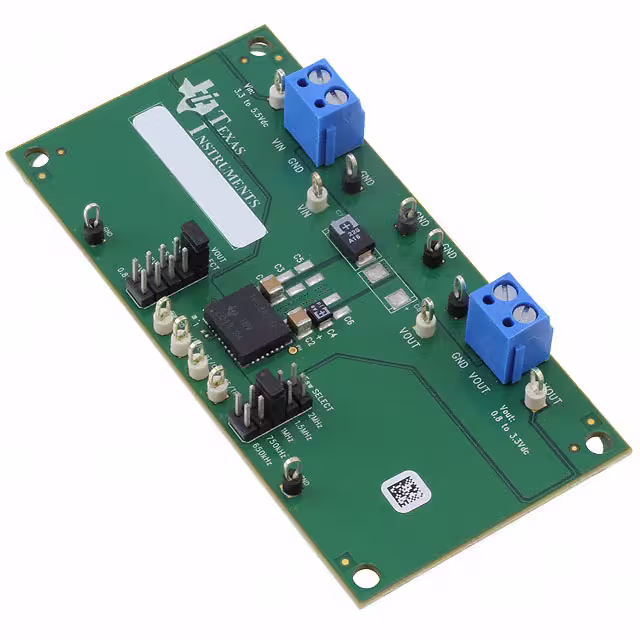

LMZ30602EVM-002EVAL BOARD FOR LMZ30602 |
1,386 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.8V, 2.5V, or 3.3V | 2A | 2.95V ~ 6V | Buck | - | Board(s) | LMZ30602 |
|
LMZ30604EVM-001EVAL BOARD FOR LMZ30604 |
3,437 | 0.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1.2V, 1.8V, 2.5V, or 3.3V | 4A | 2.95V ~ 6V | Buck | - | Board(s) | LMZ30604 |
|
TPS62737EVM-560EVAL BOARD FOR TPS62737 |
4,026 | 58.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 200mA | 2V ~ 5.5V | Buck | - | Board(s) | TPS62737 |
|

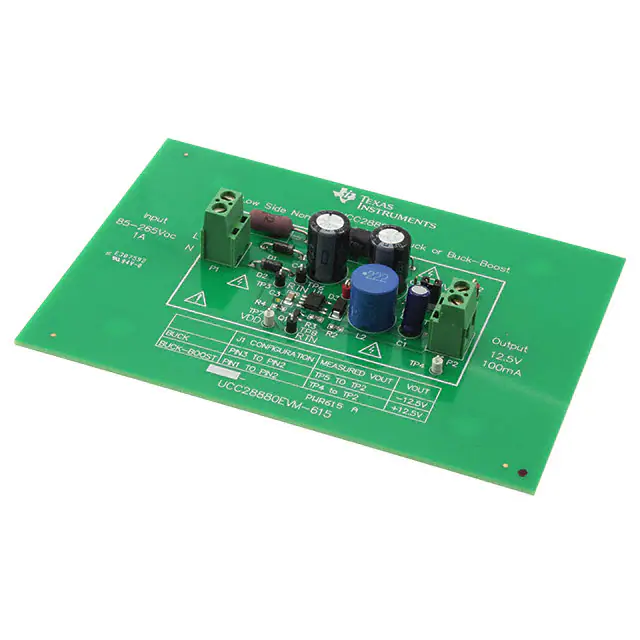

UCC28880EVM-615EVAL BOARD FOR UCC28880 |
4,819 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 1.25 W | 12.5V or -12.5V | 100mA | 85 ~ 265 VAC | - | - | Board(s) | UCC28880 |
|
UCC28880EVM-616EVAL BOARD FOR UCC28880 |
3,018 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Non-Isolated | 1 Non-Isolated Output | 1.3 W | 5V or 13V | 100mA | 85 ~ 265 VAC | - | - | Board(s) | UCC28880 |
|
LM46001PWPEVMEVAL BOARD FOR LM46001 |
3,635 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 3.5V ~ 60V | Buck | 500kHz | Board(s) | LM46001 |
|

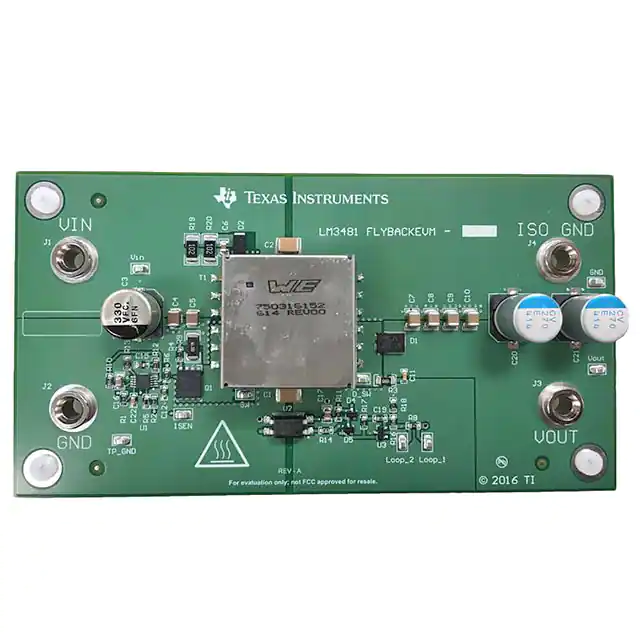

LM3481-FLYBACKEVMEVAL BOARD FOR LM3481 |
4,120 | 58.80 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Up | 1 Isolated Output | - | 12V | 2A | - | Flyback | 130kHz | Board(s) | LM3481 |
|

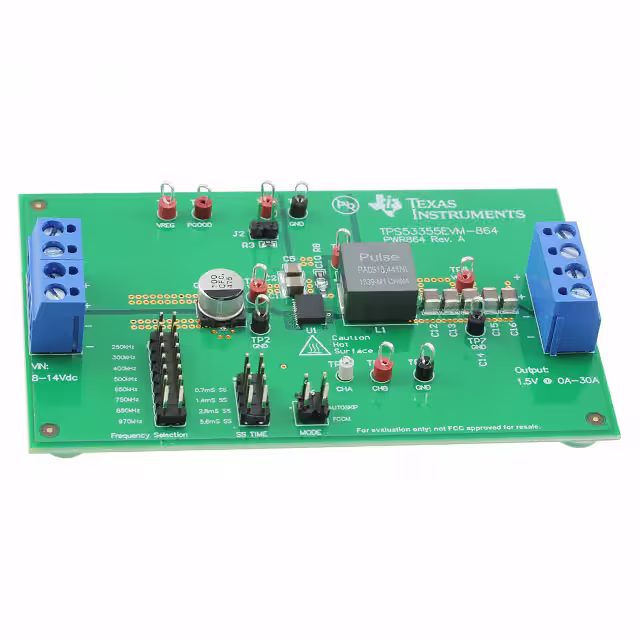

TPS53355EVM-864EVAL BOARD FOR TPS53355 |
4,697 | 0.00 |
|
Datasheet |
D-CAP™, Eco-Mode™, SWIFT™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 30A | 1.5V ~ 15V | Buck | - | Board(s) | TPS53355 |
|

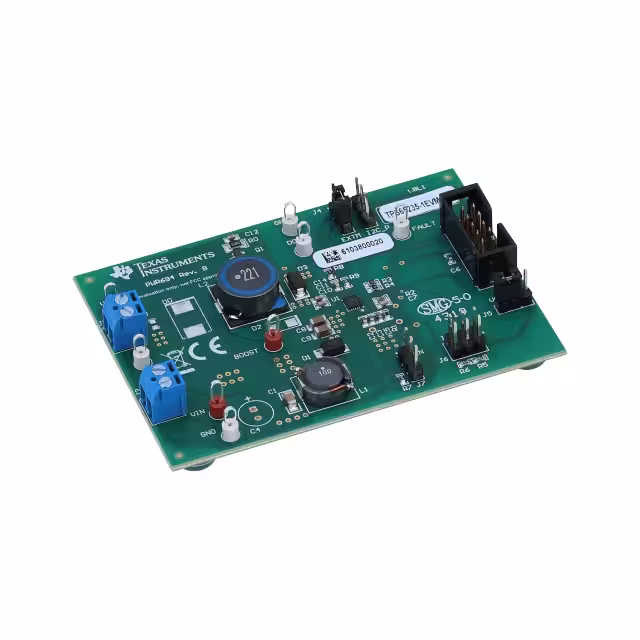

TPS65235-1EVM-694EVAL BOARD FOR TPS652351 |
2,124 | 58.80 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose DC/DC, LNB | 1 Non-Isolated Output | - | 11V ~ 20V | 1A | 4.5V ~ 16V | Boost | - | Board(s) | TPS65235-1 |
|
TPSM8287A12BBSEVMEVAL BOARD FOR TPSM8287A12 |
3,531 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 3.35V | 12A | 2.7V ~ 6V | Buck | - | Board(s) | TPSM8287A12 |
|
|
ISL9106EVAL1ZEVAL BOARD FOR ISL9106 |
2,281 | 61.49 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V | 1.2A | 2.7V ~ 5.5V | Buck | 1.6MHz | Board(s) | ISL9106 |
|
|
ISL85403EVAL2ZEVAL BOARD FOR ISL85403 |
3,813 | 61.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1A | 8V ~ 40V | Buck-Boost | 500kHz | Board(s) | ISL85403 |
|

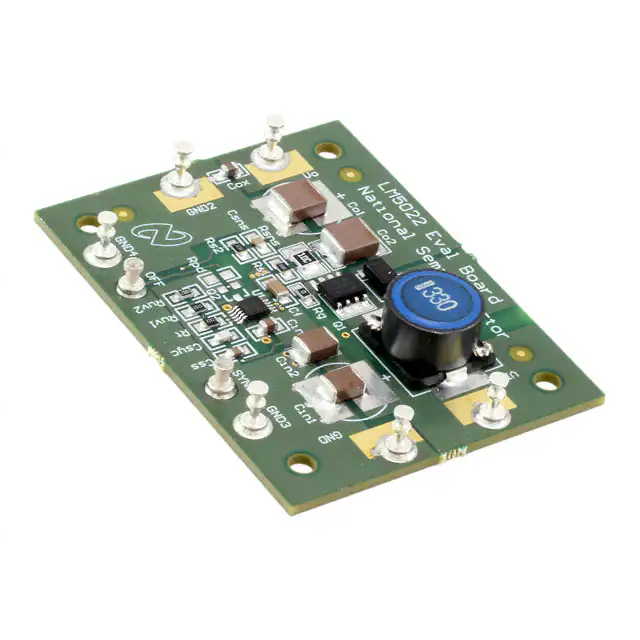

LM5022EVALEVAL BOARD FOR LM5022 |
3,222 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 40V | 500mA | 9V ~ 16V | Boost | 500kHz | Board(s) | LM5022 |
|
|
MAX8566EVKIT+EVAL BOARD FOR MAX8566 |
3,673 | 72.08 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.132V | 10A | 2.3V ~ 3.6V | Buck | - | Board(s) | MAX8566 |
|
|
ILDC11X-01EVALUATION KITS |
3,699 | 0.00 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | - |
|

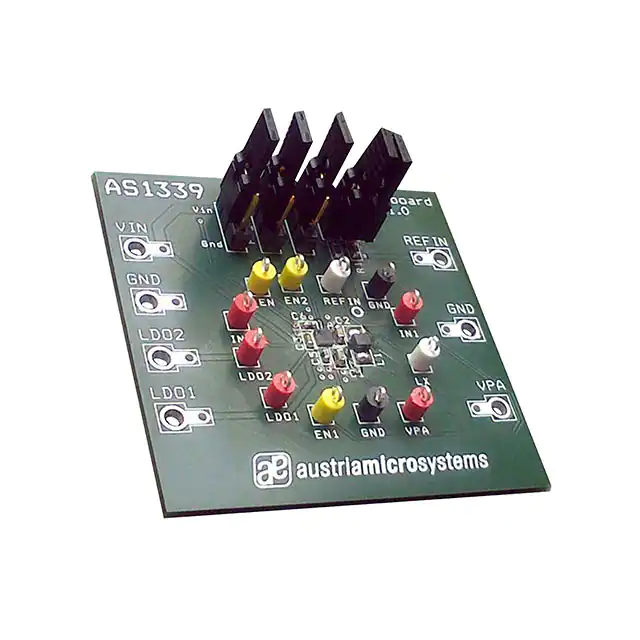

AS1339 EBEVAL BOARD FOR AS1339 |
2,476 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 0.8 ~ 3.75V, 2.85V, 2.85V | 650mA | 2.7V ~ 5.5V | Buck | 2MHz | Board(s) | AS1339 |
|
AS3709 EVAL BOARDEVAL BOARD FOR AS3709 |
4,284 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 7 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck | - | Board(s) | AS3709 |
|
|
TPSM83102EVM-125EVAL BOARD FOR TPSM83102 |
4,991 | 0.00 |
|
- |
- | - | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 1V ~ 5.5V | 1A | 1.6V ~ 5.5V | Buck-Boost | 2MHz | Board(s) | TPSM83102 |
|
|
ISL6740EVAL3ZEVAL BOARD FOR ISL6740 |
3,104 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 7A, 4A, 1.5A | 36V ~ 72V | Buck | - | Board(s) | ISL6740 |
|
|
ISL8013EVAL2ZEVAL BOARD FOR ISL8013 |
3,546 | 62.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8013 |
