DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

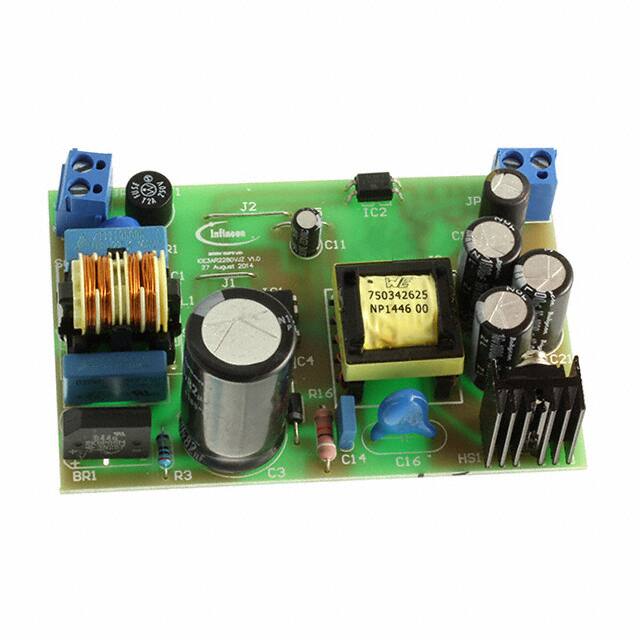

EVAL3AR2280VJZTOBO1EVAL BOARD FOR ICE3AR2280VJZ |
3,081 | 64.71 |
|
Datasheet |
CoolMOS™, CoolSET™F3R80 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE3AR2280VJZ |
|
LM5071EVALEVAL BOARD FOR LM5071 |
3,201 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 10.89 W | 3.3V | 3.3A | 38V ~ 60V | Flyback | 250kHz | Board(s) | LM5071 |
|

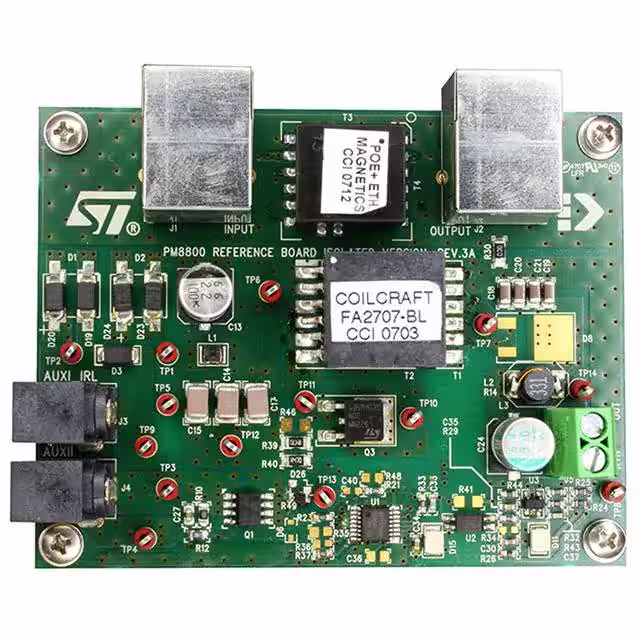

EVALPM8800A-HPEVAL BOARD FOR PM8800A |
3,775 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 20 W | 5V | 4A | 30V ~ 60V | Flyback | 250kHz | Board(s) | PM8800A |
|

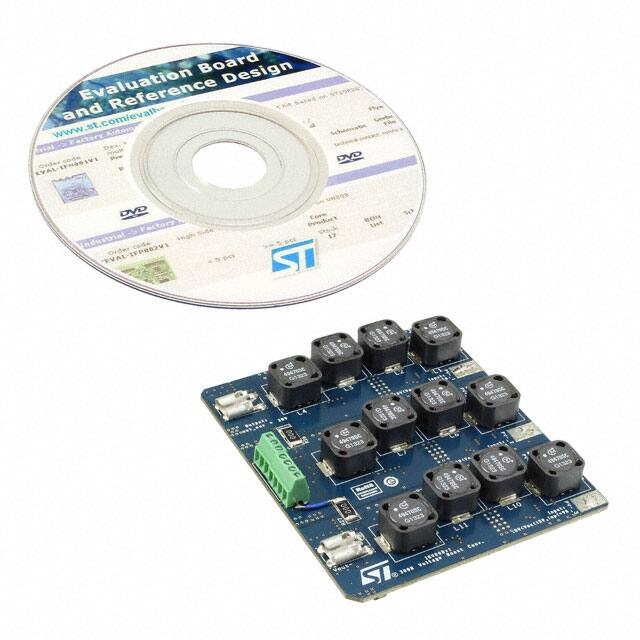

STEVAL-ISV008V1EVAL BOARD FOR SPV1020 |
4,275 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | Special Purpose, MPPT, Solar | 3 Isolated Outputs | 300 W | - | - | - | Boost | 100kHz | Board(s) | SPV1020 |
|
|
DC2182AEVAL BOARD FOR LTC3371 |
1,051 | 133.75 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V | 2A, 2A, 2A, 2A | 2.25V ~ 5.5V | Buck | 3MHz | Board(s) | LTC3371 |
|
|
FEBFAN6754WAMR_CP450V1EVAL BOARD FOR FAN6204 FAN6754 |
3,428 | 0.00 |
|
- |
- | Box | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 65 W | 19V | 3.42A | 90 ~ 264 VAC | Flyback | - | Board(s) | FAN6204, FAN6754 |
|
|
ISL8024DEMO2ZEVAL BOARD FOR ISL8024 |
4,991 | 177.02 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | ISL8024 |
|

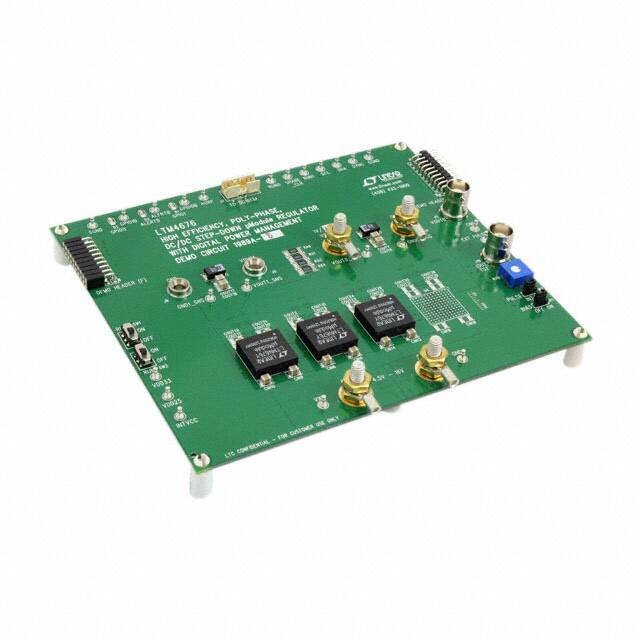

DC1989A-BEVAL BOARD FOR LTM4676 |
1,668 | 0.00 |
|
Datasheet |
µModule® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 75A | 4.5V ~ 16V | Buck | 350kHz | Board(s) | LTM4676 |
|

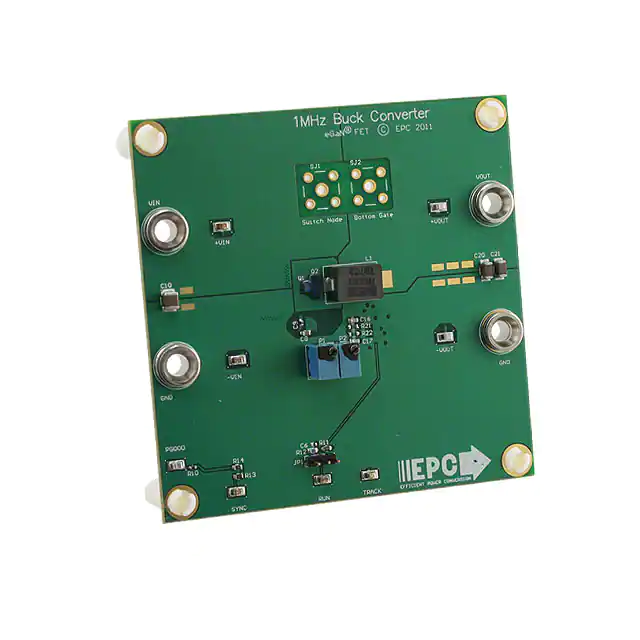

EPC9101EVAL BOARD FOR EPC2014 EPC2015 |
4,368 | 0.00 |
|
Datasheet |
eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 18A | 8V ~ 19V | Buck | 1MHz | Board(s) | EPC2014, EPC2015 |
|

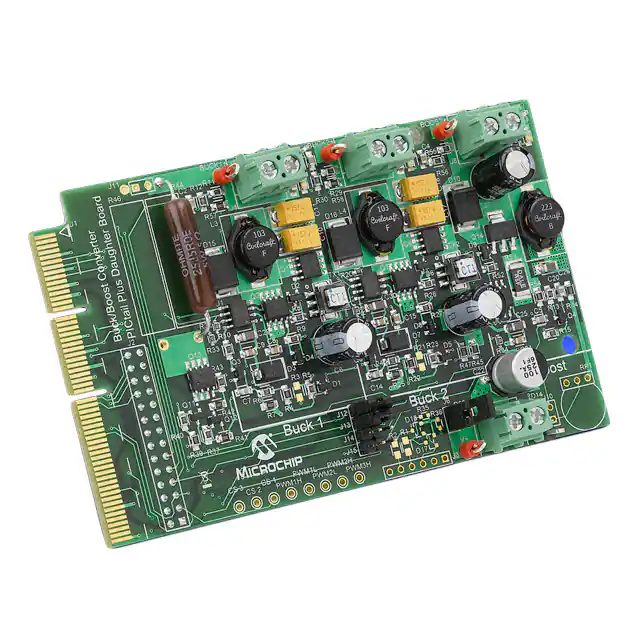

AC164133EVAL BOARD PICTAIL PLUS BOARD |
3,836 | 117.79 |
|
Datasheet |
PICtail™ Plus | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | - | - | 7V ~ 15V | Buck-Boost | - | Board(s) | PICtail™ Plus Board |
|

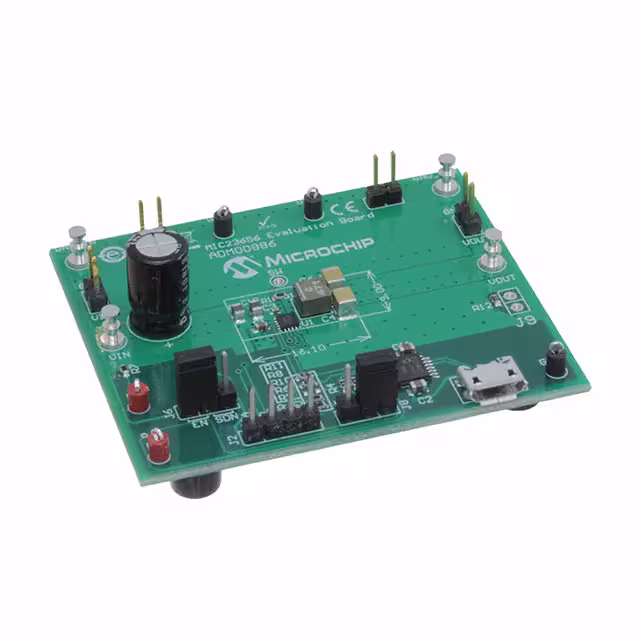

ADM00886EVAL BOARD FOR MIC23656 |
1,077 | 117.79 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 3.84V | 6A | 2.4V ~ 5.5V | Buck | - | Board(s) | MIC23656 |
|
|
IRDC3843AEVAL BOARD FOR IR3843A |
4,878 | 0.00 |
|
Datasheet |
SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 12V | Buck | 600kHz | Board(s) | IR3843A |
|
|
IRDC3842AEVAL BOARD FOR IR3842A |
4,158 | 0.00 |
|
Datasheet |
SupIRBuck® | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 12V | Buck | 600kHz | Board(s) | IR3842A |
|
|
RTKA211605DR0010BUEVAL BOARD FOR RAA211605 |
1,157 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 60V | Buck | 450kHz | Board(s) | RAA211605 |
|
|
EVM82504-BH-03AEVAL BOARD FOR MPM82504 |
4,313 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.85V | 200A | 10.8V ~ 13.2V | Buck | 600kHz | Board(s) | MPM82504 |
|

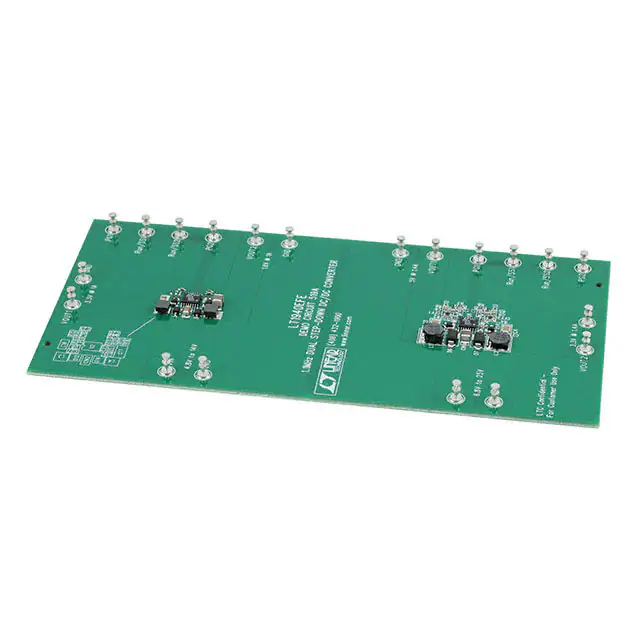

DC519AEVAL BOARD FOR LT1940 |
4,162 | 137.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.8V, 3.3V, 3.3V, 5V | 1.4A, 1.4A, 1A, 1A | 4.8V ~ 14V, 6.8V ~ 25V | Buck | 1.1MHz | Board(s) | LT1940 |
|
|
ISL8105AEVAL1ZEVAL BOARD FOR ISL8105A |
1,092 | 137.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 15A | 4.5V ~ 14.4V | Buck | 600kHz | Board(s) | ISL8105A |
|
|
FEBFAN6756MR_T03U065AEVAL BOARD FOR FAN6756 |
3,522 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 65 W | 19V | 3.42A | 90 ~ 264 VAC | Flyback | - | Board(s) | FAN6756 |
|
MAX77752EVKIT#EVAL BOARD FOR MAX77752 |
1,337 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.05V, 1.35V, 1.8V, 1.8V | - | 2.6V ~ 5.5V | Buck | - | Board(s) | MAX77752 |
|
DEMOBOARD TLE 6368EVAL BOARD FOR TLE6368 |
3,117 | 140.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | - | - | - | - | 5.5V ~ 60V | Buck | - | Board(s) | TLE6368 |
