DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STR-NCV6356-EVKEVAL BOARD FOR NCV6356 |
2,573 | 140.58 |
|
Datasheet |
Strata | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 1.4V | 5A | 2.5V ~ 5.5V | Buck | - | Board(s) | NCV6356 |
|
DC1185B-BEVAL BOARD FOR LTC3850 |
2,517 | 141.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 6.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3850 |
|
|
MAX17030EVKIT+EVAL BOARD FOR MAX17030 |
3,868 | 0.00 |
|
Datasheet |
Quick-PWM™ | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | 7V ~ 26V | Buck | - | Board(s) | MAX17030 |
|

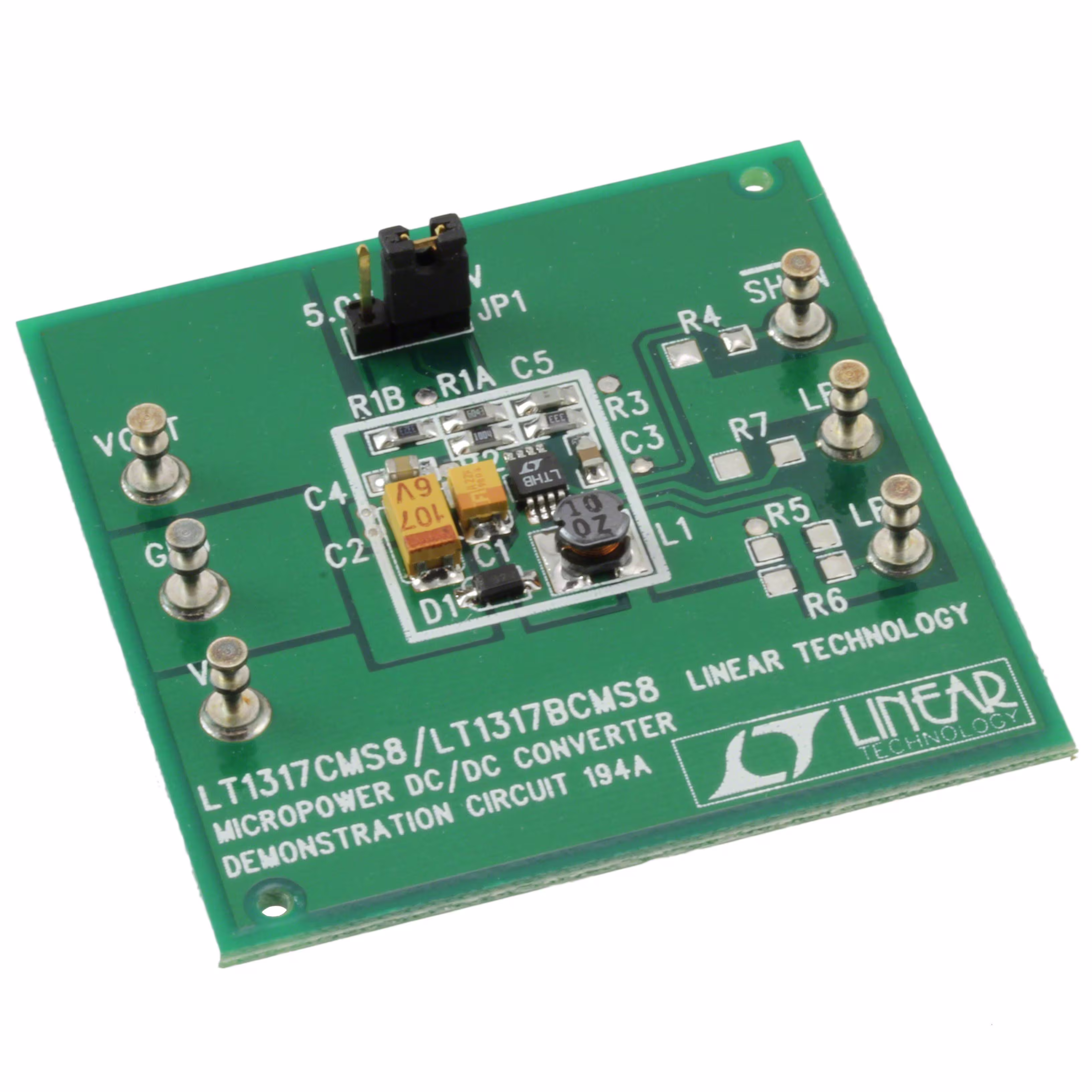

DC194A-BEVAL BOARD FOR LT1317B |
2,787 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 320mA | 1.5V ~ 5.3V | Boost | 600kHz | Board(s) | LT1317B |
|
|
DC174A-AEVAL BOARD FOR LTC15175 |
1,331 | 123.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 20mA | 2V ~ 5V | Boost | - | Board(s) | LTC1517-5 |
|
|
DC249A-AEVAL BOARD FOR LTC1682 |
1,294 | 123.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 2.5V ~ 5.5V | 50mA | 1.8V ~ 4.4V | Boost | - | Board(s) | LTC1682 |
|
|
DC249A-BEVAL BOARD FOR LTC16825 |
1,477 | 123.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 50mA | 1.8V ~ 4.4V | Boost | - | Board(s) | LTC1682-5 |
|
|
DC249A-CEVAL BOARD FOR LTC16823.3 |
2,503 | 123.05 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 50mA | 1.8V ~ 4.4V | Boost | - | Board(s) | LTC1682-3.3 |
|

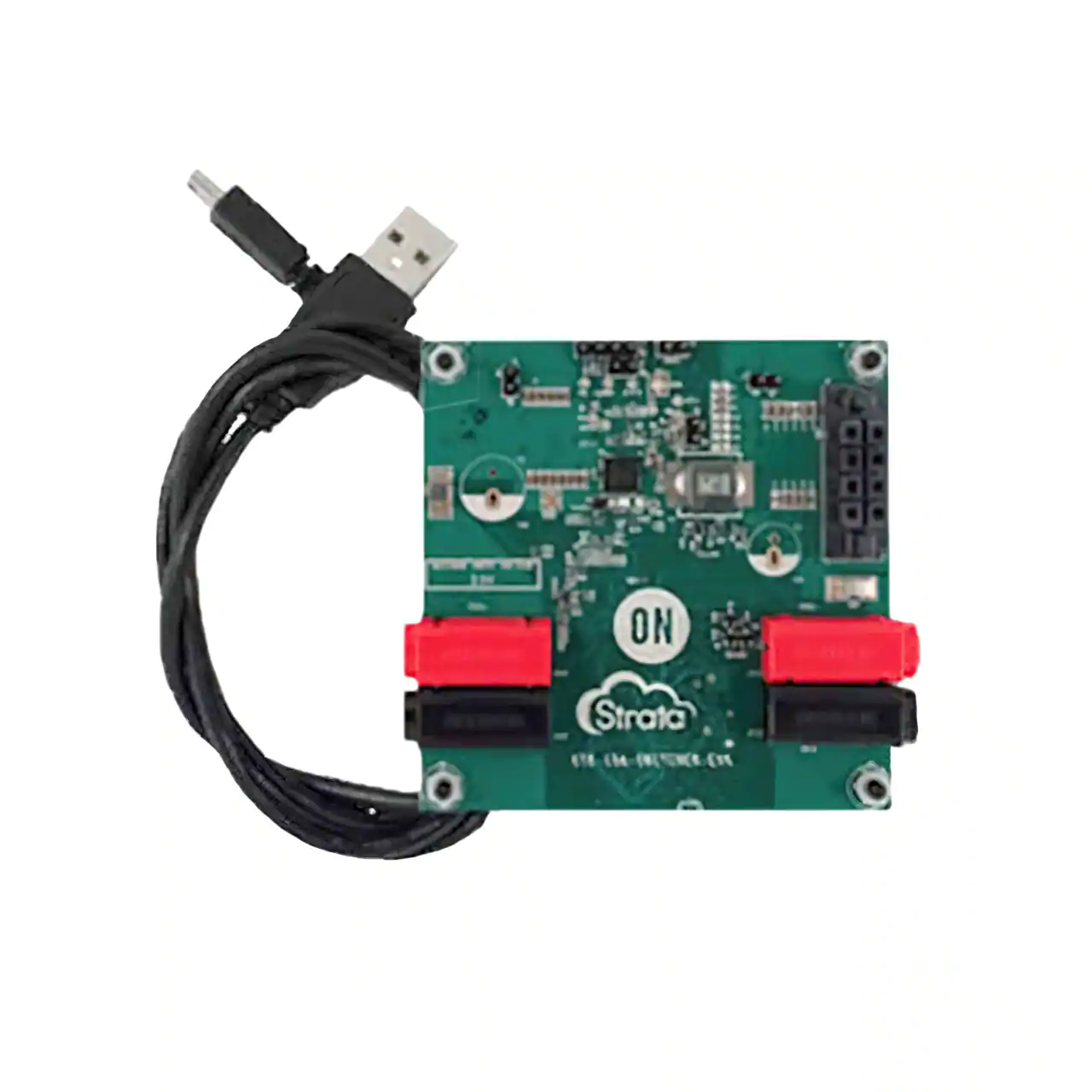

STR-NCP3232N-EVKEVAL BOARD FOR NCP3232N |
3,085 | 141.52 |
|
Datasheet |
Strata | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 15A | 4.5V ~ 21V | Buck | 500kHz | Board(s) | NCP3232N |
|
|
STR-NCP3231-EVKEVAL BOARD FOR NCP3231 |
2,917 | 141.73 |
|
Datasheet |
Strata | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 25A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | NCP3231 |
|
|
ISL6228HIEVAL3ZEVAL BOARD FOR ISL6228 |
4,328 | 142.31 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.05V or 1.2V, 1.2V | 20A, 20A | 3.3V ~ 25V | Buck | 270kHz, 300kHz | Board(s) | ISL6228 |
|
|
ISL6228EVAL3ZEVAL BOARD FOR ISL6228 |
3,892 | 142.31 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V or 1.8V, 1.8V | 8A, 8A | 3.3V ~ 25V | Buck | 270kHz, 300kHz | Board(s) | ISL6228 |
|
LM5025EVAL/NOPBEVAL BOARD FOR LM5025 |
1,478 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 30A | 36V ~ 72V | Buck | 230kHz | Board(s) | LM5025 |
|
LM5025AEVALEVAL BOARD FOR LM5025A |
2,711 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 30A | 36V ~ 72V | Buck | 230kHz | Board(s) | LM5025A |
|
LM5072EVALEVAL BOARD FOR LM5072 |
4,123 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 9.9 W | 3.3V | 3A | 38V ~ 60V | Flyback | 250kHz | Board(s) | LM5072 |
|
|
ISL8120EVAL4ZEVAL BOARD FOR ISL8120 |
3,484 | 142.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 50A | 12V | Buck | 1.5MHz | Board(s) | ISL8120 |
|
EVALICE3AR1080VJZTOBO1EVAL BOARD FOR ICE3AR1080VJZ |
2,568 | 143.75 |
|
Datasheet |
CoolMOS™, CoolSET™F3R80 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 34 W | 12V | 2.83A | 85 ~ 265 VAC | Flyback | 100kHz | Board(s) | ICE3AR1080VJZ |
|

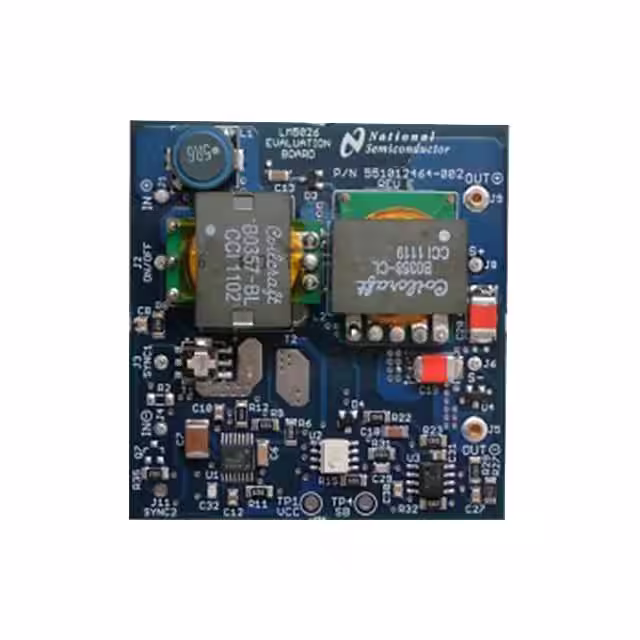

LM5026EVALEVAL BOARD FOR LM5026 |
4,052 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 78V | Buck | 230kHz | Board(s) | LM5026 |
|
|
LP3907SQ-JXQXEVEVAL BOARD FOR LP3907 |
4,808 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 1A, 600mA, 300mA, 300mA | 2.8V ~ 5.5V | Buck | 2.1MHz | Board(s), Cable(s) | LP3907 |
|

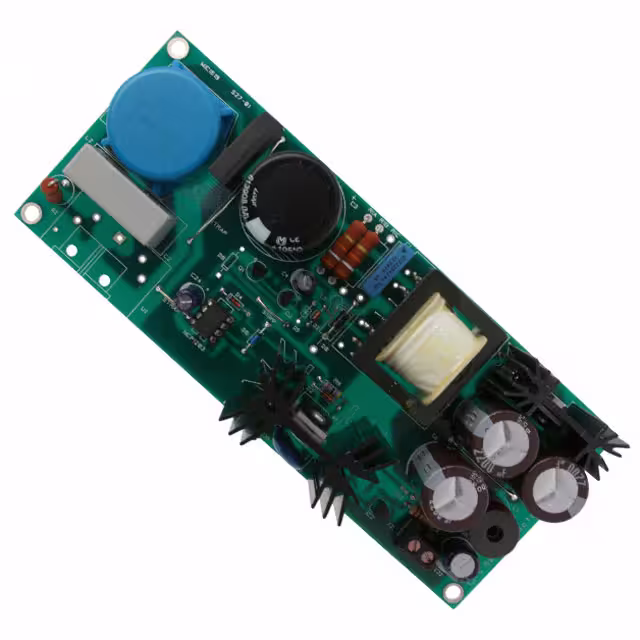

NCP1203GEVBEVAL BOARD FOR NPC1200 |
2,884 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | 19V | 4A | 85 ~ 230 VAC | Flyback | 60kHz | Board(s) | NPC1200 |
