DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FEBFAN6602RM6X-CH10U40A-GEVBEVAL BOARD FOR FAN6602R |
2,995 | 0.00 |
|
- |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | - | - | - | - | Flyback | 65kHz | Board(s) | FAN6602R |
|
|
FEBFSL126MR-H432V1-GEVBEVAL BOARD FOR FSL126MR |
1,325 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 13.8 W | 5V, 12V | 1.8A, 400mA | 90 ~ 264 VAC | Flyback | - | Board(s) | FSL126MR |
|
REFXDPS2107145W1TOBO1EVAL BOARD FOR XDPS21071 |
4,639 | 143.75 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary and Secondary Side | 1 Isolated Output | 45 W | 20V | 2.25A | 90 ~ 265VAC | Flyback | 140kHz | Board(s) | XDPS21071 |
|
|
DC1877AEVAL BOARD FOR LTC3630A |
2,222 | 144.45 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 500mA | 4V ~ 76V | Buck | - | Board(s) | LTC3630A |
|
|
ISL6236EVAL1EVAL BOARD FOR ISL6236 |
4,195 | 143.18 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 5 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V, 14V | - | - | Buck | - | Board(s) | ISL6236 |
|
MAX15053EVKIT+EVAL BOARD FOR MAX15053 |
1,306 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | MAX15053 |
|

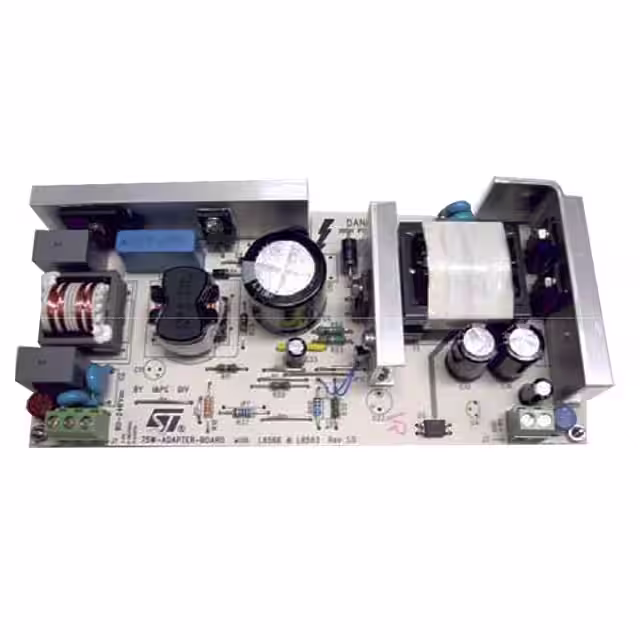

EVL6566A-75WADPEVAL BOARD L6563 L6566A TSM1014 |
4,949 | 171.57 |
|
Datasheet |
- | Box | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | - | 65kHz | Board(s) | L6563, L6566A, TSM1014 |
|
|
ISL6236EVAL2EVAL BOARD FOR ISL6236 |
3,826 | 144.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 1.05V, 1.5V, 3.3V, 3.3V | - | - | Buck | - | Board(s) | ISL6236 |
|
DC927AEVAL BOARD FOR LT3742 |
3,351 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 4A, 4A | 5.5V ~ 28V | Buck | 500kHz | Board(s) | LT3742 |
|
DC1040A-BEVAL BOARD FOR LTC3544 |
4,055 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.8V, 1.2V, 1.5V, 1.8V | 300mA, 200mA, 200mA, 100mA | 2.25V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3544 |
|

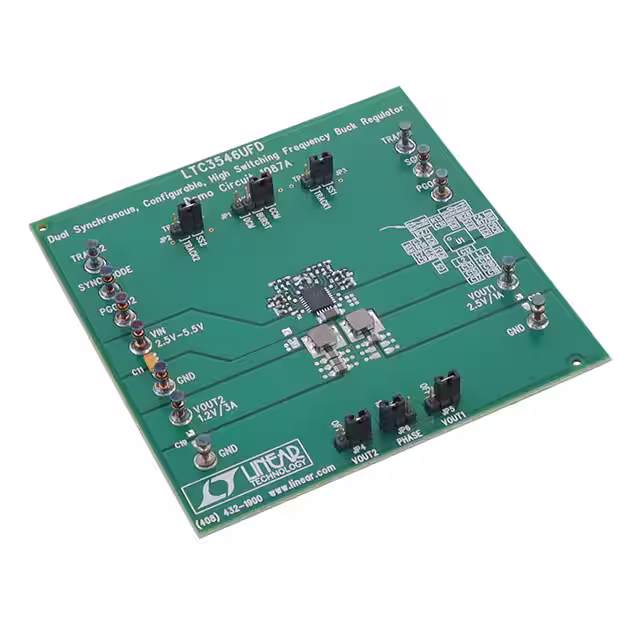

DC1087AEVAL BOARD FOR LTC3546 |
1,221 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 3A, 1A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3546 |
|

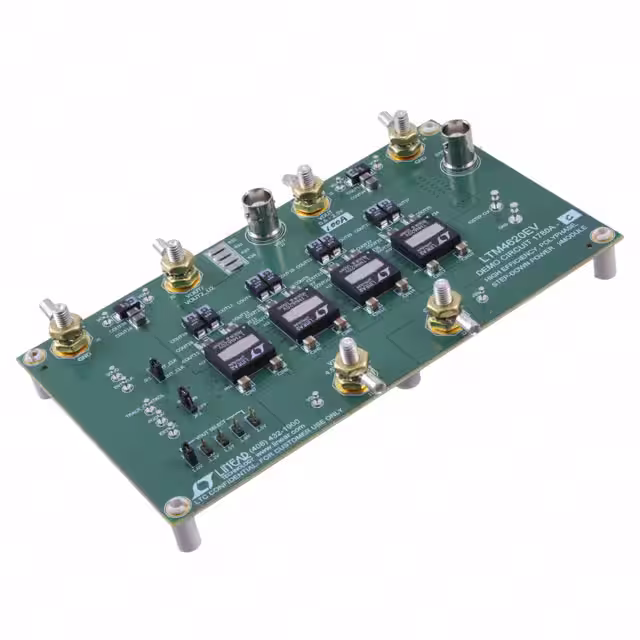

DC1780A-CEVAL BOARD FOR LTM4620 |
3,284 | 147.12 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4620 |
|
|
DC1345AEVAL BOARD FOR LTC3879 |
3,944 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 12A | 4.5V ~ 34V | Buck | 300kHz | Board(s) | LTC3879 |
|
|
DC1040A-AEVAL BOARD FOR LTC3544 |
4,867 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.8V, 1.2V, 1.5V, 1.8V | 300mA, 200mA, 200mA, 100mA | 2.25V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3544 |
|
|
DC1293AEVAL BOARD FOR LT1939 |
3,503 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1.5A, 500mA | 7V ~ 25V | Buck | 800kHz | Board(s) | LT1939 |
|
|
DC1343AEVAL BOARD FOR LTC3564 |
1,915 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 1.25A | 2.5V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3564 |
|
|
DC1394AEVAL BOARD FOR LT3480 |
2,067 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.5V ~ 5.5V | - | 8V ~ 38V | Buck | 2.4MHz | Board(s) | LT3480 |
|
|
DC1395AEVAL BOARD FOR LT3505 |
3,590 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.7V ~ 4.7V | 1.2A | 8V ~ 36V | Buck | - | Board(s) | LT3505 |
|
|
DC1572AEVAL BOARD FOR LTC3615 |
2,750 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 2.25V ~ 5.5V | Buck | 4MHz | Board(s) | LTC3615 |
|
|
DC1847AEVAL BOARD FOR LTC3607 |
1,979 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 2.5V | 600mA, 600mA | 4.5V ~ 15V | Buck | 2.25MHz | Board(s) | LTC3607 |
