DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1869AEVAL BOARD FOR LT3667 |
4,648 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 2.5V, 3.3V, 5V | 400mA, 200mA, 200mA | 6V ~ 40V | Boost | - | Board(s) | LT3667 |
|
|
DC027AEVAL BOARD FOR LTC1149 |
4,301 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LTC1149 |
|
|
DC049A-AEVAL BOARD FOR LT1302 |
2,565 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 500mA | - | Boost | 220kHz | Board(s) | LT1302 |
|
|
DC049A-BEVAL BOARD FOR LT1302 |
2,919 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 500mA | 5V | Boost | 220kHz | Board(s) | LT1302 |
|

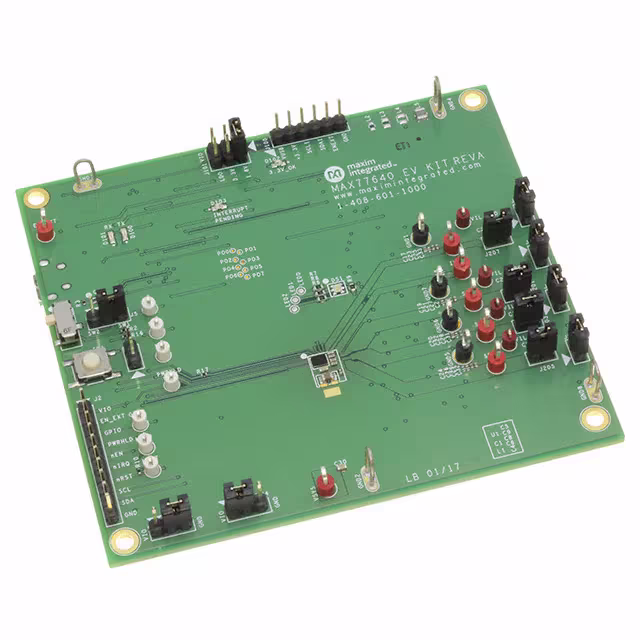

MAX77640EVKIT#EVAL BOARD FOR MAX77640 |
1,901 | 139.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77640 |
|

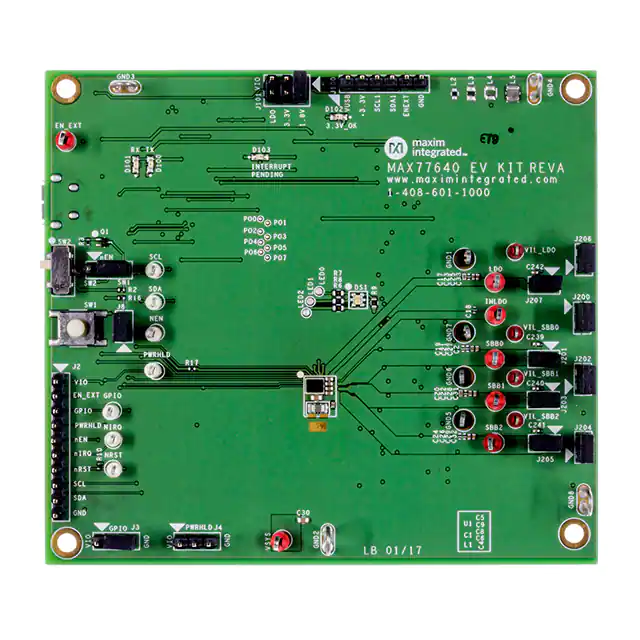

MAX77641EVKIT#EVAL BOARD FOR MAX77641 |
3,749 | 139.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down with LDO | 3 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77641 |
|

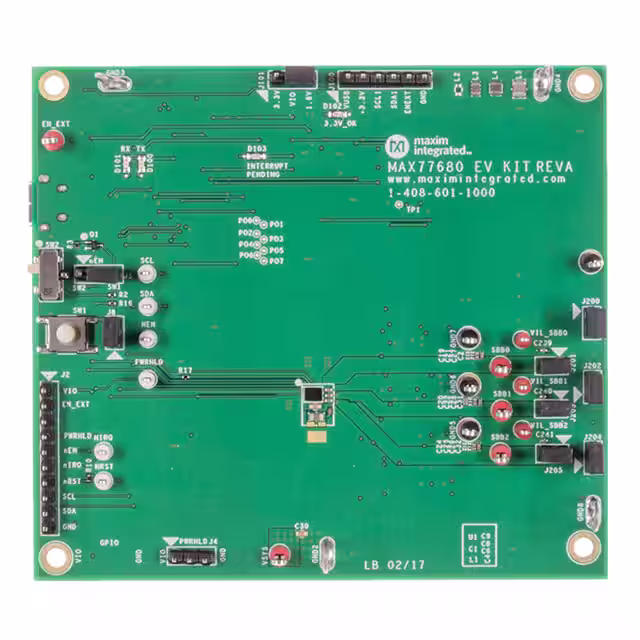

MAX77680EVKIT#EVAL BOARD FOR MAX77680 |
4,042 | 139.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | - | 2.7V ~ 5.5V | Buck-Boost | - | Board(s) | MAX77680 |
|
|
DA9220-EVAL1EVAL BOARD FOR DA9220 |
3,964 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.3V ~ 1.9V | 3A, 3A | 2.5V ~ 5.5V | Buck | 4MHz | Board(s), Cable(s), Accessories | DA9220 |
|
|
DA9217-EVAL1EVAL BOARD FOR DA9217 |
2,694 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 0.3V ~ 1.9V | 6A | 2.5V ~ 5.5V | Buck | 4MHz | Board(s), Cable(s), Accessories | DA9217 |
|

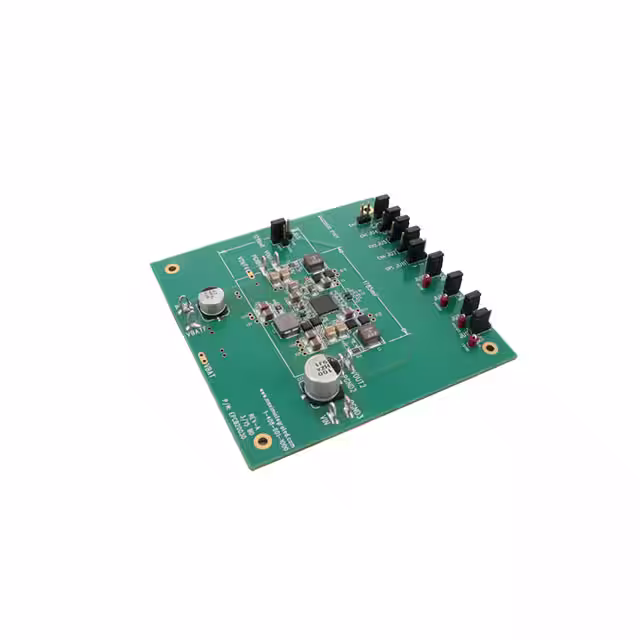

MAX20030EVKIT#EVAL BOARD FOR MAX20030 |
4,940 | 166.16 |
|
Datasheet |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX20030 |
|
|
SINGLEPHSPOL-RDEVAL BOARD FOR SI8252 |
4,578 | 0.00 |
|
- |
- | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 20A | 10V ~ 15V | Buck | 391kHz | Board(s), Cable(s), Accessories | Si8252 |
|
|
ISL6558EVAL2ZEVAL BOARD FOR ISL6558 ISL6609 |
1,810 | 148.75 |
|
Datasheet |
Endura™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.35V | 30A | 4.5V ~ 5.5V | Buck | 500kHz | Board(s) | ISL6558, ISL6609 |
|

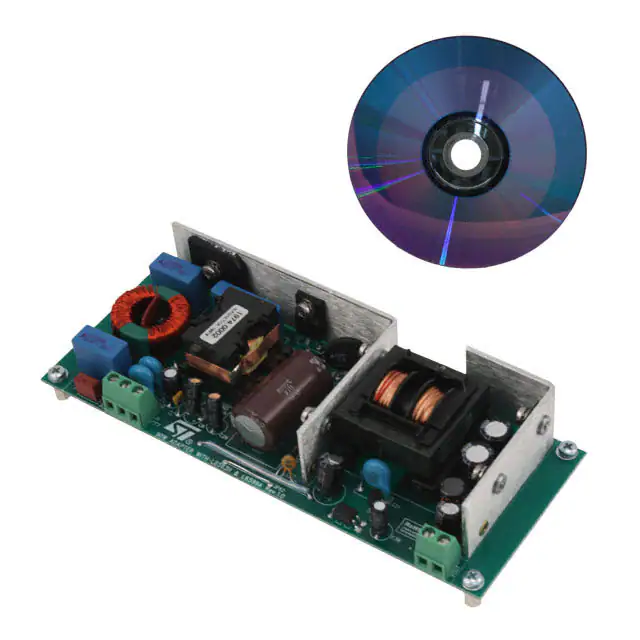

EVL6599A-90WADPEVAL BOARD FOR L6563 L6599 |
2,316 | 174.69 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side and PFC | 1 Isolated Output | 90 W | 19V | 4.7A | 90 ~ 264 VAC | Resonant | 90kHz | Board(s) | L6563, L6599 |
|

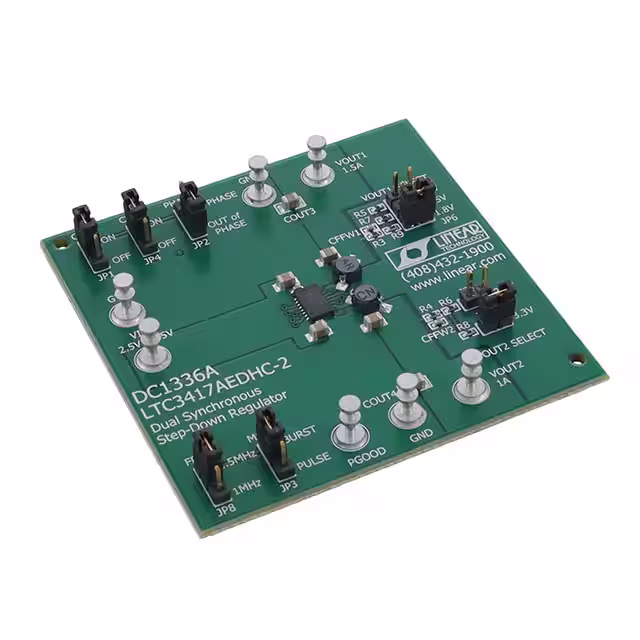

DC1336AEVAL BOARD FOR LTC3417A2 |
1,148 | 150.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V ~ 3.3V | 1.5A, 1A | 2.25V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTC3417A-2 |
|
EVAL2QR2280G1TOBO1EVAL BOARD FOR ICE2QR2280G1 |
4,039 | 150.00 |
|
Datasheet |
CoolSET®-Q1 | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE2QR2280G-1 |
|

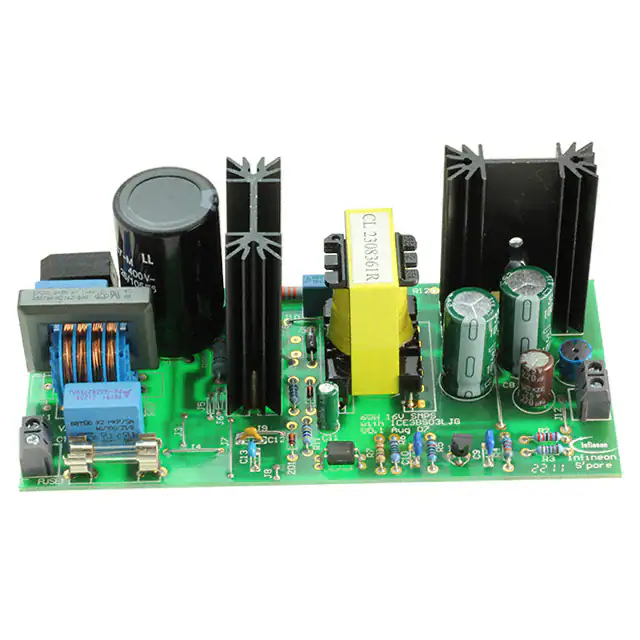

EVALSF3ICE3BS03LJGTOBO1EVAL BOARD FOR ICE3BS03LJG |
4,374 | 150.00 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | AC/DC, Primary Side | 1 Isolated Output | 60 W | 16V | 3.75A | 85 ~ 265 VAC | Flyback | 65kHz | Board(s) | ICE3BS03LJG |
|

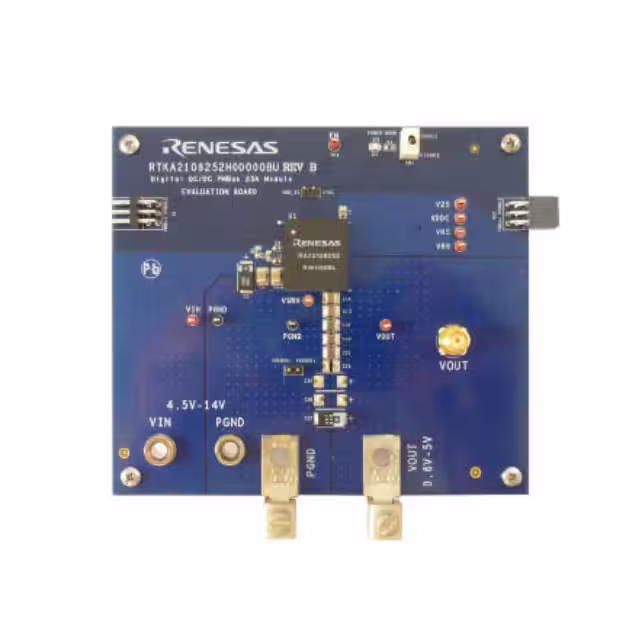

RTKA2108252H00000BUEVAL BOARD FOR RAA210825 |
4,755 | 150.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 5V ~ 12V | Buck | 364kHz | Board(s), Cable(s) | RAA210825 |
|
|
IRDC3651EVAL BOARD FOR IR3651S |
1,796 | 150.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 10A | 12V ~ 100V | Buck | 100kHz | Board(s) | IR3651S |
|

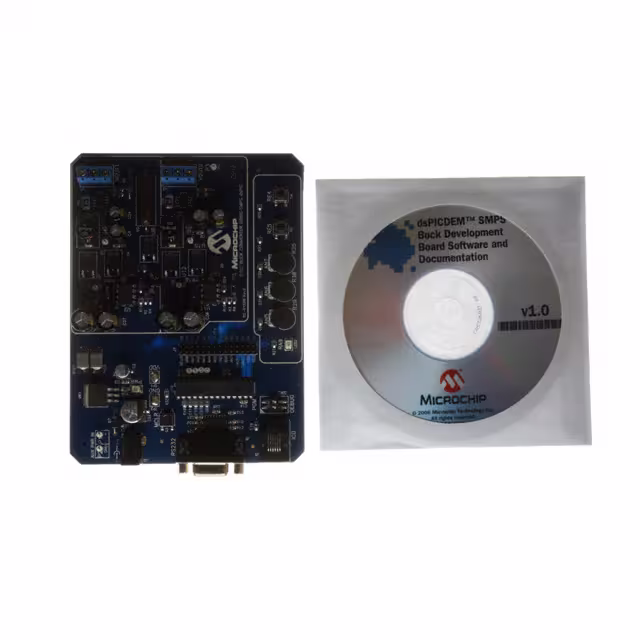

DM300023EVAL BOARD FOR DSPIC30F2020 |
4,536 | 0.00 |
|
Datasheet |
dsPIC® | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | - | 7V ~ 15V | Buck | - | Board(s) | dsPIC30F2020 |
|
|
IRDC3622DEVAL BOARD FOR IR3622 IRF6622 |
4,294 | 0.00 |
|
Datasheet |
iPOWIR™ | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 20A, 20A | 7.5V ~ 14.5V | Buck | 350kHz | Board(s) | IR3622, IRF6622, IRF6629 |
