DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRD48JF480T500A00EVAL BOARD FOR PRM48JY480X500A00 |
2,769 | 544.23 |
|
Datasheet |
VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 500 W | 48V | 10.42A | 45V ~ 55V | Buck-Boost | 1.03MHz | Board(s) | PRM48Jy480x500A00 |
|

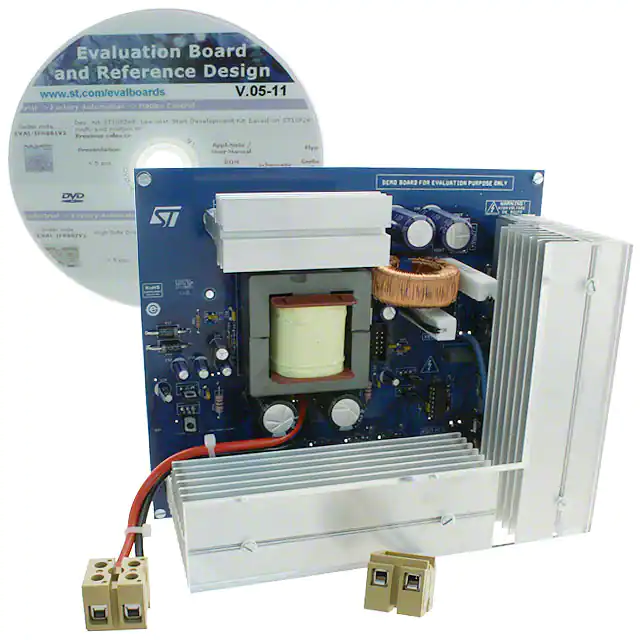

STEVAL-ISV001V1EVAL BOARD FOR STP160N75 |
1,583 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/AC Converter | 1 Isolated Output | 1 kW | 230VAC | - | 20V ~ 28V | Boost | 16kHz, 100kHz | Board(s) | STP160N75 |
|

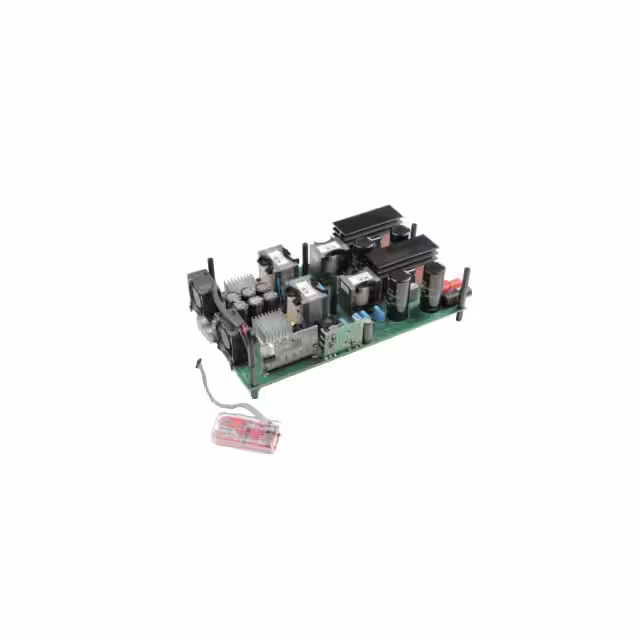

EVAL3KW2LLCC720TOBO1EVAL BOARD ICE2QR2280Z XMC4400 |
2,612 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 350V ~ 410V | Buck | - | Board(s) | ICE2QR2280Z, XMC4400 |
|

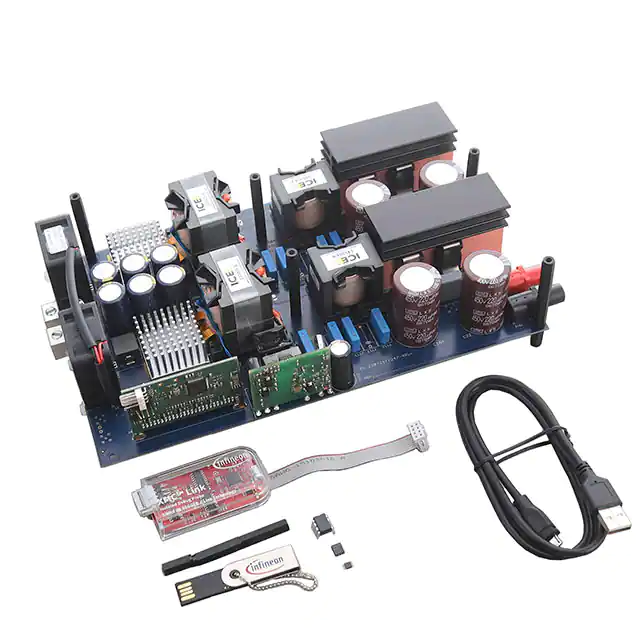

EVAL3KW2LLCP747TOBO1EVAL BOARD ICE2QR2280Z XMC4400 |
3,310 | 607.20 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 350V ~ 400V | Buck | - | Board(s) | ICE2QR2280Z, XMC4400 |
|
|
VTD48EF012T130B01EVAL BOARD FOR VTM48EF012T130B |
3,713 | 550.79 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | - | - | - | Buck | - | Board(s) | VTM48EF012T130B |
|

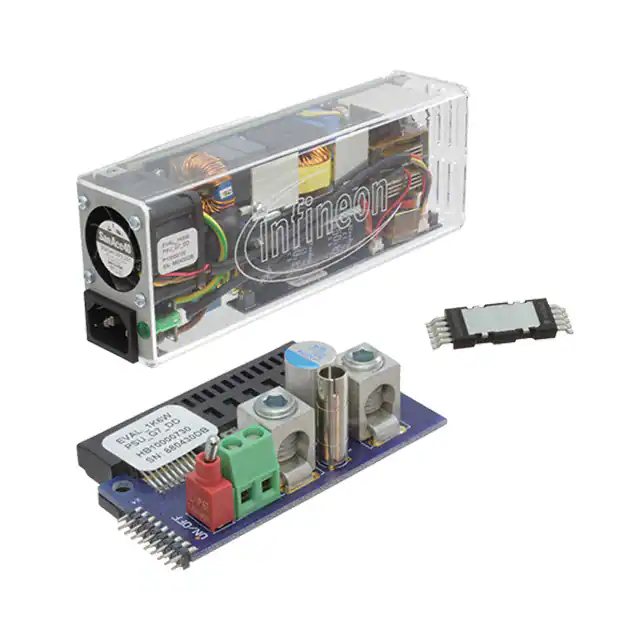

EVAL1K6WPSUG7DDTOBO1EVAL BOARD ICE2QR2280G XMC1402 |
3,637 | 607.20 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 1.6 kW | 12.2V | - | 176 ~ 265 VAC | Flyback | - | Board(s) | ICE2QR2280G, XMC1402, XMC4200 |
|

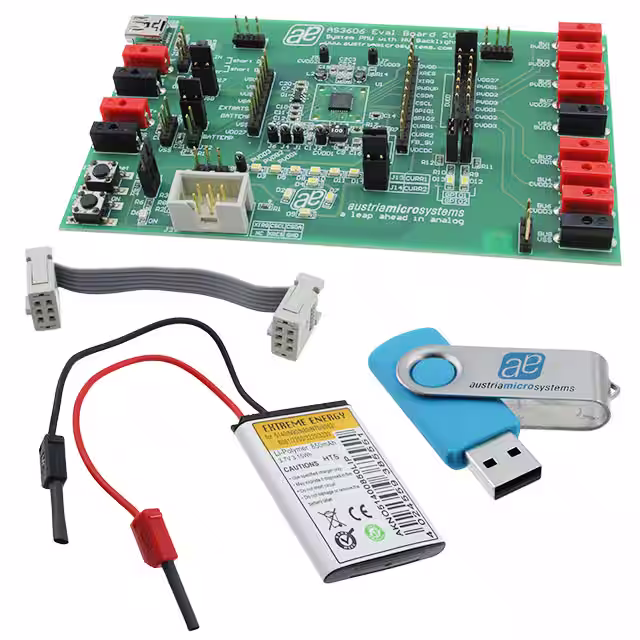

AS3606 EVAL BOARDEVAL BOARD FOR AS3606 |
4,516 | 617.40 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down with LDO | 9 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Boost, Buck | - | Board(s) | AS3606 |
|

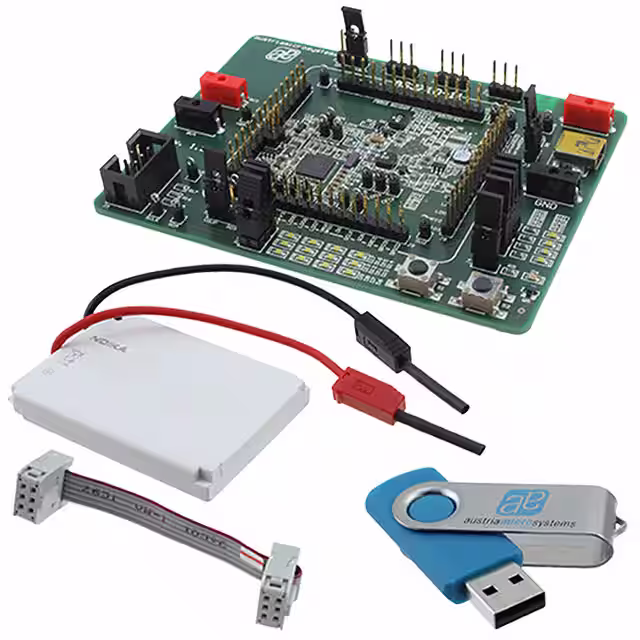

AS3711 EVAL BOARDEVAL BOARD FOR AS3711 |
2,047 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down with LDO | 14 Non-Isolated Outputs | - | - | - | 2.7V ~ 5.5V | Boost, Buck | - | Board(s) | AS3711 |
|
STEVAL-ISA172V1EVAL BOARD STM32F334C8 VIPER27 |
2,323 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 2 kW | 48V or 52V | 42A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | STM32F334C8, VIPer27 |
|
|
PRD48AF480T400A00EVAL BOARD FOR PRM48AY480X400A00 |
4,476 | 576.12 |
|
Datasheet |
VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 400 W | 48V | 8.33A | 36V ~ 75V | Buck-Boost | 1.03MHz | Board(s) | PRM48Ay480x400A00 |
|
|
MPRD48NF480M500A00EVAL BOARD MPRM48NX480M500A00 |
2,410 | 579.03 |
|
- |
VI Chip® PRM® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | 500 W | 48V | 10.42A | 38V ~ 55V | Buck | 1.03MHz | Board(s) | MPRM48Nx480M500A00 |
|

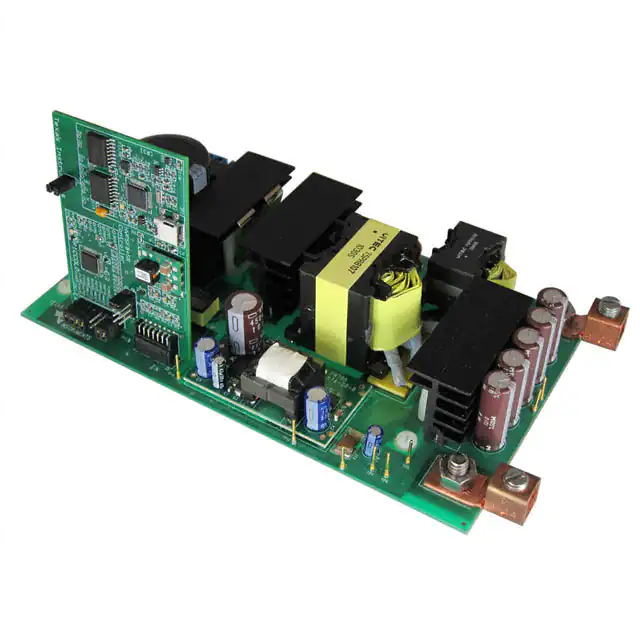

TMDSHVPSFBKITEVAL BOARD FOR TMS320F28027 |
1,621 | 0.00 |
|
Datasheet |
C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 500 W | 12V | - | 380V ~ 400V | Full-Bridge | - | Board(s) | TMS320F28027 |
|
STEVAL-ISA172V2EVAL BOARD STM32F334C8 VIPER27 |
3,879 | 684.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Non-Isolated Output | 2 kW | 48V or 52V | 42A | 90 ~ 264 VAC | Flyback | 100kHz | Board(s) | STM32F334C8, VIPer27 |
|
|
TPS7H4001EVM-CVALEVAL BOARD FOR TPS7H4001SP |
1,530 | 0.00 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 18A | 5V | Buck | 500kHz | Board(s) | TPS7H4001-SP |
|
DCM2322EA5N17A2T60EVAL BOARD DCM2322XA5N17A2Y6Z |
3,015 | 657.25 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 120 W | 15V | 8A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N17A2y6z |
|
|
DCM2322EA5N0440T60EVAL BOARD DCM2322XA5N0440Y6Z |
1,483 | 657.61 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 40 W | 3.3V | 12.2A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N0440y6z |
|
|
DCM2322EA5N13A2T60EVAL BOARD DCM2322XA5N13A2Y6Z |
1,372 | 664.69 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 120 W | 12V | 10A | 43V ~ 154V | - | - | Board(s) | DCM2322xA5N13A2y6z |
|
|
BCM6123ED1E2663T00EVAL BOARD BCM6123XD1E2663YZZ |
1,412 | 737.22 |
|
- |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 1.5 kW | 24V | 62.5A | 260V ~ 410V | Buck | 1.05MHz | Board(s) | BCM6123xD1E2663yzz |
|
|
DCM2322E72S0435T60EVAL BOARD DCM2322X72S0435Y6Z |
1,942 | 673.57 |
|
Datasheet |
VI Chip® DCM® | Tray | Active | DC/DC Converter | 1 Isolated Output | 35 W | 3.3V | 10.7A | 14V ~ 72V | - | - | Board(s) | DCM2322x72S0435y6z |
|

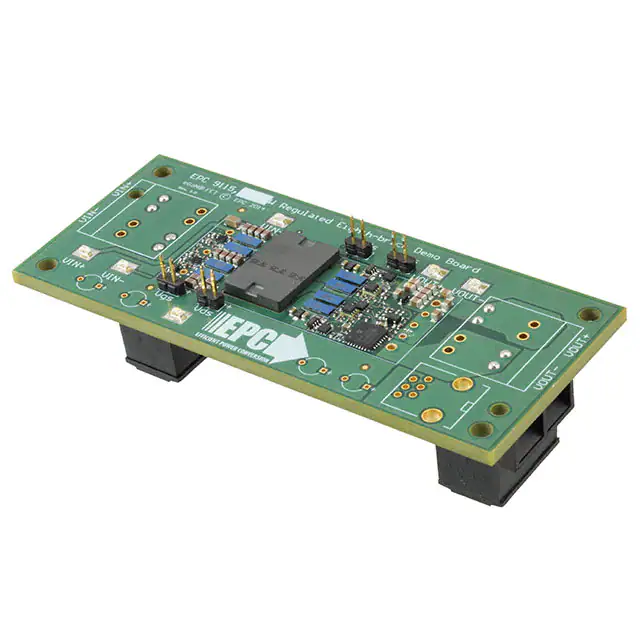

EPC9115EVAL BOARD FOR EPC2020 EPC2021 |
4,478 | 0.00 |
|
Datasheet |
eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 12V | 5A | 48V ~ 60V | Buck | 300kHz | Board(s) | EPC2020, EPC2021 |
