DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

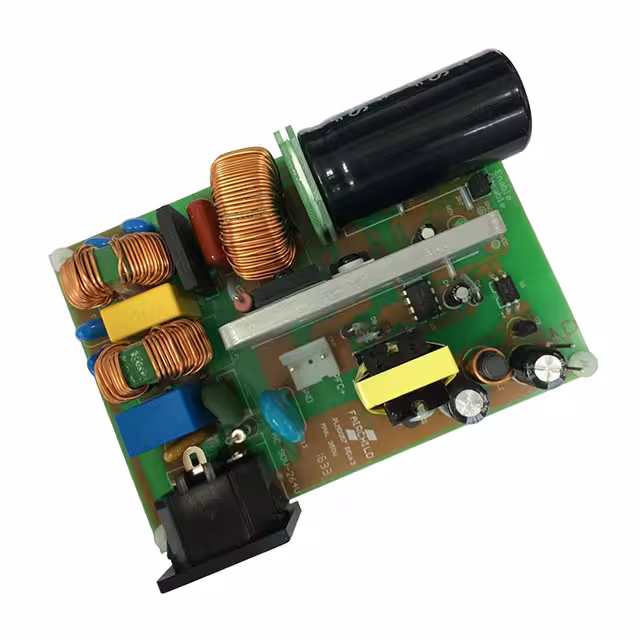

FEBFAN6982MY-CP20U350-GEVBEVAL BOARD FOR FAN6982 |
3,425 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 350 W | 387V | - | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | FAN6982 |
|
NCP1395LLCGEVBEVAL BOARD FOR NCP1395 |
4,043 | 0.00 |
|
- |
- | Bulk | Obsolete | AC/DC, Primary Side | - | - | - | - | - | Resonant | - | Board(s) | NCP1395 |
|
|
ISL91211AII-EV1ZEVAL BOARD FOR ISL91211A |
4,938 | 347.76 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 0.3V ~ 1.2V | 5A | 2.5V ~ 5.5V | Buck | 4MHz | Board(s) | ISL91211A |
|
|
ISL91302B31-EVZEVAL BOARD FOR ISL91302B |
3,561 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 5A, 5A | 2.5V ~ 5.5V | Buck | - | Board(s) | ISL91302B |
|
|
ISL6752/54EVAL1ZEVAL BOARD FOR ISL6752 ISL6754 |
1,991 | 360.00 |
|
Datasheet |
- | Box | Active | Power Supply, ATX | 1 Isolated Output | - | 12V | 50A | 350V ~ 450V | Full-Bridge | - | Board(s) | ISL6752, ISL6754 |
|
|
ISLACDC750WEVKIT1ZACDC750W MOTHERBOARD |
2,274 | 366.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 750 W | 12V | 62.5A | 90 ~ 264 VAC | Flyback | - | Board(s) | - |
|
|
ISL78224EVKIT2ZEVAL BOARD FOR ISL78224 |
4,396 | 366.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 100A | 5V ~ 64V | Buck | - | Board(s) | ISL78224 |
|
|
ISL91211BII-EV1ZEVAL BOARD FOR ISL91211B |
2,159 | 369.84 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.3V ~ 1.2V | 5A | 2.5V ~ 5.5V | Buck | 4MHz | Board(s) | ISL91211B |
|
KIT-CRD-3DD12PC3M SIC BUCK-BOOST EVAL KIT |
4,607 | 358.80 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 2.5 kW | 800V | - | 800V | Boost, Buck | 100kHz | Board(s) | - |
.JPG)
|

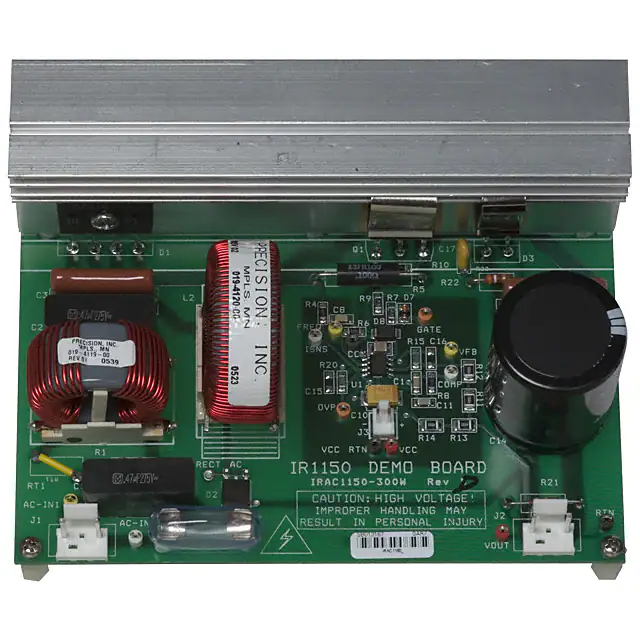

IRAC1150-300WEVAL BOARD FOR IR1150S |
3,557 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Secondary Side | 1 Non-Isolated Output | 300 W | 387V | - | 90 ~ 264 VAC | - | 100kHz | Board(s) | IR1150S |
|
|
EVAL6668-75WEVAL BOARD FOR L6563 L6668 |
2,966 | 0.00 |
|
- |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Isolated Output | 75 W | 19V | 4A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | L6563, L6668 |
|

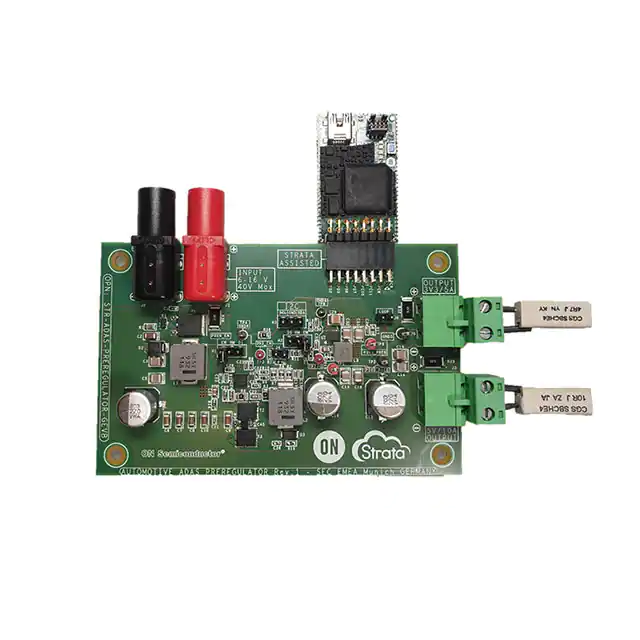

STR-ADAS-PREREGULATOR-GEVKEVAL BOARD FOR NCT375 NCV6357 |
3,159 | 378.97 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 10A, 5A | 6V ~ 16V | Buck | - | Board(s), Cable(s), Accessories | NCT375, NCV6357, NCV881930 |
|
|
VTD48EF080T030A00EVAL BOARD FOR VTM48EX080Y030A00 |
1,897 | 344.42 |
|
Datasheet |
VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 267 W | 8V | 30A | 26V ~ 55V | Buck | 1.52MHz | Board(s) | VTM48Ex080y030A00 |
|
|
VTD48EF096T025A00EVAL BOARD FOR VTM48EX096Y025A00 |
3,011 | 346.09 |
|
Datasheet |
VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 9.6V | 25A | 26V ~ 55V | Buck | 1.55MHz | Board(s) | VTM48Ex096y025A00 |
|
|
VTD48EF060T040A00EVAL BOARD FOR VTM48EX060Y040A00 |
4,364 | 344.79 |
|
Datasheet |
VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 264 W | 6V | 40A | 26V ~ 55V | Buck | 1.21MHz | Board(s) | VTM48Ex060y040A00 |
|
|
VTD48EF320T009A00EVAL BOARD FOR VTM48EX320Y009A00 |
3,787 | 332.53 |
|
Datasheet |
VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 32V | 9.4A | 26V ~ 55V | Buck | 1.6MHz | Board(s) | VTM48Ex320y009A00 |
|
|
VTD48EF160T015A00EVAL BOARD FOR VTM48EX160Y015A00 |
4,842 | 346.60 |
|
Datasheet |
VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 240 W | 16V | 15A | 26V ~ 55V | Buck | 1.65MHz | Board(s) | VTM48Ex160y015A00 |
|
|
VTD48EF240T012A00EVAL BOARD FOR VTM48EX240Y012A00 |
3,849 | 340.26 |
|
Datasheet |
VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 24V | 12A | 26V ~ 55V | Buck | 3.54MHz | Board(s) | VTM48Ex240y012A00 |
|
|
MBCD270F338M235A00EVAL BOARD MBCM270X338M235A00 |
3,721 | 364.89 |
|
Datasheet |
VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 235 W | 33.75V | 7.3A | 240V ~ 400V | Buck | 1.64MHz | Board(s) | MBCM270x338M235A00 |
|
|
VTD48EF040T050B00EVAL BOARD FOR VTM48EX040Y050B00 |
2,057 | 350.32 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 200 W | 4V | 50A | 26V ~ 55V | Buck | 1.43MHz | Board(s) | VTM48Ex040y050B00 |
