DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

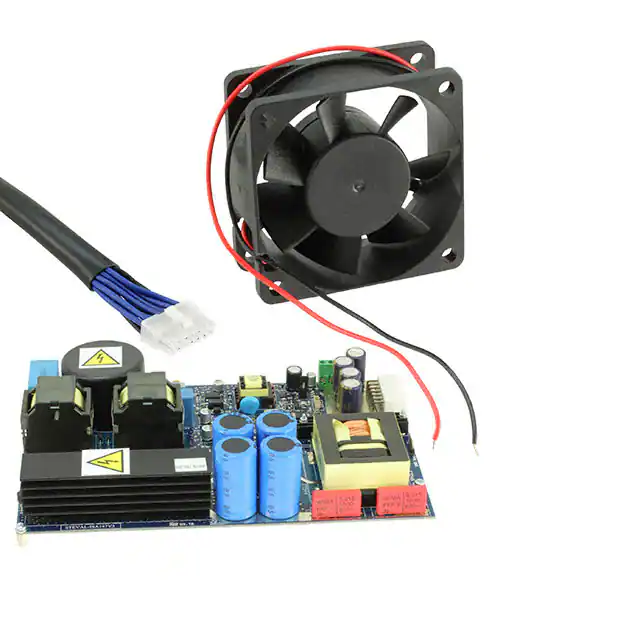

STEVAL-ISA147V3EVAL BOARD FOR STM32F051K8 |
3,328 | 547.20 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 500 W | 12V | - | 90 ~ 264 VAC | Flyback | - | Board(s) | STM32F051K8, STM32F334C8 |
|
TPS2384EVM-152EVAL BOARD FOR TPS2384 |
3,909 | 0.00 |
|
Datasheet |
- | Box | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 4 Isolated Outputs | - | - | - | 44V ~ 57V | - | - | Board(s) | TPS2384 |
|
|
VTD48EH120T010B00EVAL BOARD FOR VTM48EH120X010B00 |
4,560 | 254.15 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down with LDO | 1 Isolated Output | 135 W | 12V | 10A | 26V ~ 55V | Buck | 1.5MHz | Board(s) | VTM48EH120x010B00 |
|
|
MAX8597EVKITEVAL BOARD FOR MAX8597 |
2,075 | 327.06 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V ~ 12V | 10A | 10.8V ~ 13.2V | Buck | 600kHz | Board(s) | MAX8597 |
|
|
VTD48EH060T020A00EVAL BOARD FOR VTM48EH060X020A00 |
3,697 | 252.91 |
|
Datasheet |
VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 137 W | 6V | 20A | 26V ~ 55V | Buck | 1.5MHz | Board(s) | VTM48EH060x020A00 |
|
|
STR-100V-BUCK-NCP1034-GEVBEVAL BOARD FOR NCP1034 |
3,260 | 308.29 |
|
Datasheet |
Strata | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 100V | Buck | 500kHz | Board(s) | NCP1034 |
|
|
ISL8240MEVAL3ZEVAL BOARD FOR ISL8240M |
1,898 | 316.80 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 2.5V | 20A, 20A | 4.5V ~ 20V | Buck | 350kHz | Board(s) | ISL8240M |
|

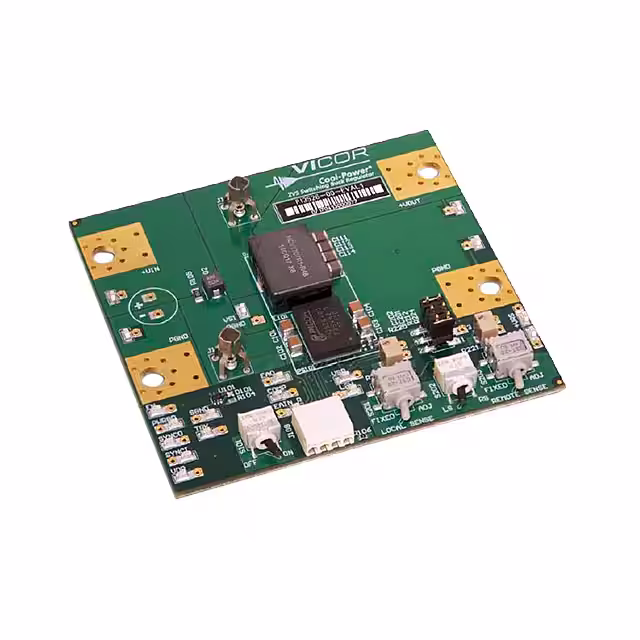

PI3523-00-EVAL1EVAL BOARD FOR PI352300 |
4,210 | 321.94 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 22A | 30V ~ 60V | Buck | 500kHz | Board(s) | PI3523-00 |
|

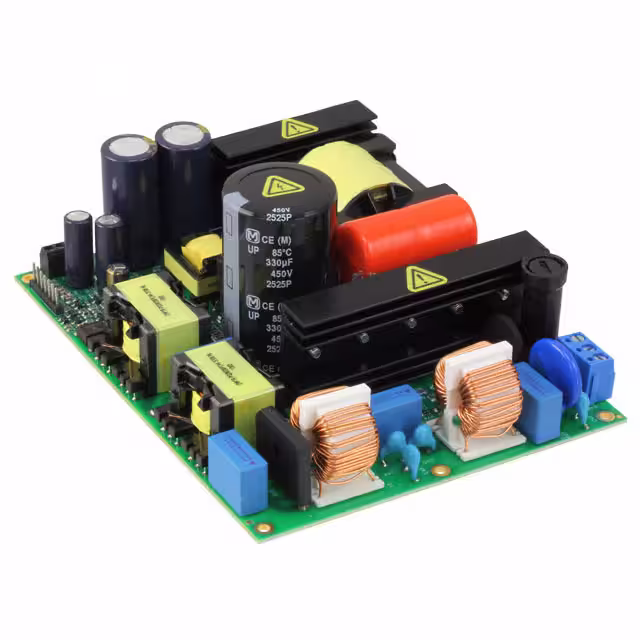

UCC25600EVM-644EVAL BOARD FOR UCC25600 |
2,269 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 600 W | 50V | 12A | 108 ~ 265 VAC | Resonant | - | Board(s) | UCC25600 |
|

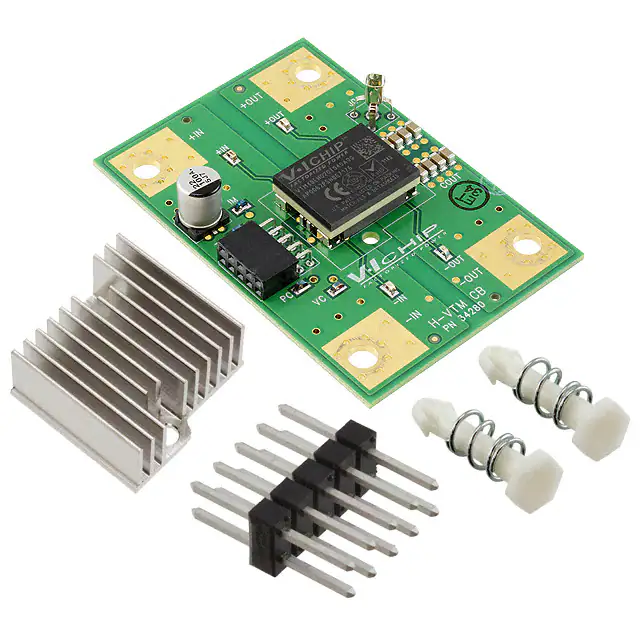

VTD48EH020T040A00EVAL BOARD FOR VTM48EH020X040A00 |
1,715 | 268.74 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 73.2 W | 1.83V | 40A | 26V ~ 55V | Buck | 1.8MHz | Board(s) | VTM48EH020x040A00 |
|
|
PD70101EVB15F-12EVAL BOARD FOR PD70101 |
4,768 | 350.62 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 12V | 1.1A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70101 |
|
|
PD70101EVB3FEVAL BOARD FOR PD70101 |
1,696 | 350.62 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 3.3V | 1A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70101 |
|
|
PD70101EVB6FEVAL BOARD FOR PD70101 |
1,177 | 350.62 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 5V | 1.2A | 44V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70101 |
|
|
PD70201EVB25F-3EVAL BOARD FOR PD70201 |
3,795 | 350.62 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 3.3V | 7.5A | 36V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|
|
PD70201EVB25FW-3EVAL BOARD FOR PD70201A |
2,447 | 350.62 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 3.3V | 7.5A | 42V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201A |
|
|
PD70201EVB-U-25F-5EVAL BOARD FOR PD70201 |
3,851 | 350.62 |
|
Datasheet |
- | Bulk | Active | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | - | 5V | 5A | 17V ~ 57V | Flyback | 100kHz ~ 500kHz | Board(s) | PD70201 |
|
|
TEA1721BDB1065,598EVAL BOARD FOR TEA1721 |
2,914 | 300.00 |
|
Datasheet |
- | Box | Active | AC/DC, Primary Side | 2 Isolated Outputs | 5 W | -3.3V, -12V | 400mA, 400mA | 85 ~ 265 VAC | Flyback | 50kHz | Board(s) | TEA1721 |
|
|
ISL91212AEVAL1ZEVAL BOARD FOR ISL91212A |
2,018 | 477.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | - | - | - | Buck | - | Board(s) | ISL91212A |
|
|
ISL91212BEVAL1ZEVAL BOARD FOR ISL91212B |
4,350 | 477.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.8V. 1.8V, 1.8V, 1.8V | 5A, 5A, 5A, 5A | 2.5V ~ 5.5V | Buck | - | Board(s) | ISL91212B |
|
|
ISL91302B40-EVZEVAL BOARD FOR ISL91302B |
2,695 | 483.97 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.3V ~ 2V | 20A | 2.5V ~ 5.5V | Buck | - | Board(s) | ISL91302B |
