DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MDCM270P033M150A40EVAL BOARD DCM4623XD2K04A5YZZ |
2,124 | 501.20 |
|
- |
- | Tray | Active | DC/DC Converter | 1 Isolated Output | 150 W | 3.3V | 45.46A | 160V ~ 420V | - | - | Board(s) | DCM4623xD2K04A5yzz |
|
ISL91108IIA-EVZEVAL BOARD FOR ISL91108 |
3,450 | 414.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91108 |
|
|
ISL91110IIA-EVZEVAL BOARD FOR ISL91110 |
1,877 | 414.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 2A | 1.8V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ISL91110 |
|
|
ISL91117IIA-EVZEVAL BOARD FOR ISL91117 |
2,038 | 414.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1.5A | 1.8V ~ 4.8V | Boost | 2.5MHz | Board(s) | ISL91117 |
|
|
PSV-EBAD-150CCM150W AC TO DC EVALUATION BOARD |
3,558 | 0.00 |
|
Datasheet |
PSV-EBAD | Active | AC/DC Converter | 1 Isolated Output | 150 W | 20V | 7.5A | 100 ~ 240 VAC | Flyback | 42kHz | Board(s) | - | |
|
|
MVTD36BF360M003A00EVAL BOARD MVTM36BX360M003A00 |
2,678 | 356.98 |
|
- |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 36V | 3A | 26V ~ 50V | Buck | 1.67MHz | Board(s) | MVTM36Bx360M003A00 |
|
|
MBCD270F450M270A00EVAL BOARD FOR MBCM270F450M270A |
1,717 | 376.71 |
|
Datasheet |
VI Chip® BCM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 350 W | 45V | 6.25A | 230V ~ 330V | Buck | 1.7MHz | Board(s) | MBCM270F450M270A |
|
|
VTD48EF480T006A00EVAL BOARD FOR VTM48EX480Y006A00 |
3,550 | 353.68 |
|
Datasheet |
VI Chip® VTM® | Tray | Active | DC/DC, Step Down | 1 Isolated Output | 300 W | 48V | 6.3A | 26V ~ 55V | Buck | 1.67MHz | Board(s) | VTM48Ex480y006A00 |
|

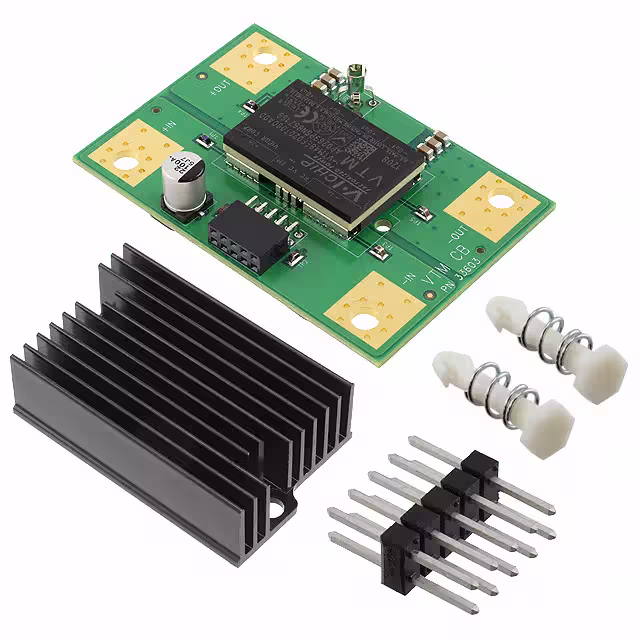

VTD48EF020T080A00EVAL BOARD FOR VTM48EX020Y080A00 |
3,601 | 352.15 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 160 W | 2V | 80A | 26V ~ 55V | Buck | 1.6MHz | Board(s) | VTM48Ex020y080A00 |
|
|
MVTD36BF022M055A00EVAL BOARD MVTM36BX022M055A00 |
2,356 | 357.05 |
|
- |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 2.25V | 55A | 26V ~ 50V | Buck | 1.43MHz | Board(s) | MVTM36Bx022M055A00 |
|

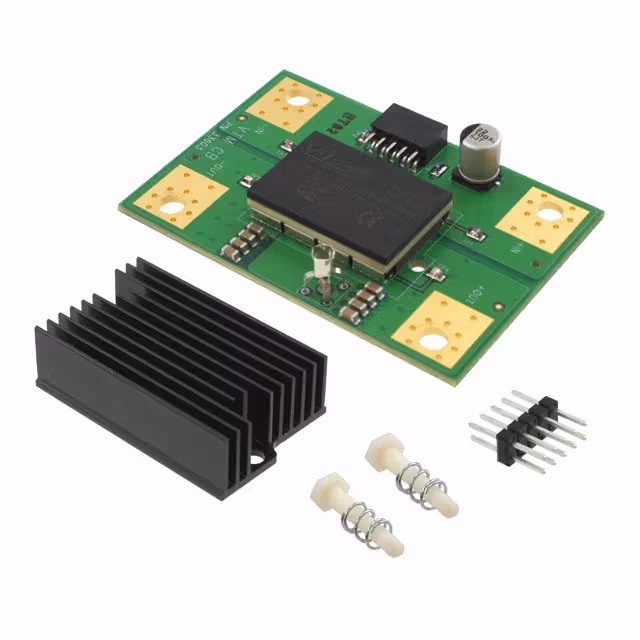

VTD48EF030T070A00EVAL BOARD FOR VTM48EX030Y070A00 |
3,975 | 355.66 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 230 W | 3V | 70A | 26V ~ 55V | Buck | 1.43MHz | Board(s) | VTM48Ex030y070A00 |
|
|
TEA1833DB1361ULEVAL BOARD FOR TEA1833 |
3,810 | 398.40 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 45 W | 19.5V | - | 90 ~ 264 VAC | Flyback | - | Board(s) | TEA1833 |
|
|
NCP1399ADPGEVBEVAL BOARD FOR NCP1399 |
2,125 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | 1 Isolated Output | 150 W | 19.5V | 7.7A | 85 ~ 260 VAC | Buck, Flyback | 750kHz | Board(s) | NCP1399 |
|
TMDSC2KWRKSHPKITEVAL BOARD FOR TMS320F280X |
2,196 | 0.00 |
|
Datasheet |
C2000™, Piccolo™ | Box | Obsolete | DC/DC, Step Down | - | - | - | - | 9V | Buck | - | Board(s), Cable(s), Power Supply | TMS320F280x |
|

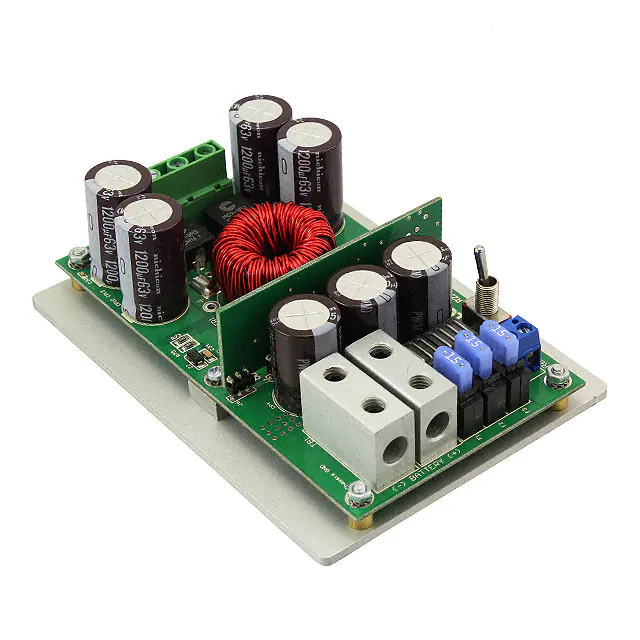

IRAUDPS1EVAL BOARD FOR IR2085 IRF6648 |
3,604 | 445.09 |
|
Datasheet |
- | Box | Discontinued at Digi-Key | DC/DC, Positive and Negative | 1 Isolated Output | 500 W | ±35V | 7A | 10V ~ 18V | Boost | - | Board(s) | IR2085, IRF6648 |
|

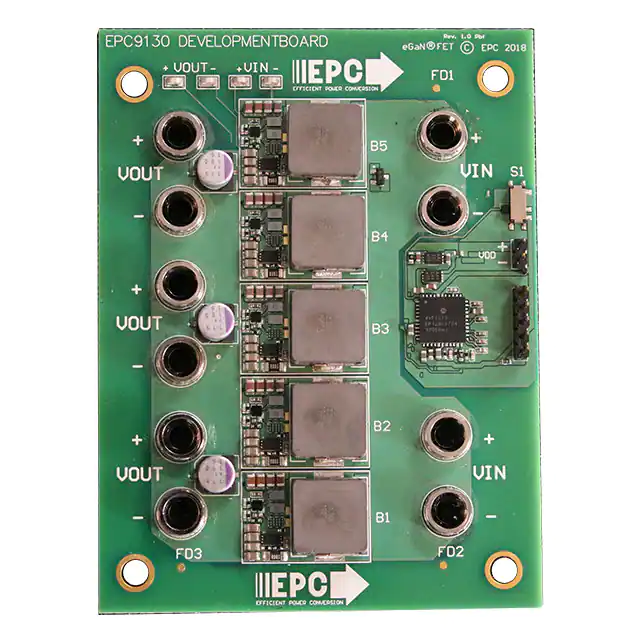

EPC9130EVAL BOARD FOR EPC2045 |
2,435 | 0.00 |
|
Datasheet |
eGaN® | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 50A | 36V ~ 60V | Buck | 500kHz | Board(s) | EPC2045 |
|
|
ISL6261EVAL1ZEVAL BOARD FOR ISL6261 |
4,362 | 488.52 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | - | - | - | - | 4.75V ~ 5.25V | Buck | - | Board(s) | ISL6261 |
|
|
ISL6261AEVAL1ZEVAL BOARD FOR ISL6261A |
1,505 | 488.52 |
|
Datasheet |
Robust Ripple Regulator™ (R3) | Box | Active | DC/DC, Step Down | - | - | - | - | 4.75V ~ 5.25V | Buck | - | Board(s) | ISL6261A |
|

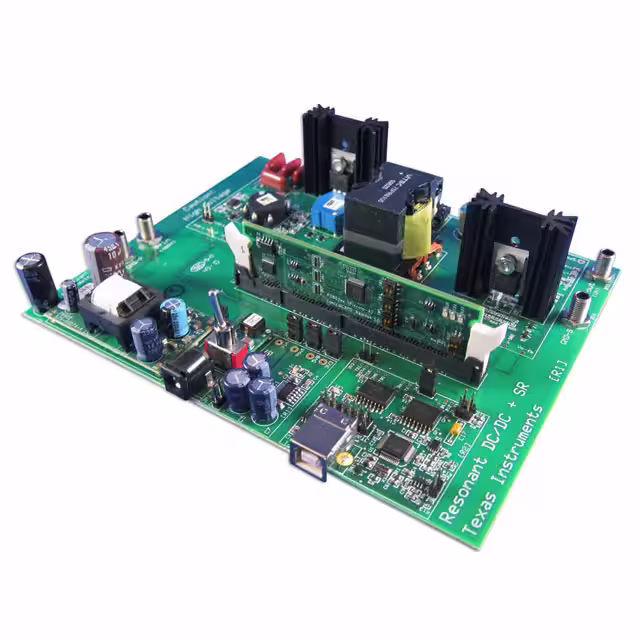

TMDSHVRESLLCKITEVAL BOARD FOR TMS320F28027 |
1,440 | 0.00 |
|
Datasheet |
C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 500 W | 12V | - | 380V ~ 400V | Resonant | - | Board(s) | TMS320F28027 |
|

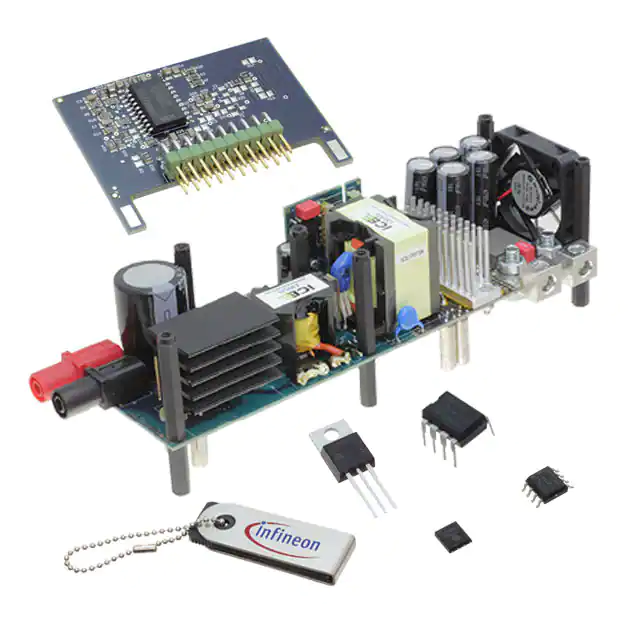

EVAL600W12VLLCP7TOBO1EVAL BOARD ICE2HS01G ICE2QR2280Z |
4,921 | 531.30 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 350V ~ 410V | Buck | - | Board(s) | ICE2HS01G, ICE2QR2280Z |
