DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

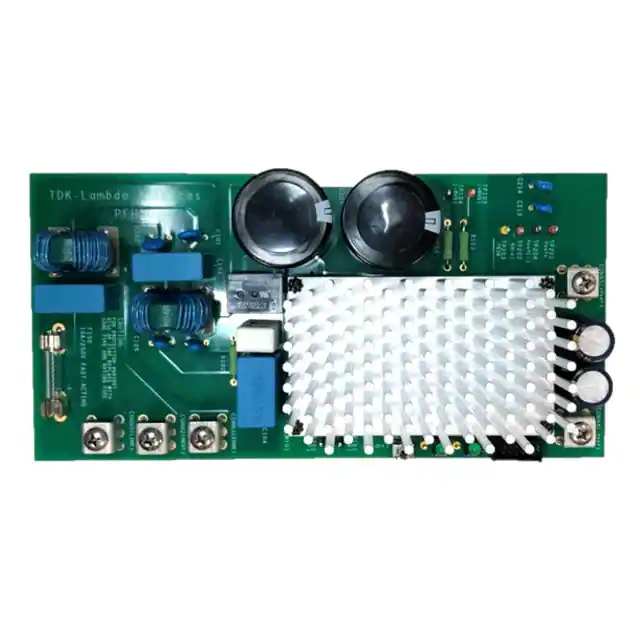

PFH05W28-1D0-EVK-S1EVAL BOARD FOR PFH500F281D0R |
1,688 | 0.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 500 W | 28V | 18A | 85 ~ 265 VAC | - | - | Board(s) | PFH500F-28-1D0-R |
|
STEVAL-ISV003V1EVAL BOARD FOR STM32F103ZE |
3,117 | 0.00 |
|
Datasheet |
- | Box | Obsolete | DC/AC Converter | 1 Isolated Output | 250 W | 230VAC | 1.1A | 18V ~ 55V | - | - | Board(s) | STM32F103ZE |
|
STEVAL-ISV003V2EVAL BOARD FOR STM32F103ZE |
1,521 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/AC Converter | 1 Isolated Output | 250 W | 240VAC | 1.06A | 18V ~ 55V | - | - | Board(s) | STM32F103ZE |
|
|
EVAL600W12VLLCCFD7TOBO1EVAL BOARD ICE2HS01G ICE2QR2280Z |
1,257 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | 50A | 350V ~ 410V | Buck | - | Board(s) | ICE2HS01G, ICE2QR2280Z |
|

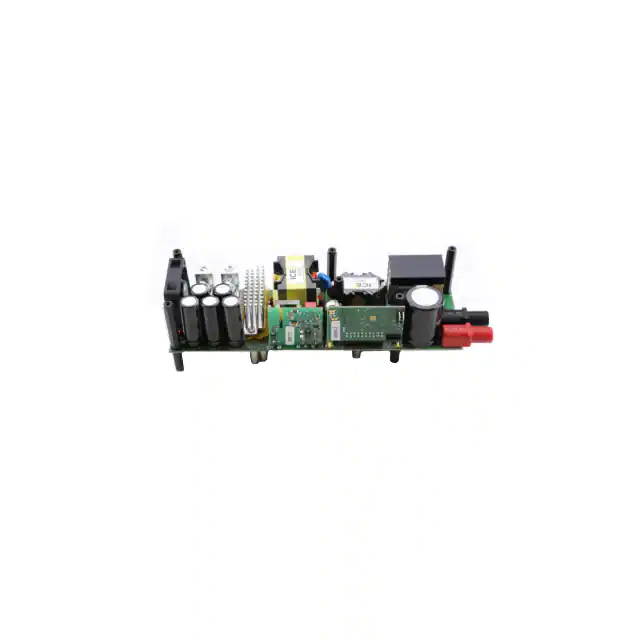

EVAL600W12VLLCC7TOBO1EVAL BOARD ICE2QR2280G XMC4200 |
1,908 | 554.40 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 600 W | 12V | - | 350V ~ 410V | Buck | 150kHz | Board(s) | ICE2QR2280G, XMC4200 |
|
|
EVAL800WZVSFBCFD7TOBO1EVAL BOARD ICE3RBR4765JZ XMC4200 |
1,779 | 531.30 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 800 W | 12V | 67A | 350V ~ 410V | Buck | 100kHz | Board(s) | ICE3RBR4765JZ, XMC4200 |
|

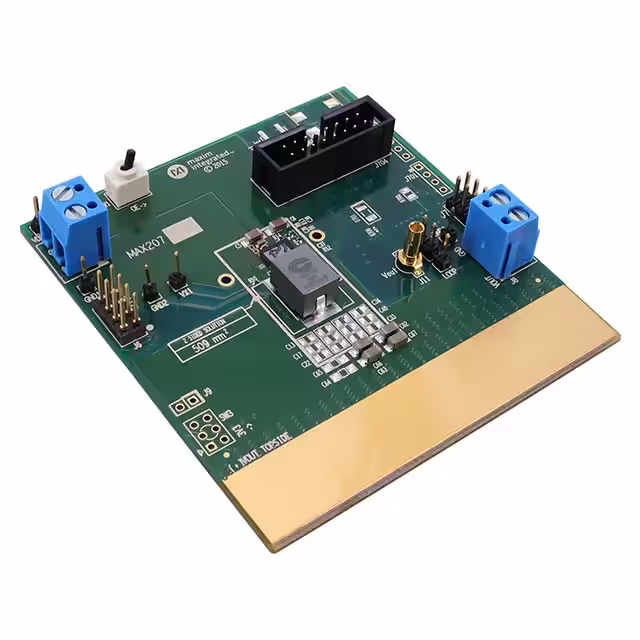

MAX20710EVKIT#EVAL BOARD FOR MAX20710 |
4,720 | 0.00 |
|
- |
- | Box | Active | - | - | - | - | - | - | - | - | Board(s) | MAX20710 |
|
PI3111-00-EVAL1EVAL BOARD FOR PI311100 |
2,832 | 545.04 |
|
Datasheet |
- | Box | Obsolete | DC/DC, Step Down | 1 Isolated Output | 50 W | 15V | 3.33A | 16V ~ 50V | Buck | 900kHz | Board(s) | PI3111-00 |
|
PI3105-00-EVAL1EVAL BOARD FOR PI310500 |
2,999 | 550.18 |
|
Datasheet |
- | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 60 W | 12V | 5A | 36V ~ 75V | Buck | 900kHz | Board(s) | PI3105-00 |
|
TDTTP2500P100-KITEVAL BOARD FOR TPH3212PS |
1,499 | 0.00 |
|
Datasheet |
- | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 2.5 kW | 390V | - | 85 ~ 265 VAC | - | 100kHz | Board(s) | TPH3212PS |
|
NBM2317D60E1560T0REVAL BOARD NBM2317X60E1560YZZ |
2,170 | 509.23 |
|
Datasheet |
VI Chip® NBM™ | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 13.5V | 60A | 38V ~ 60V | Buck | - | Board(s) | NBM2317x60E1560yzz |
|

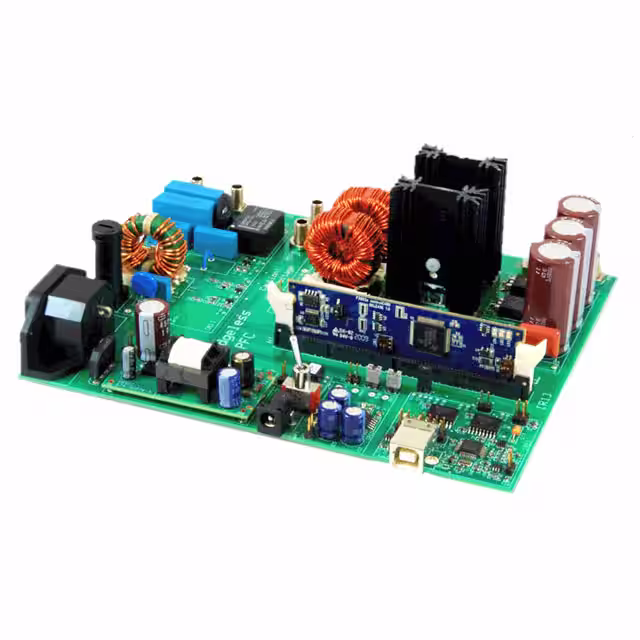

TMDSHVBLPFCKITEVAL BOARD FOR TMS320F28027 |
1,498 | 0.00 |
|
- |
C2000™, Piccolo™ | Bulk | Obsolete | AC/DC, Primary Side and PFC | 1 Non-Isolated Output | 300 W | 390V | - | 85 ~ 265 VAC | - | - | Board(s) | TMS320F28027 |
|

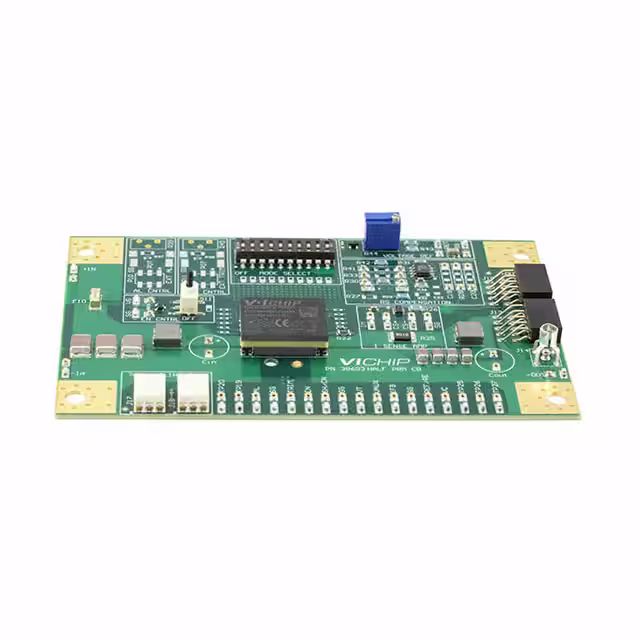

PRD48BH480T200B00EVAL BOARD FOR PRM48BH480T200B00 |
1,994 | 516.79 |
|
Datasheet |
VI Chip® PRM® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 200 W | 48V | 4.17A | 38V ~ 55V | Buck-Boost | 1MHz | Board(s) | PRM48BH480T200B00 |
|
STEVAL-ISA147V2EVAL BOARD FOR STM32F051K8 |
4,477 | 0.00 |
|
Datasheet |
- | Box | Obsolete | AC/DC, Primary and Secondary Side with PFC | - | 500 W | - | - | 90 ~ 264 VAC | Flyback | - | Board(s) | STM32F051K8, STM32F334C8 |
|

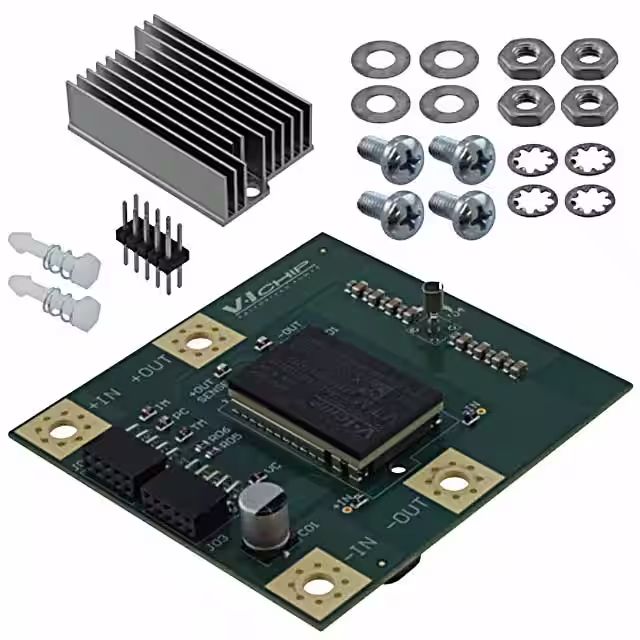

VTD48EF012T130A00EVAL BOARD FOR VTM48EF012T130A |
3,404 | 526.29 |
|
Datasheet |
VI Chip® VTM® | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | 130 W | 1V | 130A | 26V ~ 55V | Buck | 1.2MHz | Board(s) | VTM48EF012T130A |
|
|
EVAL3KW2LLCCFD7TOBO1EVAL BOARD ICE2QR2280G XMC4400 |
2,591 | 607.20 |
|
Datasheet |
- | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | 3 kW | 44V ~ 58V | 55A | 300V ~ 420V | Buck | - | Board(s) | ICE2QR2280G, XMC4400 |
|
|
ROA170019EVAL BOARD FOR BMR480 BMR490 |
1,741 | 0.00 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 1.3 kW | 12V | 108.3A | 40V ~ 60V | - | 230kHz | Partially Populated Board(s) | BMR480, BMR490, BMR491, BMR492 |
|
|
PRD48BH480T250A00EVAL BOARD FOR PRM48BH480X250A00 |
3,933 | 537.29 |
|
Datasheet |
VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 250 W | 48V | 5.21A | 38V ~ 55V | Buck-Boost | 1.03MHz | Board(s) | PRM48BH480x250A00 |
|
|
PRD48JH480T250A00EVAL BOARD FOR PRM48JH480X250A00 |
1,444 | 537.74 |
|
Datasheet |
VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 250 W | 48V | 5.21A | 45V ~ 55V | Buck-Boost | 1.03MHz | Board(s) | PRM48JH480x250A00 |
|
|
PRD48AH480T200A00EVAL BOARD FOR PRM48AH480X200A00 |
2,420 | 539.24 |
|
Datasheet |
VI Chip® PRM® | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 200 W | 48V | 4.17A | 36V ~ 75V | Buck-Boost | 1.03MHz | Board(s) | PRM48AH480x200A00 |
