DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

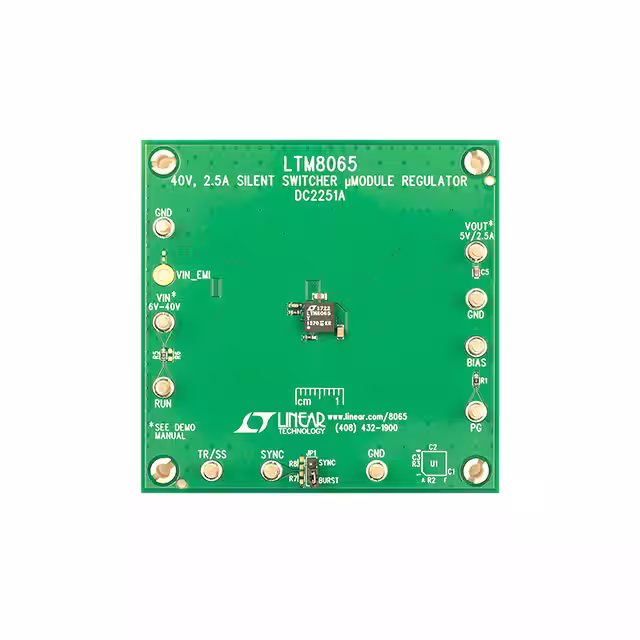

DC2251AEVAL BOARD FOR LTM8065 |
1,087 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.85V ~ 5.15V | 2.5A | 6V ~ 40V | - | 1MHz | Board(s) | LTM8065 |
|

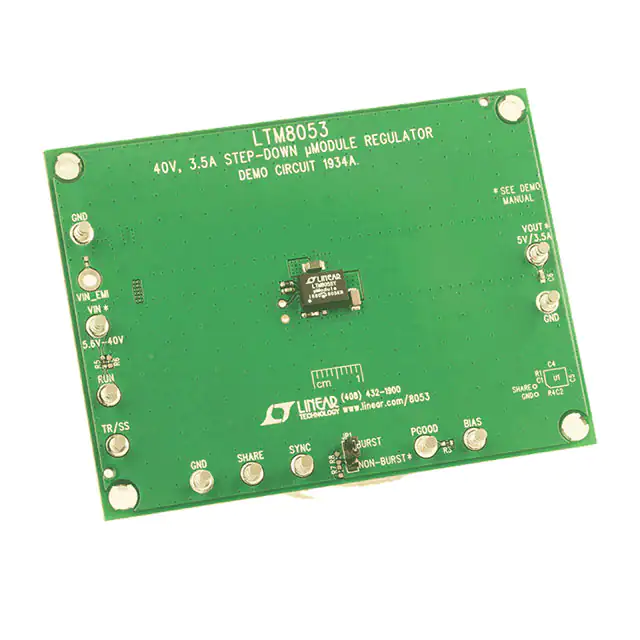

DC1934AEVAL BOARD FOR LTM8053 |
2,315 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 5.6V ~ 40V | Buck | 1MHz | Board(s) | LTM8053 |
|

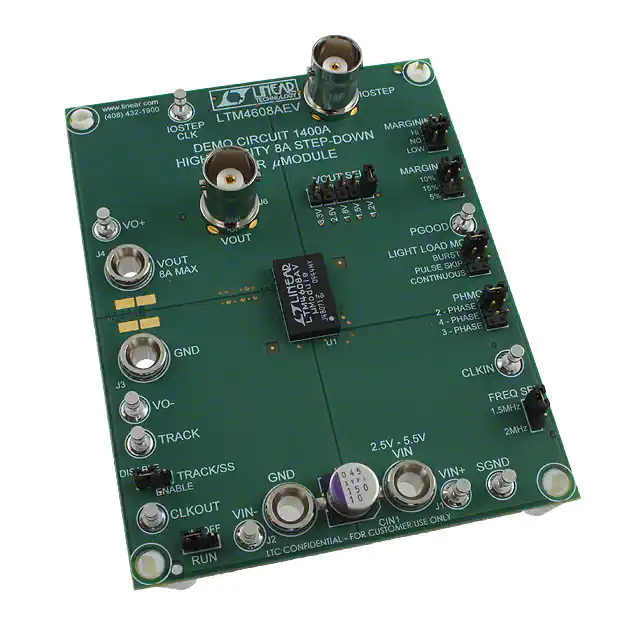

DC1400AEVAL BOARD FOR LTM4608 |
1,909 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, or 3.3V | 8A | 2.5V ~ 5.5V | Buck | 1.5MHz | Board(s) | LTM4608 |
|

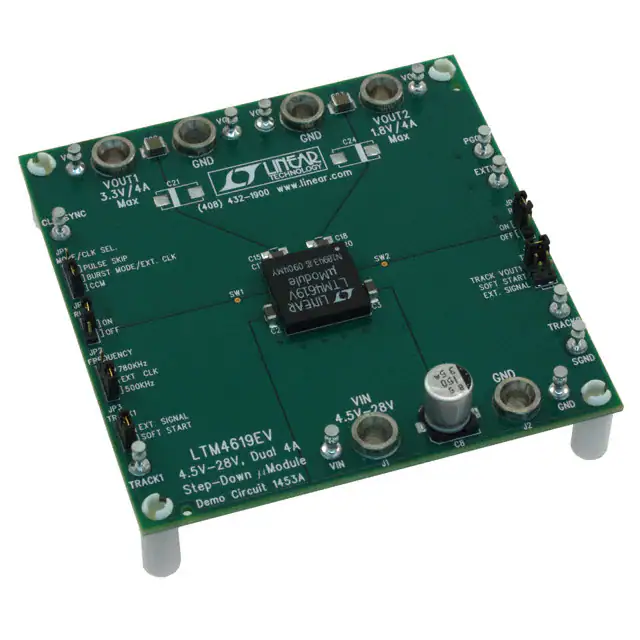

DC1453AEVAL BOARD FOR LTM4619 |
4,208 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 3.3V | 4A | 4.5V ~ 28V | Buck | 500kHz | Board(s) | LTM4619 |
|

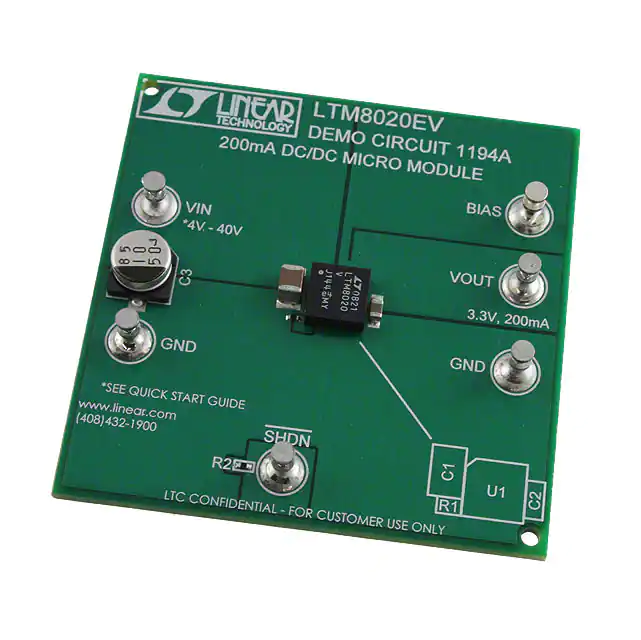

DC1194AEVAL BOARD FOR LTM8020 |
2,311 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 200mA | 4.5V ~ 36V | Buck | 450kHz | Board(s) | LTM8020 |
|
DC1623AEVAL BOARD FOR LTM8033 |
1,931 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5.5V ~ 36V | Buck | 425kHz | Board(s) | LTM8033 |
|
DC1386BEVAL BOARD FOR LTM8032EV |
1,723 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2A | 5.5V ~ 36V | Buck | 600kHz | Board(s) | LTM8032EV |
|
DC1261AEVAL BOARD FOR LTM8022 |
1,822 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4.5V ~ 36V | Buck | 600kHz | Board(s) | LTM8022 |
|

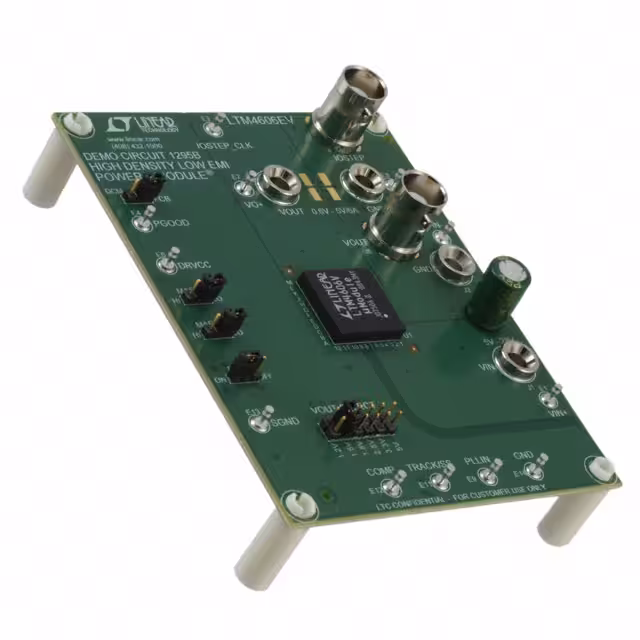

DC1295BEVAL BOARD FOR LTM4606 |
2,941 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 6A | 5V ~ 28V | Buck | 800kHz | Board(s) | LTM4606 |
|

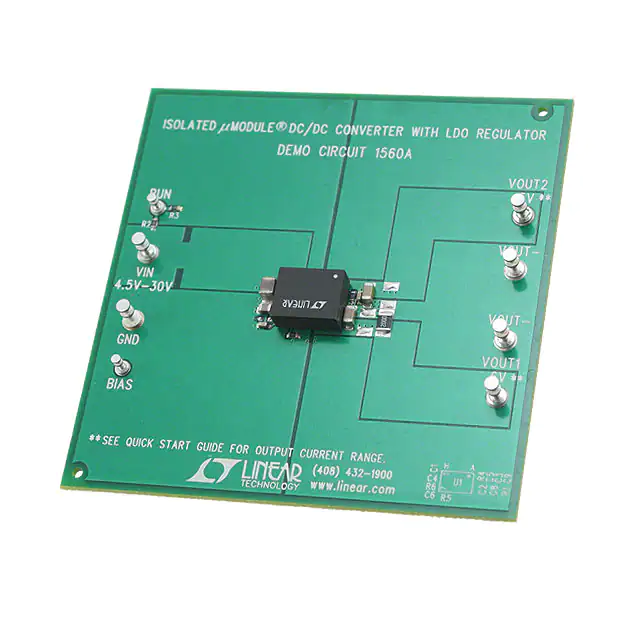

DC1560AEVAL BOARD FOR LTM8048 |
4,240 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down with LDO | 2 Isolated Outputs | - | 5V, 6V | 300mA | 4.5V ~ 30V | Flyback | - | Board(s) | LTM8048 |
|
DC1238BEVAL BOARD FOR LTM8021 |
3,379 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 500mA | 7.5V ~ 36V | Buck | 1.1MHz | Board(s) | LTM8021 |
|
DC1533AEVAL BOARD FOR LTM8045 |
3,173 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -4.83V ~ -5.19V | 700mA | 2.8V ~ 18V | Inverting | 700kHz | Board(s) | LTM8045 |
|

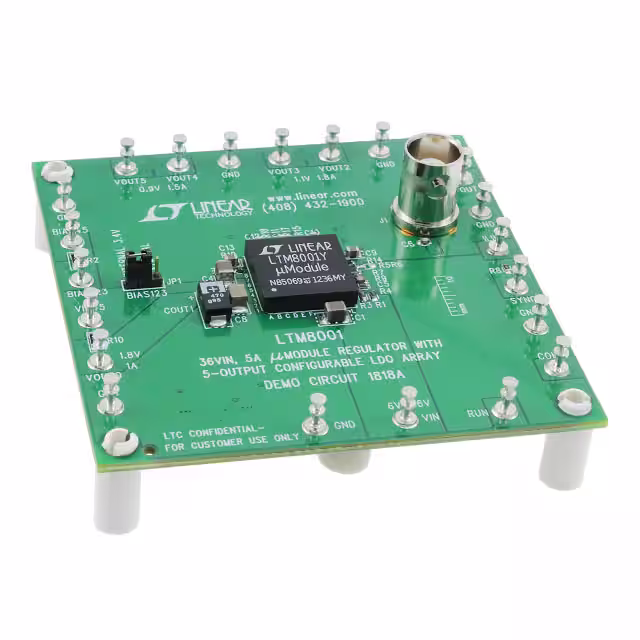

DC1818AEVAL BOARD FOR LTM8001 |
4,732 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 0.9V, 1.1V, 1.2V, 1.8V | 1.8A, 1.5A, 1A, 700mA | 6V ~ 36V | Buck | 350kHz | Board(s) | LTM8001 |
|
DC1723AEVAL BOARD FOR LTM8050 |
1,138 | 76.50 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 7.5V ~ 58V | Buck | 400kHz | Board(s) | LTM8050 |
|

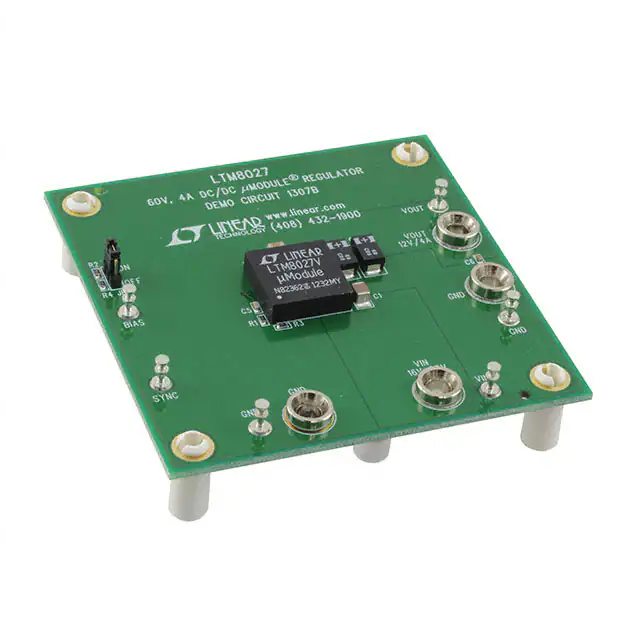

DC1307BEVAL BOARD FOR LTM8027 |
2,495 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 4A | 16V ~ 60V | Buck | 300kHz | Board(s) | LTM8027 |
|

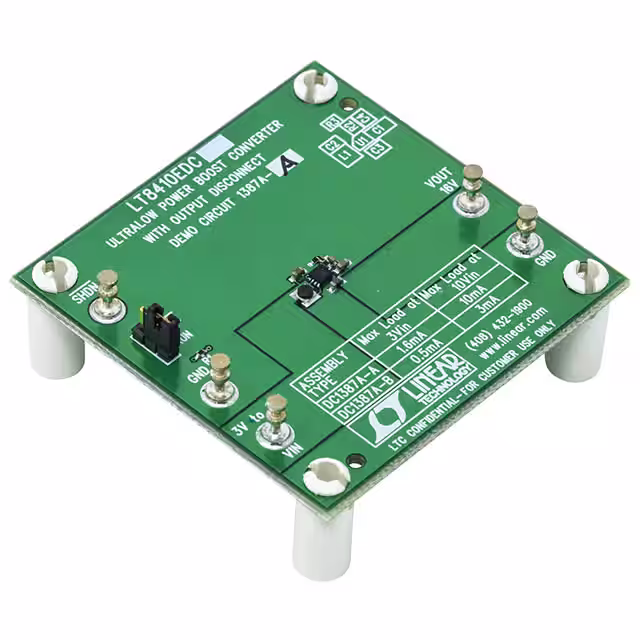

DC1387A-AEVAL BOARD FOR LT8410 |
4,064 | 76.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V | 1.6mA | 3V ~ 10V | Boost | - | Board(s) | LT8410 |
|

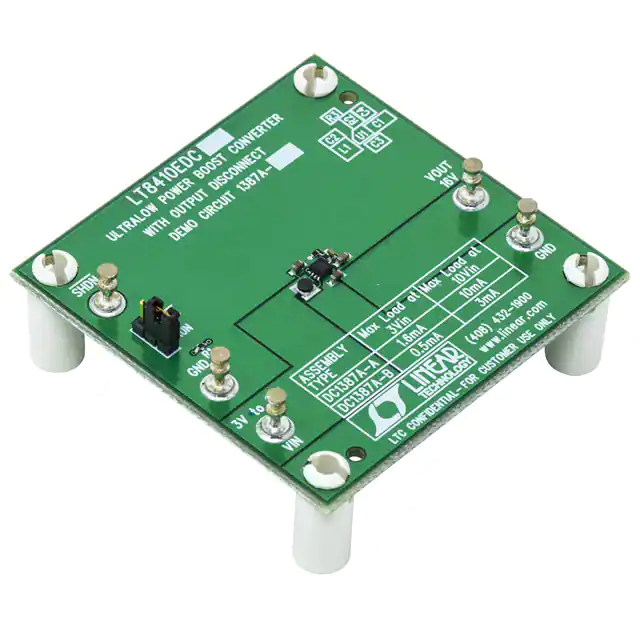

DC1387A-BEVAL BOARD FOR LT84101 |
3,833 | 76.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V | 0.5mA | 3V ~ 10V | Boost | - | Board(s) | LT8410-1 |
|

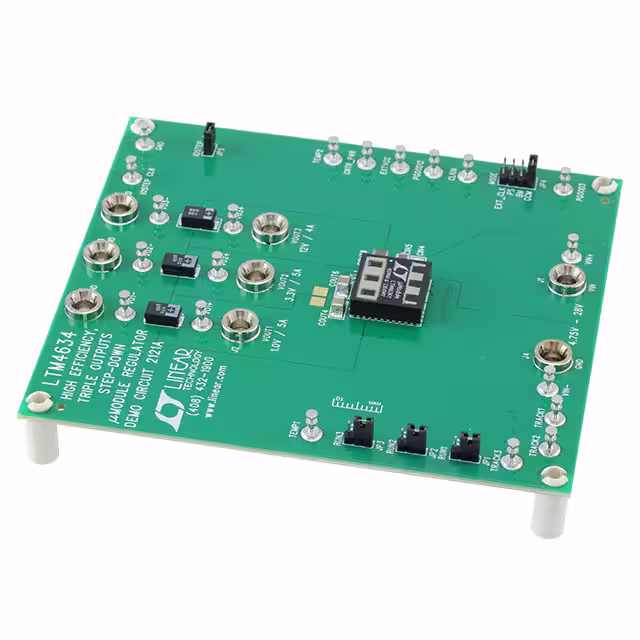

DC2121AEVAL BOARD FOR LTM4634 |
1,973 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1V, 3.3V, 12V | 5A, 5A, 4A | 4.75V ~ 28V | Buck | 500kHz | Board(s) | LTM4634 |
|
DC1811B-BEVAL BOARD FOR LTM4676A |
1,369 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 13A, 13A | 4.5V ~ 17V | Buck | 500kHz | Board(s) | LTM4676A |
|
DC2016AEVAL BOARD FOR LTM8054 |
3,924 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 3A | 6V ~ 35V | Buck-Boost | 600kHz | Board(s) | LTM8054 |
