DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1559AEVAL BOARD FOR LTM8046 |
2,515 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 550mA | 3.2V ~ 26V | - | - | Board(s) | LTM8046 |
|

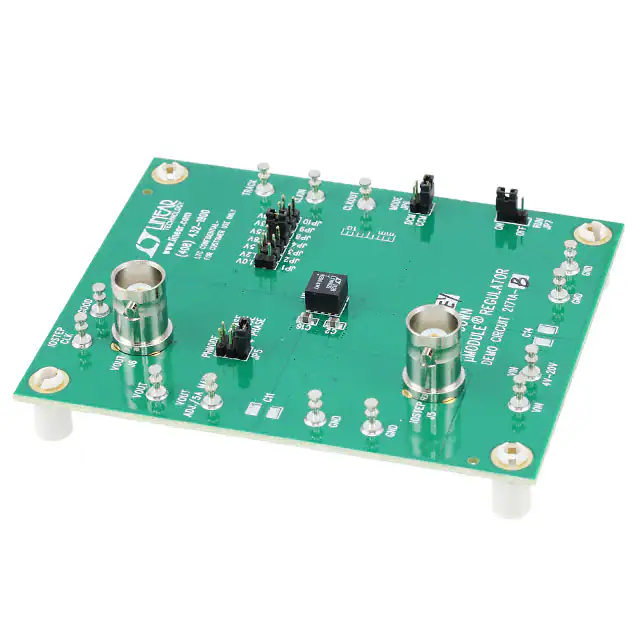

DC2171A-BEVAL BOARD FOR LTM4625 |
3,802 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4625 |
|

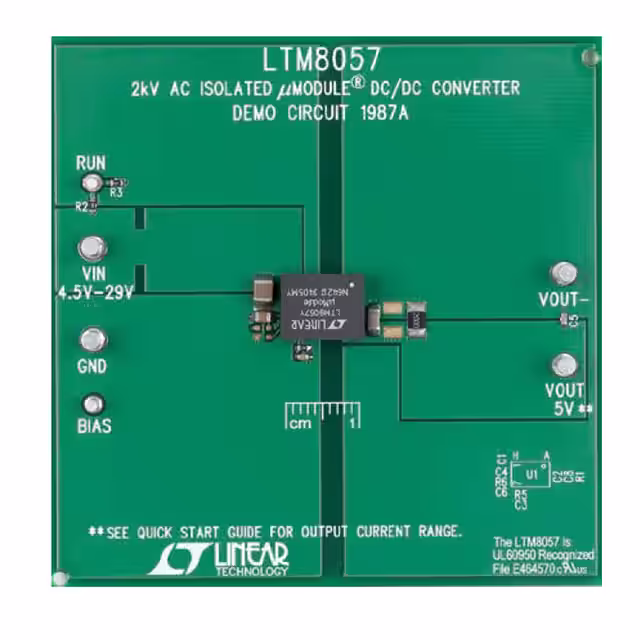

DC1987AEVAL BOARD FOR LTM8057 |
2,465 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 350mA | 4.5V ~ 29V | Flyback | - | Board(s) | LTM8057 |
|
DC2479A-AEVAL BOARD FOR LTM4650 |
3,922 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650 |
|
DC2479A-BEVAL BOARD FOR LTM46501 |
3,215 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
|

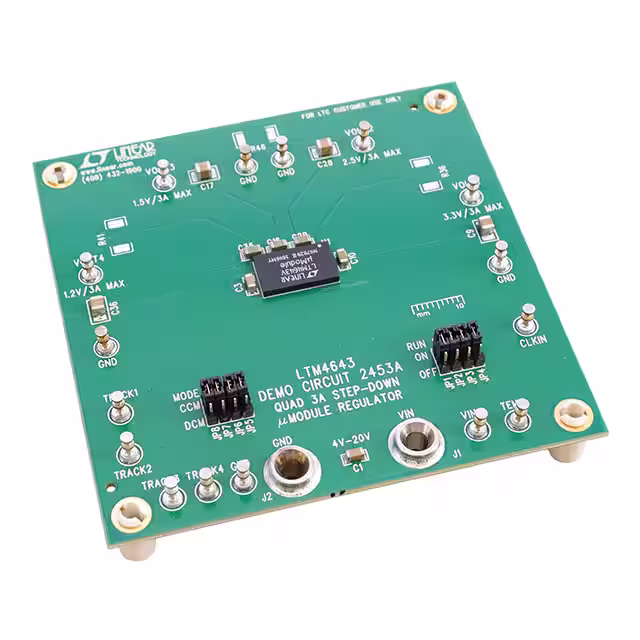

DC2453AEVAL BOARD FOR LTM4643 |
3,308 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V, 3.3V | 3A, 3A, 3A, 3A | 4V ~ 20V | Buck | 1.2MHz | Board(s) | LTM4643 |
|

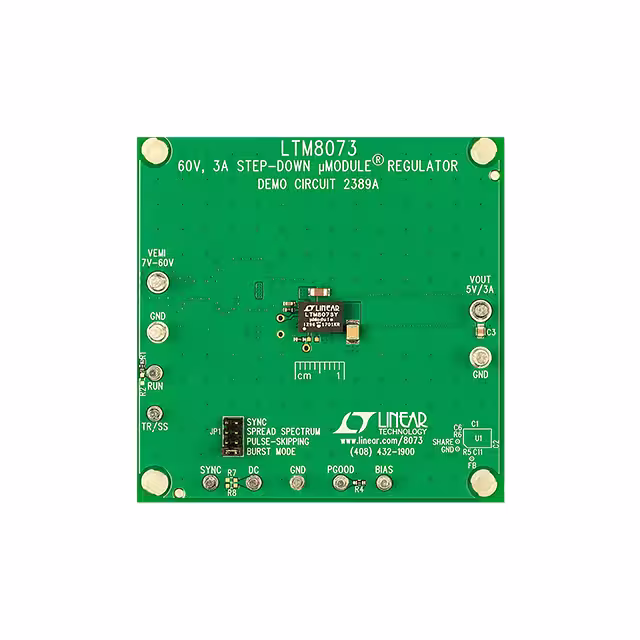

DC2389AEVAL BOARD FOR LTM8073 |
1,896 | 76.50 |
|
Datasheet |
Silent Switcher®, µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 60V | Buck | 1.2MHz | Board(s) | LTM8073 |
|

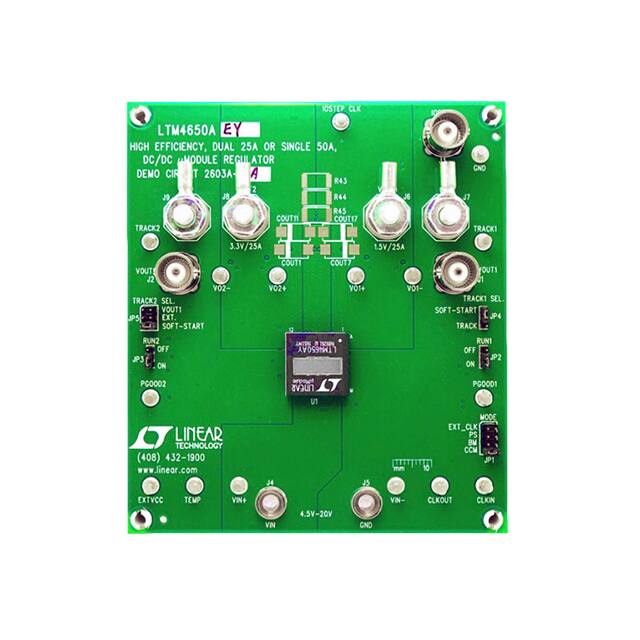

DC2603A-AEVAL BOARD FOR LTM4650AEY1 |
2,558 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 5.5V | 25A, 25A | 4.5V ~ 16V | Buck | 250kHz ~ 780kHz | Board(s) | LTM4650AEY-1 |
|
DC2603A-BEVAL BOARD FOR LTM4650AEY1 |
2,102 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 5.5V | 25A, 25A | 4.5V ~ 16V | Buck | 250kHz ~ 780kHz | Board(s) | LTM4650AEY-1 |
|

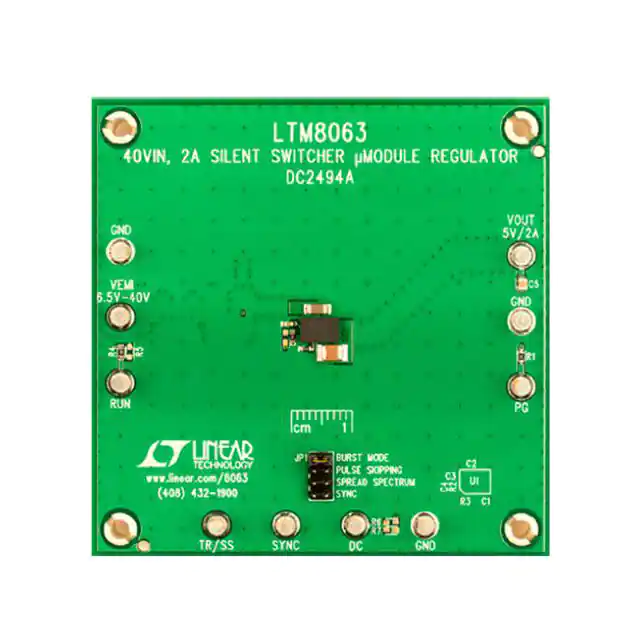

DC2494AEVAL BOARD FOR LTM8063 |
1,837 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.5V ~ 40V | Buck | 1.4MHz | Board(s) | LTM8063 |
|

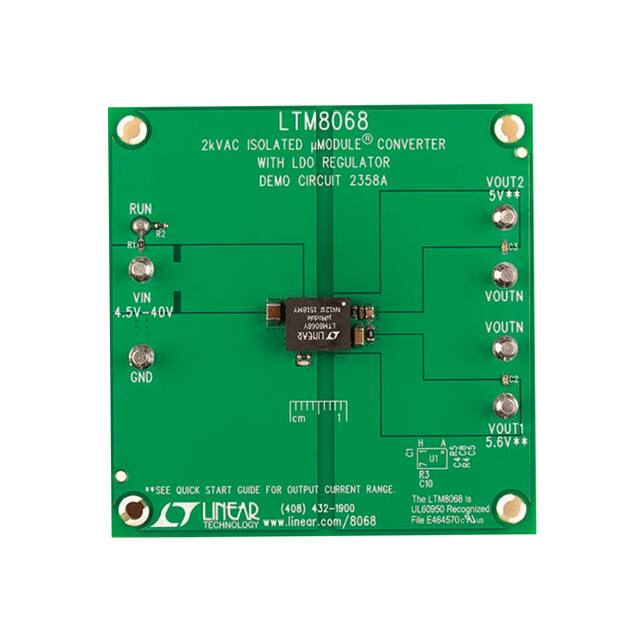

DC2358AEVAL BOARD FOR LTM8068 |
1,880 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC Converter with LDO | 2 Isolated Outputs | - | 5V, 5.6V | 450mA, 300mA | 4.5V ~ 40V | Flyback | - | Board(s) | LTM8068 |
|
DC2249BEVAL BOARD FOR LTM4622 |
2,891 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 2.5A, 2.5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4622 |
|
DC2785A-AEVAL BOARD FOR LTM4668 |
3,813 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V | 1.2A | 2.7V ~ 17V | Buck | 1MHz | Board(s) | LTM4668 |
|

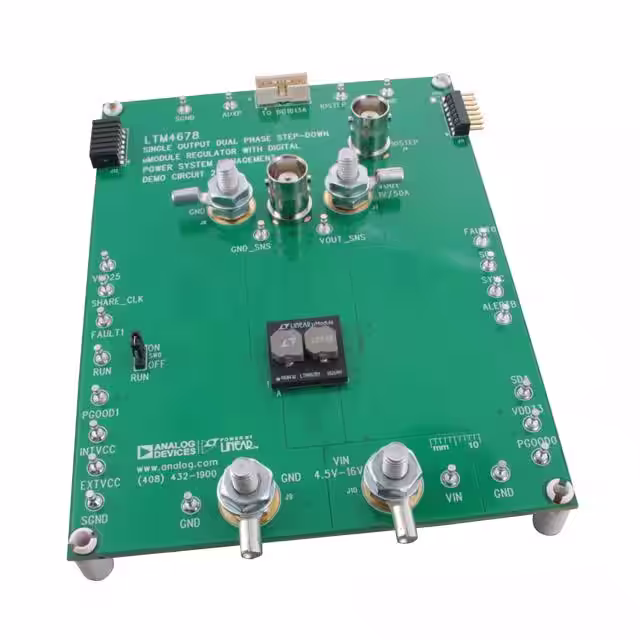

DC2570ALTM4678EY DEMO BOARD DUAL 25A/SI |
1,393 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 50A | 4.5V ~ 16V | Buck | - | Board(s) | - |
|
DC2634AEVAL BOARD FOR LTM4656 |
2,529 | 76.50 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 6V ~ 36V | 4A | 4.5V ~ 28V | Boost | - | Board(s) | LTM4656 |
|
DC2860AEVAL BOARD FOR LTM8051 |
3,463 | 76.50 |
|
Datasheet |
Silent Switcher®, µModule® | Bulk | Active | DC/DC, Step Down | 4 Isolated Outputs | - | 1.8V, 2.5V, 3.3V, 5V | 1.2A, 1.2A, 1.2A, 1.2A | 7V ~ 40V | Boost | - | Board(s) | LTM8051 |
|
DC1543BEVAL BOARD FOR LTM4641 |
4,729 | 76.50 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1V, 1.2V, 1.5V, 1.8V, 3.3V, 5V or 6V | 10A | 4.5V ~ 38V | Buck | - | Board(s) | LTM4641 |
|
DC1367AEVAL BOARD FOR LTM4615 |
1,602 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1V, 1.2V, 1.8V | 4A, 2.5A, 1.5A | 2.5V ~ 5.5V | Buck | 1.25MHz | Board(s) | LTM4615 |
|
DC1297BEVAL BOARD FOR LTM4612 |
4,557 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V, 5V, 12V | 5A | 5V ~ 36V | Buck | 850kHz | Board(s) | LTM4612 |
|
DC2171A-AEVAL BOARD FOR LTM4623 |
4,981 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 3A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4623 |
