DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC2194AEVAL BOARD FOR LTM4642 |
2,232 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 4A, 4A | 4.5V ~ 20V | Buck | 800kHz | Board(s) | LTM4642 |
|

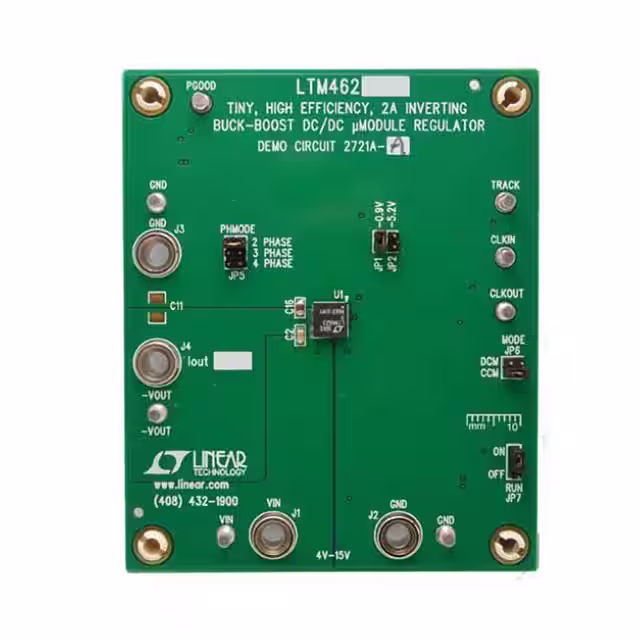

DC2721A-AEVAL BOARD FOR LTM4623 |
3,218 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | -0.6V ~ -5.5V | 2A | 4V ~ 15V | Buck-Boost | 1MHz | Board(s) | LTM4623 |
|

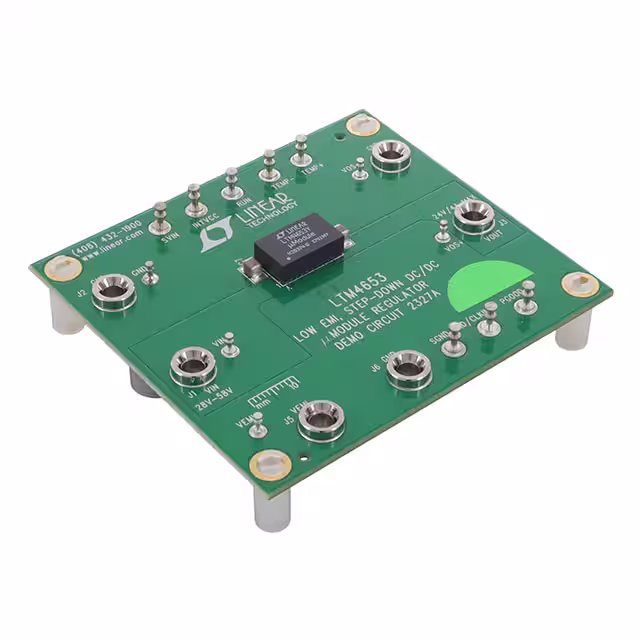

DC2327AEVAL BOARD FOR LTM4653 |
4,395 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 4A | 28V ~ 58V | Buck | 1.2MHz | Board(s) | LTM4653 |
|
DC2268A-FEVAL BOARD FOR LTM4630A |
3,320 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 8V | 18A, 18A | 6V ~ 15V | Buck | - | Board(s) | LTM4630A |
|
DC1868AEVAL BOARD FOR LTM8024 |
2,416 | 76.50 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 3A, 3A | 7V ~ 40V | Buck | 1MHz | Board(s) | LTM8024 |
|

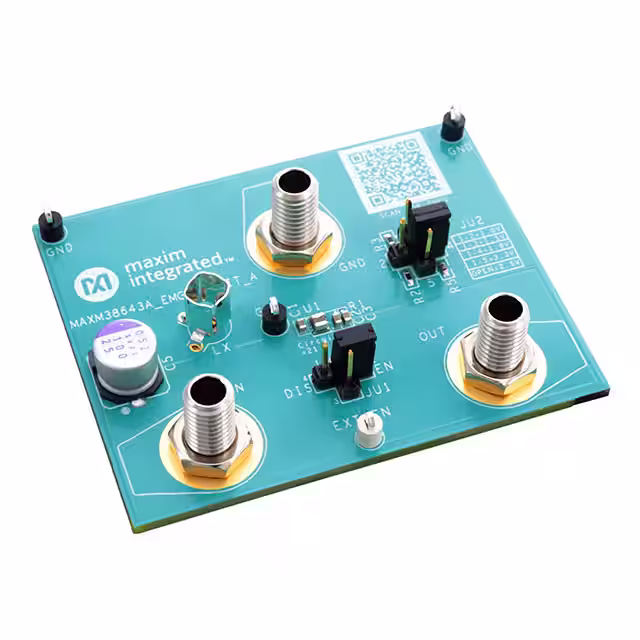

MAXM38643AEVK#EMGAEVAL BOARD FOR MAXM38643A |
3,315 | 72.70 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 600mA | 1.8V ~ 5.5V | Buck | - | Board(s) | MAXM38643A |
|

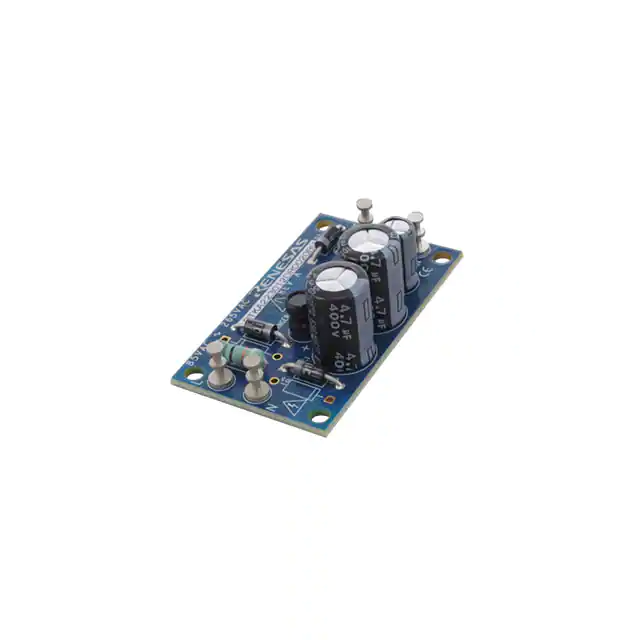

RTKA223012DR0020BUEVAL BOARD FOR RAA223012 |
4,628 | 77.62 |
|
- |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 750 mW | 5V | 150mA | 85 ~ 265 VAC | Buck | - | Board(s) | RAA223012 |
|

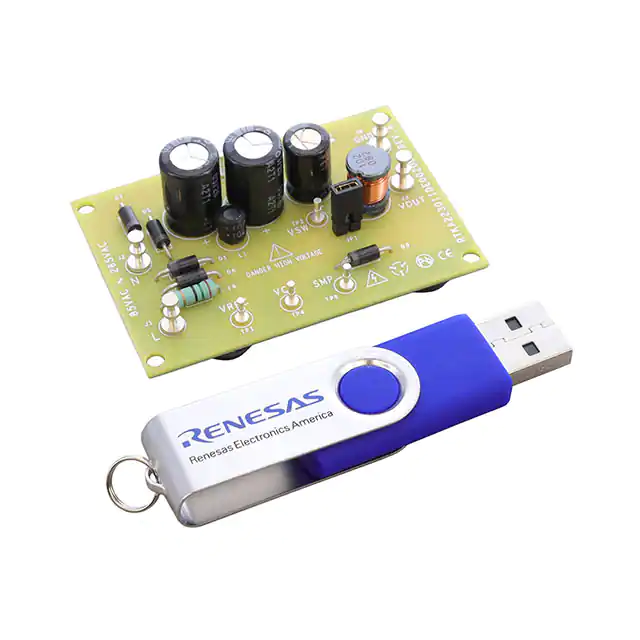

RTKA223011DE0020BUEVAL BOARD FOR RAA223011 |
4,197 | 77.62 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 3.96 W | 12V | 300mA | 85 ~ 265 VAC | Buck | 30kHz | Board(s) | RAA223011 |
|
MAX38643AEVK#WLPEVAL BOARD FOR MAX38643A |
2,099 | 72.70 |
|
Datasheet |
nanoPower | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 700mA | 1.8V ~ 5.5V | Buck | - | Board(s) | MAX38643A |
|

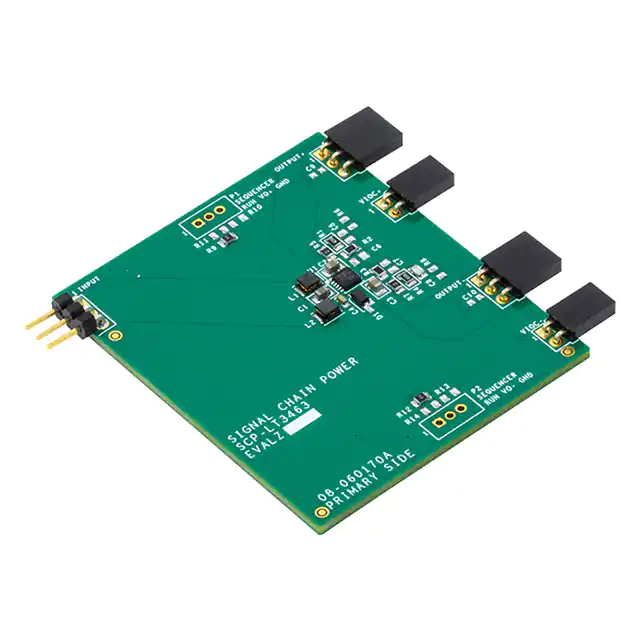

SCP-LT3463-EVALZEVAL BOARD FOR LT3463 |
4,255 | 79.85 |
|
Datasheet |
SCP | Bulk | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | ±40V | - | 2.4V ~ 15V | Boost | - | Board(s) | LT3463 |
|

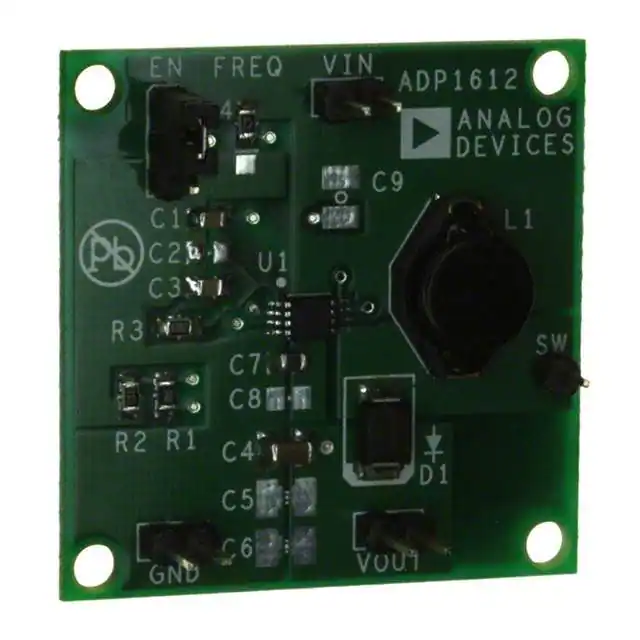

ADP1612-5-EVALZEVAL BOARD FOR ADP1612 |
4,908 | 72.74 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 1.4A | 1.8V ~ 5.5V | Boost | - | Board(s) | ADP1612 |
|

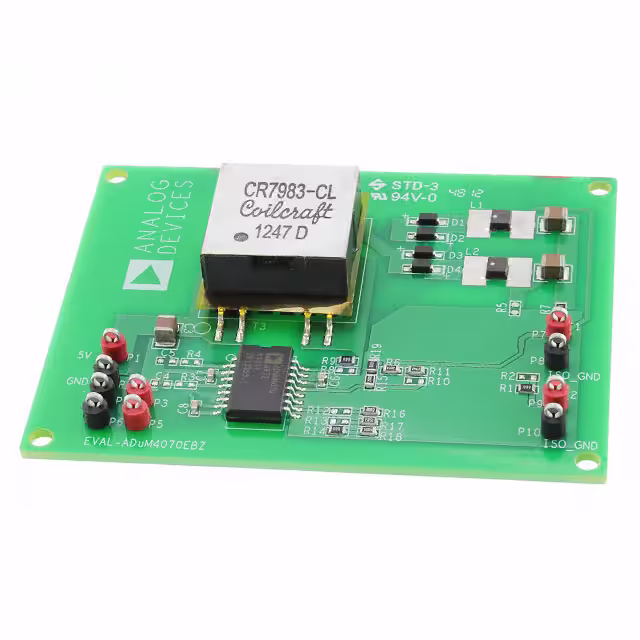

EVAL-ADUM4070EBZEVAL BOARD FOR ADUM4070 |
2,091 | 79.45 |
|
Datasheet |
iCoupler® | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | 2.5 W | 5V | 500mA | 5V | - | 500kHz | Board(s) | ADuM4070 |
|
ADP1613-12-EVALZEVAL BOARD FOR ADP1613 |
1,241 | 72.74 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 2.5V ~ 5.5V | Boost | - | Board(s) | ADP1613 |
|
ADP2503-EVALZEVAL BOARD FOR ADP2503 |
4,689 | 72.74 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | - | - | - | 600mA | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s) | ADP2503 |
|

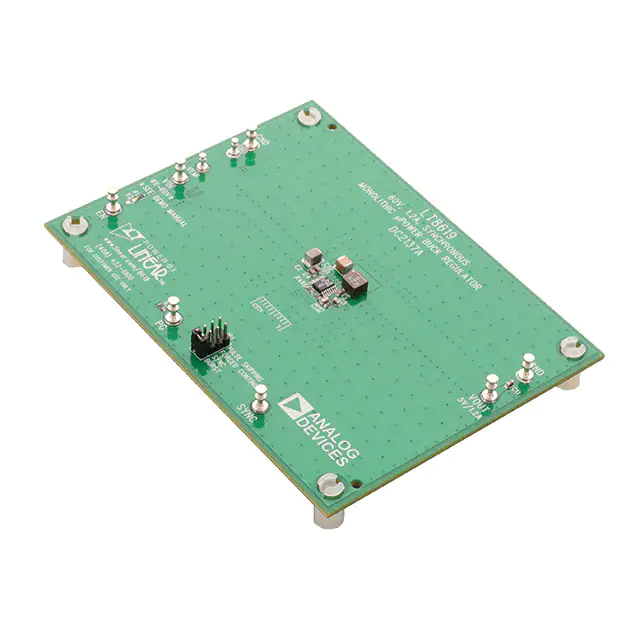

DC2137AEVAL BOARD FOR LT8619 |
2,481 | 80.04 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.2A | 6V ~ 48V | Buck | 2MHz | Board(s) | LT8619 |
|

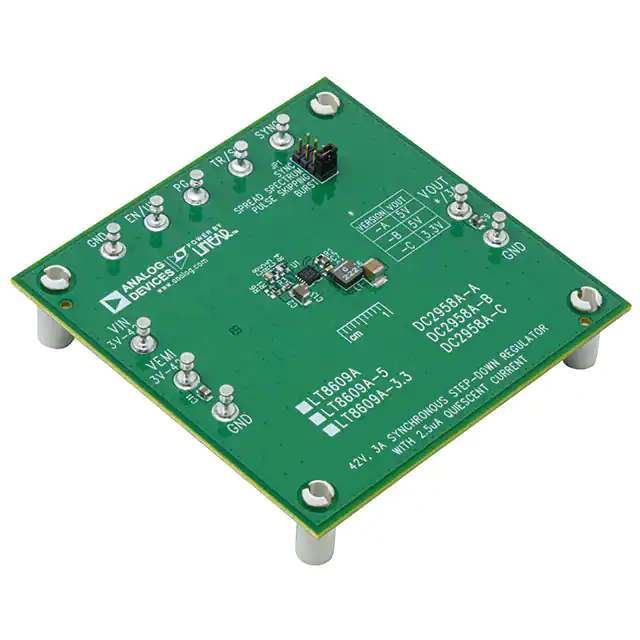

DC2958A-CEVAL BOARD FOR LT8609A3.3 |
3,683 | 80.04 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 3V ~ 42V | Buck | 2MHz | Board(s) | LT8609A-3.3 |
|

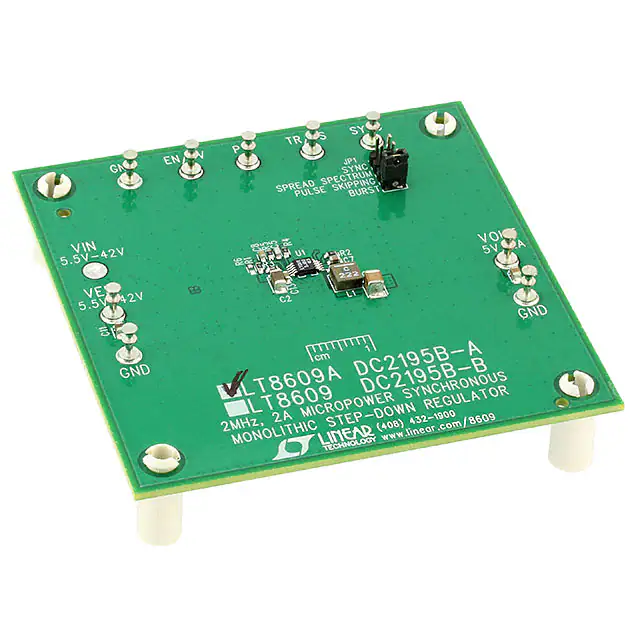

DC2195B-AEVAL BOARD FOR LT8609A |
4,171 | 80.04 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8609A |
|

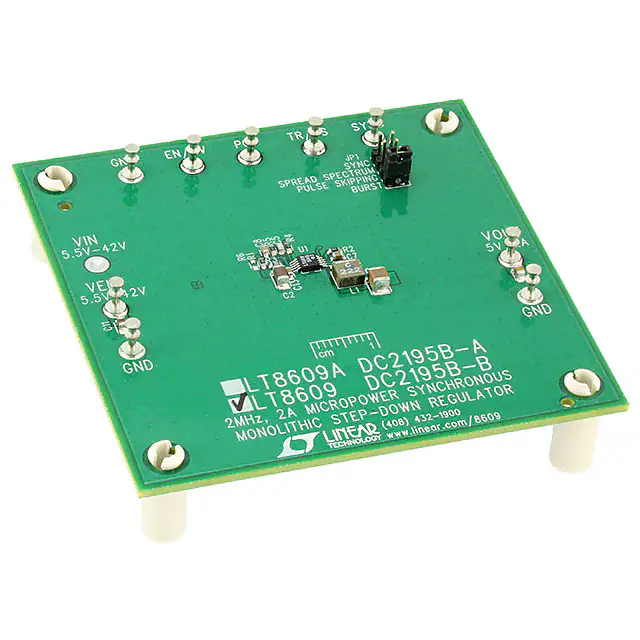

DC2195B-BEVAL BOARD FOR LT8609 |
1,791 | 80.04 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8609 |
|
DC2110AEVAL BOARD FOR LT8631 |
3,444 | 80.04 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.5V ~ 100V | Buck | 400kHz | Board(s) | LT8631 |
|
|
DC2958A-BEVAL BOARD FOR LT8609A5 |
2,844 | 80.04 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 3V ~ 42V | Buck | 2MHz | Board(s) | LT8609A-5 |
