DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

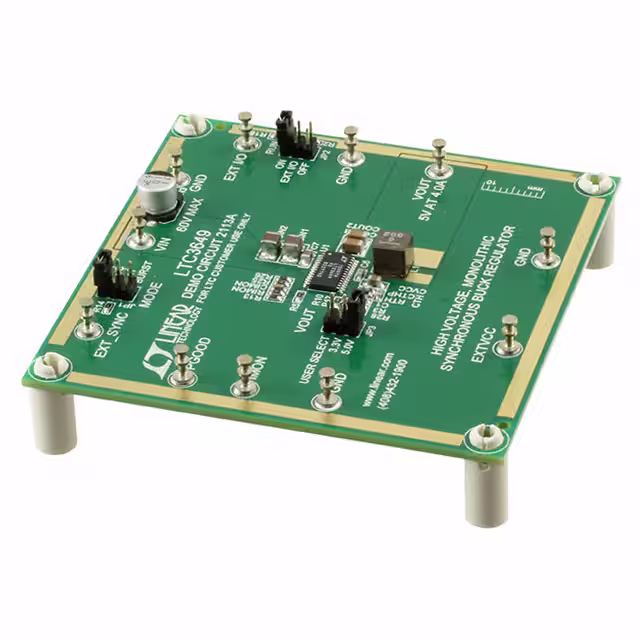

DC2113AEVAL BOARD FOR LTC3649 |
2,649 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | 4V ~ 60V | Buck | 500kHz | Board(s) | LTC3649 |
|
DC1687BEVAL BOARD FOR LTC31151 |
3,442 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2A | 2.7V ~ 40V | Buck-Boost | 1MHz | Board(s) | LTC3115-1 |
|

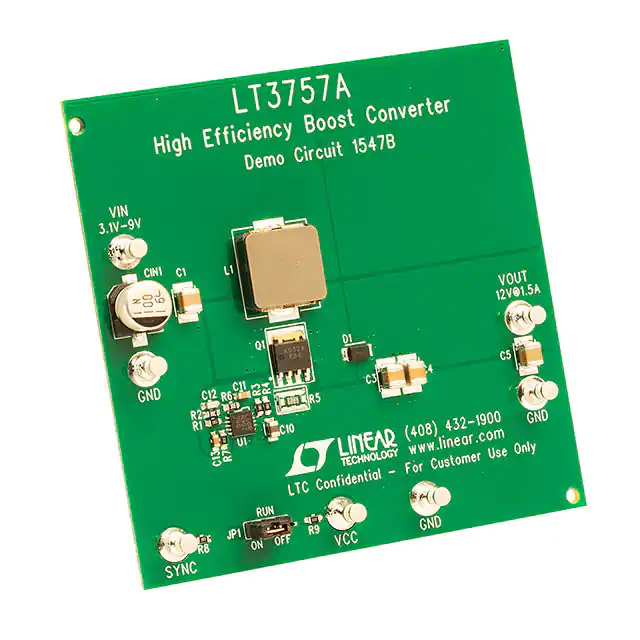

DC1547BEVAL BOARD FOR LT3757 |
1,965 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 3.1V ~ 9V | Boost | 400kHz | Board(s) | LT3757 |
|

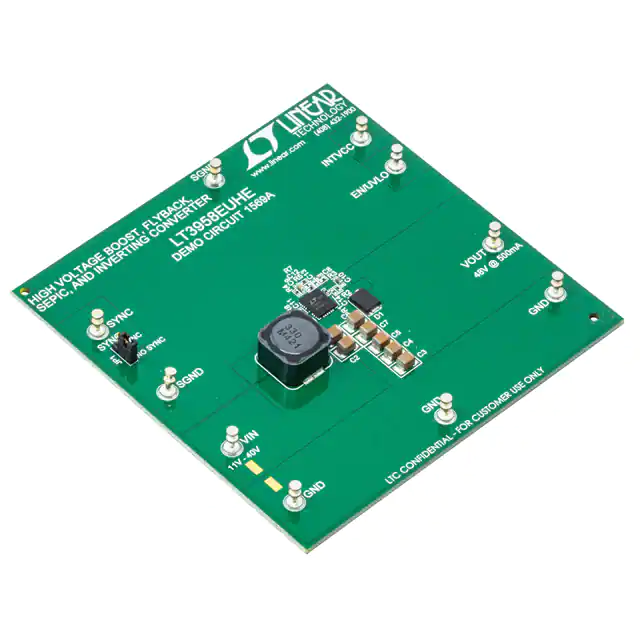

DC1569AEVAL BOARD FOR LT3958 |
3,603 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 48V | 500mA | 11V ~ 40V | Boost | 300kHz | Board(s) | LT3958 |
|

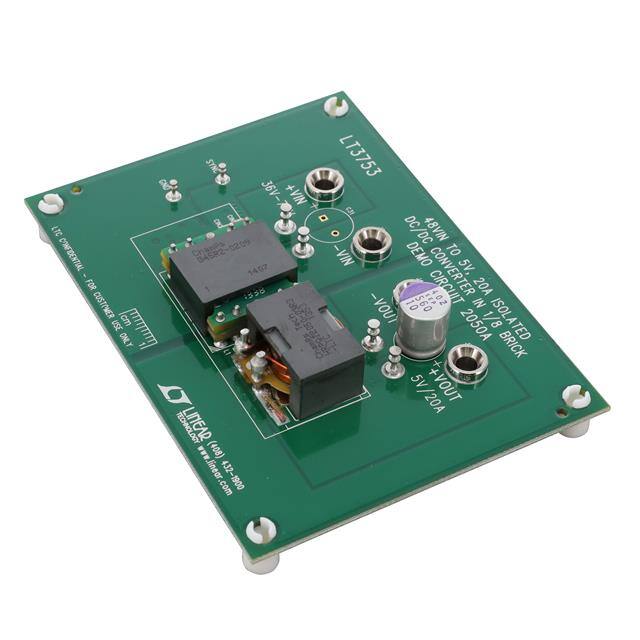

DC2050AEVAL BOARD FOR LT3753 |
2,379 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 20A | 36V ~ 72V | Forward Converter | 250kHz | Board(s) | LT3753 |
|

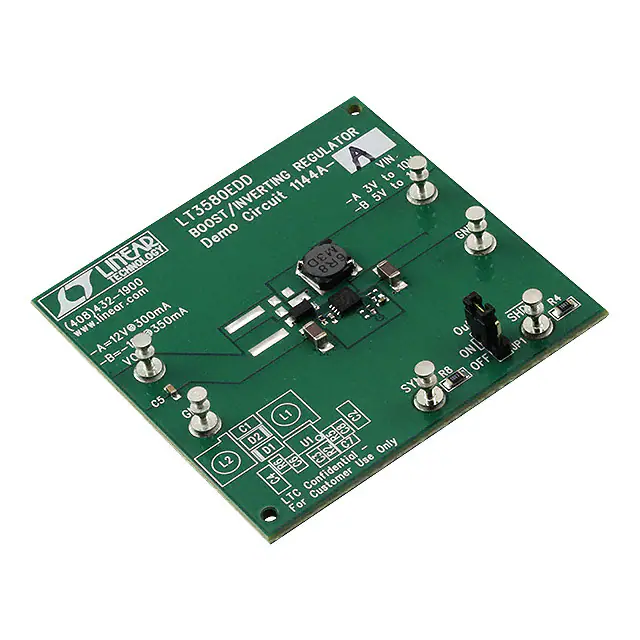

DC1144A-AEVAL BOARD FOR LT3580 |
4,705 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 300mA | 3V ~ 10V | Boost | 1MHz | Board(s) | LT3580 |
|
DC1144A-BEVAL BOARD FOR LT3580 |
4,490 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 350mA | 5V ~ 12V | Inverting | 2MHz | Board(s) | LT3580 |
|

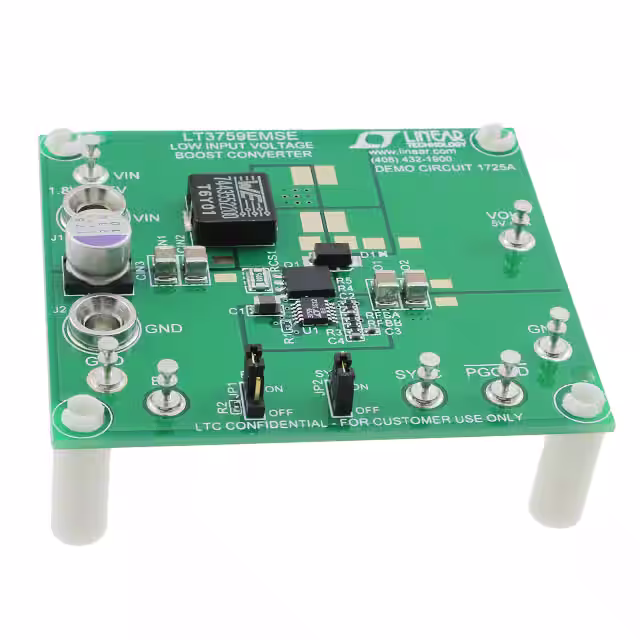

DC1725AEVAL BOARD FOR LT3759 |
3,335 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 2A | 1.8V ~ 4.5V | Boost | 485kHz | Board(s) | LT3759 |
|

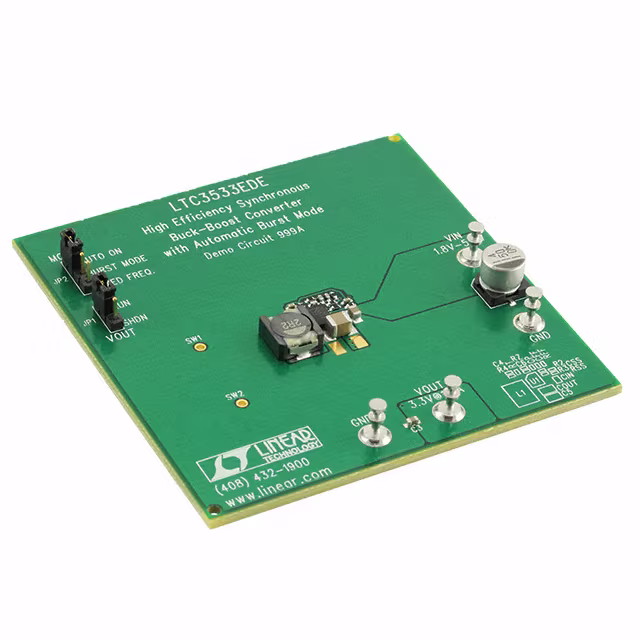

DC999AEVAL BOARD FOR LTC3533 |
2,206 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 1.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3533 |
|
DC1672AEVAL BOARD FOR LTC3816 |
4,024 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V | 25A | 4.5V ~ 28V | Buck | 400kHz | Board(s) | LTC3816 |
|

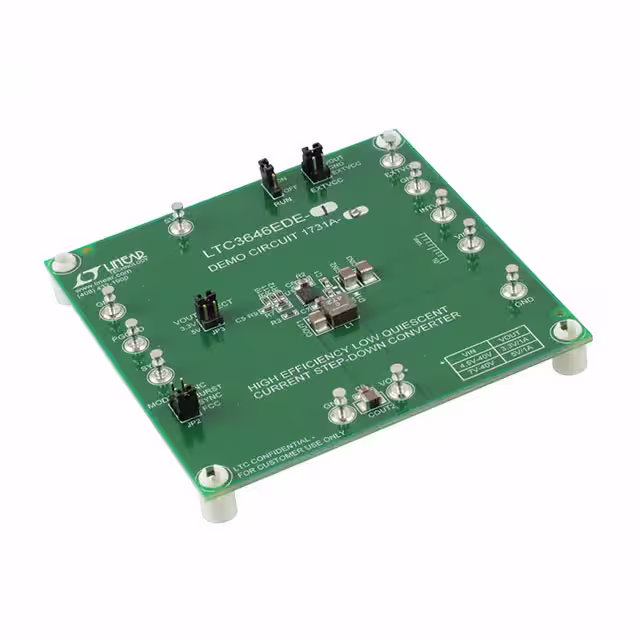

DC1731A-BEVAL BOARD FOR LTC36461 |
4,505 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4V ~ 40V | Buck | 1.5MHz | Board(s) | LTC3646-1 |
|
DC1787AEVAL BOARD FOR LT3759 |
1,454 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1A | 2.8V ~ 36V | Boost, Inverting, SEPIC | 300kHz | Board(s) | LT3759 |
|
DC2324A-CEVAL BOARD FOR LT3753 |
4,756 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 5A | 9V ~ 18V | Forward Converter | 240kHz | Board(s) | LT3753 |
|
DC3103AEVAL BOARD FOR LT3942 |
2,419 | 176.55 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 1A | 3V ~ 36V | Buck-Boost | 2MHz | Board(s) | LT3942 |
|

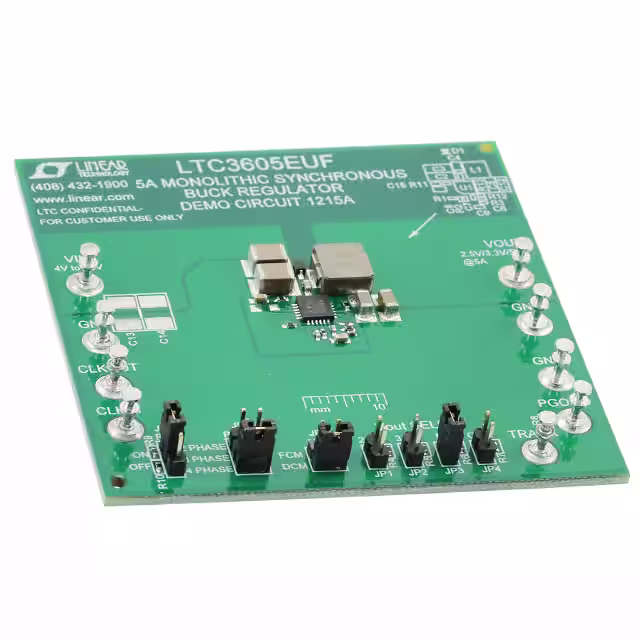

DC1215AEVAL BOARD FOR LTC3605 |
3,828 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V, 3.3V or 5V | 5A | 4V ~ 15V | Buck | 1MHz | Board(s) | LTC3605 |
|

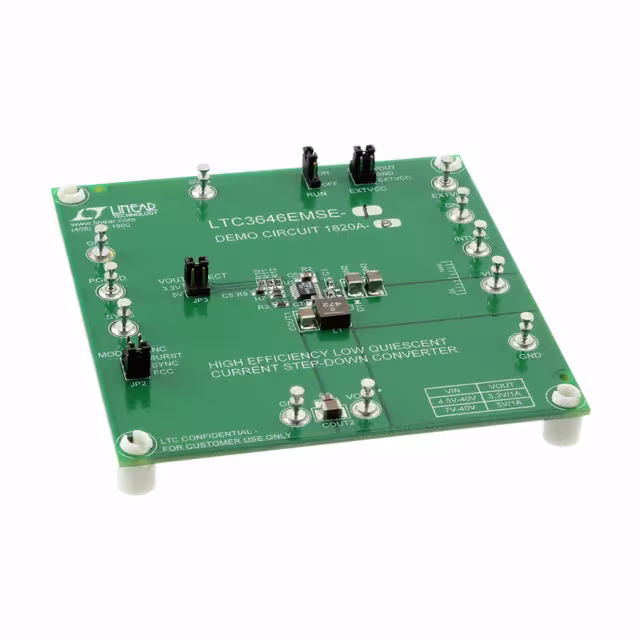

DC1820A-BEVAL BOARD FOR LTC36461 |
1,196 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4V ~ 40V | Buck | 1.5MHz | Board(s) | LTC3646-1 |
|
DC2010AEVAL BOARD FOR LT8612 |
1,496 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 5.8V ~ 42V | Buck | 700kHz | Board(s) | LT8612 |
|
DC1507AEVAL BOARD FOR LTC3632 |
2,890 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 20mA | 4.5V ~ 50V | Buck | 60kHz | Board(s) | LTC3632 |
|

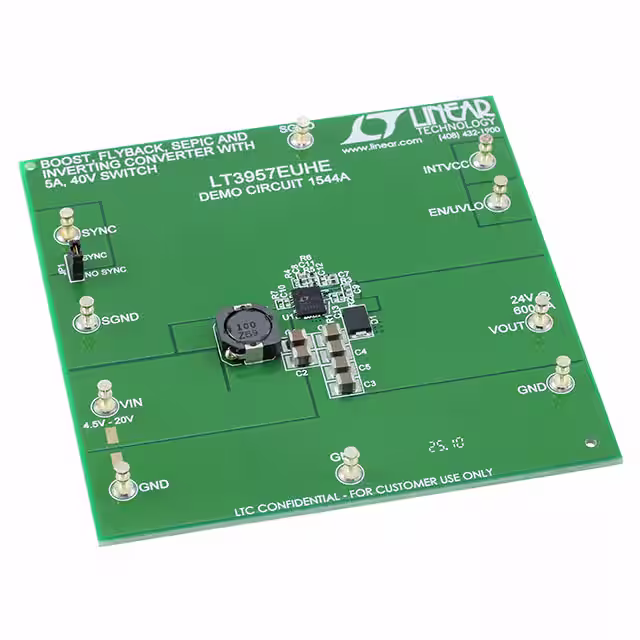

DC1544AEVAL BOARD FOR LT3957 |
4,966 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | 600mA | 4.5V ~ 20V | Boost | 300kHz | Board(s) | LT3957 |
|

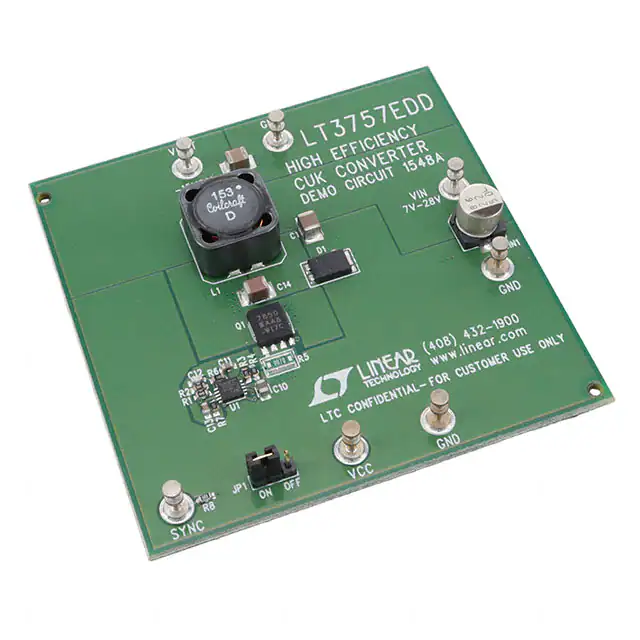

DC1548AEVAL BOARD FOR LT3757 |
3,159 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | -15V | 1A | 7V ~ 28V | Inverting | 300kHz | Board(s) | LT3757 |
