DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

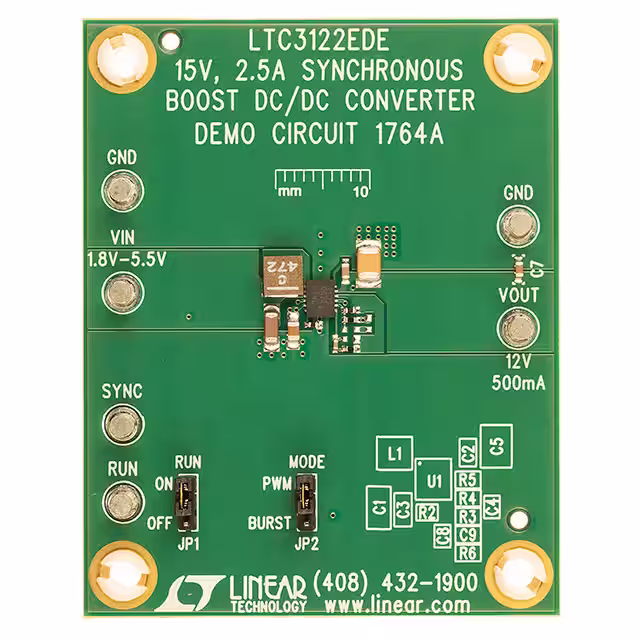

DC1764AEVAL BOARD FOR LTC3122 |
3,897 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 800mA | 1.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3122 |
|

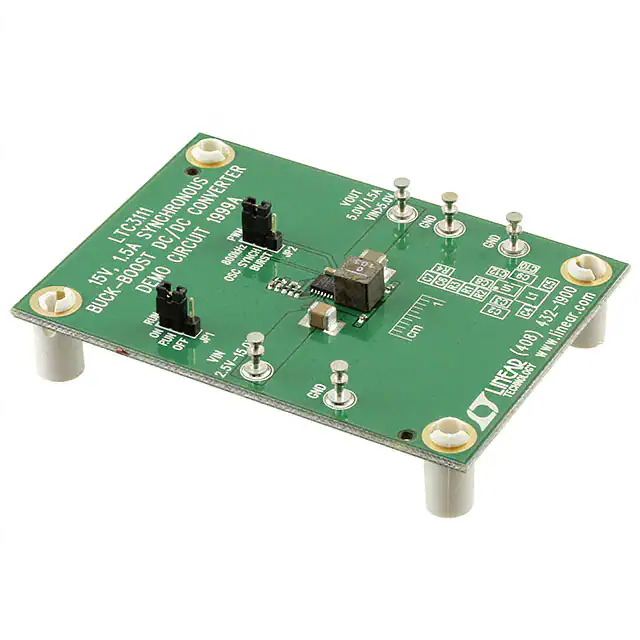

DC1999AEVAL BOARD FOR LTC3111 |
1,008 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 1.5A | 2.5V ~ 15V | Buck-Boost | 800kHz | Board(s) | LTC3111 |
|

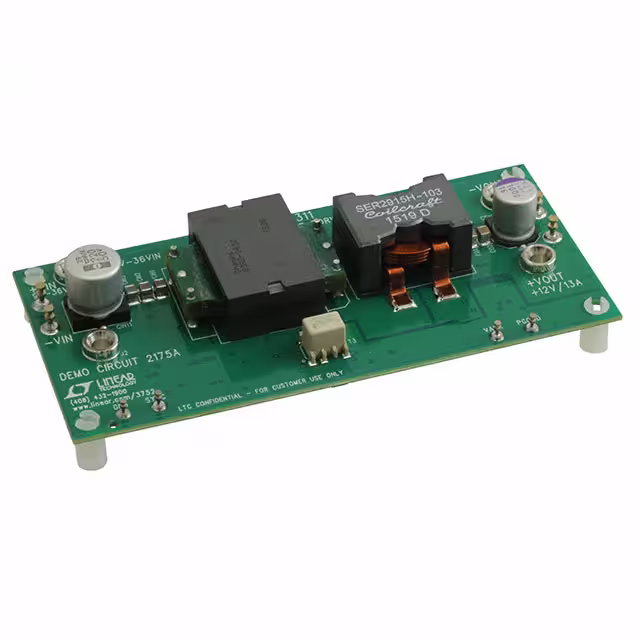

DC2175AEVAL BOARD FOR LT3752 LT8311 |
4,351 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 12V | 13A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LT3752, LT8311 |
|
DC1853AEVAL BOARD FOR LT3959 |
1,732 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 2A | 2V ~ 10V | Boost | 300kHz | Board(s) | LT3959 |
|
DC2324A-AEVAL BOARD FOR LT3753 |
2,607 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 5A | 36V ~ 72V | Forward Converter | 240kHz | Board(s) | LT3753 |
|
|
DC2324A-BEVAL BOARD FOR LT3753 |
2,839 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 24V | 5A | 18V ~ 36V | Forward Converter | 240kHz | Board(s) | LT3753 |
|

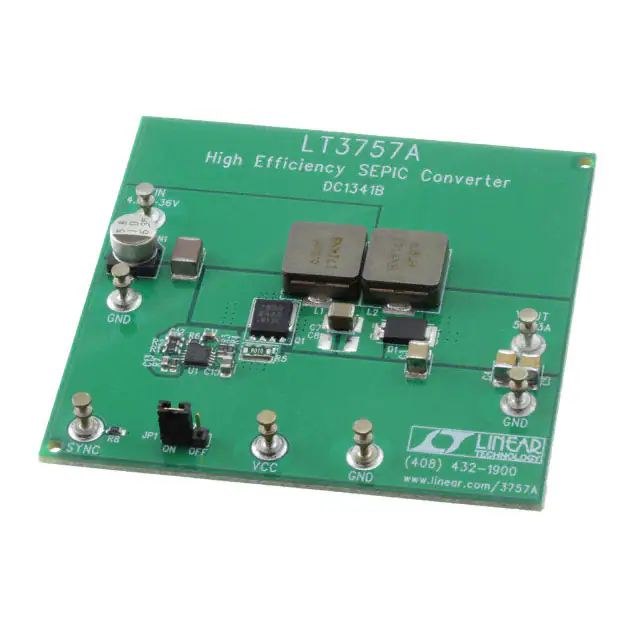

DC1341BEVAL BOARD FOR LT3757A |
1,376 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 3A | 4.5V ~ 36V | Boost, Flyback, Inverting, SEPTIC | 300kHz | Board(s) | LT3757A |
|
DC1859AEVAL BOARD FOR LTC3124 |
1,364 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.5A | 1.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3124 |
|
DC1929AEVAL BOARD FOR LT37521 LT8311 |
1,692 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Isolated Output | 200 W | 12V | 16.7A | 150V ~ 400V | Forward Converter | 100kHz | Board(s) | LT3752-1, LT8311 |
|

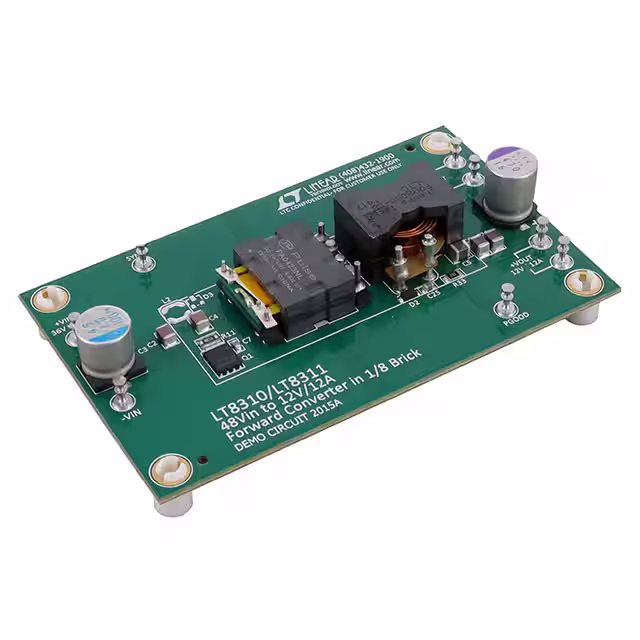

DC2015AEVAL BOARD FOR LT8310 LT8311 |
3,368 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 12A | 36V ~ 72V | Forward Converter | 240kHz | Board(s) | LT8310, LT8311 |
|

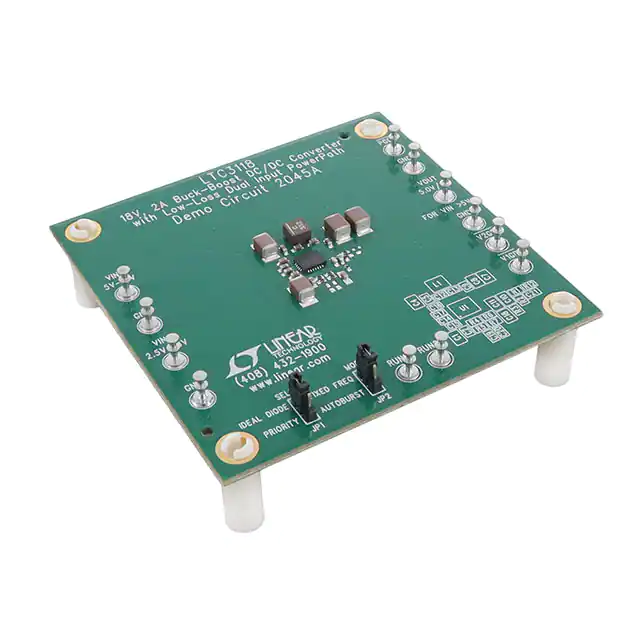

DC2045AEVAL BOARD FOR LTC3118 |
2,764 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2A | 2.5V ~ 18V | Buck-Boost | 1.2MHz | Board(s) | LTC3118 |
|
DC2215AEVAL BOARD FOR LTC3126 |
2,718 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 2.5A | 4.3V ~ 42V | Buck | - | Board(s) | LTC3126 |
|
|
DC2991AEVAL BOARD FOR LTC3308A |
4,296 | 176.55 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 4A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3308A |
|
DC1582B-BEVAL BOARD FOR LTC31081 |
1,997 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up with LDO | 3 Non-Isolated Outputs | - | - | - | 0.05V ~ 0.4V | Boost | - | Board(s) | LTC3108-1 |
|

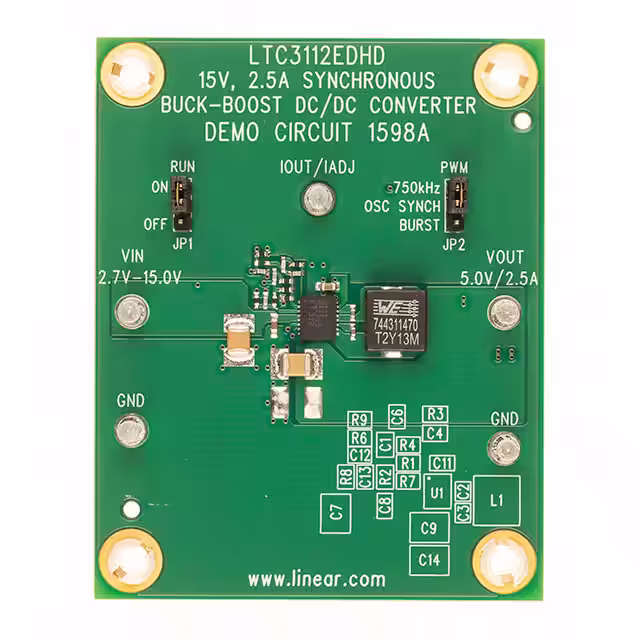

DC1598AEVAL BOARD FOR LTC3112 |
3,010 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 5V | 2.5A | 2.7V ~ 15V | Buck-Boost | 750kHz | Board(s) | LTC3112 |
|
DC2397AEVAL BOARD FOR LTC31301 |
4,060 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V, 3.3V, 5V or 12V | 600mA | 2.4V ~ 25V | Buck-Boost | - | Board(s) | LTC3130-1 |
|
DC2255AEVAL BOARD FOR LTC3106 |
2,271 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.8V, 2.2V, 3.3V, 5V | 300mA | 0.35V ~ 5.1V | Buck-Boost | - | Board(s) | LTC3106 |
|

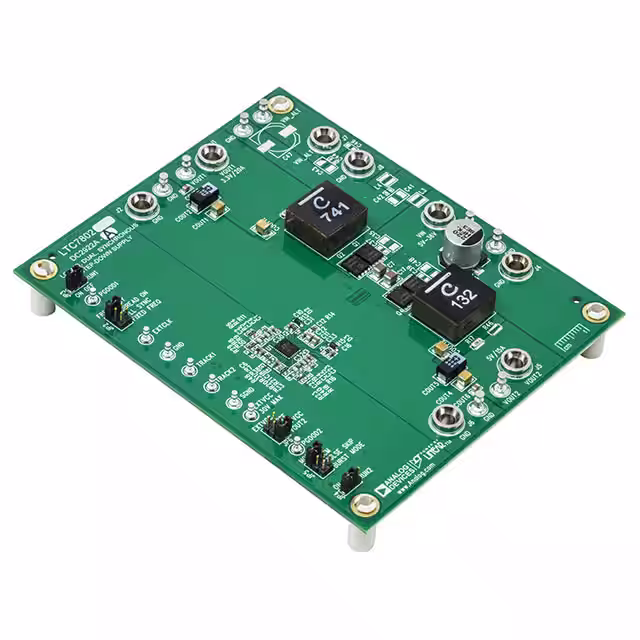

DC2922A-AEVAL BOARD FOR LTC7802 |
2,175 | 176.55 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 20A, 15A | 5V ~ 36V | Buck | 350kHz | Board(s) | LTC7802 |
|

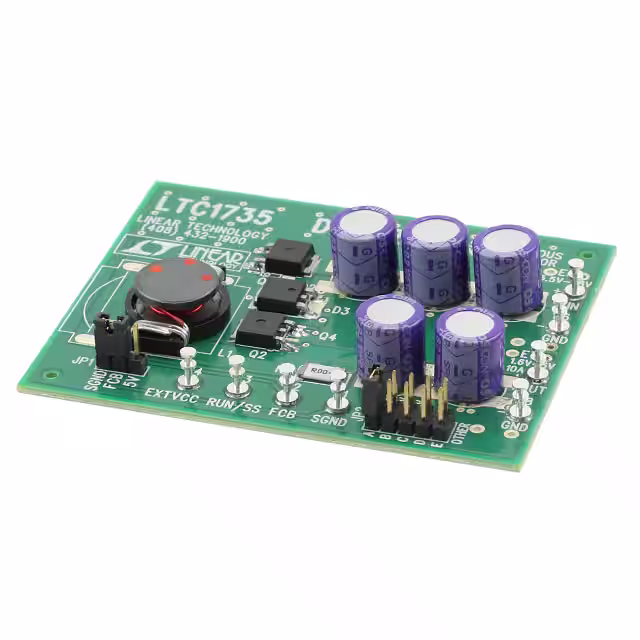

DC222AEVAL BOARD FOR LTC1735 |
4,828 | 153.81 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.6V, 2.5V, 3.3V or 5V | 10A | 5.5V ~ 28V | Buck | - | Board(s) | LTC1735 |
|

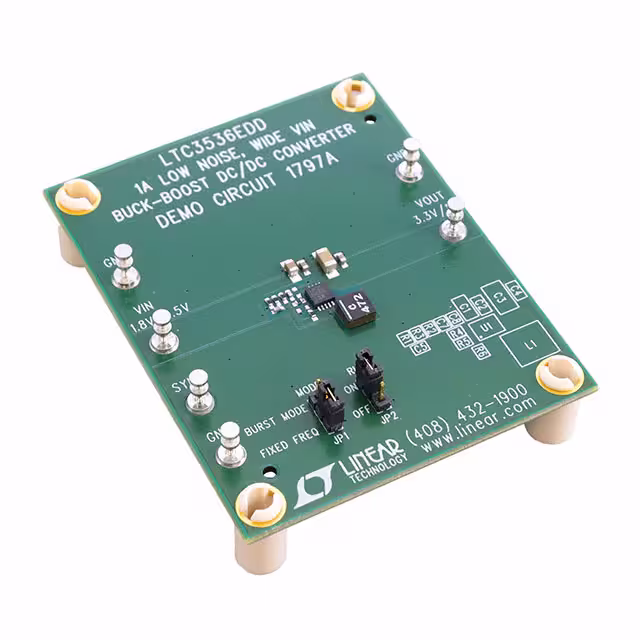

DC1797AEVAL BOARD FOR LTC3536 |
2,165 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 1.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3536 |
