DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

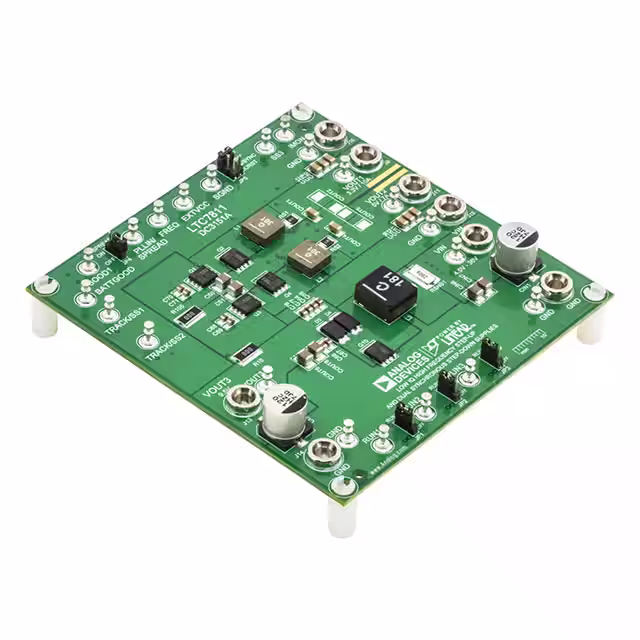

DC3151AEVAL BOARD FOR LTC7811 |
4,946 | 194.20 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 3.3V, 5V, 9.5V | 10A, 7A, 7A | 4.5V ~ 36V | Boost, Buck | 2.2MHz | Board(s) | LTC7811 |
|

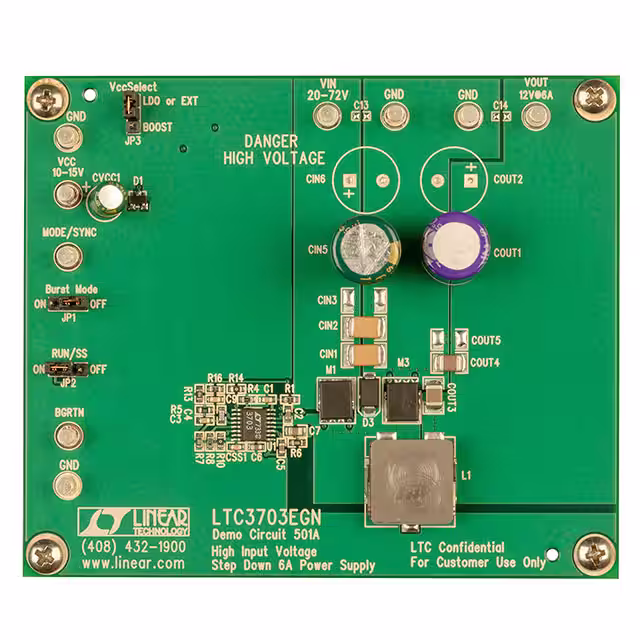

DC501AEVAL BOARD FOR LTC3703 |
2,977 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 4A | 20V ~ 72V | Buck | 260kHz | Board(s) | LTC3703 |
|

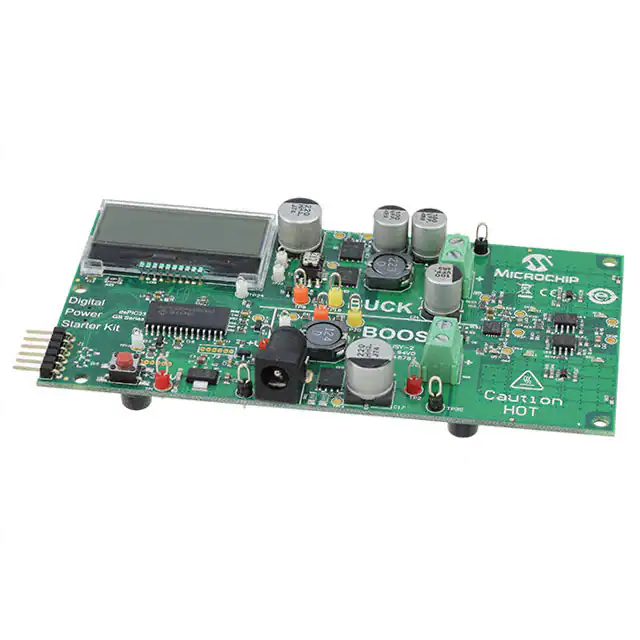

DM330017-2EVAL BOARD FOR DSPIC33EP64GS502 |
4,215 | 168.29 |
|
Datasheet |
MPLAB® | Box | Active | DC/DC, Step Up or Down | 2 Non-Isolated Outputs | - | 3.3V, 15V | 2.5A, 370mA | 7V ~ 11V | Boost, Buck | 350kHz | Board(s), Cable(s), Power Supply | dsPIC33EP64GS502 |
|

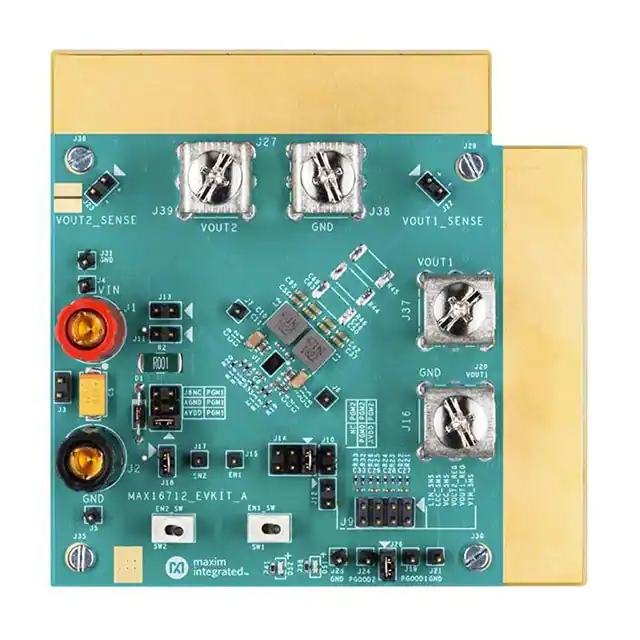

MAX16712EVKIT#EVAL BOARD FOR MAX16712 |
2,885 | 184.18 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.2V | 6A, 6A | 2.7V ~ 16V | Buck | 1MHz | Board(s) | MAX16712 |
|

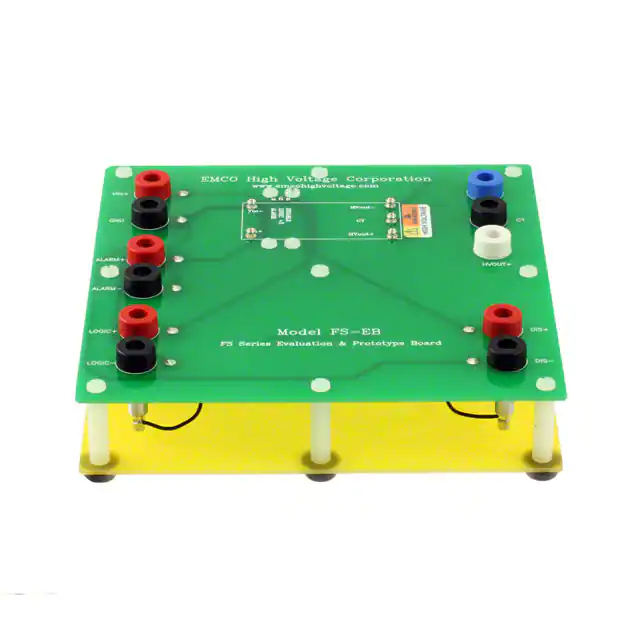

FS-EBEVAL BOARD FOR FS SERIES |
3,799 | 195.03 |
|
Datasheet |
FS | Box | Active | DC/DC Converter | - | - | - | - | - | - | - | Partially Populated Board(s) | FS Series |
|
EVAL-LT8692S-AZEVAL BOARD FOR LT8692S |
4,850 | 0.00 |
|
Datasheet |
Silent Switcher® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 2A, 1A, 1A, 1A | 6.2V ~ 42V | Buck | 2MHz | Board(s) | LT8692S |
|

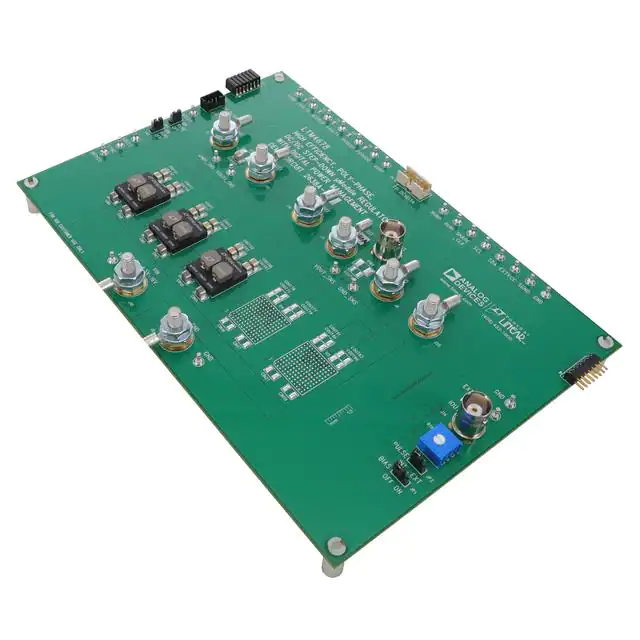

DC2638A-BEVAL BOARD FOR LTM4678 |
4,495 | 198.62 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 3.3V | 150A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4678 |
|

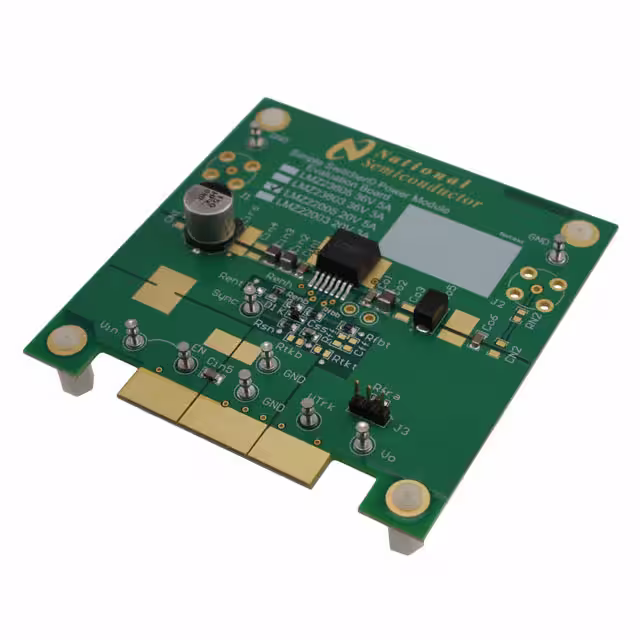

LMZ22005EVAL/NOPBEVAL BOARD FOR LMZ22005 |
1,236 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 20V | Buck | 812kHz | Board(s) | LMZ22005 |
|

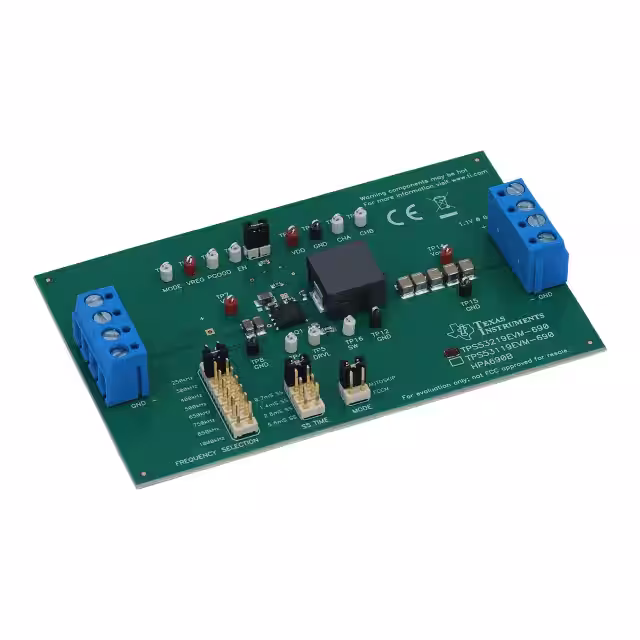

TPS53219EVM-690EVAL BOARD FOR TPS53219 |
2,343 | 58.80 |
|
Datasheet |
D-CAP™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 4A | 8V ~ 14V | Buck | 300kHz | Board(s) | TPS53219 |
|
TPS40345EVM-353EVAL BOARD FOR TPS40345 |
3,007 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 8V ~ 14V | Buck | 600kHz | Board(s) | TPS40345 |
|

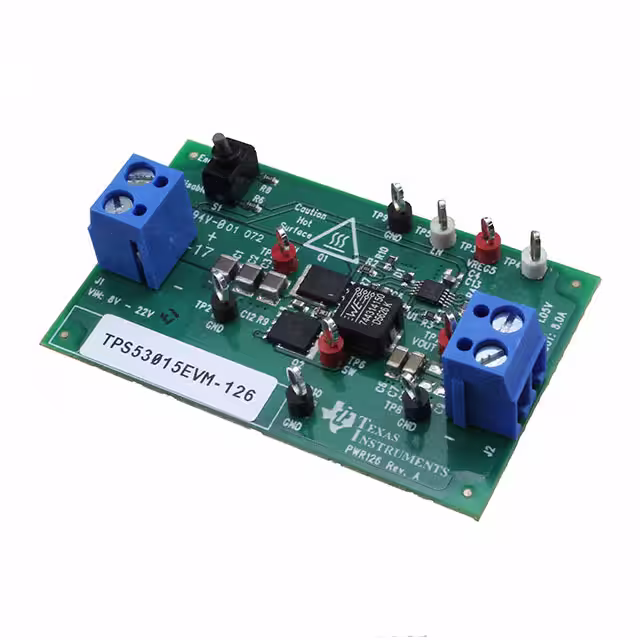

TPS53015EVM-126EVAL BOARD FOR TPS53015 |
3,013 | 58.80 |
|
Datasheet |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 8A | 8V ~ 22V | Buck | 500kHz | Board(s) | TPS53015 |
|

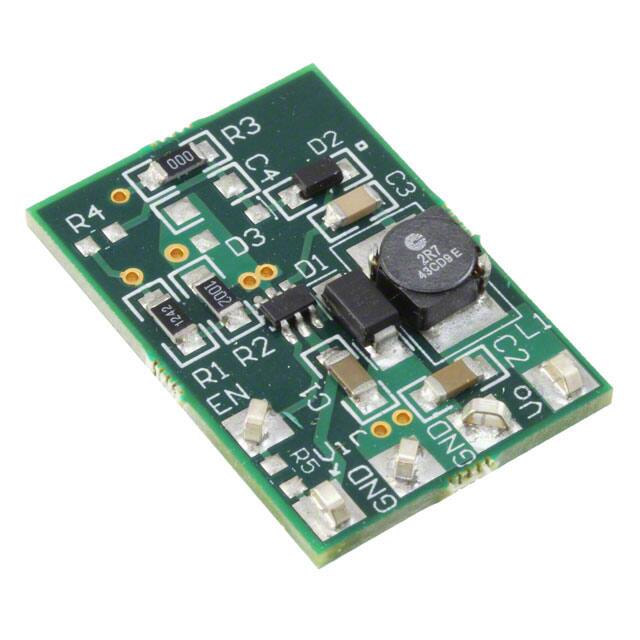

LM2734ZEVAL/NOPBEVAL BOARD FOR LM2734 |
4,041 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 3V ~ 20V | Buck | 3MHz | Board(s) | LM2734 |
|
TDHB-65H070L-DCEVAL BOARD FOR TP65H070L |
2,629 | 127.50 |
|
Datasheet |
- | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | - | 16A | - | Boost, Buck, Half-Bridge | - | Board(s), Power Supply | TP65H070L |
|

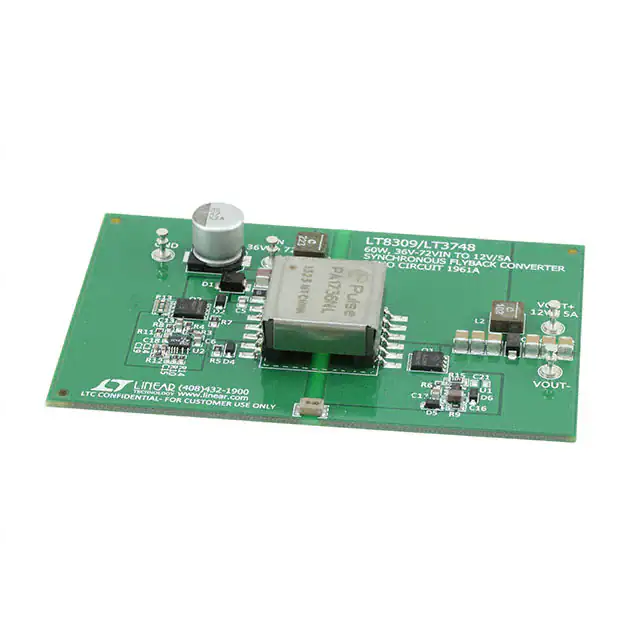

DC1961AEVAL BOARD FOR LT3748 LT8309 |
4,657 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 12V | 5A | 36V ~ 72V | Flyback | 133kHz | Board(s) | LT3748, LT8309 |
|
|
DC1381A-AEVAL BOARD FOR LTC3857 |
2,161 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 8.5V | 5A, 3A | 4.5V ~ 36V | Buck | 350kHz | Board(s) | LTC3857 |
|

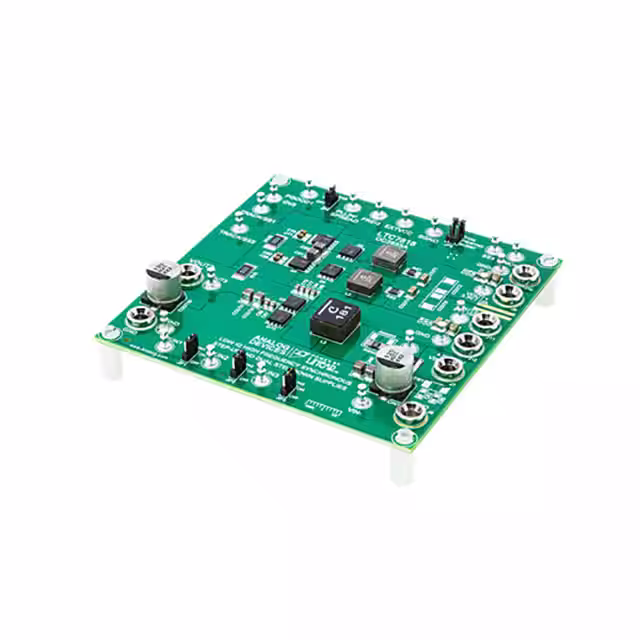

DC2855AEVAL BOARD FOR LTC7818 |
3,834 | 205.98 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 3.3V, 5V, 10V | 10A, 10A, 10A | 4.5V ~ 36V | Buck | 2.2MHz | Board(s) | LTC7818 |
|
DC1778A-BEVAL BOARD FOR LTC3883 |
4,822 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 20A | 6.5V ~ 24V | Buck | 425kHz | Board(s) | LTC3883 |
|

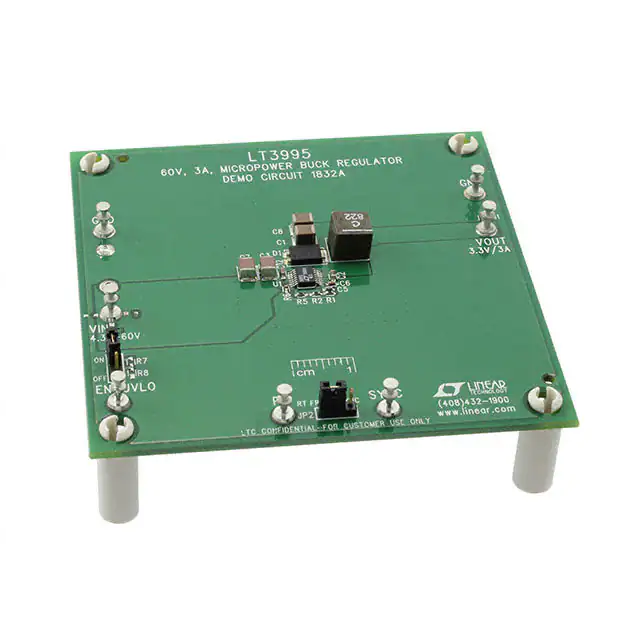

DC1832AEVAL BOARD FOR LT3995 |
1,623 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.3V ~ 60V | Buck | 300kHz | Board(s) | LT3995 |
|
DC1860BEVAL BOARD FOR LT3748 |
4,649 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Isolated Output | - | 52.5V | 700mA | 10V ~ 15V | Flyback | - | Board(s) | LT3748 |
|
DC2019BEVAL BOARD FOR LT8614 |
1,545 | 205.98 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8614 |
