DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

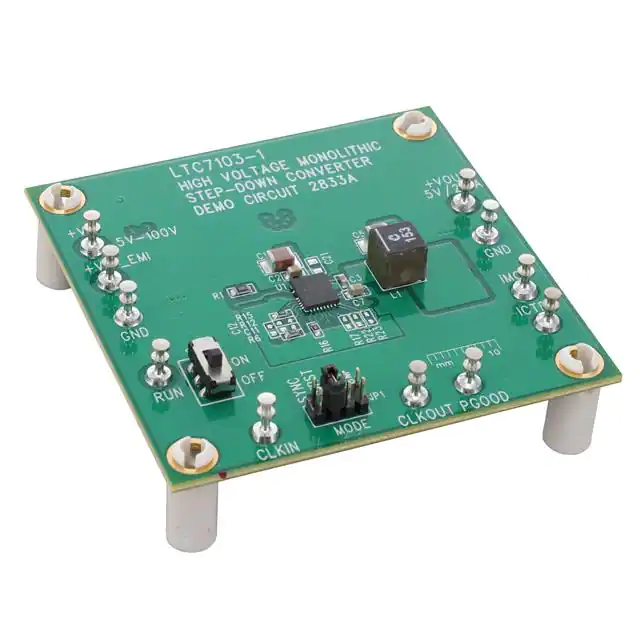

DC2833AEVAL BOARD FOR LTC71031 |
1,294 | 238.08 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.3A | 5V ~ 100V | Buck | 400kHz | Board(s) | LTC7103-1 |
|
DC1317A-FEVAL BOARD FOR LT19521 |
3,091 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 22A | 9V ~ 36V | Forward Converter | 200kHz | Board(s) | LT1952-1 |
|

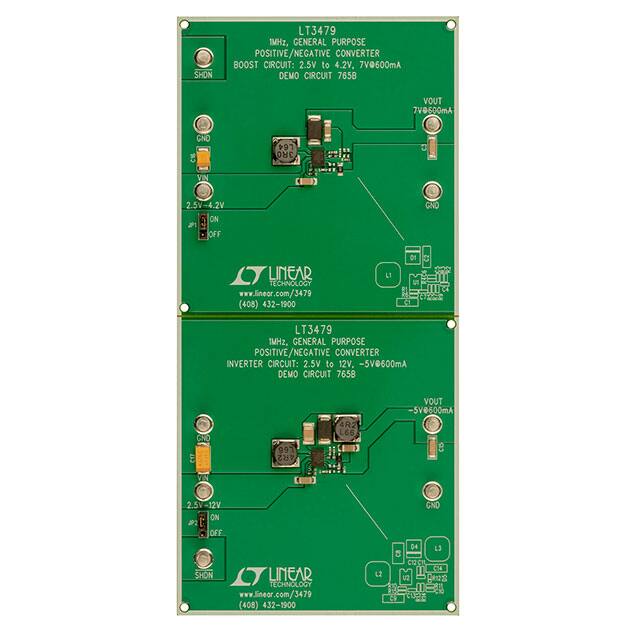

DC765BEVAL BOARD FOR LT3479 |
3,820 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | - | 7V, -5V | 600mA, 600mA | 2.5V ~ 4.2V, 2.5V ~ 12V | Boost, Inverting | - | Board(s) | LT3479 |
|
LMZ31530EVM-002EVAL BOARD FOR LMZ31530 |
1,355 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.8V, 1V, 1.2V, 1.8V or 3.3V | 30A | 3V ~ 14.5V | Buck | - | Board(s) | LMZ31530 |
|
LMZ31520EVM-001EVAL BOARD FOR LMZ31520 |
3,231 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.8V, 1V, 1.2V, 1.8V or 3.3V | 20A | 3V ~ 14.5V | Buck | - | Board(s) | LMZ31520 |
|

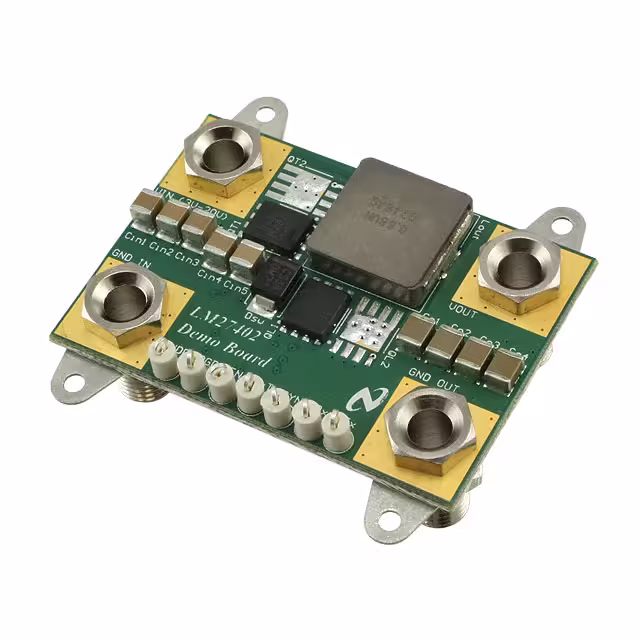

LM27402SQEVAL/NOPBEVAL BOARD FOR LM27402 |
1,007 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | 30 W | 1.5V | 20A | 4.5V ~ 20V | Buck | 200kHz ~ 1.2MHz | Board(s) | LM27402 |
|

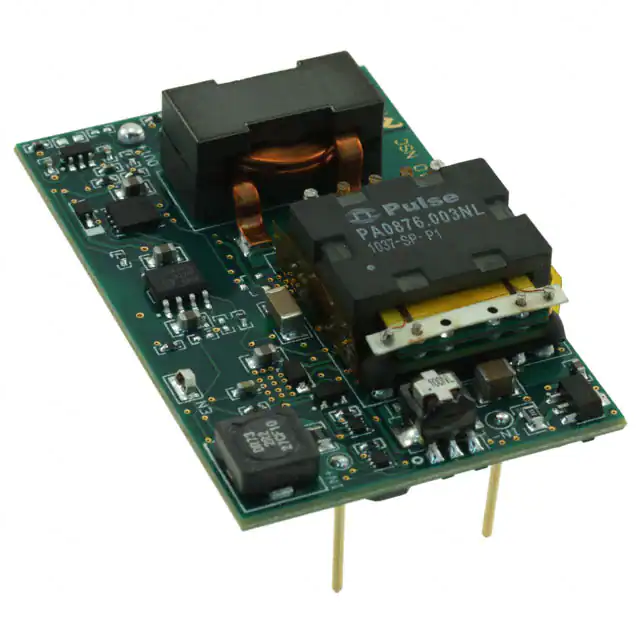

LM5045EVAL/NOPBEVAL BOARD FOR LM5045 |
3,969 | 238.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 75V | Full-Bridge | 420kHz | Board(s) | LM5045 |
|
LP87524Q1EVMEVAL BOARD FOR LP87524Q1 |
2,424 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | - | - | Buck | - | Board(s), Cable(s) | LP87524-Q1 |
|

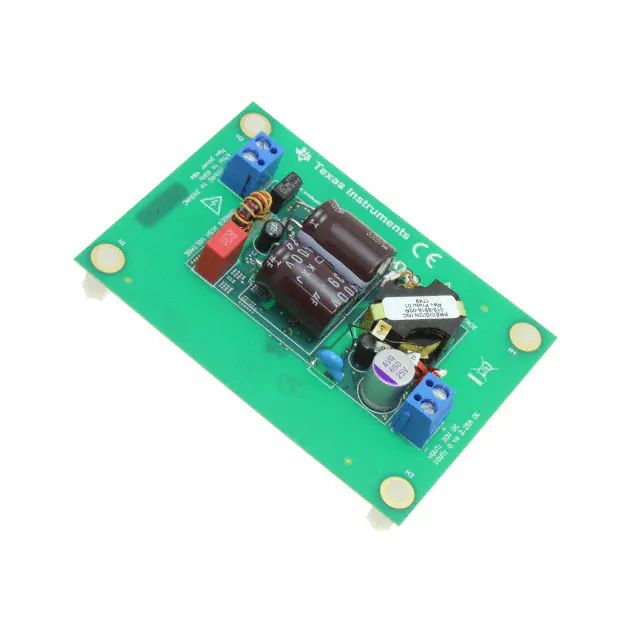

UCC28780EVM-002EVAL BOARD FOR UCC28780 |
3,213 | 238.80 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | - | 20V | 2.25A | 90 ~ 264 VAC | Flyback | - | Board(s) | UCC28780 |
|

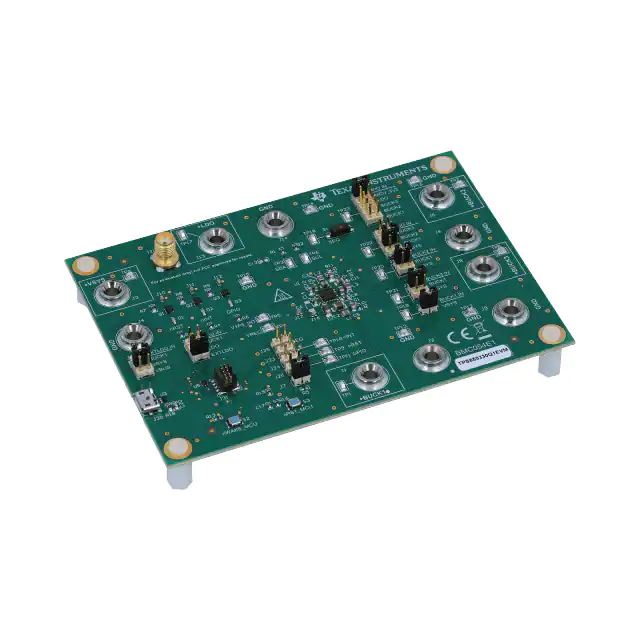

TPS650330Q1EVMEVAL BOARD FOR TPS650330Q1 |
3,793 | 238.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 0.9V ~ 1.9V, 2.5V ~ 4V | 1.5A, 1.2A, 300mA | 2.5V ~ 5.5V, 4V ~ 18.3V | Buck | 2.3MHz | Board(s) | TPS650330-Q1 |
|
LMZ22008EVAL/NOPBEVAL BOARD FOR LMZ22008 |
1,705 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 2.5V, 3.3V, 5V | 8A | 6V ~ 36V | Buck | 359kHz | Board(s) | LMZ22008 |
|

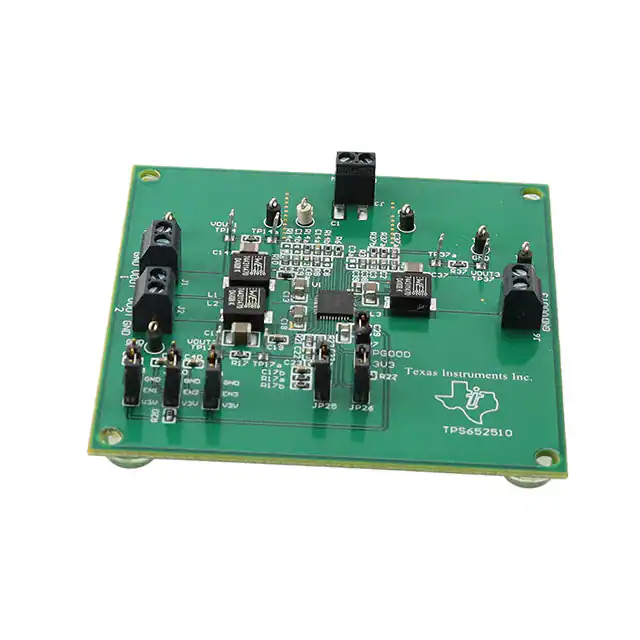

TPS652510EVMEVAL BOARD FOR TPS65251 |
3,643 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | - | 3A, 2A, 2A | 4.5V ~ 15V | Buck | 300kHz ~ 2.2MHz | Board(s) | TPS65251 |
|
LM5034EVAL/NOPBEVAL BOARD FOR LM5034 |
4,100 | 238.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Isolated Outputs | - | 2.5V, 3.3V | 30A, 30A | 36V ~ 78V | Buck | 200kHz | Board(s) | LM5034 |
|

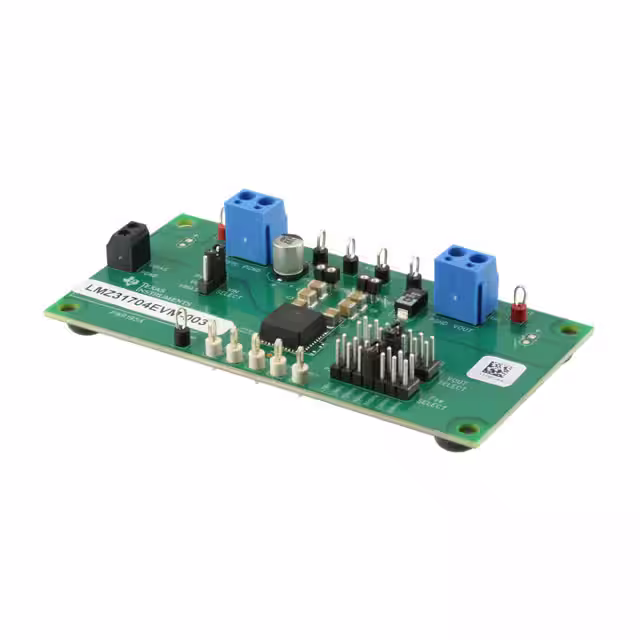

LMZ31704EVM-003EVAL BOARD FOR LMZ31704 |
4,572 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 4A | 2.95V ~ 17V | Buck | - | Board(s) | LMZ31704 |
|

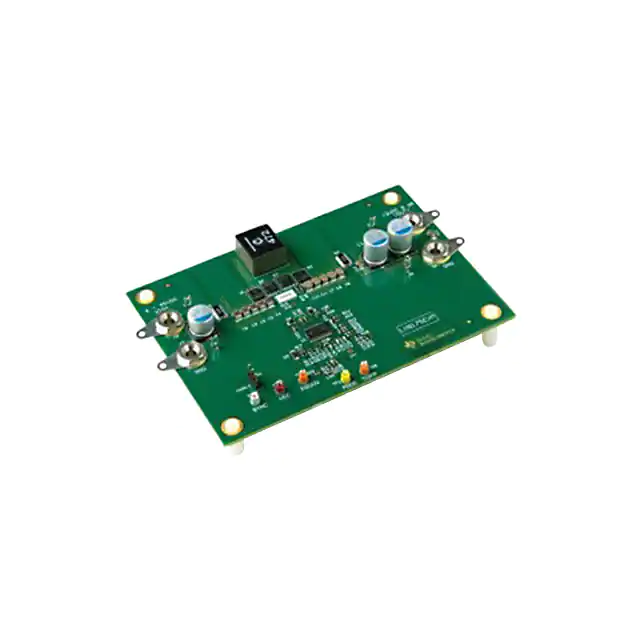

LM5175EVMEVAL BOARD FOR LM5175 |
1,559 | 238.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 6A | 6V ~ 36V | Buck-Boost | 300kHz | Board(s) | LM5175 |
|

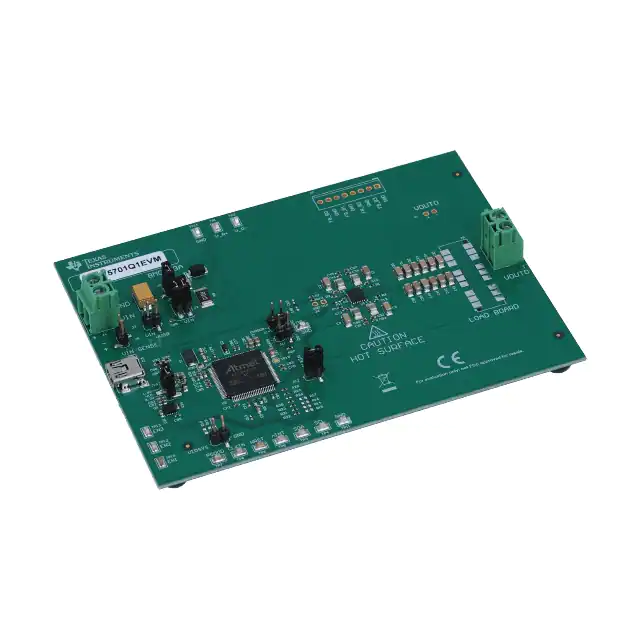

LP875701Q1EVMEVAL BOARD FOR LP875701Q1 |
1,081 | 238.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s), Cable(s) | LP875701-Q1 |
|
TPS650320Q1EVMEVAL BOARD FOR TPS650320Q1 |
3,726 | 238.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 0.9V ~ 1.9V, 2.5V ~ 4V | 1.5A, 1.2A, 300mA | 2.5V ~ 5.5V, 4V ~ 18.3V | Buck | - | Board(s) | TPS650320-Q1 |
|
LM27403EVM-POL600EVAL BOARD FOR LM27403 |
1,362 | 88.30 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 30A | 4.5V ~ 20V | Buck | 600kHz | Board(s) | LM27403 |
|
LMZ31710X2EVMEVAL BOARD FOR LMZ31710 |
2,280 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V or 1.8V | 18A | 4.5V ~ 17V | Buck | - | Board(s) | LMZ31710 |
|

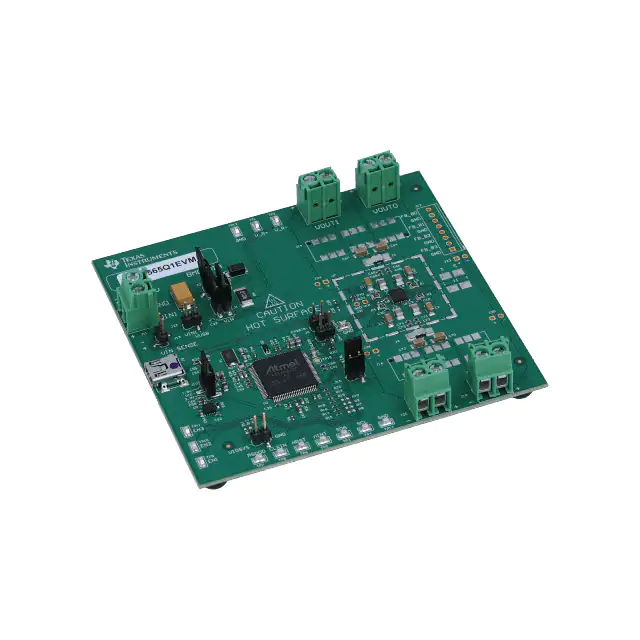

LP87565Q1EVMEVAL BOARD FOR LP87565 |
3,020 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.6V ~ 3.36V | 16A | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LP87565 |
