DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

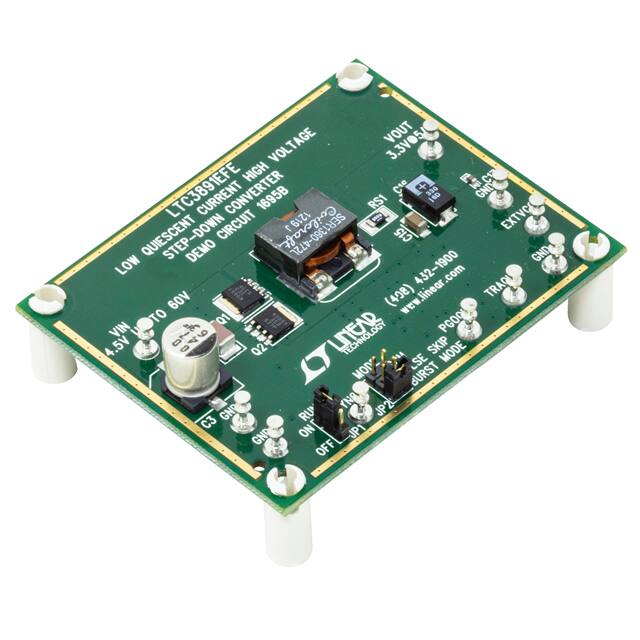

DC1695BEVAL BOARD FOR LTC3891 |
4,294 | 141.24 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 60V | Buck | 225kHz | Board(s) | LTC3891 |
|

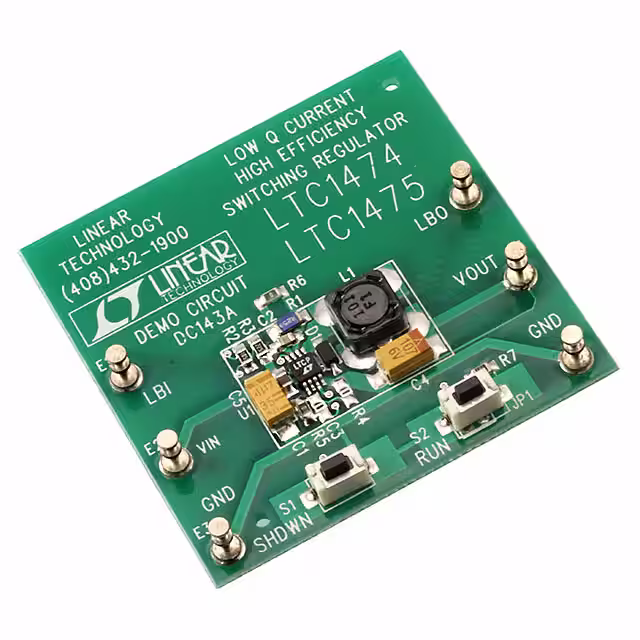

DC143A-EEVAL BOARD FOR LTC14753.3 |
1,146 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 3.3V ~ 18V | Buck | - | Board(s) | LTC1475-3.3 |
|

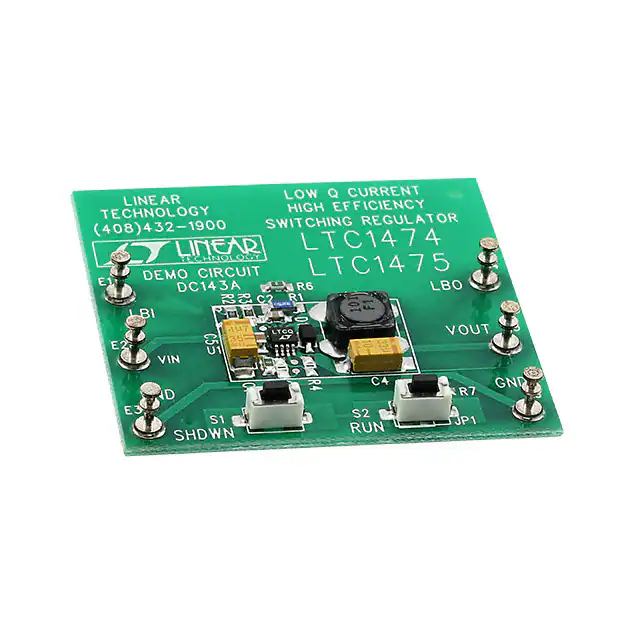

DC143A-FEVAL BOARD FOR LTC14755 |
2,301 | 123.05 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 5V ~ 18V | Buck | - | Board(s) | LTC1475-5 |
|

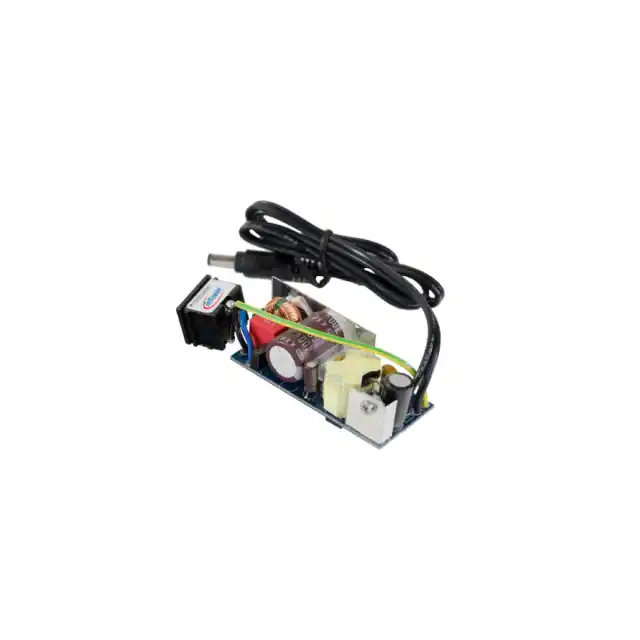

DEMO45W19VFLYBP7TOBO1EVAL BOARD FOR IPN70R600P7S |
3,296 | 142.31 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 45 W | 19V | 2.37A | 90 ~ 264 VAC | Flyback | - | Board(s) | IPN70R600P7S |
|
DC965AEVAL BOARD FOR LTC38351 |
2,249 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 4.5V ~ 36V | Buck | 400kHz | Board(s) | LTC3835-1 |
|

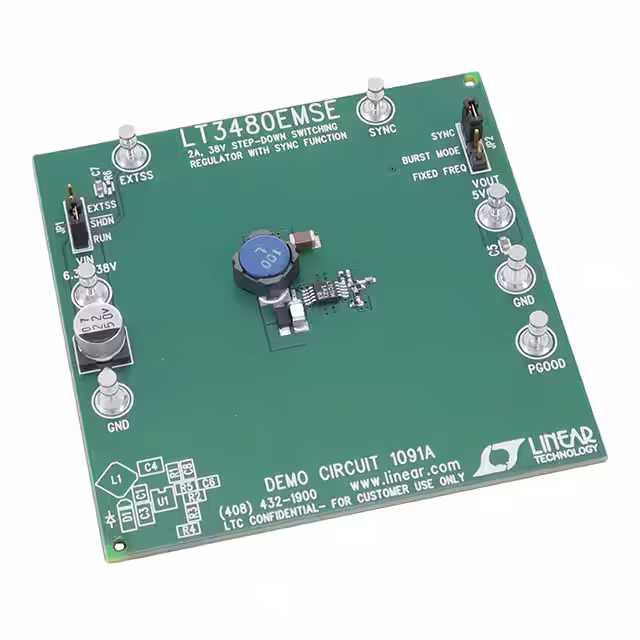

DC1091AEVAL BOARD FOR LT3480 |
3,213 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.3V ~ 38V | Buck | 550kHz | Board(s) | LT3480 |
|

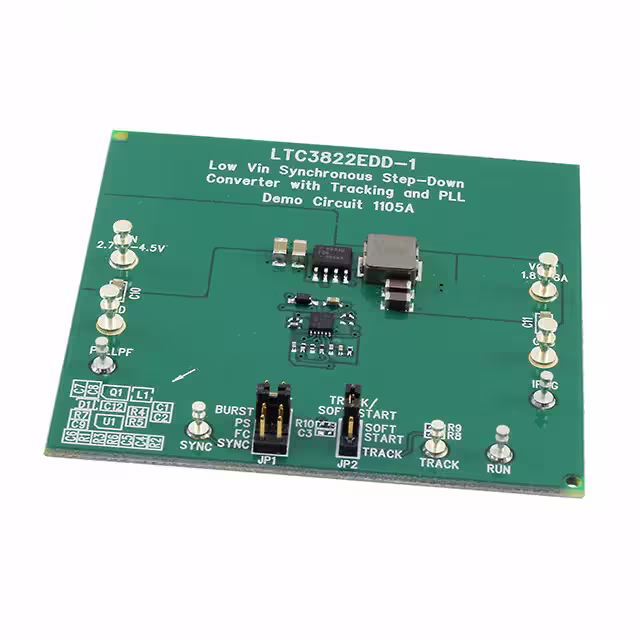

DC1105AEVAL BOARD FOR LTC38221 |
3,068 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 8A | 2.75V ~ 4.5V | Buck | 550kHz | Board(s) | LTC3822-1 |
|

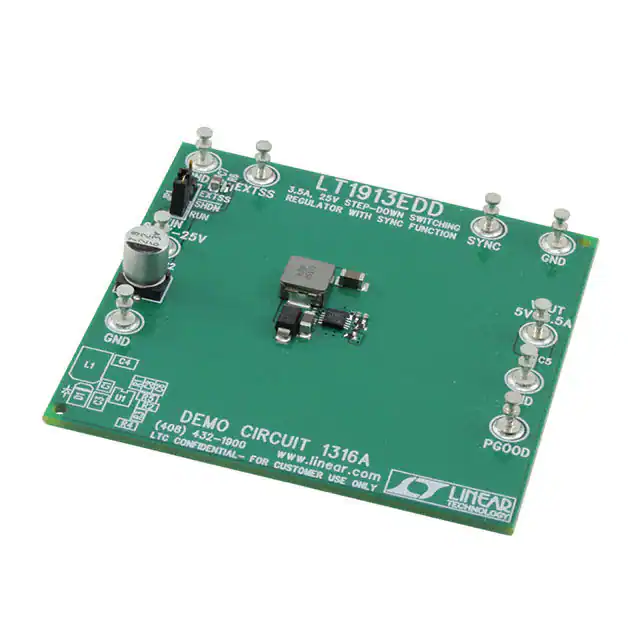

DC1316AEVAL BOARD FOR LT1913 |
3,436 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 6.5V ~ 25V | Buck | 800kHz | Board(s) | LT1913 |
|
DC1292AEVAL BOARD FOR LTC3878 |
2,977 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 18A | 4.5V ~ 14V | Buck | 340kHz | Board(s) | LTC3878 |
|

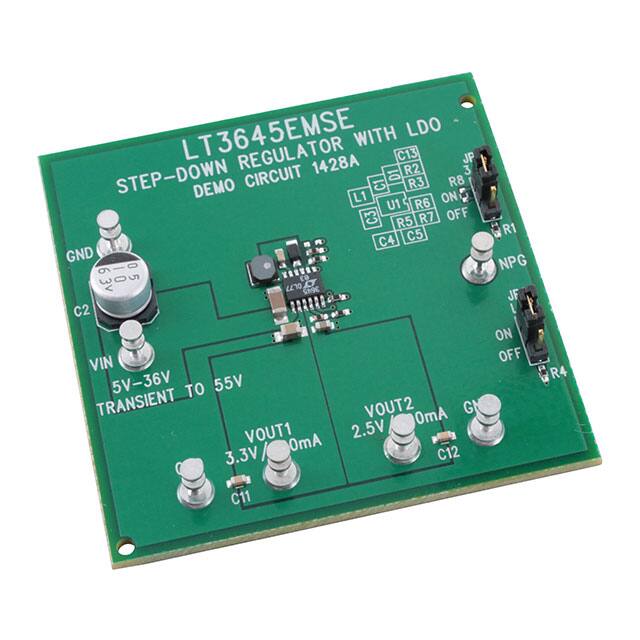

DC1428AEVAL BOARD FOR LT3645 |
3,576 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 2.5V, 3.3V | 300mA, 200mA | 5V ~ 36V | Buck | 750kHz | Board(s) | LT3645 |
|
DC2481B-AEVAL BOARD FOR LTM4650 LTM4677 |
3,950 | 147.12 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LTM4650, LTM4677 |
|
DC1389AEVAL BOARD FOR LT3521 |
1,463 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V | 600mA, 600mA, 800mA | 2.4V ~ 5V | Buck-Boost | 1MHz | Board(s) | LT3521 |
|
DC2440AEVAL BOARD FOR LTC3374A |
1,432 | 147.12 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 8 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V, 2V, 2.5V, 3V, 3.3V | 1A, 1A, 1A, 1A, 1A, 1A, 1A, 1A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3374A |
|

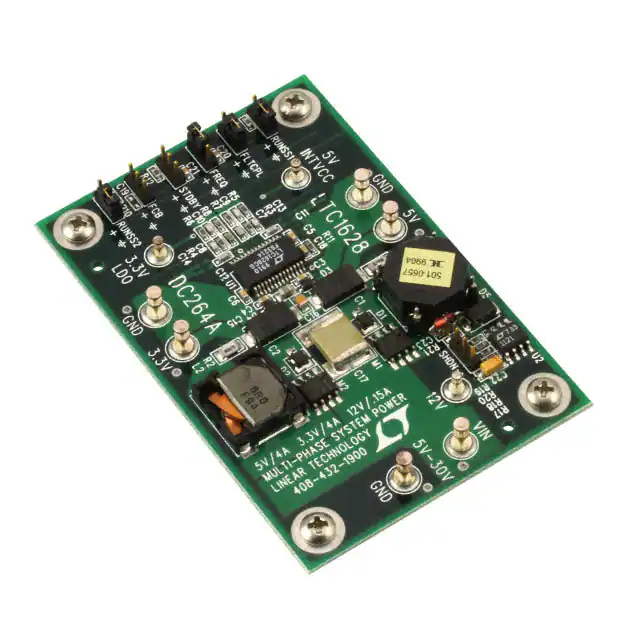

DC264AEVAL BOARD FOR LTC1628 |
3,100 | 153.81 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 3.3V, 5V, 12V | 4A, 4A, 150mA | 7V ~ 24V | Buck | - | Board(s) | LTC1628 |
|

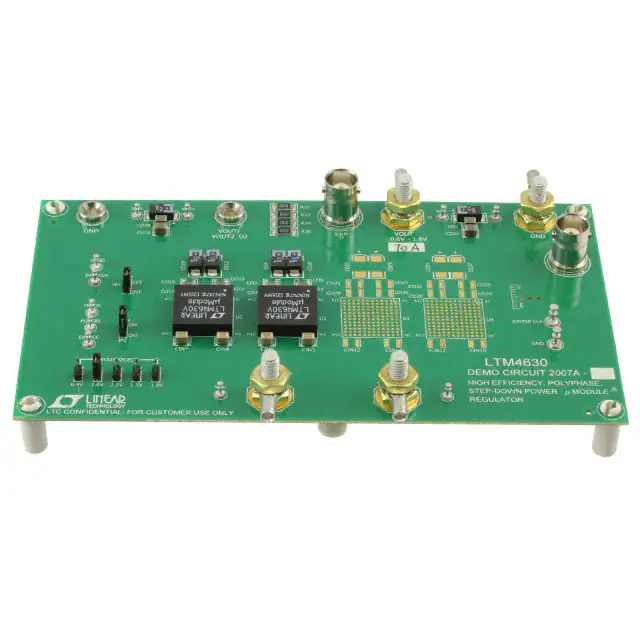

DC2007A-AEVAL BOARD FOR LTM4630 |
4,025 | 154.49 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 70A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630 |
|
|
DC3091AEVAL BOARD FOR LTC3312SA |
2,330 | 173.94 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 6A, 6A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3312SA |
|
|
MAX20011CEVKIT#EVAL BOARD FOR MAX20011C |
4,316 | 145.75 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 1.275V | 16A | 3V ~ 5.5V | Buck | 2.2MHz | Board(s) | MAX20011C |
|

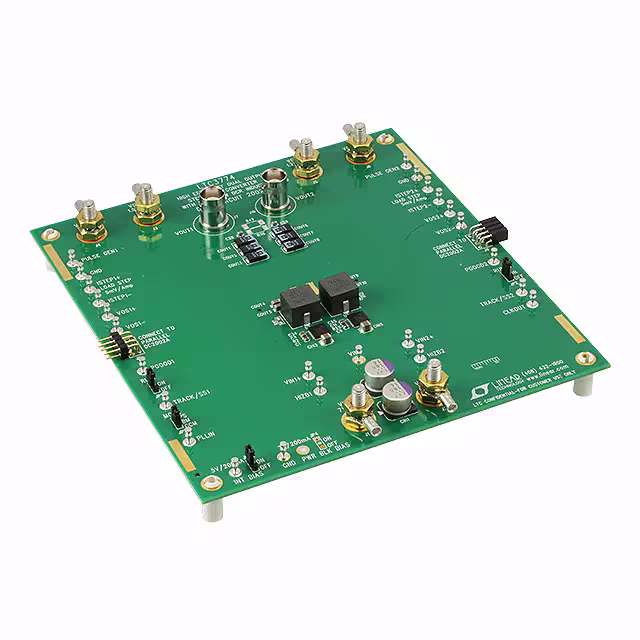

DC2002AEVAL BOARD FOR LTC3774 |
2,943 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 30A, 30A | 7V ~ 14V | Buck | 400kHz | Board(s) | LTC3774 |
|

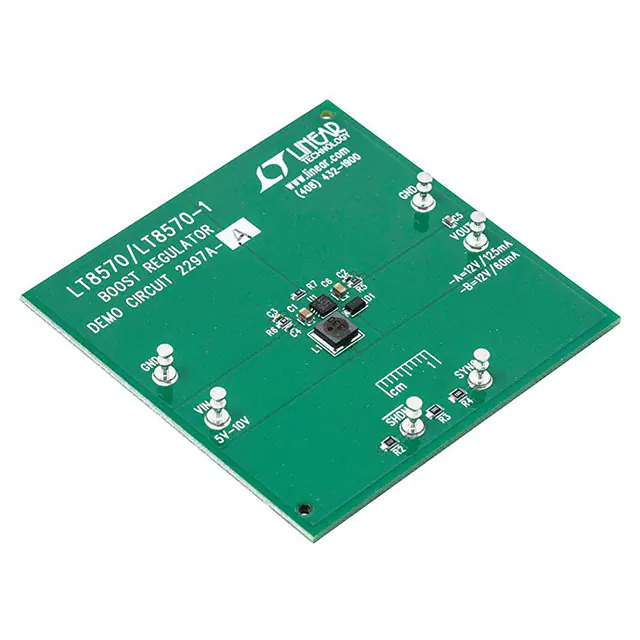

DC2297A-AEVAL BOARD FOR LT8570 LT85701 |
4,769 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V, 12V | 60mA, 125mA | 5V ~ 10V | Boost | 1.5MHz | Board(s) | LT8570, LT8570-1 |
|

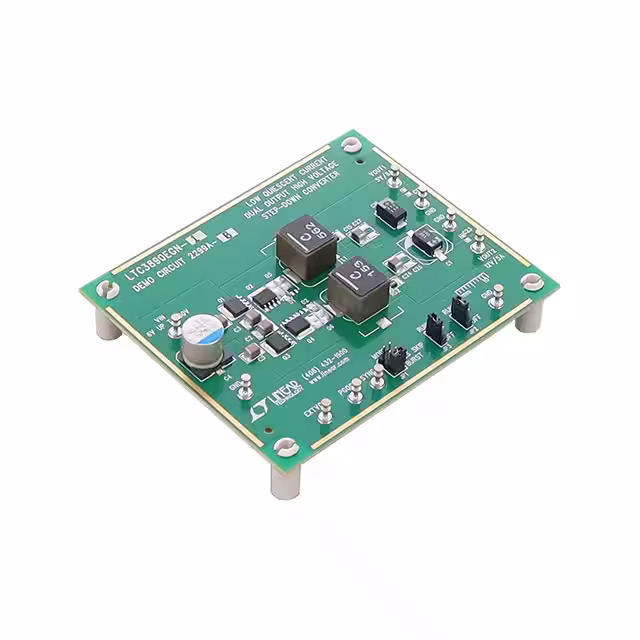

DC2299A-BEVAL BOARD FOR LTC38901 |
1,774 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 8A, 5A | 6V ~ 60V | Buck | 200kHz | Board(s) | LTC3890-1 |
