DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1909AEVAL BOARD FOR LT3840 |
3,274 | 158.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 20A | 4.5V ~ 60V | Buck | 150kHz | Board(s) | LT3840 |
|
DC3186A-BEVAL BOARD FOR LTC3311 |
4,953 | 0.00 |
|
Datasheet |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.176V ~ 1.224V | 37.5A | 3V ~ 5.5V | Buck | - | Board(s) | LTC3311 |
|
TPS92682EVM-125EVAL BOARD FOR TPS92682 |
1,171 | 142.40 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | 15 W | 30V | 1.7A | 7V ~ 28V | SEPIC | - | Board(s) | TPS92682 |
|
DC230A-AEVAL BOARD FOR LT1533 |
3,296 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | 1.8 W | ±12V | 150mA | 4.5V ~ 8V | - | - | Board(s) | LT1533 |
|
DC230A-DEVAL BOARD FOR LT1533 |
1,658 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | 1.8 W | ±5V | 350mA | 4.5V ~ 8V | - | - | Board(s) | LT1533 |
|

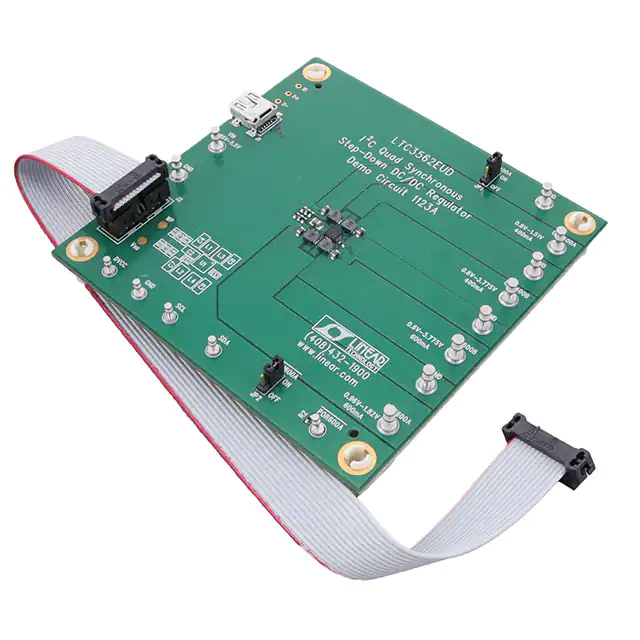

DC1123AEVAL BOARD FOR LTC3562 |
1,405 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | - | 600mA, 600mA, 400mA, 400mA | 2.85V ~ 5.5V | Buck | 2.25MHz | Board(s) | LTC3562 |
|

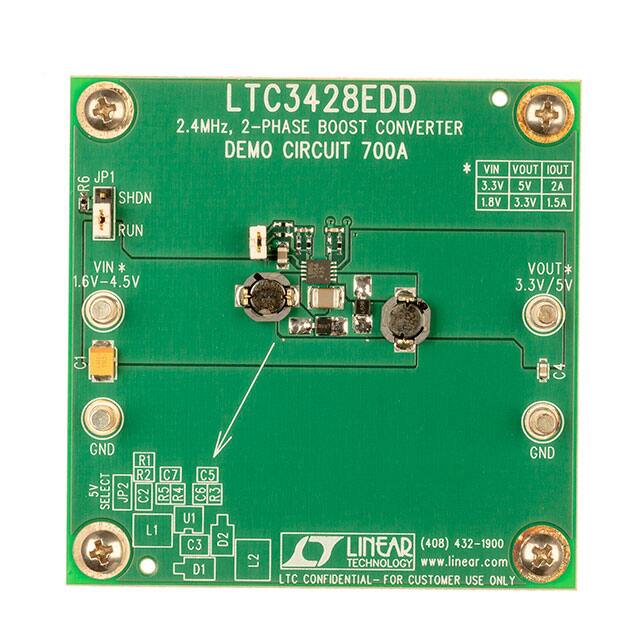

DC700AEVAL BOARD FOR LTC3428 |
3,574 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 1.8V ~ 4.5V | Boost | 2.4MHz | Board(s) | LTC3428 |
|
DC683AEVAL BOARD FOR LT1935 |
1,049 | 147.12 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 600mA | 3.3V ~ 5.5V | Boost | 1.2MHz | Board(s) | LT1935 |
|

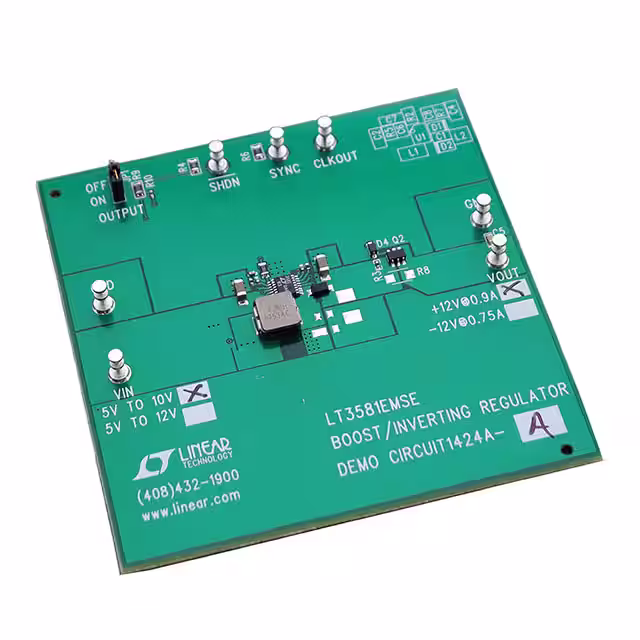

DC1424A-AEVAL BOARD FOR LT3581 |
2,874 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 900mA | 5V ~ 10V | Boost | 1.2MHz | Board(s) | LT3581 |
|

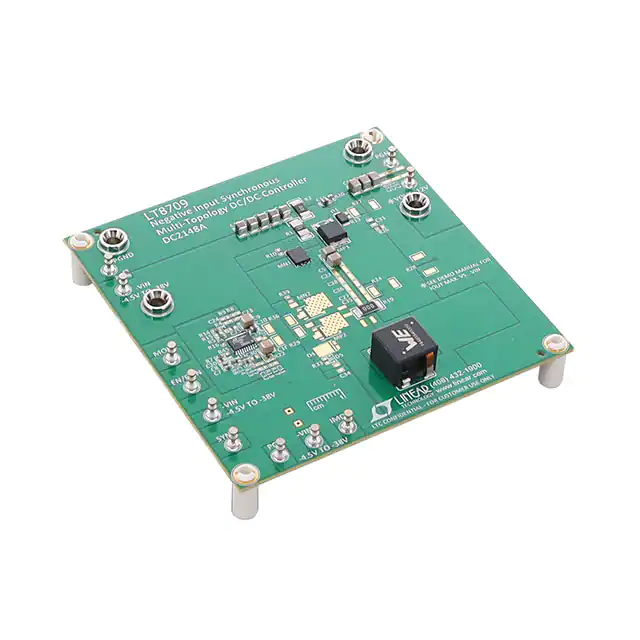

DC2148AEVAL BOARD FOR LT8709 |
4,029 | 164.78 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | -12V | 5A | -4.5V ~ -38V | Buck-Boost | 400kHz | Board(s) | LT8709 |
|
ADM01002EVAL BOARD FOR ADM01002 |
2,015 | 142.48 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 1 Isolated Output | - | 42V | 200mA | - | Buck-Boost | - | Board(s) | ADM01002 |
|
178002EVAL BOARD FOR WPMDU1251501 |
4,612 | 157.80 |
|
Datasheet |
MagI3C | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V ~ 15V | 2.5A | 18V ~ 36V | Buck | 1MHz | Board(s) | WPMDU1251501 |
|
DC544AEVAL BOARD FOR LT1934 |
4,002 | 177.16 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 250mA | 4.5V ~ 34V | Buck | - | Board(s) | LT1934 |
|
DC3138AEVAL BOARD FOR LTC7805 |
2,921 | 175.99 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 12V | 15A, 10A | 12V ~ 36V | Buck | 350kHz | Board(s) | LTC7805 |
|

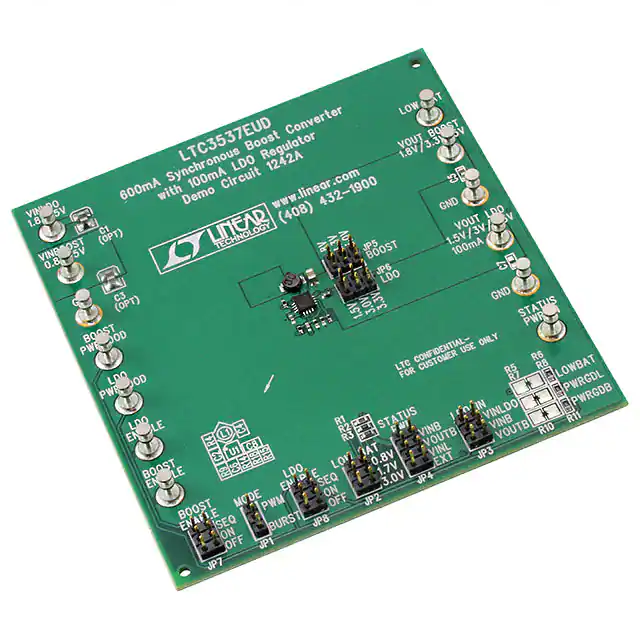

DC1242AEVAL BOARD FOR LTC3537 |
2,768 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | - | - | 0.68V ~ 5.5V | Boost | 2.2MHz | Board(s) | LTC3537 |
|

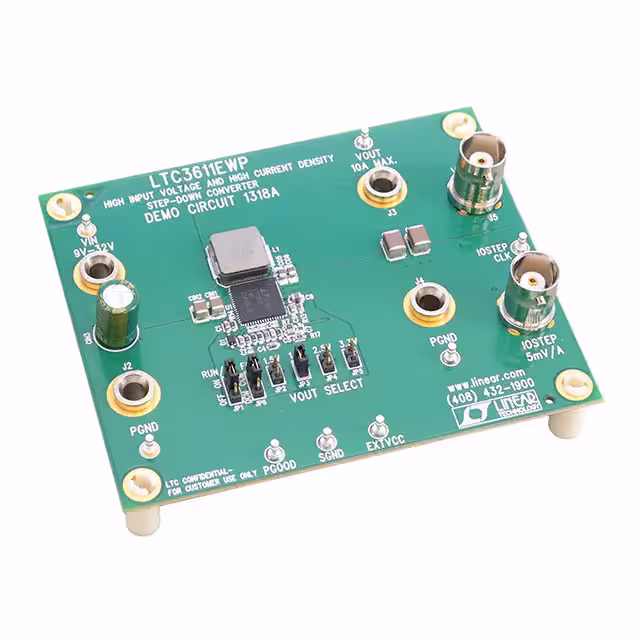

DC1318AEVAL BOARD FOR LTC3611 |
2,796 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V, 1.8V, 2.5V or 3.3V | 10A | 9V ~ 32V | Buck | 500kHz | Board(s) | LTC3611 |
|
DC1347BEVAL BOARD FOR LTC3633 |
4,675 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V | 3A, 3A | 3.6V ~ 15V | Buck | 2MHz | Board(s) | LTC3633 |
|

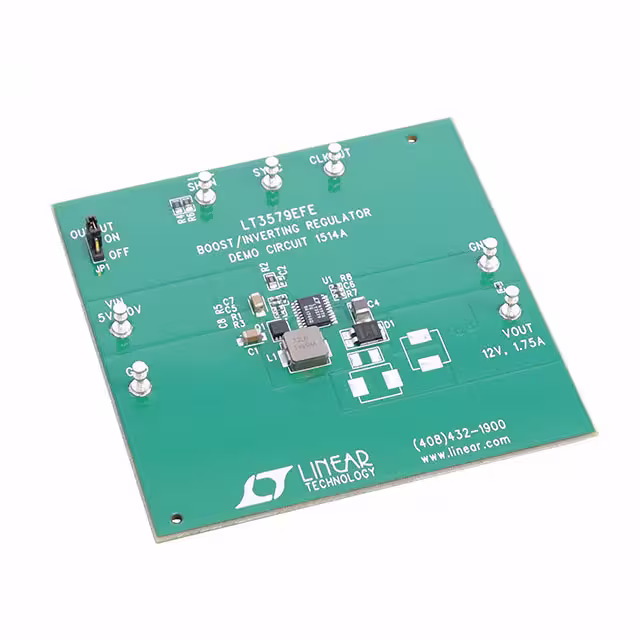

DC1514AEVAL BOARD FOR LT3579 |
1,990 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 1.75A | 5V ~ 10V | Boost | 1MHz | Board(s) | LT3579 |
|
DC1580AEVAL BOARD FOR LTC3856 |
2,926 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 50A | 4.5V ~ 14V | Buck | 400kHz | Board(s) | LTC3856 |
|

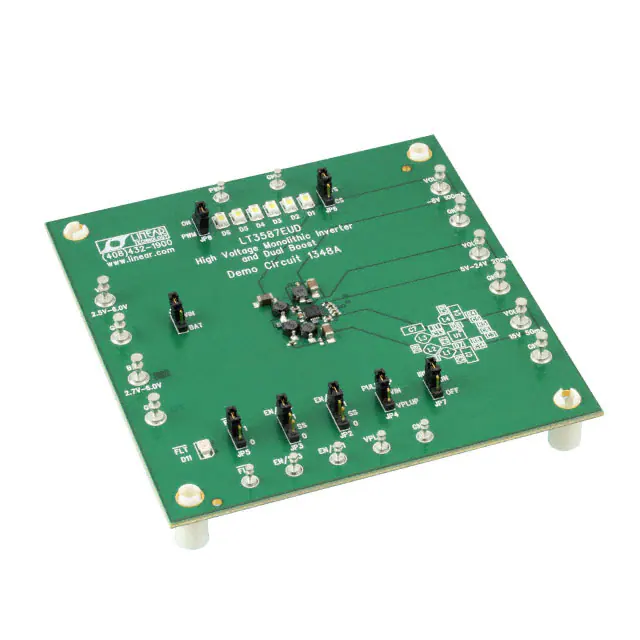

DC1348AEVAL BOARD FOR LT3587 |
1,601 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 3 Non-Isolated Outputs | - | - | 100mA, 50mA, 20mA | 2.5V ~ 6V | Boost | 1MHz | Board(s) | LT3587 |
