DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC769AEVAL BOARD FOR LTC3808 |
2,243 | 160.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 5A | 2.7V ~ 8V | Buck | 550kHz | Board(s) | LTC3808 |
|

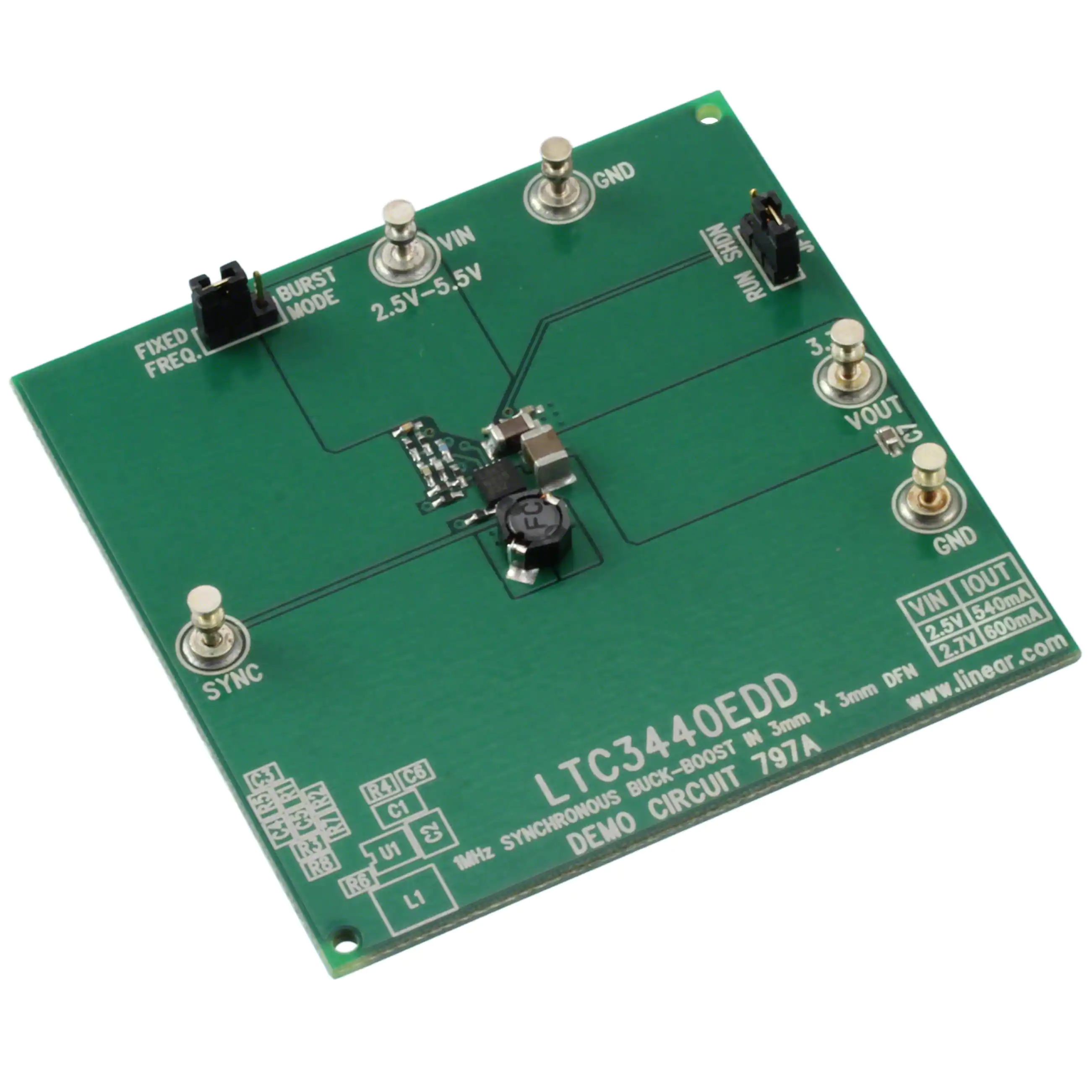

DC797AEVAL BOARD FOR LTC3440 |
1,414 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 600mA | 2.5V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3440 |
|

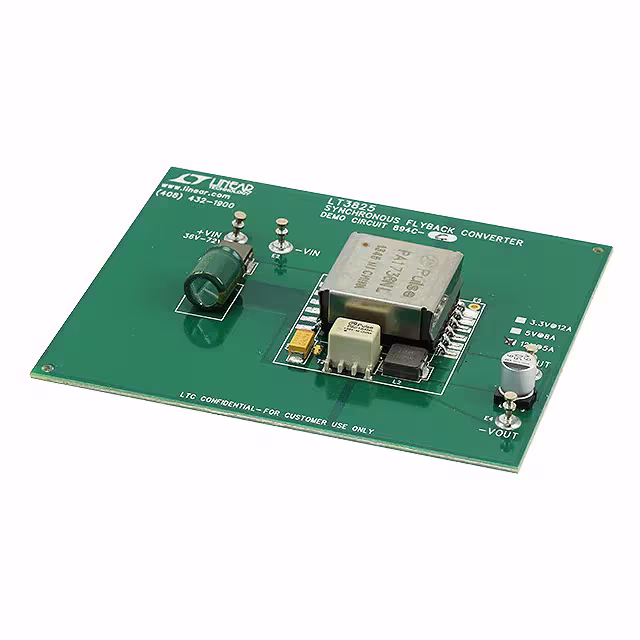

DC894C-CEVAL BOARD FOR LT3825 |
3,338 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 12V | 5A | 36V ~ 72V | Flyback | 200kHz | Board(s) | LT3825 |
|
DC1820A-AEVAL BOARD FOR LTC3646 |
3,548 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1A | 4V ~ 40V | Buck | 1.5MHz | Board(s) | LTC3646 |
|
DC1852AEVAL BOARD FOR LTC3536 |
2,020 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 1.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | LTC3536 |
|

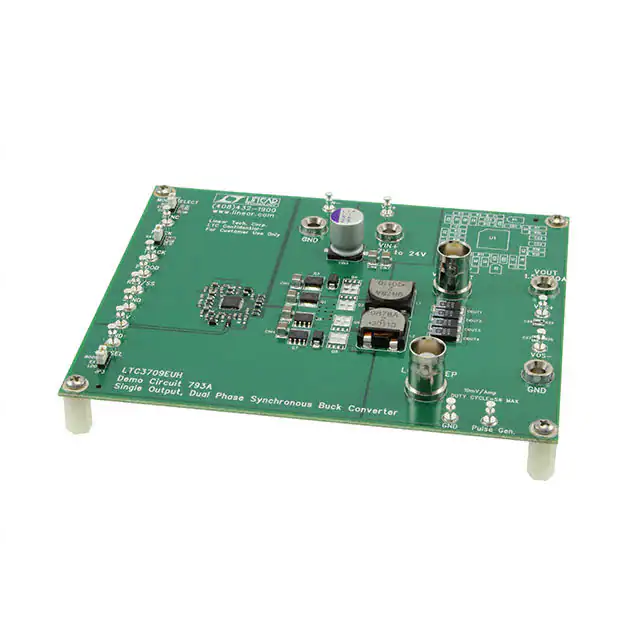

DC793AEVAL BOARD FOR LTC3709 |
2,455 | 160.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 30A | 7V ~ 24V | Buck | 310kHz | Board(s) | LTC3709 |
|

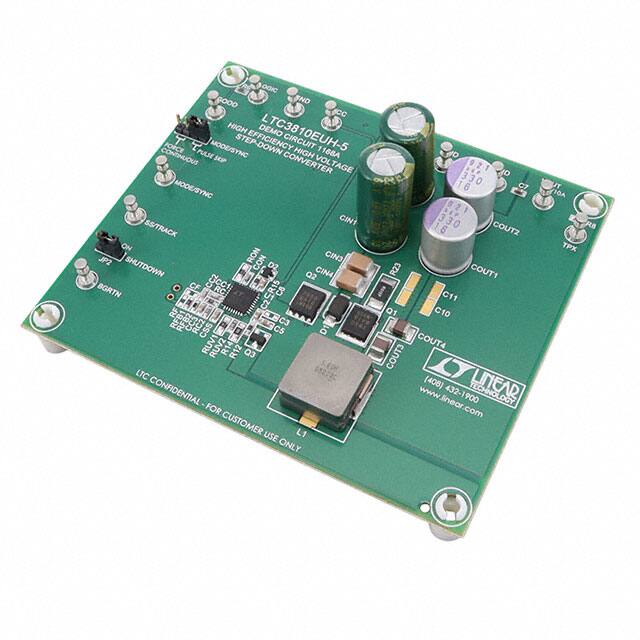

DC1168AEVAL BOARD FOR LTC38105 |
1,218 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 10A | 14V ~ 60V | Buck | 250kHz | Board(s) | LTC3810-5 |
|

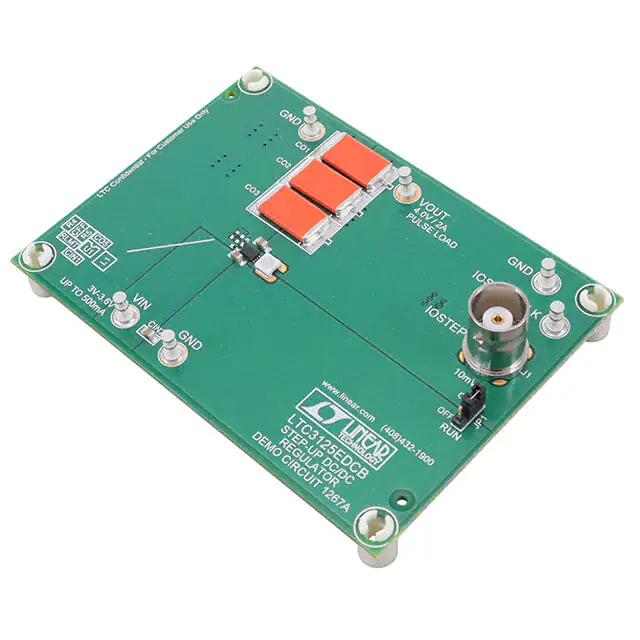

DC1267AEVAL BOARD FOR LTC3125 |
1,723 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 500mA | 3V ~ 3.6V | Boost | 1.6MHz | Board(s) | LTC3125 |
|

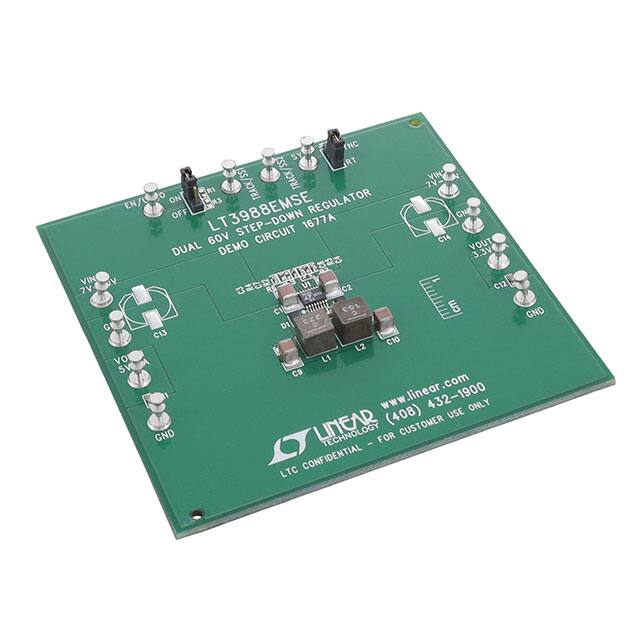

DC1677AEVAL BOARD FOR LT3988 |
3,962 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 1A, 1A | 7V ~ 60V | Buck | 250kHz | Board(s) | LT3988 |
|

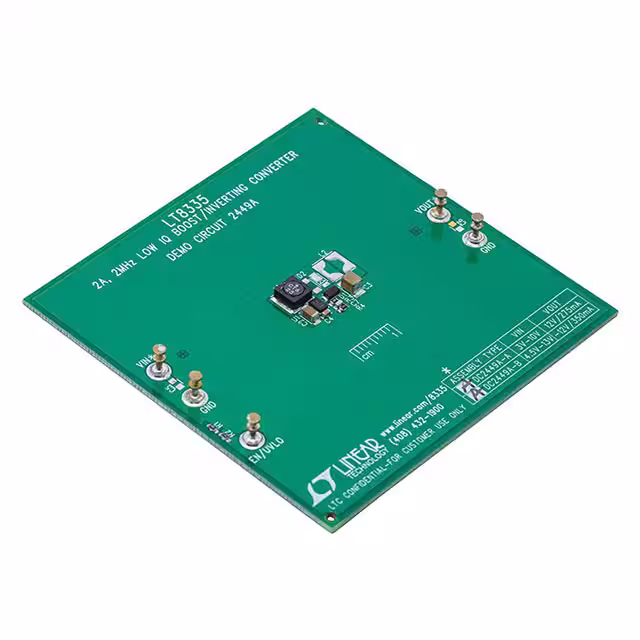

DC2449A-AEVAL BOARD FOR LT8335 |
1,642 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 275mA | 3V ~ 10V | Boost | 2MHz | Board(s) | LT8335 |
|

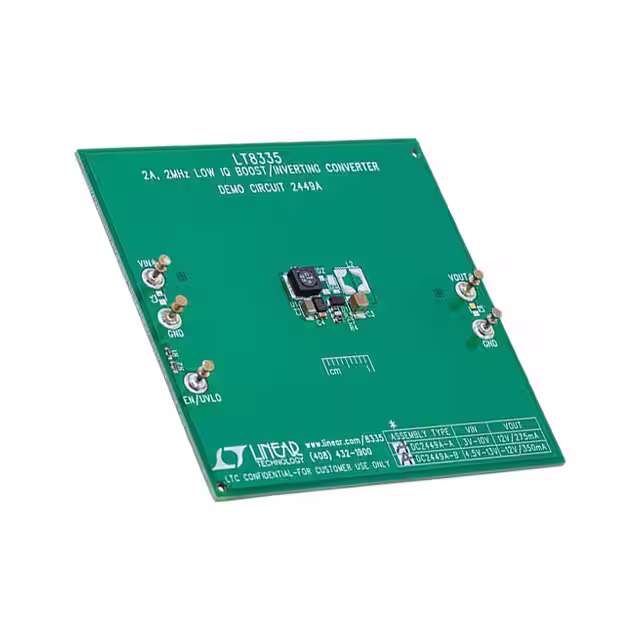

DC2449A-BEVAL BOARD FOR LT8335 |
3,325 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -12V | 350mA | 4.5V ~ 13V | Inverting | 2MHz | Board(s) | LT8335 |
|
DC2874A-AEVAL BOARD FOR LTC3310S |
2,700 | 176.55 |
|
Datasheet |
Silent Switcher®2 | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 40A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3310S |
|

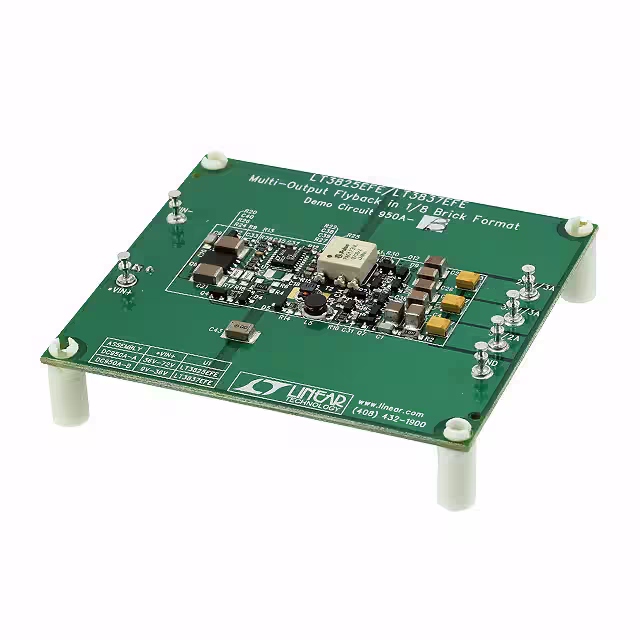

DC950A-BEVAL BOARD FOR LT3837 |
3,661 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 3 Isolated Outputs | - | 2.5V, 3.3V, 5V | 3A, 3A, 2A | 9V ~ 36V | Flyback | - | Board(s) | LT3837 |
|

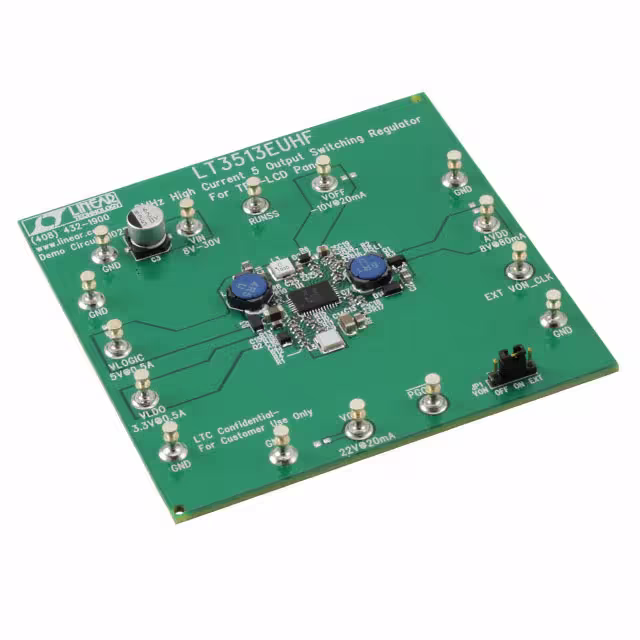

DC1028AEVAL BOARD FOR LT3513 |
2,524 | 176.55 |
|
Datasheet |
- | Box | Active | Special Purpose DC/DC, LCD Supply | 5 Non-Isolated Outputs | - | 3.3V, 5V, 8V, 22V, -10V | 500mA, 500mA, 80mA, 20mA, 20mA | 8V ~ 30V | Buck | 2MHz | Board(s) | LT3513 |
|
DC3186A-AEVAL BOARD FOR LTC3311 |
3,950 | 0.00 |
|
Datasheet |
Silent Switcher® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.176V ~ 1.224V | 50A | 3V ~ 5.5V | Buck | - | Board(s) | LTC3311 |
|
LM5119EVAL/NOPBEVAL BOARD FOR LM5119 |
4,761 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 5V, 10V | 4A, 8A | 14V ~ 55V | Buck | 230kHz | Board(s) | LM5119 |
|

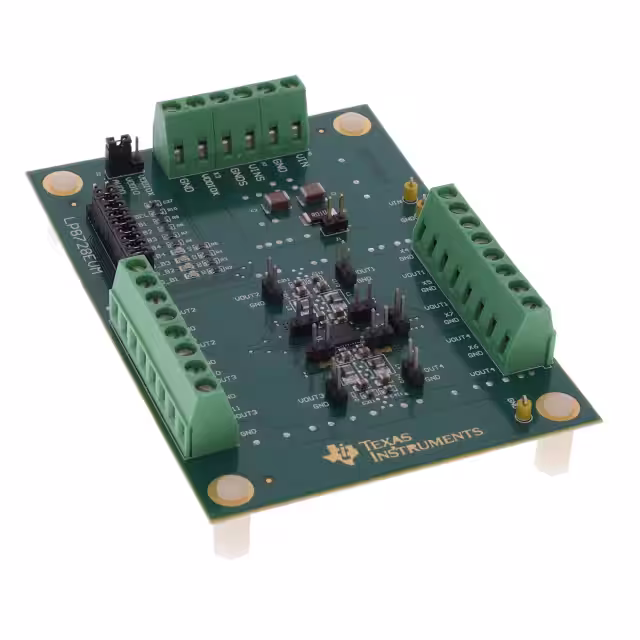

LP8728EVMEVAL BOARD FOR LP8728 |
4,525 | 178.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.25V, 1.8V, 2.65V, 3.3V | - | 4.5V ~ 5.5V | Buck | 3.3MHz | Board(s) | LP8728 |
|
DC2270AEVAL BOARD FOR LT3095 |
4,969 | 183.91 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up with LDO | 2 Non-Isolated Outputs | - | 5V, 15V | 50mA, 50mA | 3V ~ 20V | Boost | 1MHz | Board(s) | LT3095 |
|

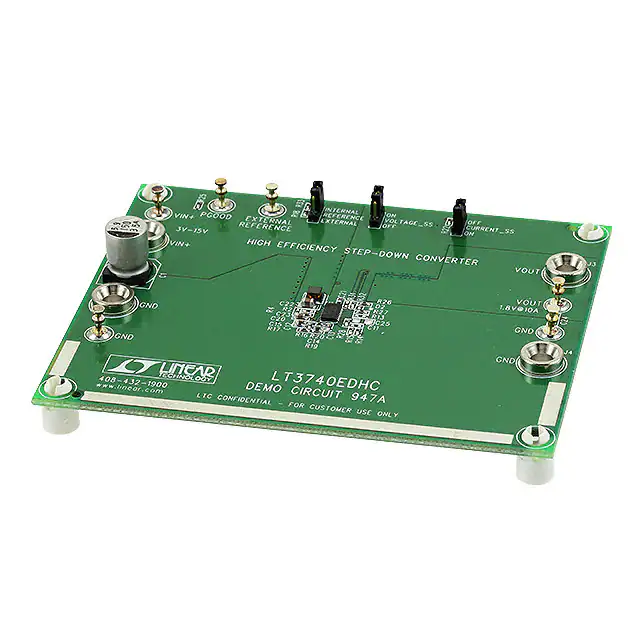

DC947AEVAL BOARD FOR LT3740 |
2,642 | 183.91 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 3V ~ 15V | Buck | 300kHz | Board(s) | LT3740 |
|

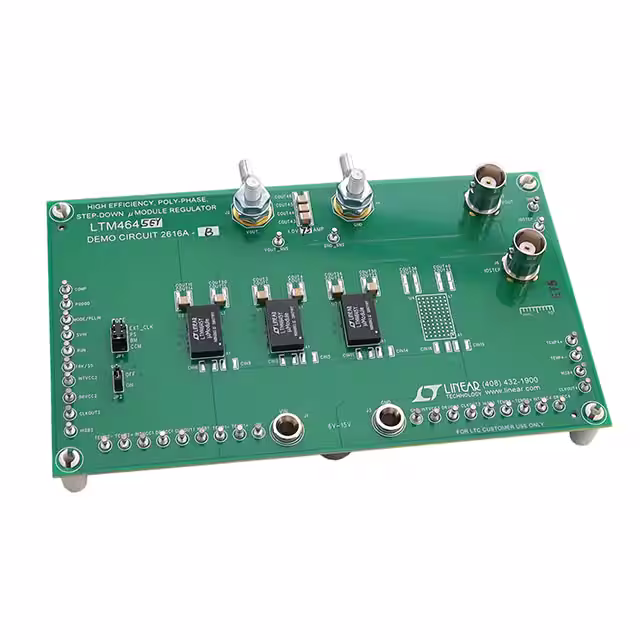

DC2616A-BEVAL BOARD FOR LTM4645 |
2,635 | 187.25 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 75A | 6V ~ 15V | Buck | 600kHz | Board(s) | LTM4645 |
