DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

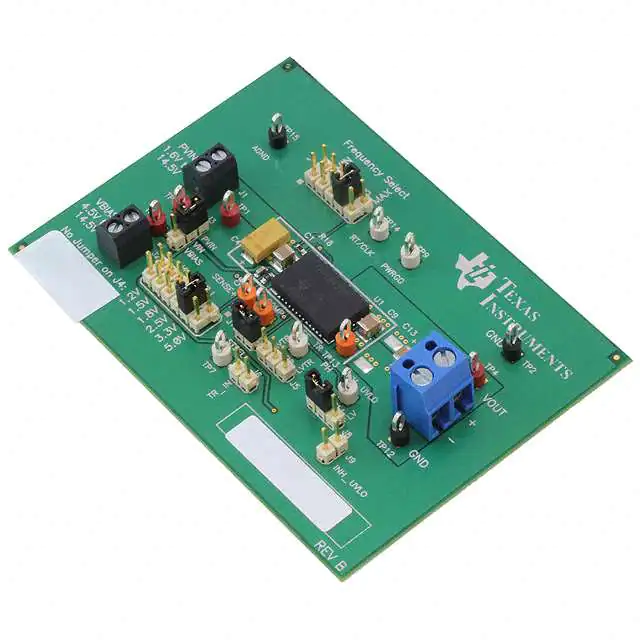

LMZ31503EVM-692EVAL BOARD FOR LMZ31503 |
2,498 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V | 3A | 4.5V ~ 14.5V | Buck | - | Board(s) | LMZ31503 |
|
TPS65581EVM-575EVAL BOARD FOR TPS65581 |
2,730 | 30.00 |
|
Datasheet |
D-CAP2™ | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.2V, 1.5V, 3.3V | 2A, 1.5A, 1.5A | 4.5V ~ 18V | Buck | 700kHz | Board(s) | TPS65581 |
|

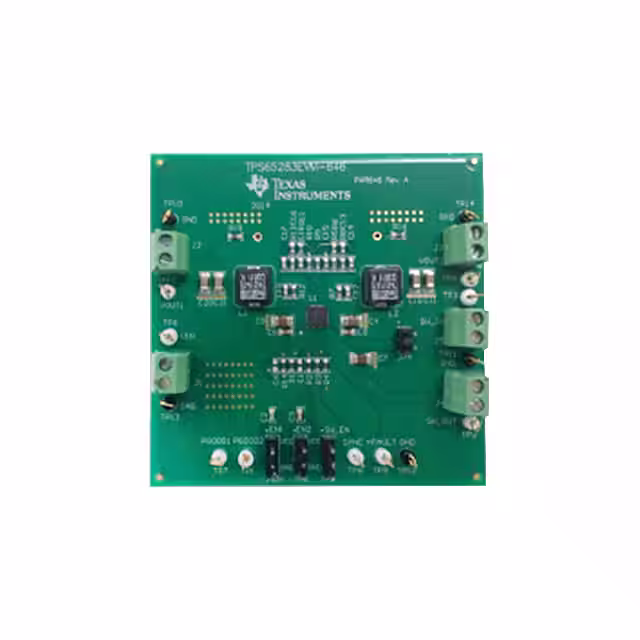

TPS65283EVM-646EVAL BOARD FOR TPS65283 |
1,153 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 5V | 3.5A, 2.5A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | TPS65283 |
|

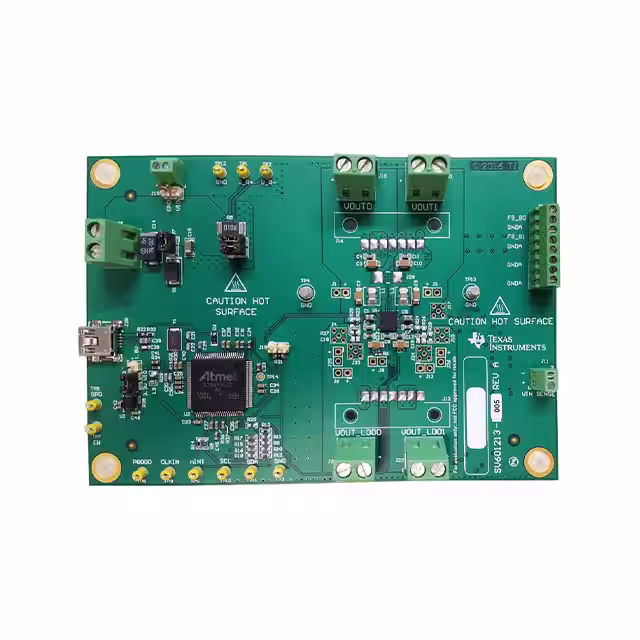

LP87333Q1EVMEVAL BOARD FOR LP87332BQ1 |
4,577 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 2A | - | Buck | 2MHz | Board(s) | LP87332B-Q1 |
|
LP87322Q1EVMEVAL BOARD FOR LP873220RHDRQ1 |
2,426 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 2A | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LP873220RHDRQ1 |
|

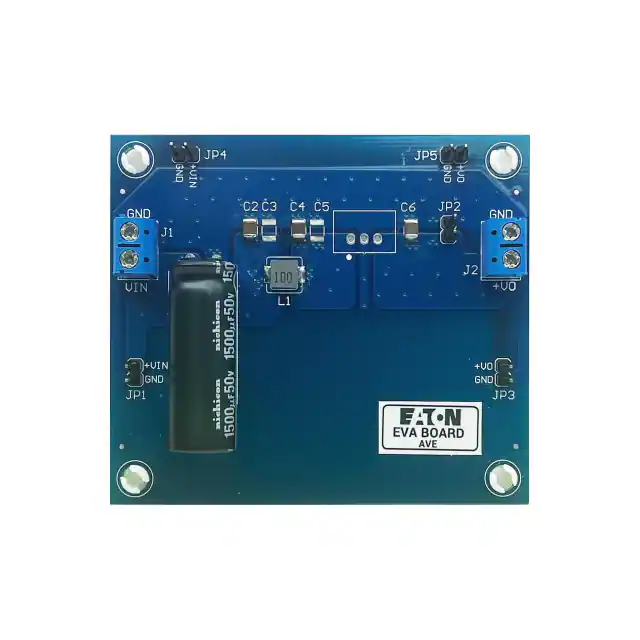

EPM78-EVKEVAL BOARD FOR EPM78 |
4,910 | 302.66 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1.8V ~ 15V | 1A | 4.75V ~ 32V | - | 500kHz | Board(s) | EPM78 |
|

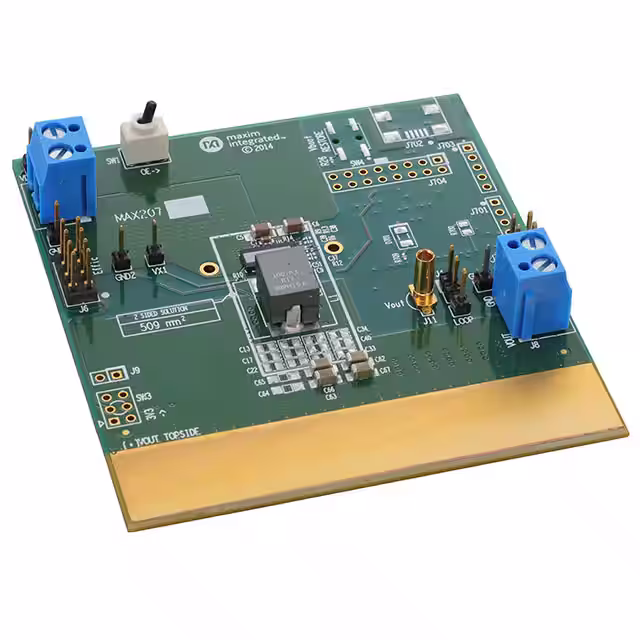

MAX20735EVKIT#EVAL BOARD FOR MAX20735 |
1,401 | 291.50 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 4.5V ~ 16V | Buck | 400kHz | Board(s) | MAX20735 |
|

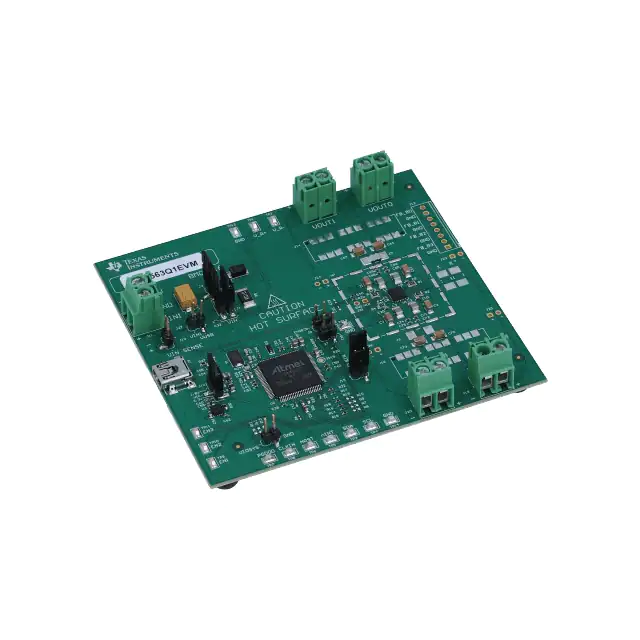

LP87563Q1EVMEVAL BOARD FOR LP87563 |
4,020 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.6V ~ 3.36V | 16A | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LP87563 |
|

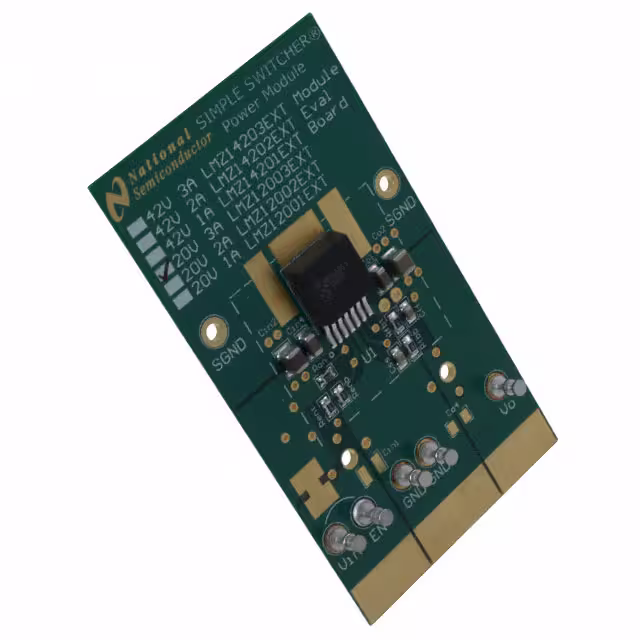

LMZ12003EXTEVAL/NOPBEVAL BOARD FOR LMZ12003EXT |
4,036 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 4.5V ~ 20V | Buck | - | Board(s) | LMZ12003EXT |
|
LP87562Q1EVMEVAL BOARD FOR LP87562 |
3,852 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 0.6V ~ 3.36V | 16A | 2.8V ~ 5.5V | Buck | 2MHz | Board(s) | LP87562 |
|
BDX12-EVM-07EVAL BRD BDX-50S NEEDS BDX-100M |
2,726 | 259.18 |
|
Datasheet |
BDX | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 8V ~ 14V | - | 500kHz | Partially Populated Board(s) | - |
|

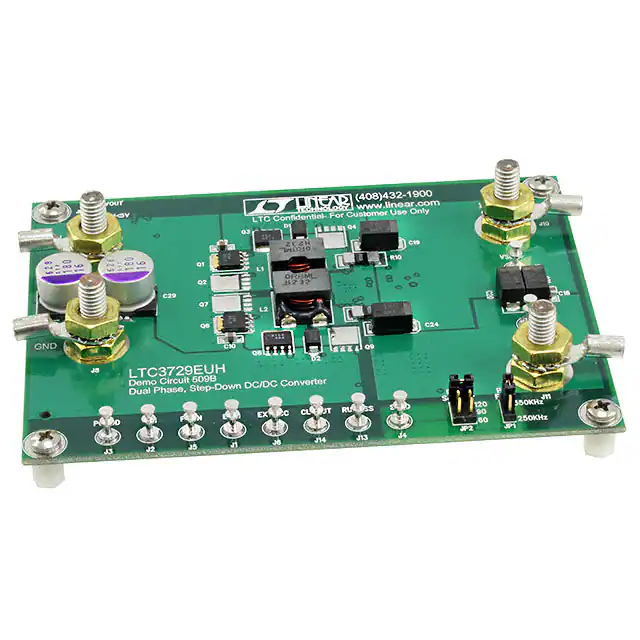

DC509BEVAL BOARD FOR LTC3729 |
2,538 | 257.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 25A | 5V ~ 14V | Buck | 550kHz | Board(s) | LTC3729 |
|
DC1155AEVAL BOARD FOR LTC3780 |
3,701 | 235.40 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 2A | 6V ~ 32V | Buck-Boost | 400kHz | Board(s) | LTC3780 |
|

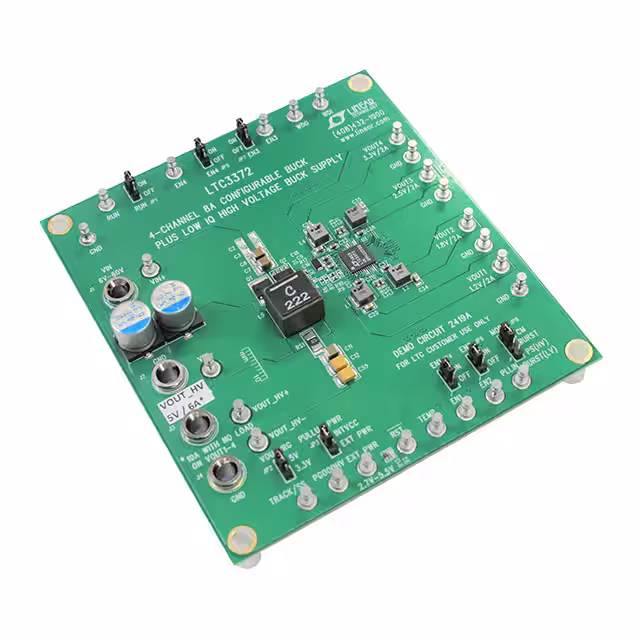

DC2419AEVAL BOARD FOR LTC3372 |
4,826 | 264.82 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 5 Non-Isolated Outputs | - | 1.2V, 1.8V, 2.5V, 3.3V, 5V | 10A, 2A, 2A, 2A, 2A | 6V ~ 60V | Buck | - | Board(s) | LTC3372 |
|
MAX15158ZEVKIT#EVAL BOARD FOR MAX15158Z |
3,402 | 250.42 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V ~ 60V | - | -8V ~ -60V | Boost, Inverting | - | Board(s) | MAX15158Z |
|
DC1317A-AEVAL BOARD FOR LT19521 |
4,906 | 257.48 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 34V ~ 75V | Forward Converter | 300kHz | Board(s) | LT1952-1 |
|
DC2243AEVAL BOARD FOR LT3668 |
4,428 | 286.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 5V, 5V, 6V | 400mA, 200mA, 200mA | 7V ~ 40V | Buck | 600kHz | Board(s) | LT3668 |
|

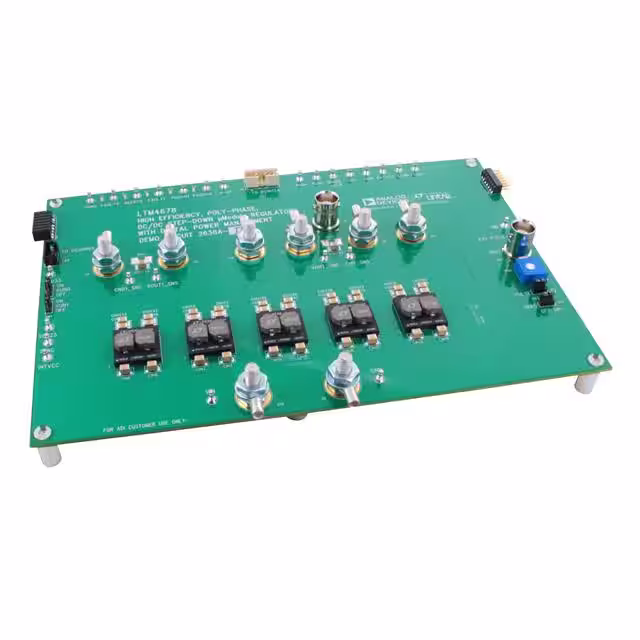

DC2638A-DEVAL BOARD FOR LTM4678 |
4,964 | 286.90 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 3.3V | 250A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4678 |
|
DC2253AEVAL BOARD FOR LTC3789 |
1,328 | 286.90 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 25A | 6V ~ 36V | Buck-Boost | 200kHz | Board(s) | LTC3789 |
|
DC2052AEVAL BOARD FOR LTC3880 LTC3883 |
2,533 | 294.25 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 60A | 6.5V ~ 14V | Buck | 350kHz | Board(s) | LTC3880, LTC3883 |
