DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

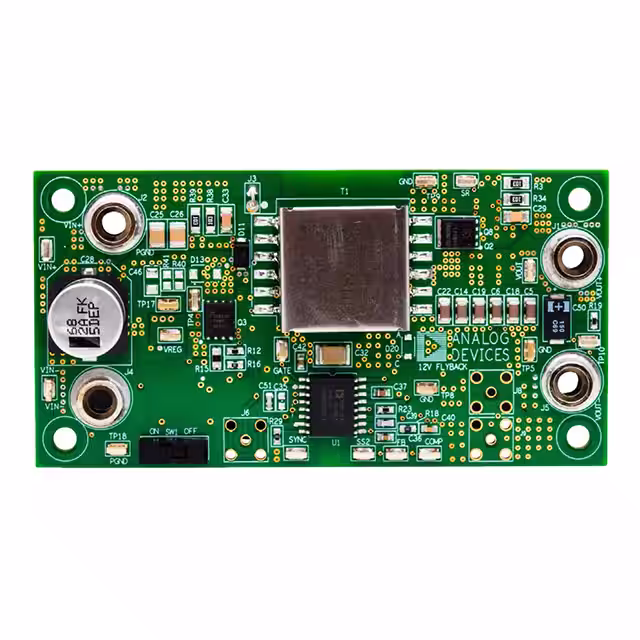

ADP1071-2EBZ12.1VEVAL BOARD FOR ADP10712 |
3,853 | 235.40 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Isolated Output | - | 12.1V | 3A | 36V ~ 60V | Flyback | 300kHz | Board(s) | ADP1071-2 |
|
DC2112AEVAL BOARD FOR LTC3649 |
1,745 | 235.40 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 4A | 4V ~ 60V | Buck | 500kHz | Board(s) | LTC3649 |
|

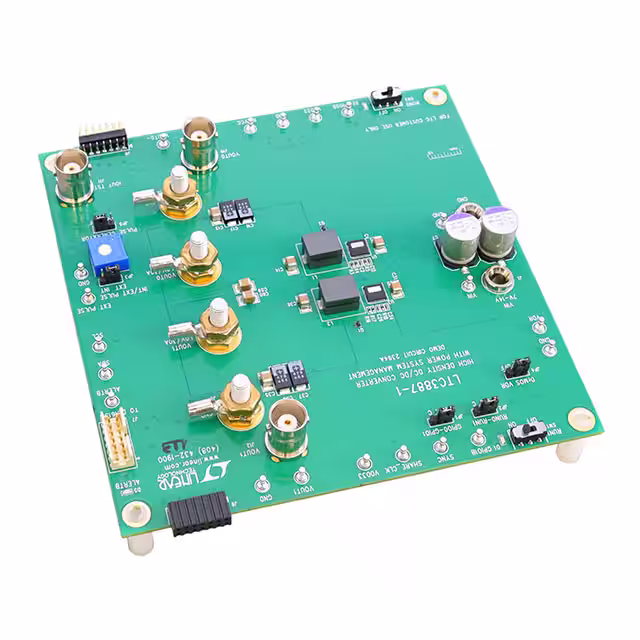

DC2394AEVAL BOARD FOR LTC3887EUJ1 |
3,845 | 235.40 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.8V ~ 1.8V | 30A | 7V ~ 14V | Buck | 350kHz | Board(s) | LTC3887EUJ-1 |
|

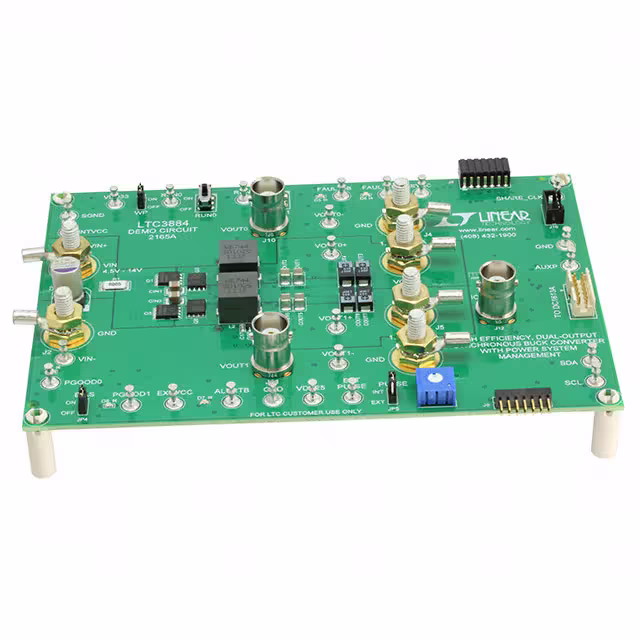

DC2165AEVAL BOARD FOR LTC3884 |
2,176 | 235.40 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1V | 30A, 30A | 4.5V ~ 14V | Buck | 425kHz | Board(s) | LTC3884 |
|

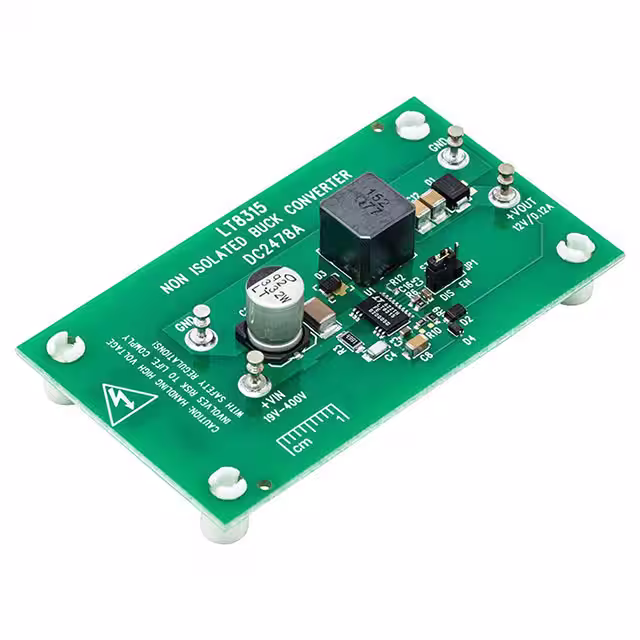

DC2478AEVAL BOARD FOR LT8315 |
4,954 | 235.40 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 120mA | 19V ~ 400V | Buck | - | Board(s) | LT8315 |
|
DC663AEVAL BOARD FOR LTC3736 |
1,379 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 5A, 5A | 2.7V ~ 8V | Buck | 550kHz | Board(s) | LTC3736 |
|

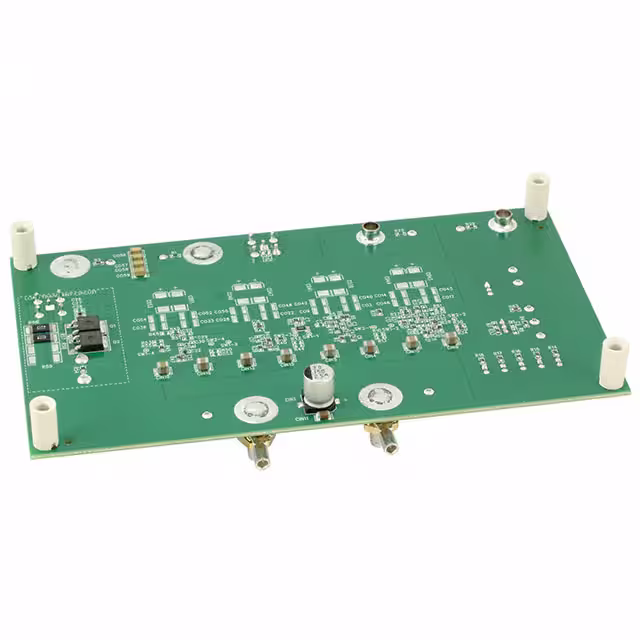

DC2164A-CEVAL BOARD FOR LTM46301 |
3,367 | 242.76 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 140A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630-1 |
|

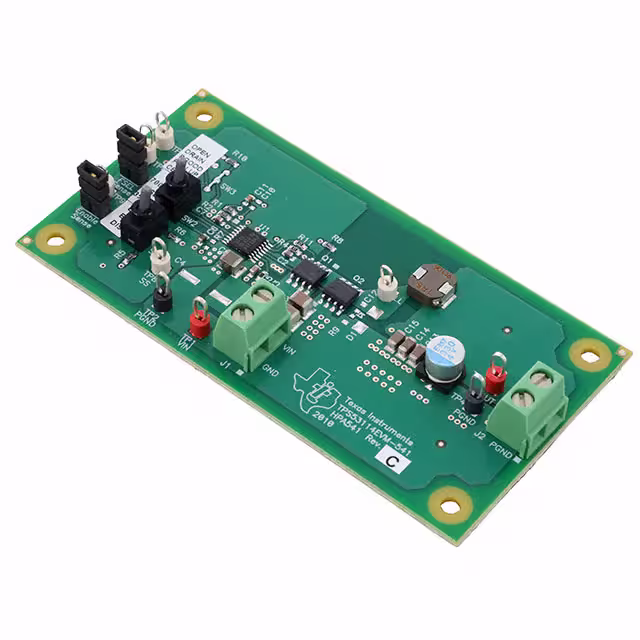

TPS53114EVM-541EVAL BOARD FOR TPS53114 |
3,727 | 58.80 |
|
Datasheet |
D-CAP™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 20A | 8V ~ 14V | Buck | 350kHz | Board(s) | TPS53114 |
|

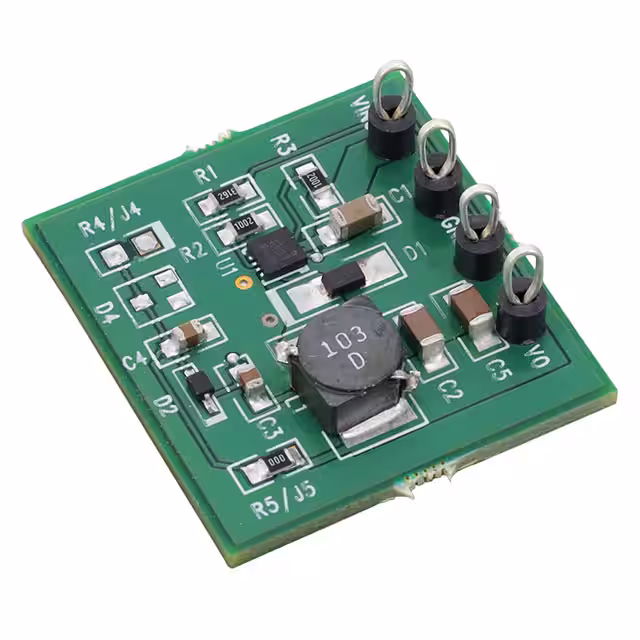

LM2738YSDEVALEVAL BOARD FOR LM2738 |
2,653 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 3V ~ 20V | Buck | 550kHz | Board(s) | LM2738 |
|
LMZ12001EXTEVAL/NOPBEVAL BOARD FOR LMZ12001EXT |
4,373 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 4.5V ~ 20V | Buck | - | Board(s) | LMZ12001EXT |
|

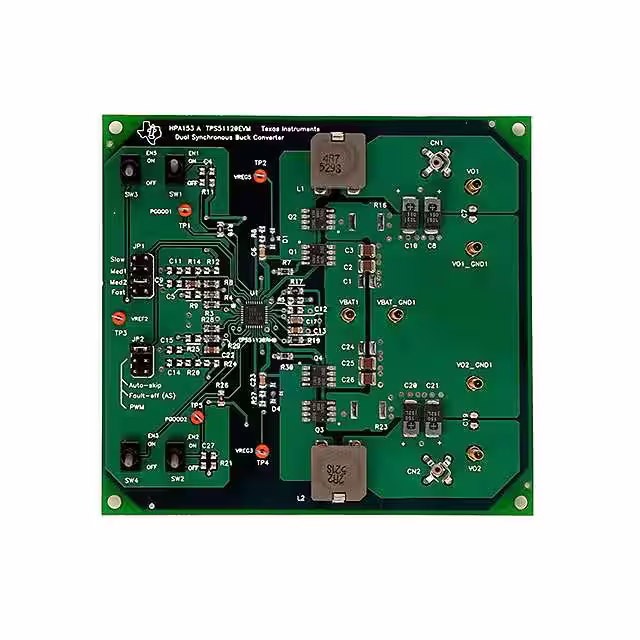

TPS51120EVM-001EVAL BOARD FOR TPS51120 |
3,706 | 118.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 6A, 6A | 8V ~ 25V | Buck | 280kHz, 430kHz | Board(s) | TPS51120 |
|

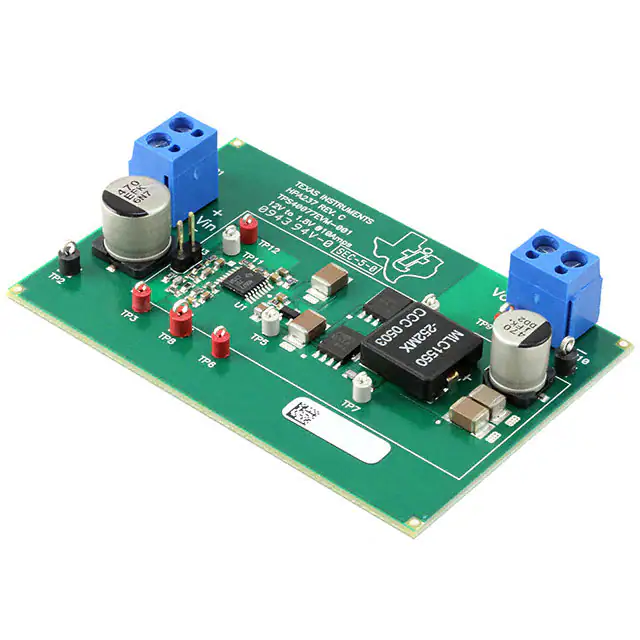

TPS40077EVM-001EVAL BOARD FOR TPS40077 |
4,915 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 8V ~ 16V | Buck | 300kHz | Board(s) | TPS40077 |
|
TPS40304EVM-353EVAL BOARD FOR TPS40304 |
4,171 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 20A | 8V ~ 14V | Buck | 600kHz | Board(s) | TPS40304 |
|
LP87331Q1EVMEVAL BOARD FOR LP87332ARHDRQ1 |
1,110 | 238.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | - | 3A | - | Buck | 2MHz | Board(s) | LP87332ARHDRQ1 |
|

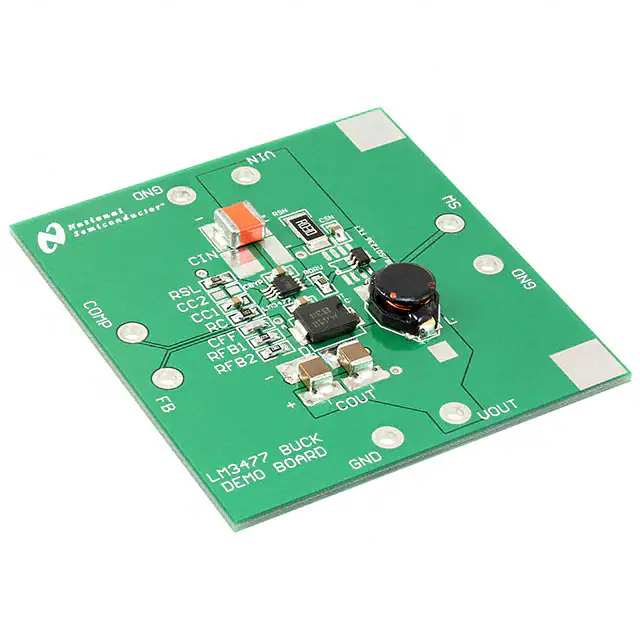

LM3477EVALEVAL BOARD FOR LM3477 |
2,666 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.6A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LM3477 |
|

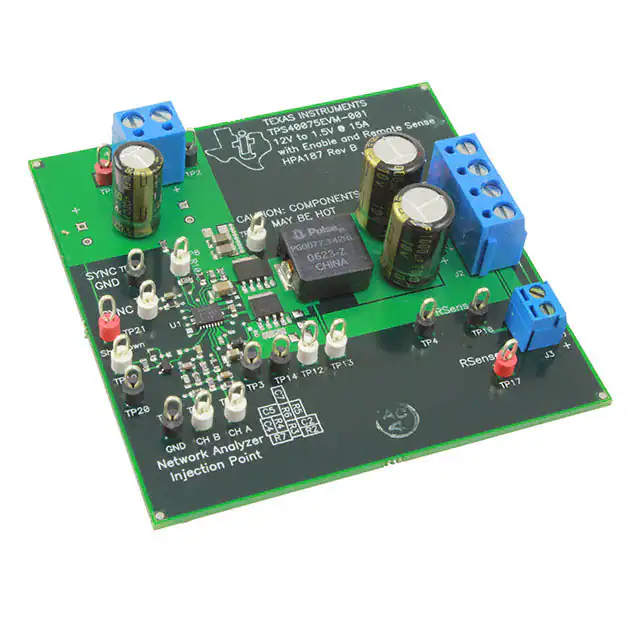

TPS40075EVM-001EVAL BOARD FOR TPS40075 |
4,796 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 15A | 10V ~ 14V | Buck | 400kHz | Board(s) | TPS40075 |
|

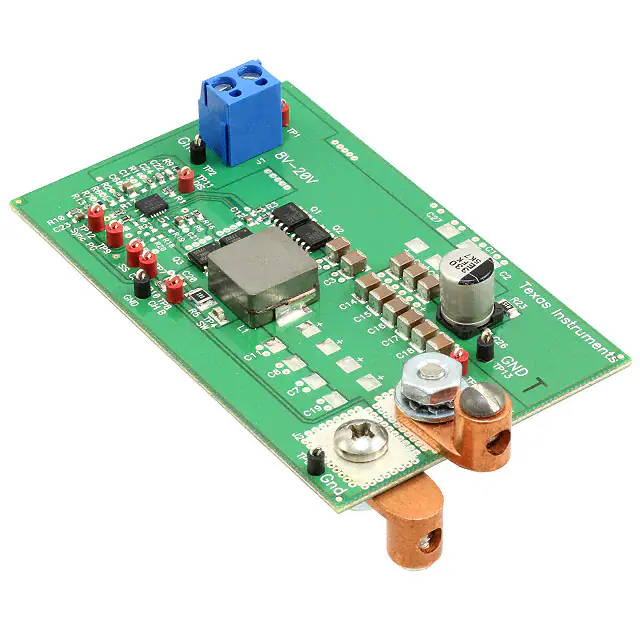

TPS40195EVM-001EVAL BOARD FOR TPS40195 |
2,984 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 20A | 8V ~ 20V | Buck | 300kHz | Board(s) | TPS40195 |
|
LMZ12001EVAL/NOPBEVAL BOARD FOR LMZ12001 |
3,531 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 4.5V ~ 20V | Buck | - | Board(s) | LMZ12001 |
|
TPS65253EVMEVAL BOARD FOR TPS65253 |
3,703 | 118.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 0.8V ~ 15V | 4A, 3A | 4.5V ~ 16V | Buck | 300kHz ~ 1.2MHz | Board(s) | TPS65253 |
|

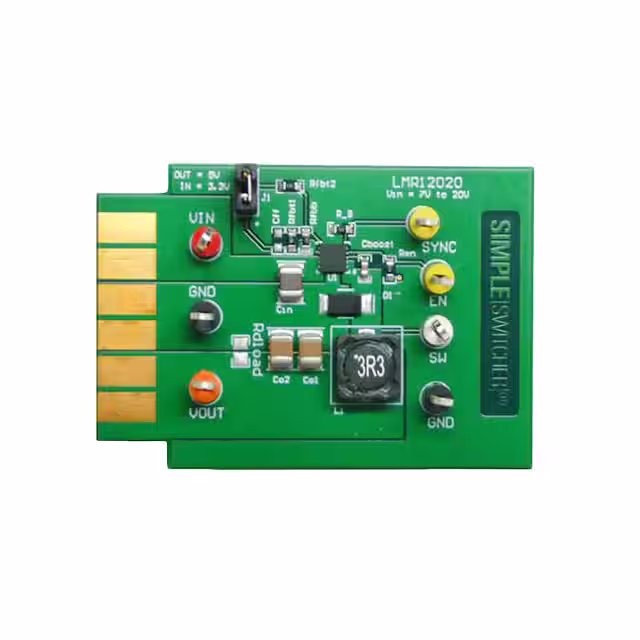

LMR12020XSDEVM/NOPBEVAL BOARD FOR LMR12020 |
2,921 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 2A | 7V ~ 20V | Buck | 2MHz | Board(s) | LMR12020 |
