DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

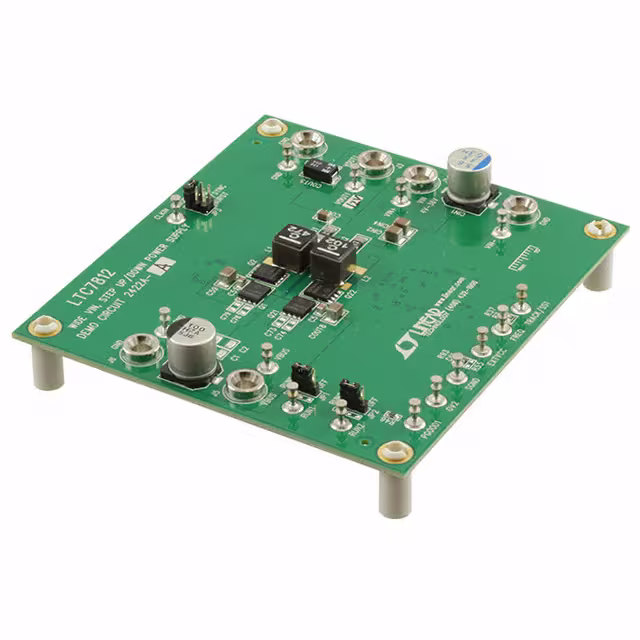

DC2422A-AEVAL BOARD FOR LTC7812 |
4,249 | 188.32 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 8A | 4V ~ 36V | Boost, Buck | - | Board(s) | LTC7812 |
|
DC2122AEVAL BOARD FOR LTC3859AL |
4,342 | 188.32 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 5V, 8.5V, 10V | - | 4.5V ~ 36V | Boost, Buck | 350kHz | Board(s) | LTC3859AL |
|
DC1898AEVAL BOARD FOR LTC3899 |
3,450 | 188.32 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up or Down | 3 Non-Isolated Outputs | - | 5V, 8.5V, 10V | 5.5A, 5A, 3A | 2.5V ~ 60V | Boost, Buck | 350kHz | Board(s) | LTC3899 |
|
DC2666A-AEVAL BOARD FOR LTC7132 |
3,520 | 221.46 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1V | 20A, 20A | 6V ~ 20V | Buck | 425kHz | Board(s) | LTC7132 |
|

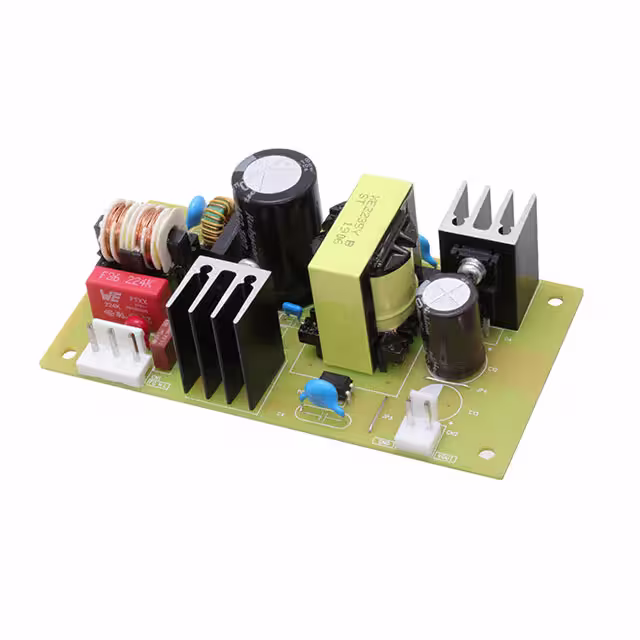

BM2P016T-EVK-004EVAL BOARD FOR BM2P016T |
2,315 | 193.75 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 24V | 2A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P016T |
|
BM2P016T-EVK-003EVAL BOARD FOR BM2P016T |
3,962 | 193.75 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 48 W | 12V | 4A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P016T |
|

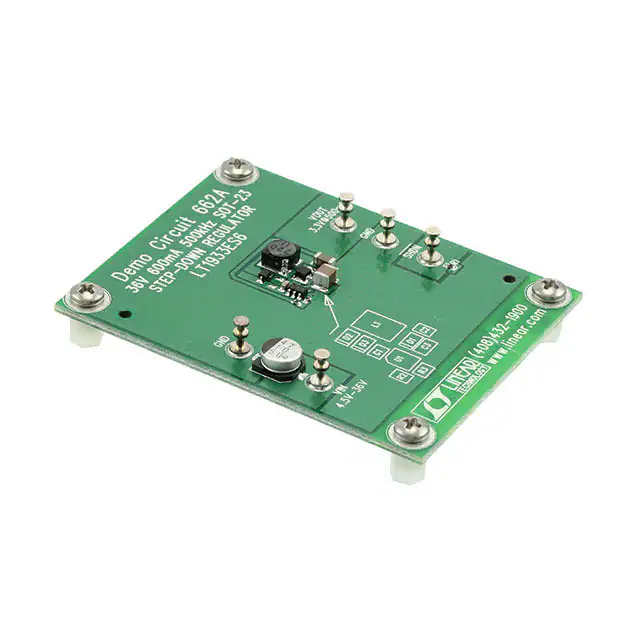

DC662AEVAL BOARD FOR LT1933 |
1,783 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 500mA | 4.5V ~ 36V | Buck | 500kHz | Board(s) | LT1933 |
|

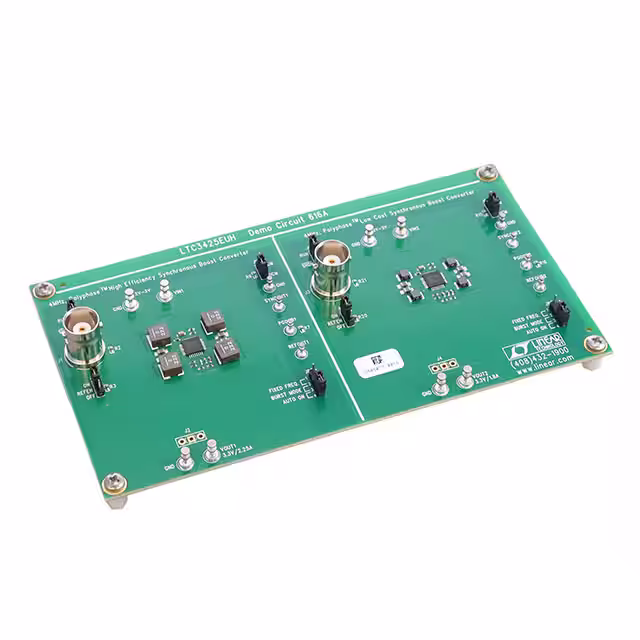

DC616AEVAL BOARD FOR LTC3425 |
4,033 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 3.3V | 2.25A, 1.8A | 2V ~ 3V | Boost | 1MHz | Board(s) | LTC3425 |
|

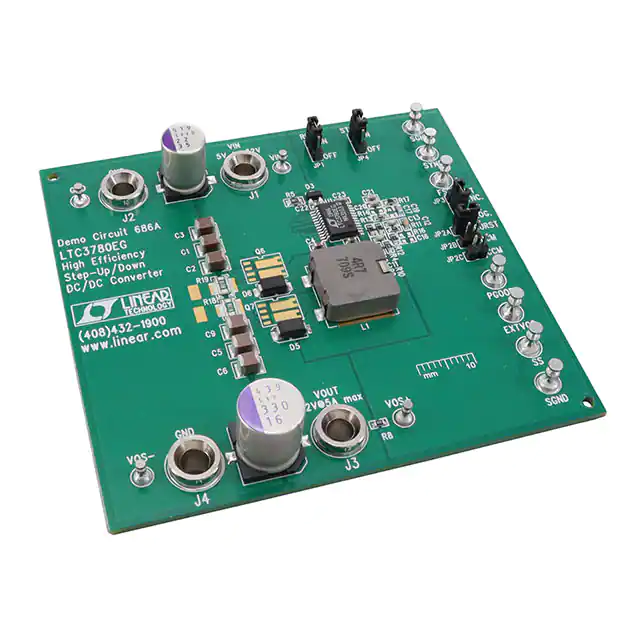

DC686AEVAL BOARD FOR LTC3780 |
1,030 | 176.55 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 5V ~ 32V | Buck-Boost | 400kHz | Board(s) | LTC3780 |
|

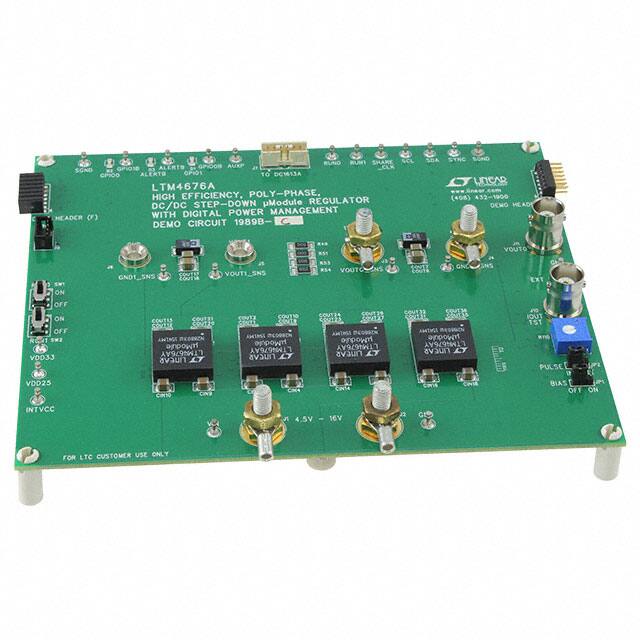

DC1989B-CEVAL BOARD FOR LTM4676A |
1,591 | 194.20 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 100A | 4.5V ~ 17V | Buck | 350kHz | Board(s) | LTM4676A |
|

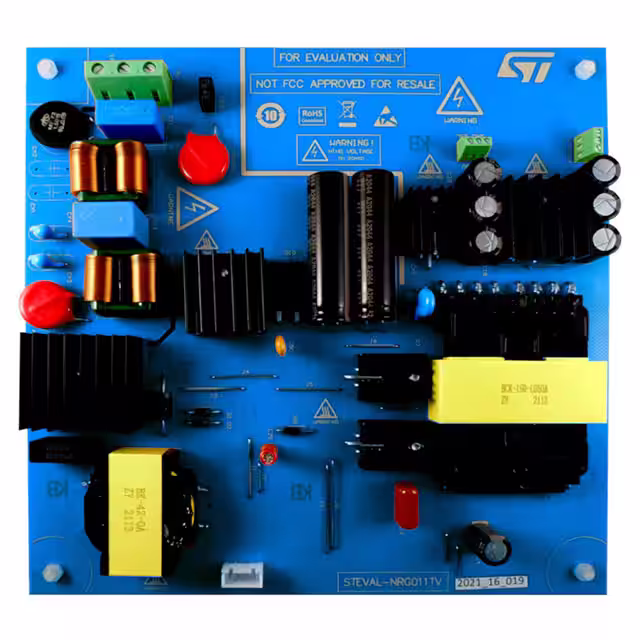

STEVAL-NRG011TVEVAL BOARD FOR STNRG011 |
2,381 | 195.00 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary and Secondary Side with PFC | 2 Non-Isolated Outputs | 200 W | 12V, 65V | 4A, 2.3A | 90 ~ 264 VAC | Resonant | - | Board(s) | STNRG011 |
|
DC2007A-BEVAL BOARD FOR LTM4630 |
2,235 | 198.62 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 105A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630 |
|

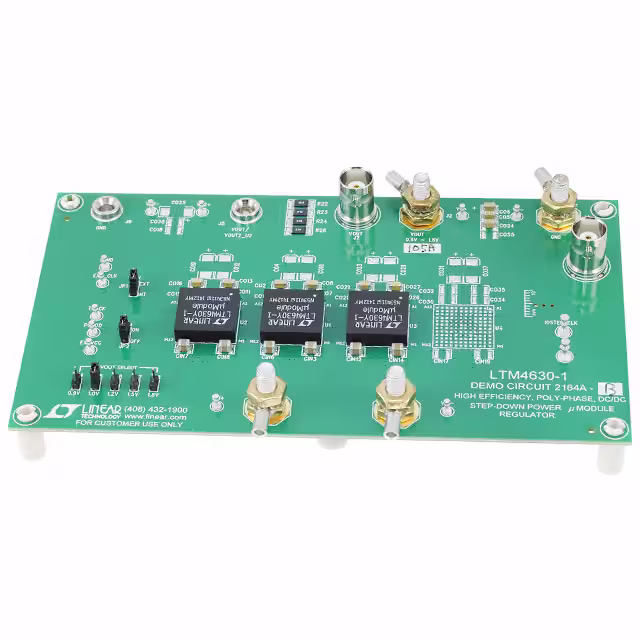

DC2164A-BEVAL BOARD FOR LTM46301 |
3,828 | 198.62 |
|
Datasheet |
µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 105A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630-1 |
|
DC1997A-AEVAL BOARD FOR LTC38381 |
3,865 | 198.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 20A, 20A | 4.5V ~ 14V | Buck | 300kHz | Board(s) | LTC3838-1 |
|

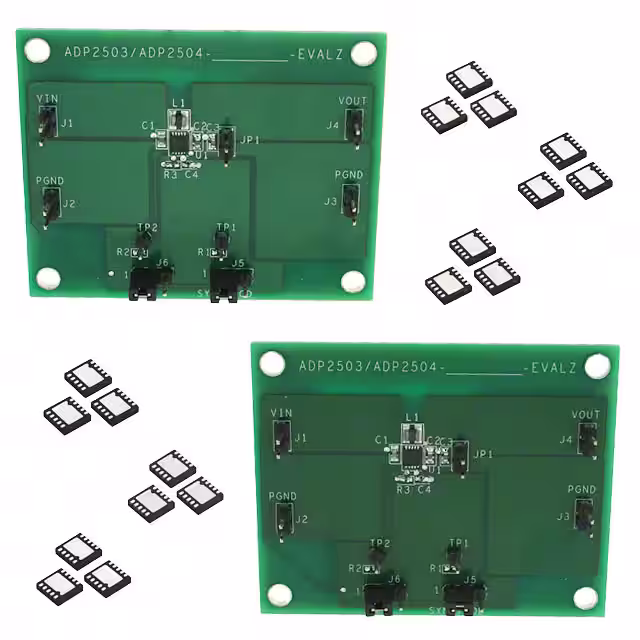

ADP2503CPZ-REDYKITEVAL BOARD FOR ADP2503 |
1,815 | 181.85 |
|
Datasheet |
RedyKit™ | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V, 5V | 600mA | 2.5V ~ 5.5V | Buck-Boost | 2.5MHz | Board(s), Accessories | ADP2503 |
|

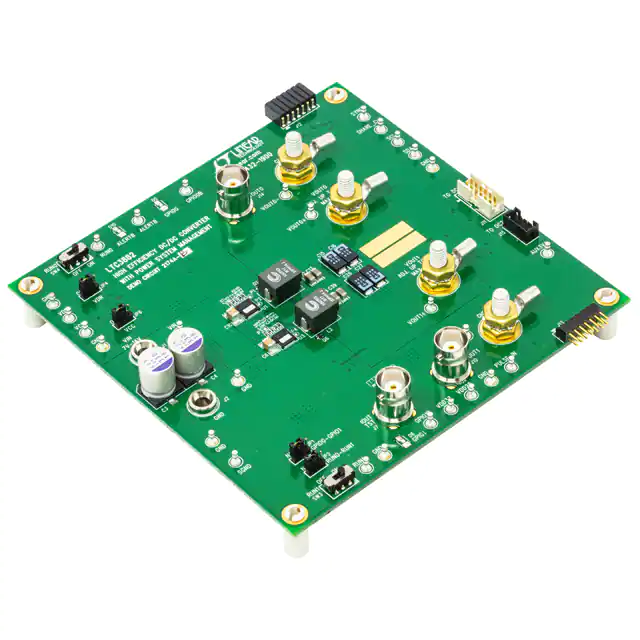

DC2174A-AEVAL BOARD FOR LTC3882EUJ |
1,551 | 200.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 1V | 35A, 35A | 7V ~ 14V | Buck | 500kHz | Board(s) | LTC3882EUJ |
|
TPS65282EVMEVAL BOARD FOR TPS65282 |
2,716 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 2.5V ~ 6V | Buck | 600kHz | Board(s) | TPS65282 |
|

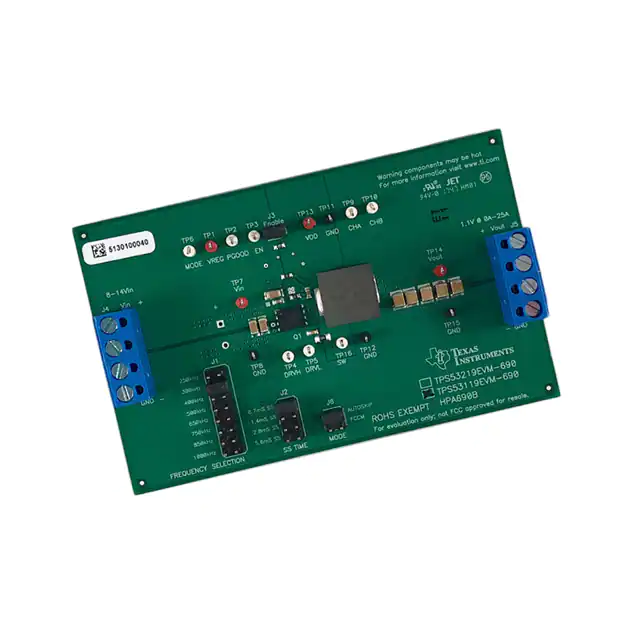

TPS53119EVM-690EVAL BOARD FOR TPS53119 |
3,890 | 58.80 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.1V | 25A | 8V ~ 14V | Buck | 300kHz | Board(s) | TPS53119 |
|

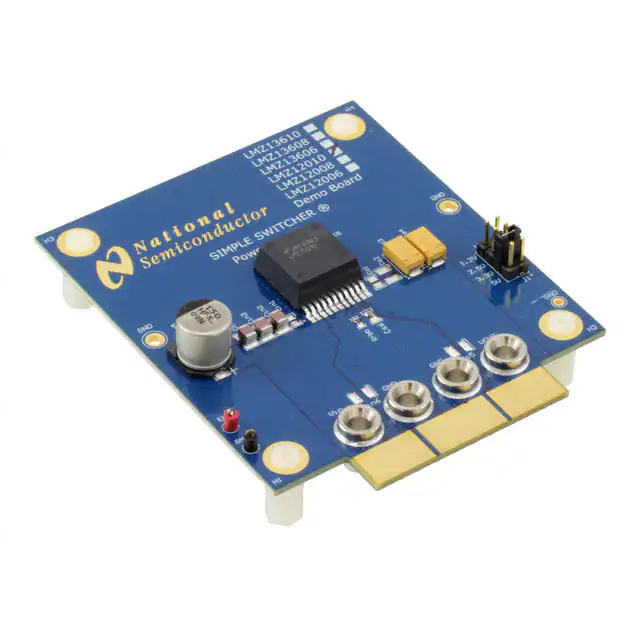

LMZ12010DEMO/NOPBEVAL BOARD FOR LMZ12010 |
3,963 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 2.5V, 3.3V, 5V | 10A | 6V ~ 20V | Buck | 350kHz | Board(s) | LMZ12010 |
|

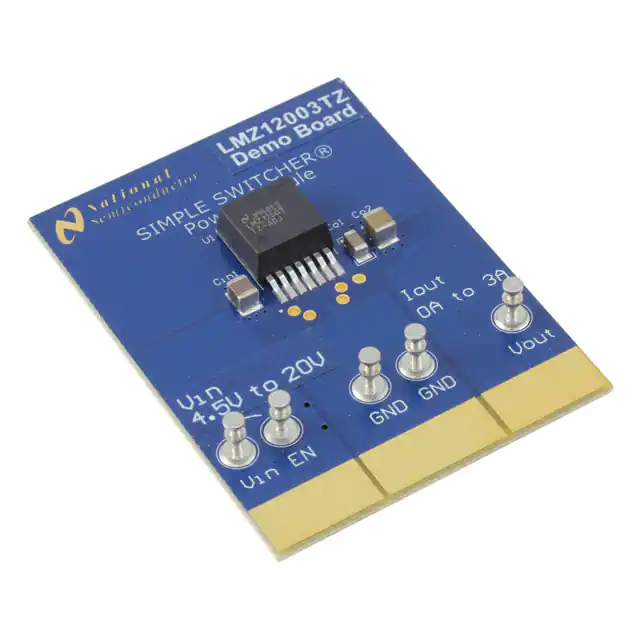

LMZ12003DEMO/NOPBEVAL BOARD FOR LMZ12003 |
2,282 | 24.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 4.5V ~ 20V | Buck | - | Board(s) | LMZ12003 |
