DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

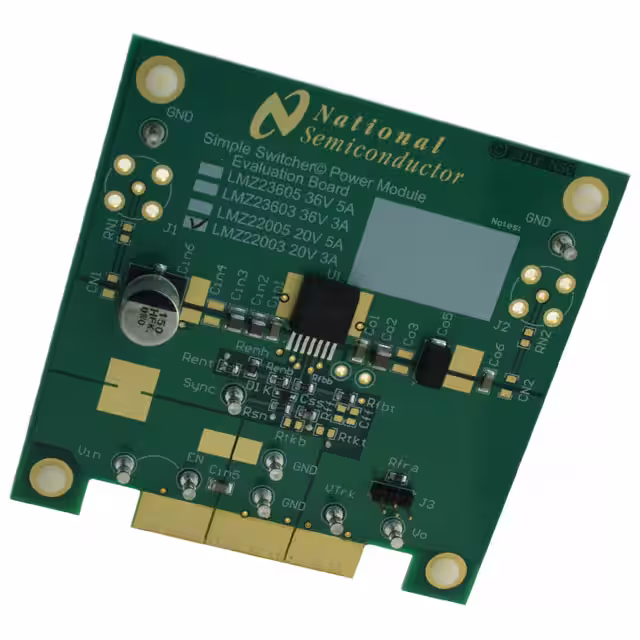

LMZ22003EVAL/NOPBEVAL BOARD FOR LMZ22003 |
3,270 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 6V ~ 20V | Buck | 812kHz | Board(s) | LMZ22003 |
|

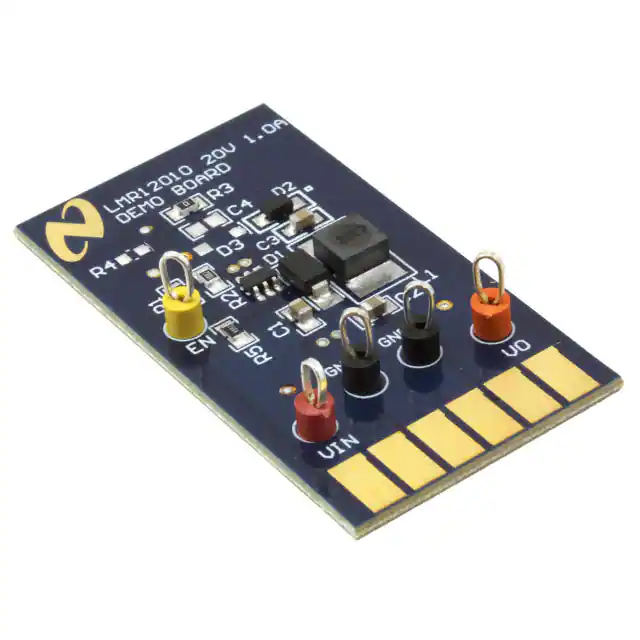

LMR12010YMKDEMO/NOPBEVAL BOARD FOR LMR12010 |
4,503 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 3V ~ 5V | Buck | 3MHz | Board(s) | LMR12010 |
|

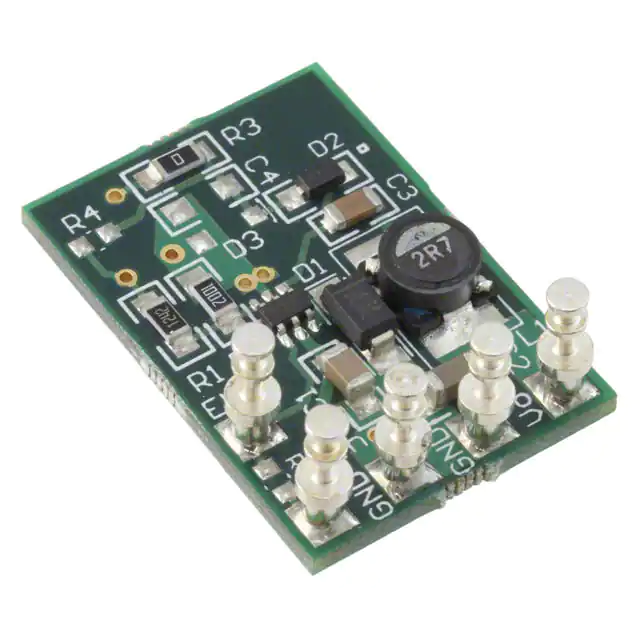

LM2734X EVALEVAL BOARD FOR LM2734 |
1,562 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 3V ~ 20V | Buck | 1.6MHz | Board(s) | LM2734 |
|

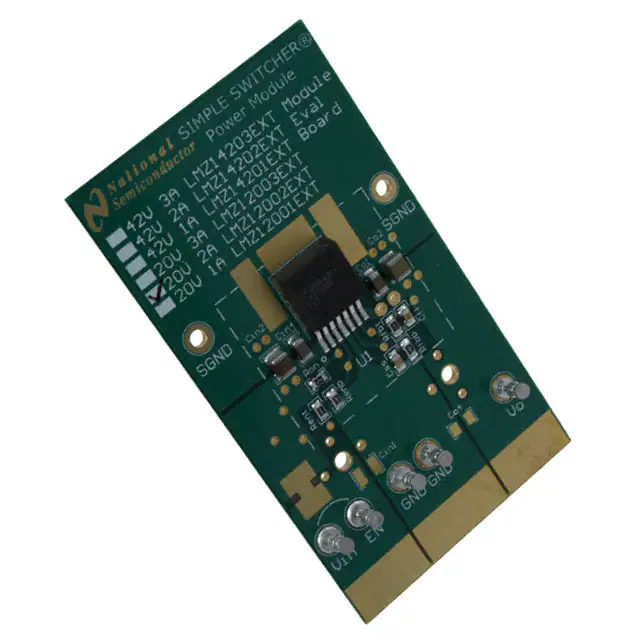

LMZ12002EXTEVAL/NOPBEVAL BOARD FOR LMZ12002EXT |
3,906 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 4.5V ~ 20V | Buck | - | Board(s) | LMZ12002EXT |
|

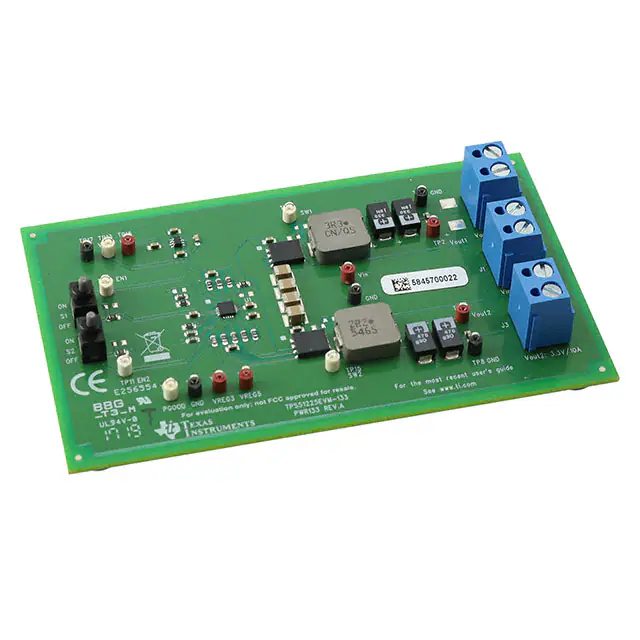

TPS51225EVM-133EVAL BOARD FOR TPS51225 |
1,841 | 58.80 |
|
Datasheet |
D-CAP™ | Box | Active | DC/DC, Step Down with LDO | 4 Non-Isolated Outputs | - | 3.3V, 3.3V, 5V, 5V | 10A, 10A, 100mA, 100mA | 8V ~ 20V | Buck | 300kHz, 355kHz | Board(s) | TPS51225 |
|
TPS5405EVMEVAL BOARD FOR TPS5405 |
4,488 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1.5A | 6.5V ~ 28V | Buck | - | Board(s) | TPS5405 |
|

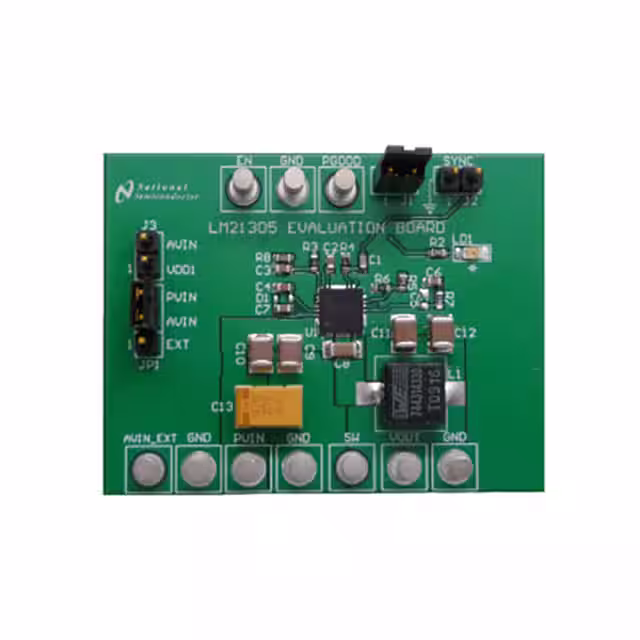

LM21305EVM/NOPBEVAL BOARD FOR LM21305 |
3,920 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 5V ~ 18V | Buck | 500kHz | Board(s) | LM21305 |
|

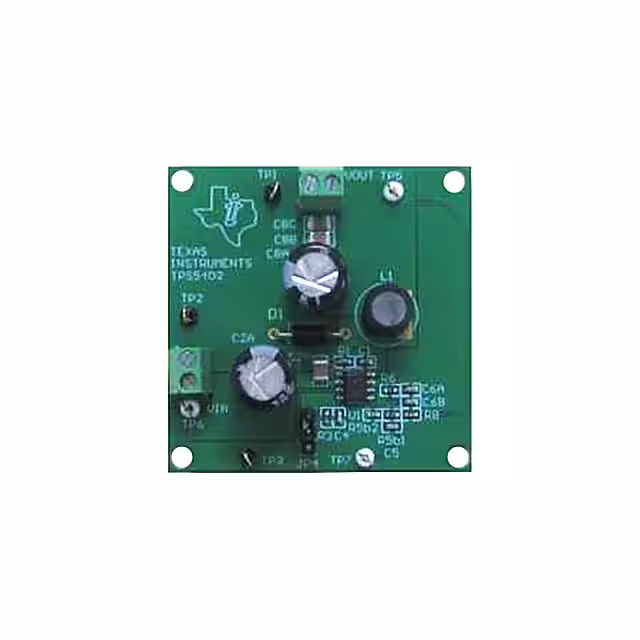

TPS5402EVMEVAL BOARD FOR TPS5402 |
1,135 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.7A | 4.5V ~ 28V | Buck | - | Board(s) | TPS5402 |
|
LM2727EVALEVAL BOARD FOR LM2727 |
3,977 | 101.47 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 4A | 2.2V ~ 16V | Buck | 800kHz | Board(s) | LM2727 |
|
LM3475EVALEVAL BOARD FOR LM3475 |
1,438 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 2A | 2.7V ~ 10V | Buck | - | Board(s) | LM3475 |
|

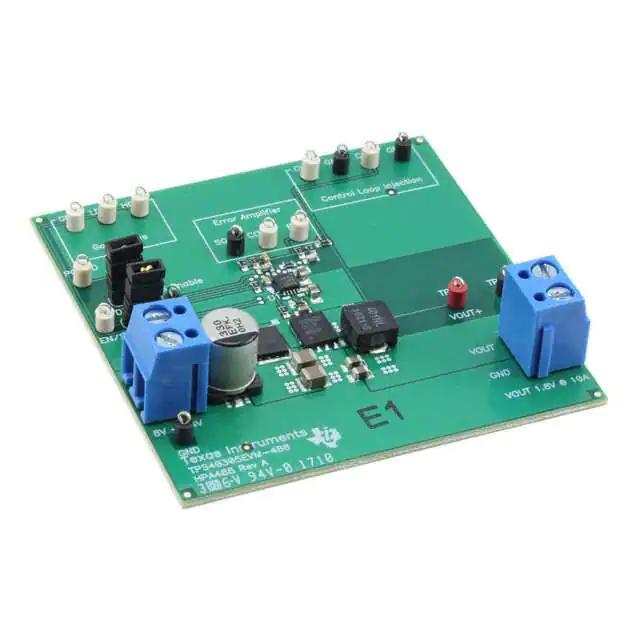

TPS40305EVM-488EVAL BOARD FOR TPS40305 |
2,262 | 58.80 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 10A | 8V ~ 14V | Buck | 1.2kHz | Board(s) | TPS40305 |
|

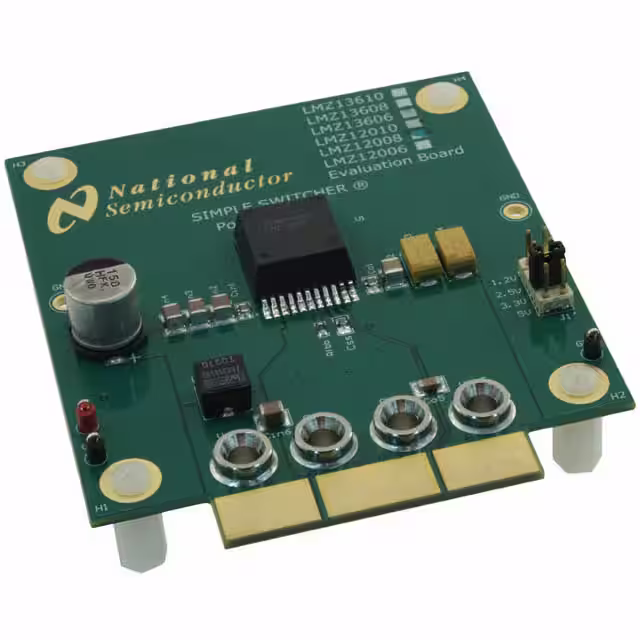

LMZ12008EVAL/NOPBEVAL BOARD FOR LMZ12008 |
1,995 | 30.00 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 2.5V, 3.3V, 5V | 8A | 6V ~ 20V | Buck | 350kHz | Board(s) | LMZ12008 |
|

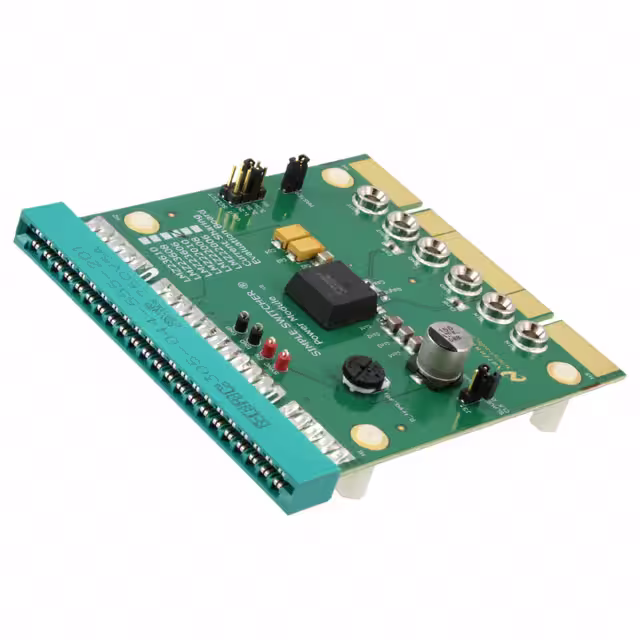

LMZ22010EVAL/NOPBEVAL BOARD FOR LMZ22010 |
2,190 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 2.5V, 3.3V, 5V | 10A | 6V ~ 20V | Buck | 359kHz | Board(s) | LMZ22010 |
|

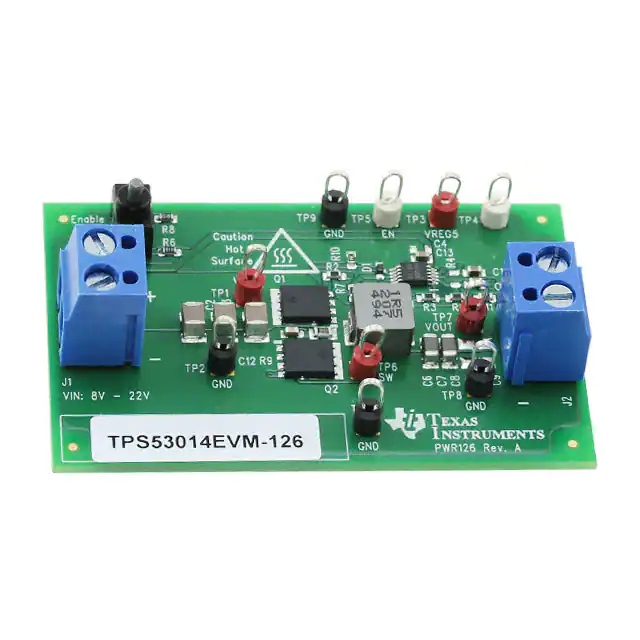

TPS53014EVM-126EVAL BOARD FOR TPS53014 |
3,965 | 58.80 |
|
Datasheet |
D-CAP2™, Eco-Mode™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 8A | 8V ~ 22V | Buck | 500kHz | Board(s) | TPS53014 |
|

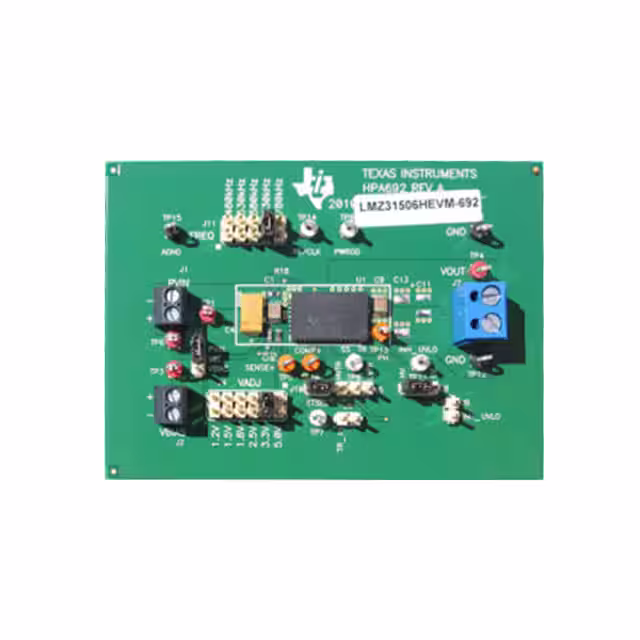

LMZ31506HEVM-692EVAL BOARD FOR LMZ31506H |
4,255 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, 5V | 6A | 2.95V ~ 6V | Buck | - | Board(s) | LMZ31506H |
|

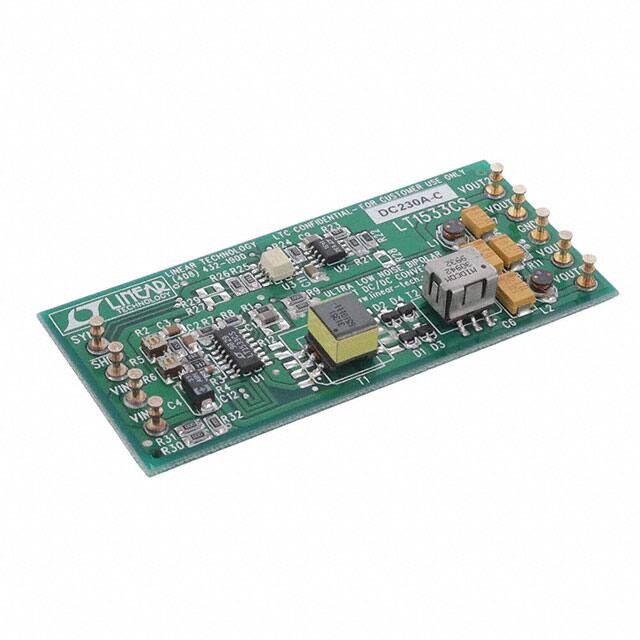

DC230A-CEVAL BOARD FOR LT1533 |
3,433 | 183.91 |
|
Datasheet |
- | Box | Active | DC/DC, Positive and Negative | 2 Non-Isolated Outputs | 1.8 W | ±15V | 120mA | 4.5V ~ 8V | - | - | Board(s) | LT1533 |
|
DC2435A-AEVAL BOARD FOR LTC7813EUH |
3,162 | 202.45 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 24V | - | 4V ~ 56V | Boost, Buck | 200kHz | Board(s) | LTC7813EUH |
|

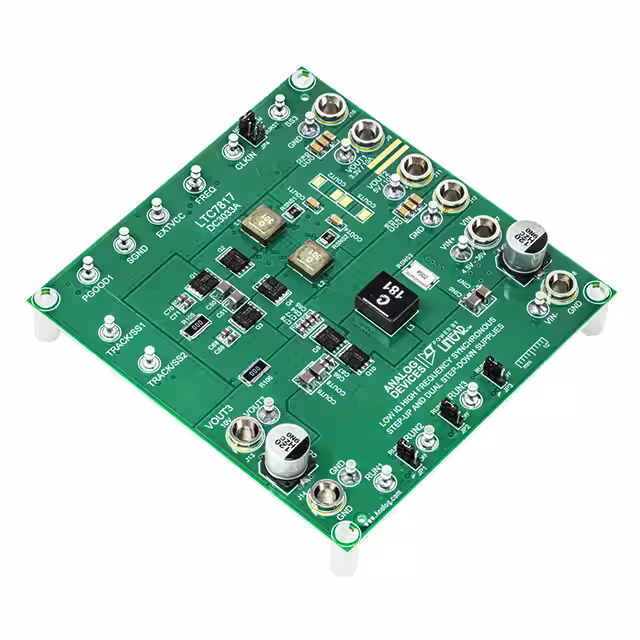

DC3033AEVAL BOARD FOR LTC7817 |
4,681 | 205.98 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | Board(s) | LTC7817 |
|

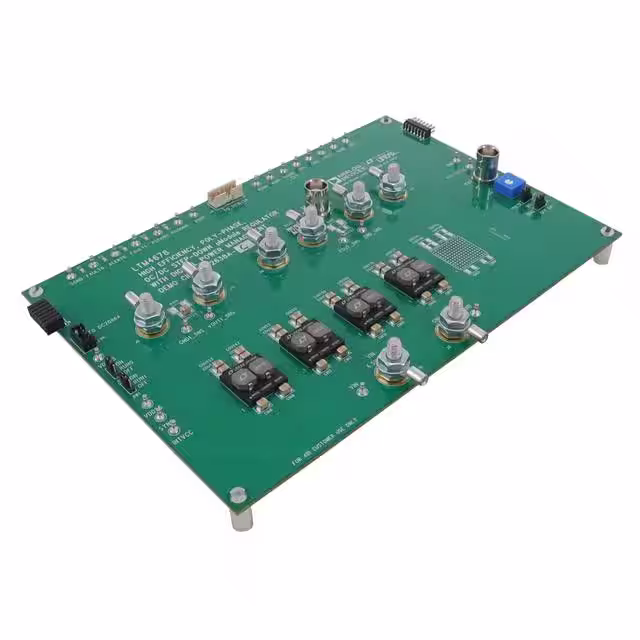

DC2638A-CEVAL BOARD FOR LTM4678 |
2,158 | 206.35 |
|
Datasheet |
µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.5V ~ 3.3V | 200A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4678 |
|
DC2938AEVAL BOARD FOR LTC7890 |
4,304 | 208.65 |
|
Datasheet |
- | Bulk | Obsolete | - | 2 Non-Isolated Outputs | - | 5V, 12V | - | - | - | - | Board(s) | LTC7890 |
