DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

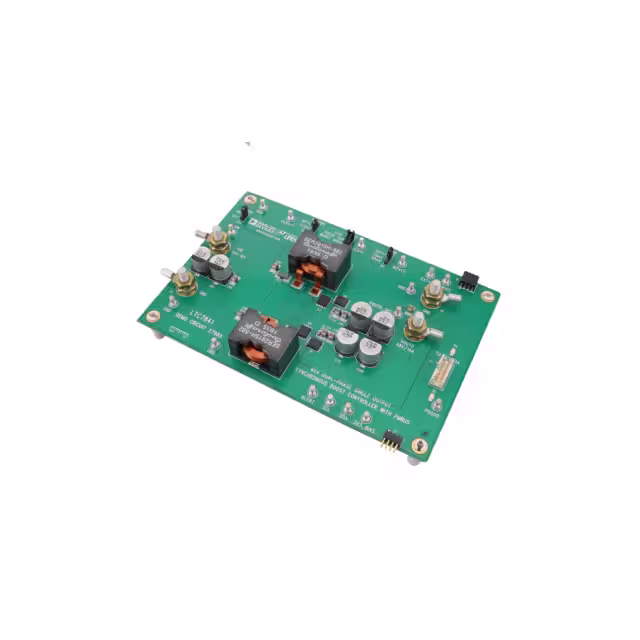

DC2798AEVAL BOARD FOR LTC7841 |
2,047 | 210.39 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 16V ~ 48V | 10A | 10V ~ 16V | Boost | 150kHz | Board(s) | LTC7841 |
|

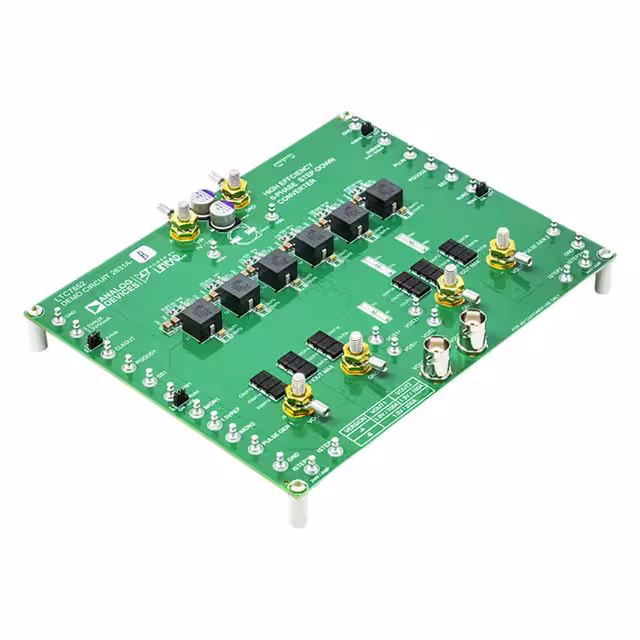

DC2631A-AEVAL BOARD FOR LTC7852 |
4,109 | 211.86 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 100A, 100A | 7V ~ 14V | Buck | 400kHz | Board(s) | LTC7852 |
|

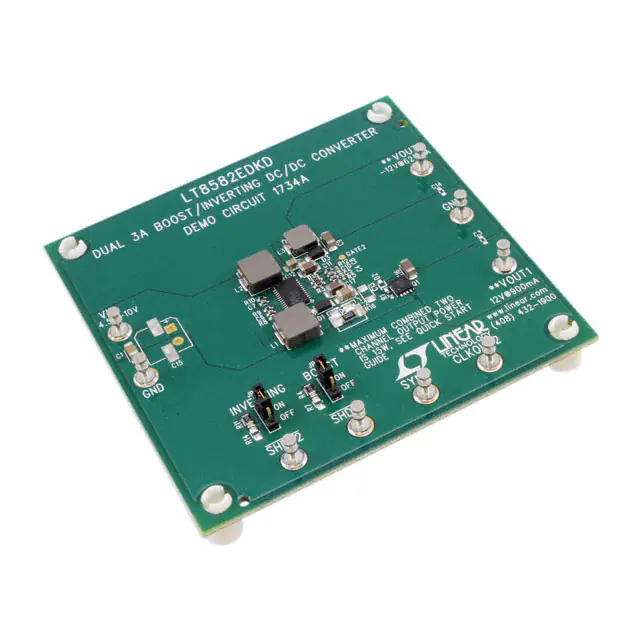

DC1734AEVAL BOARD FOR LT8582 |
4,323 | 211.86 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 12V, -12V | 900mA, 590mA | 5V ~ 10V | Boost | 1MHz | Board(s) | LT8582 |
|
DC147A-BEVAL BOARD FOR LT1339 |
4,381 | 184.58 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | - | - | Buck | - | Board(s) | LT1339 |
|

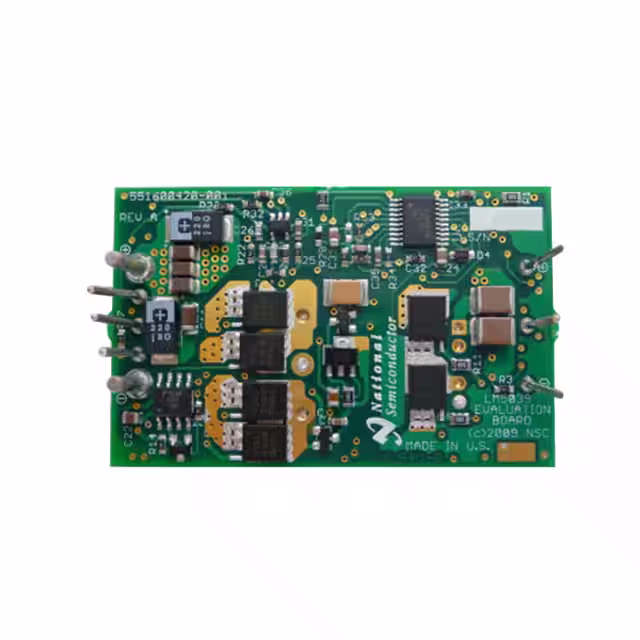

LM5039EVAL/NOPBEVAL BOARD FOR LM5039 |
4,140 | 210.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 30A | 36V ~ 75V | Buck | 400kHz | Board(s) | LM5039 |
|
DC1590B-AEVAL BOARD FOR LTC3880 |
2,558 | 214.00 |
|
Datasheet |
PolyPhase® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 1.8V | 20A, 20A | 6.5V ~ 24V | Buck | 350kHz | Board(s) | LTC3880 |
|
DC2084AEVAL BOARD FOR LTC3884 |
2,474 | 214.00 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 240A | 10V ~ 14V | Buck | 425kHz | Board(s) | LTC3884 |
|
BM2P060MF-EVK-001EVAL BOARD FOR BM2P060M |
3,369 | 214.29 |
|
Datasheet |
- | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 40 W | 24V | 1.67A | 90 ~ 264 VAC | Flyback | 65kHz | Board(s) | BM2P060M |
|
EPC9118EVAL BOARD FOR EPC2001C EPC2021 |
1,281 | 215.62 |
|
Datasheet |
eGaN® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 20A | 30V ~ 60V | Buck | 400kHz | Board(s) | EPC2001C, EPC2021 |
|

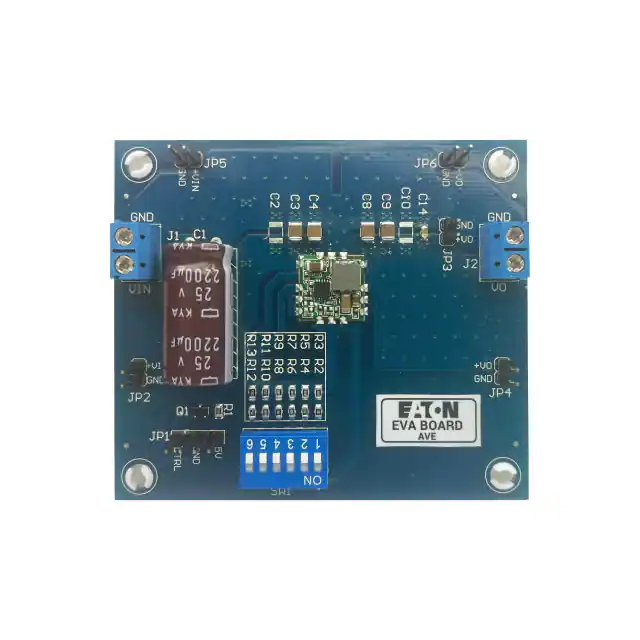

EPM12V2-P-EVKEVAL BOARD FOR EPM12V2 |
4,171 | 270.52 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 12A | 3V ~ 14.4V | - | 800kHz | Board(s) | EPM12V2 |
|

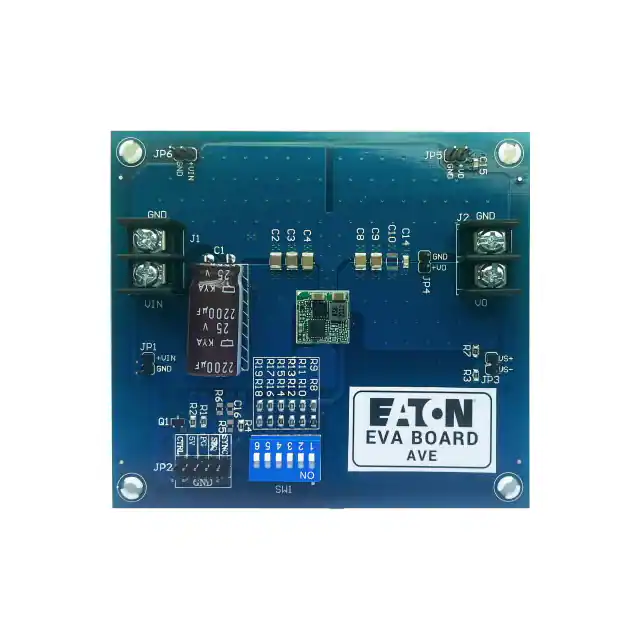

EPM12V1-EVKEVAL BOARD FOR EPM12V1 |
1,748 | 270.52 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.9V ~ 5.5V | 1A | 3V ~ 14V | - | 800kHz | Board(s) | EPM12V1 |
|
|
EPM12V2-N-EVKEVAL BOARD FOR EPM12V2 |
3,230 | 270.52 |
|
Datasheet |
- | Box | Active | DC/DC Converter | 1 Non-Isolated Output | - | 0.6V ~ 5.5V | 12A | 3V ~ 14.4V | - | 800kHz | Board(s) | EPM12V2 |
|
LMZ31707EVM-002EVAL BOARD FOR LMZ31707 |
4,468 | 58.80 |
|
Datasheet |
SIMPLE SWITCHER® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 0.9V, 1.2V, 1.8V, 2.5V, 3.3V or 5V | 7A | 2.95V ~ 17V | Buck | - | Board(s) | LMZ31707 |
|
MAX20008EVKIT#EVAL BOARD FOR MAX20008 |
1,471 | 208.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 8A | 3.5V ~ 36V | Buck | 400kHz | Board(s) | MAX20008 |
|
DC1143AEVAL BOARD FOR LT3825 |
1,905 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 6A | 36V ~ 72V | Buck | 250kHz | Board(s) | LT3825 |
|
DC894A-AEVAL BOARD FOR LT3825 |
2,838 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 12A | 36V ~ 72V | Forward Converter | 200kHz | Board(s) | LT3825 |
|
DC2922A-BEVAL BOARD FOR LTC78023.3 |
3,473 | 220.69 |
|
Datasheet |
- | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 20A, 15A | 5V ~ 36V | Buck | 350kHz | Board(s) | LTC7802-3.3 |
|
|
DC1803AEVAL BOARD FOR LT3512 |
1,500 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 500mA | 3.6V ~ 75V | Flyback | - | Board(s) | LT3512 |
|
DC2174A-BEVAL BOARD FOR LTC3882EUJ |
2,402 | 220.69 |
|
Datasheet |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 70A | 7V ~ 14V | Buck | 450kHz | Board(s) | LTC3882EUJ |
|

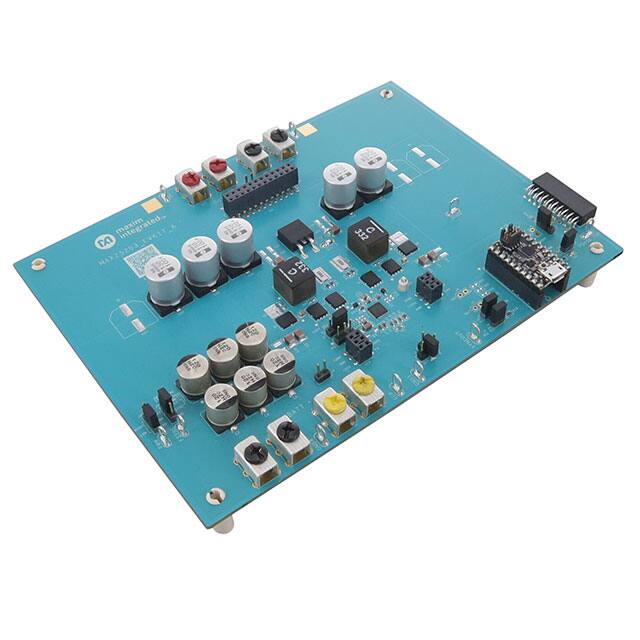

MAX25203EVKIT#EVAL BOARD FOR MAX25203 |
3,590 | 218.62 |
|
Datasheet |
- | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 40V | 5.12A | 4.5V ~ 42V | Boost | - | Board(s) | MAX25203 |
