Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PMC-08222025SWITCH REED SPDT 200MA 50V |
1,233 | 13.04 |
|
Datasheet |
- | Bulk | Active | Glass Body Reed | SPDT | 20 ~ 25AT | 5AT | 200mA (AC/DC) | 50 V | 50 V | 3W | 2.5 ms | 2.5 ms | Surface Mount | Axial | 2.008" (51.00mm) | 0.087" Dia x 0.378" L (2.20mm x 9.60mm) | - | -40°C ~ 130°C | 1.5 pF | 500mA (AC/DC) |
|
ORD 624/10-15 ATSWITCH REED SPST-NO 500MA 150V |
4,135 | 0.00 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 150 V | 200 V | - | 0.4 ms | 0.3 ms | Through Hole | Axial | 1.732" (44.00mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | 0.087" (2.20mm) | -40°C ~ 125°C | 0.5 pF | 1A (AC/DC) |
|
|
MK33-66-CREED SENSOR 1 FORM A SPST-NO SM |
3,977 | 0.00 |
|
Datasheet |
MK33 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 50 µs | Surface Mount | Axial | 0.609" (15.48mm) | 0.083" Dia x 0.472" L (2.10mm x 12.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
MK33-66-EREED SENSOR 1 FORM A SPST-NO SM |
2,479 | 0.00 |
|
Datasheet |
MK33 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 50 µs | Surface Mount | Axial | 0.609" (15.48mm) | 0.083" Dia x 0.472" L (2.10mm x 12.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
MK33-66-DREED SENSOR 1 FORM A SPST-NO SM |
3,464 | 0.00 |
|
Datasheet |
MK33 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 50 µs | Surface Mount | Axial | 0.609" (15.48mm) | 0.083" Dia x 0.472" L (2.10mm x 12.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
MK33-87-BREED SENSOR 1 FORM A SPST-NO SM |
4,883 | 0.00 |
|
Datasheet |
MK33 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 50 µs | Surface Mount | Axial | 0.609" (15.48mm) | 0.083" Dia x 0.472" L (2.10mm x 12.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
MK33-87-DREED SENSOR 1 FORM A SPST-NO SM |
1,026 | 0.00 |
|
Datasheet |
MK33 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 50 µs | Surface Mount | Axial | 0.609" (15.48mm) | 0.083" Dia x 0.472" L (2.10mm x 12.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
MK33-87-EREED SENSOR 1 FORM A SPST-NO SM |
1,482 | 0.00 |
|
Datasheet |
MK33 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 50 µs | Surface Mount | Axial | 0.609" (15.48mm) | 0.083" Dia x 0.472" L (2.10mm x 12.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
|
MK33-87-CREED SENSOR 1 FORM A SPST-NO SM |
3,331 | 0.00 |
|
Datasheet |
MK33 | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 50 µs | Surface Mount | Axial | 0.609" (15.48mm) | 0.083" Dia x 0.472" L (2.10mm x 12.00mm) | 0.083" (2.10mm) | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|
MDSR-4-17-23SWITCH REED SPST-NO 500MA |
1,902 | 1.44 |
|
Datasheet |
MDSR-4 | Box | Active | Glass Body Reed | SPST-NO | 17 ~ 23AT | - | 500mA (DC) | - | 200 V | 10W | 0.6 ms | 0.2 ms | Through Hole | Axial | 1.590" (40.39mm) | 0.090" Dia x 0.600" L (2.28mm x 15.24mm) | - | -40°C ~ 125°C | 0.2 pF | 1.2A (DC) |
|
RI80SMDM-1015-J1SWITCH REED SPST-NO 250MA 140V |
3,208 | 1.28 |
|
Datasheet |
RI-80 | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 10 ~ 15AT | - | 250mA (AC), 350mA (DC) | 140 V | 175 V | 5W | 0.35 ms | 0.02 ms | Surface Mount | J Lead | 0.295" (7.49mm) | 0.275" L x 0.091" W x 0.091" H (7.00mm x 2.31mm x 2.31mm) | 0.095" (2.41mm) | -40°C ~ 125°C | - | 500mA (DC) |
|
MK15-501-C-2SWITCH REED SPST-NO 500MA 200V |
1,050 | 0.00 |
|
Datasheet |
MK15-501 | Tape & Reel (TR) | Obsolete | Molded Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.5 ms | 0.1 ms | Surface Mount | Gull Wing | 0.768" (19.50mm) | 0.630" L x 0.110" W x 0.110" H (16.00mm x 2.80mm x 2.80mm) | 0.110" (2.80mm) | -40°C ~ 125°C | 0.3 pF | 1A (AC/DC) |
|
RI-03GP1015SWITCH REED SPST-NO 250MA 110V |
2,624 | 0.42 |
|
Datasheet |
RI-03 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 250mA (AC/DC) | 110 V | 160 V | 5W | 0.1 ms | 0.07 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.591" L (2.54mm x 15.00mm) | - | -55°C ~ 125°C | 0.3 pF | 1A (DC) |
|
|
RI-03GP2530SWITCH REED SPST-NO 500MA 140V |
4,970 | 0.68 |
|
Datasheet |
RI-03 | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.591" L (2.54mm x 15.00mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (DC) |
|
|
RI-07GP-1015SWITCH REED SPST-NO 250MA 110V |
3,979 | 0.43 |
|
Datasheet |
RI-07GP | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 4 ~ 14AT | 250mA (AC/DC) | 110 V | 160 V | 5W | 0.25 ms | 0.03 ms | Surface Mount | Axial | 1.811" (46.00mm) | 0.531" Dia x 0.071" L (13.49mm x 1.80mm) | - | -55°C ~ 125°C | 0.3 pF | 1.5A (DC) |
|
|
RI-07GP-2025SWITCH REED SPST-NO 500MA 140V |
3,987 | 0.71 |
|
Datasheet |
RI-07GP | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 6 ~ 24AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.45 ms | 0.03 ms | Surface Mount | Axial | 1.811" (46.00mm) | 0.531" Dia x 0.071" L (13.49mm x 1.80mm) | - | -55°C ~ 125°C | 0.25 pF | 1.75A (DC) |
|

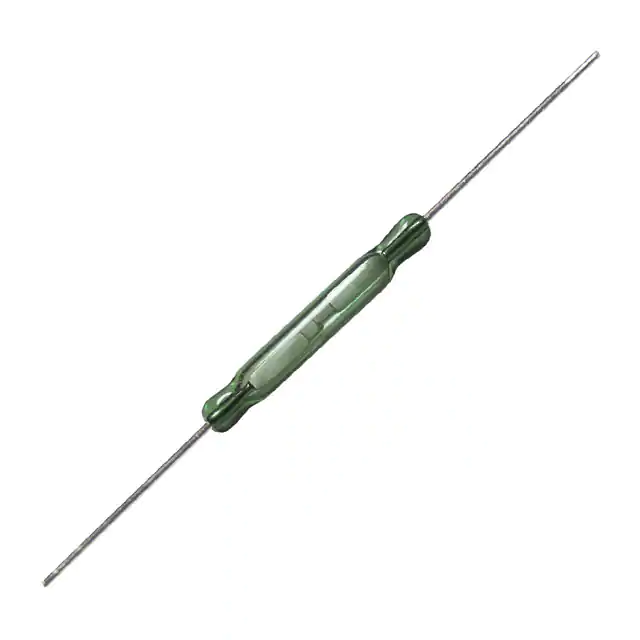

RI-27GP1015SWITCH REED SPST-NO 500MA 130V |
2,998 | 0.47 |
|
Datasheet |
RI-27 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 130 V | 180 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 125°C | 0.3 pF | 1.5A (DC) |
|
|
RI-27GP1520SWITCH REED SPST-NO 500MA 140V |
2,029 | 0.47 |
|
Datasheet |
RI-27 | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 125°C | 0.3 pF | 1.75A (DC) |
|
|
RI-27GP2025SWITCH REED SPST-NO 500MA 140V |
4,153 | 0.47 |
|
Datasheet |
RI-27 | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.531" L (1.80mm x 13.50mm) | - | -55°C ~ 125°C | 0.25 pF | 1.75A (DC) |
|
RI-23GP2530SWITCH REED SPST-NO 500MA 140V |
1,677 | 0.76 |
|
Datasheet |
RI-23GP | Bulk | Active | Glass Body Reed | SPST-NO | 25 ~ 30AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.5A (DC) |
