Magnetic, Reed Switches
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Operate Range | Release Range | Current - Switching | Voltage - Switching AC | Voltage - Switching DC | Power - Rated | Operate Time | Release Time | Mounting Type | Termination Style | Length - Overall | Size - Body | Height Above Board | Operating Temperature | Capacitance | Current - Carry |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

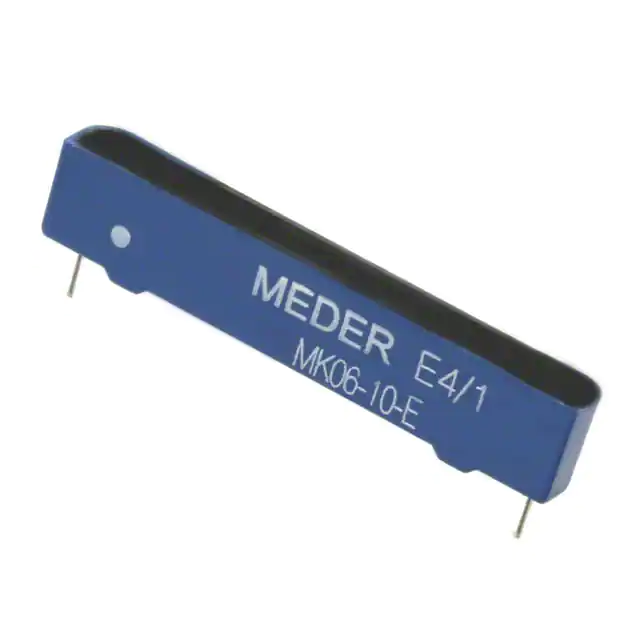

MK06-10-ESWITCH REED LATCHING 500MA 200V |
580 | 7.24 |
|
Datasheet |
MK06 | Bulk | Active | Molded Body Reed | SPST-NO, Latching | 4 ~ 12mm | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | PC Pin | 1.125" (28.58mm) | 1.125" L x 0.150" W x 0.225" H (28.58mm x 3.81mm x 5.72mm) | 0.225" (5.72mm) | -20°C ~ 85°C | 0.3 pF | 1A (AC/DC) |
|
MG-B2-20-SSWITCH MAGNETIC SPST-NC 250MA |
1,472 | 7.95 |
|
Datasheet |
S | Bulk | Active | Magnasphere® Magnetic | SPST-NC | 15.90mm | 23.27mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.658" (16.71mm) | 0.200" Dia x 0.205" L (5.08mm x 5.21mm) | 0.205" (5.20mm) | -40°C ~ 150°C | 1 pF | - |
|
MG-B2-8.0-LSWITCH MAGNETIC SPST-NC 250MA |
104 | 8.15 |
|
Datasheet |
L | Bulk | Active | Magnasphere® Magnetic | SPST-NC | 23.39mm | 25.12mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.723" (18.36mm) | 0.198" Dia x 0.244" L (5.03mm x 6.20mm) | 0.244" (6.20mm) | -40°C ~ 85°C | 1 pF | - |
|
|
MG-B2-10-LSWITCH MAGNETIC SPST-NC 250MA |
176 | 8.15 |
|
Datasheet |
L | Bulk | Active | Magnasphere® Magnetic | SPST-NC | 21.41mm | 22.91mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.723" (18.36mm) | 0.198" Dia x 0.244" L (5.03mm x 6.20mm) | 0.244" (6.20mm) | -40°C ~ 85°C | 1 pF | - |
|
MG-A2-3.0-NSWITCH MAGNETIC SPST-NO 250MA |
115 | 7.51 |
|
Datasheet |
N | Bulk | Active | Magnasphere® Magnetic | SPST-NO | 16.56mm | 22.78mm | 250mA (DC) | - | 30 V | - | - | - | Through Hole | PC Pin | 0.615" (15.62mm) | 0.244" Dia x 0.175" L (6.20mm x 4.45mm) | 0.175" (4.45mm) | -40°C ~ 150°C | 1 pF | - |
|

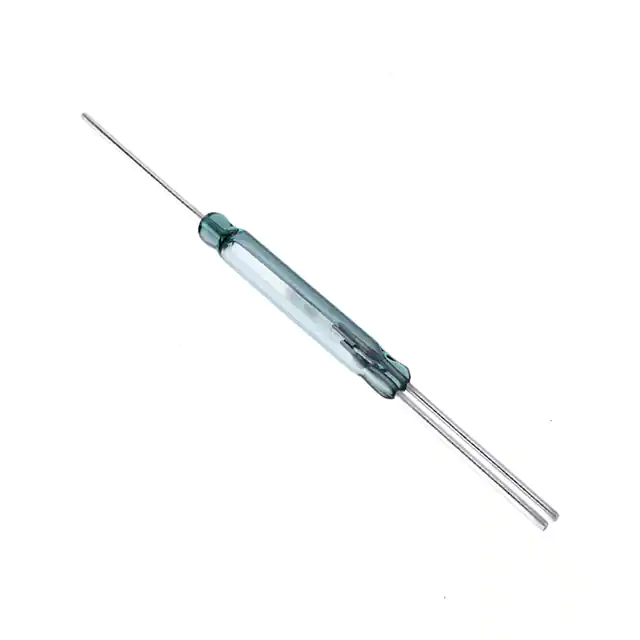

DRS-DTH-55-60SWITCH REED SPDT 350MA 350V |
745 | 19.32 |
|
Datasheet |
DRS-DTH | Bulk | Active | Glass Body Reed | SPDT | 55 ~ 60AT | - | 350mA (AC), 500mA (DC) | 350 V | 500 V | 30W | 4.5 ms | 7 ms | Through Hole | Axial | 3.375" (85.73mm) | 0.210" Dia x 1.500" L (5.33mm x 38.10mm) | - | -20°C ~ 125°C | 2 pF | 3A (DC) |
|
KSK-1A83-100150SWITCH REED SPST-NO 3A 7500V |
122 | 20.09 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 100 ~ 150AT | - | 3A (AC/DC) | 7500 V | 7500 V | 50W | 3.2 ms | 1.5 ms | Surface Mount | Axial, Flat | 3.213" (81.60mm) | 0.213" Dia x 2.102" L (5.40mm x 53.40mm) | - | -20°C ~ 130°C | 1 pF | 5A (AC/DC) |
|
PMC-1401T1015SWITCH REED SPST-NO 1A 140V |
4,238 | 1.05 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | 5 ~ 20AT | 1A (AC/DC) | 140 V | 200 V | 10W | 0.4 ms | 0.5 ms | Surface Mount | Axial | 0.768" (19.50mm) | 0.559" L x 0.098" W x 0.118" H (14.20mm x 2.50mm x 3.00mm) | - | -60°C ~ 155°C | 0.5 pF | 1.2A (AC/DC) |
|
RI-23GP-3035SWITCH REED SPST-NO 500MA 140V |
6,940 | 0.76 |
|
Datasheet |
RI-23GP | Bulk | Active | Glass Body Reed | SPST-NO | 30 ~ 35AT | 16 ~ 32AT | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.25 ms | 0.03 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.100" Dia x 0.570" L (2.54mm x 14.50mm) | - | -55°C ~ 125°C | 0.25 pF | 2.75A (DC) |
|

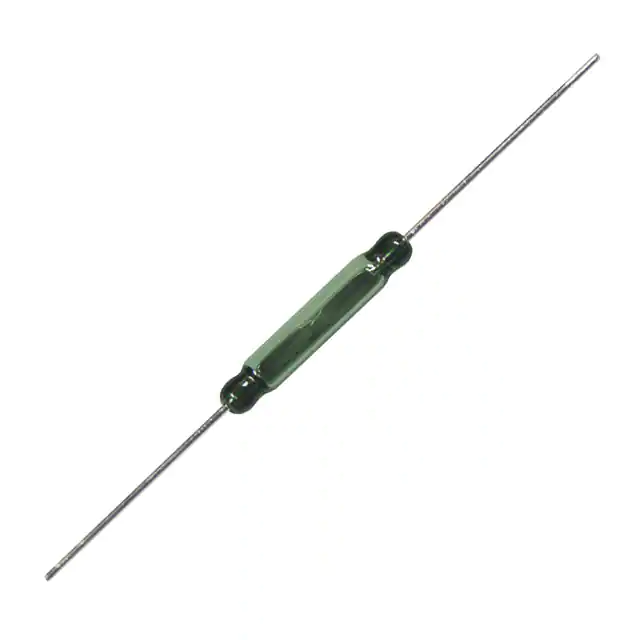

RI-60GP1015SWITCH REED SPST-NO 500MA 140V |
9,810 | 0.76 |
|
Datasheet |
RI-60 | Bulk | Active | Glass Body Reed | SPST-NO | 10 ~ 15AT | - | 500mA (AC/DC) | 140 V | 200 V | 10W | 0.15 ms | 0.02 ms | Through Hole | Axial | 1.811" (46.00mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -55°C ~ 125°C | 0.25 pF | 500mA (AC/DC) |
|
ORD 324/15-20 ATSWITCH REED SPST-NO 500MA |
8,019 | 0.68 |
|
Datasheet |
ORD | Bulk | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 500mA (DC) | - | 200 V | 10W | 0.4 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (DC) |
|
PMC-1401S2025SWITCH REED SPST-NO 1A 140V |
3,870 | 0.84 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 1A (AC/DC) | 140 V | 200 V | 10W | 1 ms | 0.4 ms | Surface Mount | Axial | 0.724" (18.40mm) | 0.091" Dia x 0.559" L (2.30mm x 14.20mm) | - | -60°C ~ 155°C | - | 1.2A (AC/DC) |
|
PMC-1001THL2025SWITCH REED SPST-NO 700MA 130V |
8,507 | 1.56 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.768" (19.50mm) | 0.610" L x 0.114" W x 0.110" H (15.50mm x 2.90mm x 2.80mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|

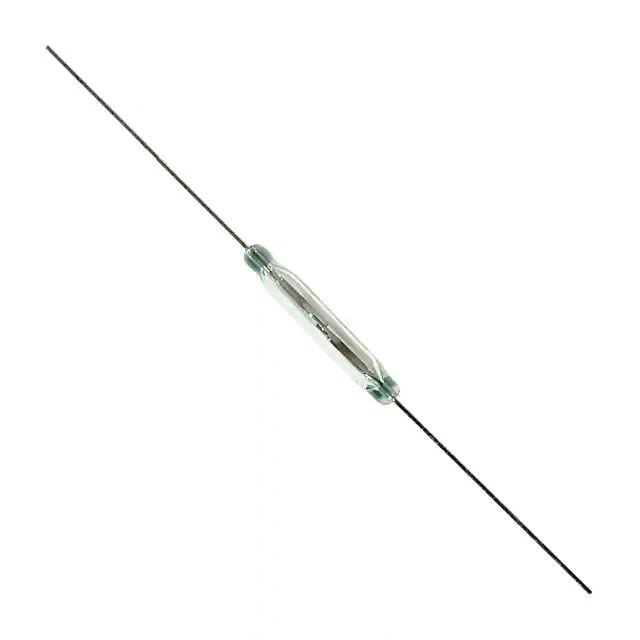

KSK-1A66/3-2030SWITCH REED SPST-NO 500MA 200V |
1,315 | 0.82 |
|
Datasheet |
KSK | Bulk | Active | Glass Body Reed | SPST-NO | 20 ~ 30AT | - | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.7 ms | 0.05 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.087" Dia x 0.551" L (2.20mm x 14.00mm) | - | -40°C ~ 130°C | 0.3 pF | 1A (AC/DC) |
|

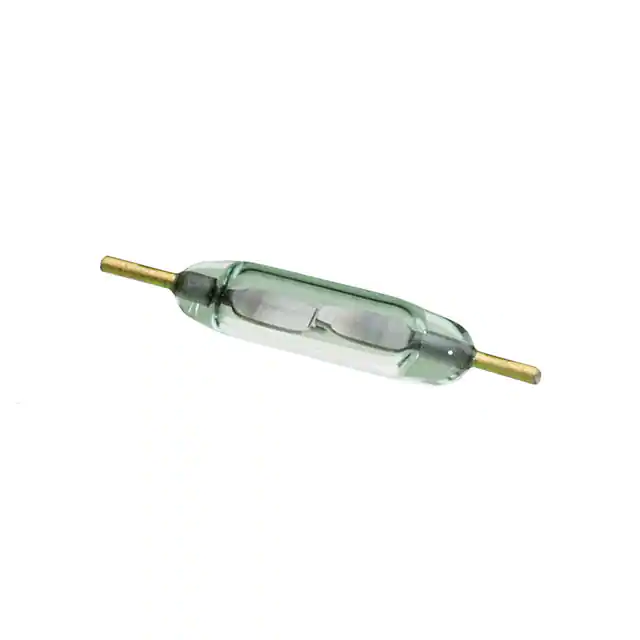

PMC-0701S1520SWITCH REED SPST-NO 500MA 120V |
2,543 | 1.69 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | 4AT | 500mA (AC/DC) | 120 V | 150 V | 10W | 0.3 ms | 0.1 ms | Surface Mount | Axial | 0.394" (10.00mm) | 0.071" Dia x 0.276" L (1.80mm x 7.00mm) | - | -40°C ~ 125°C | - | 700mA (AC/DC) |
|
SW GP501/15-20 ATSWITCH REED SPST-NO 500MA 200V |
3,164 | 0.74 |
|
Datasheet |
GP501 | Bulk | Active | Glass Body Reed | SPST-NO | 7 ~ 30AT | 4 ~ 9AT | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.500" L (2.30mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (AC/DC) |
|

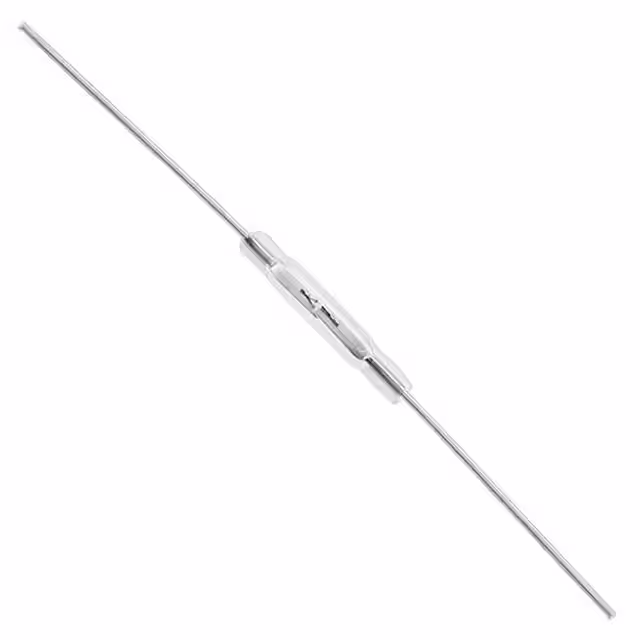

SW GP501/10-15 ATSWITCH REED SPST-NO 500MA 200V |
2,572 | 0.74 |
|
Datasheet |
GP501 | Bulk | Active | Glass Body Reed | SPST-NO | 7 ~ 30AT | 4 ~ 9AT | 500mA (AC/DC) | 200 V | 200 V | 10W | 0.5 ms | 0.1 ms | Through Hole | Axial | 2.126" (54.00mm) | 0.091" Dia x 0.500" L (2.30mm x 12.70mm) | - | -40°C ~ 125°C | 0.3 pF | 1A (AC/DC) |
|

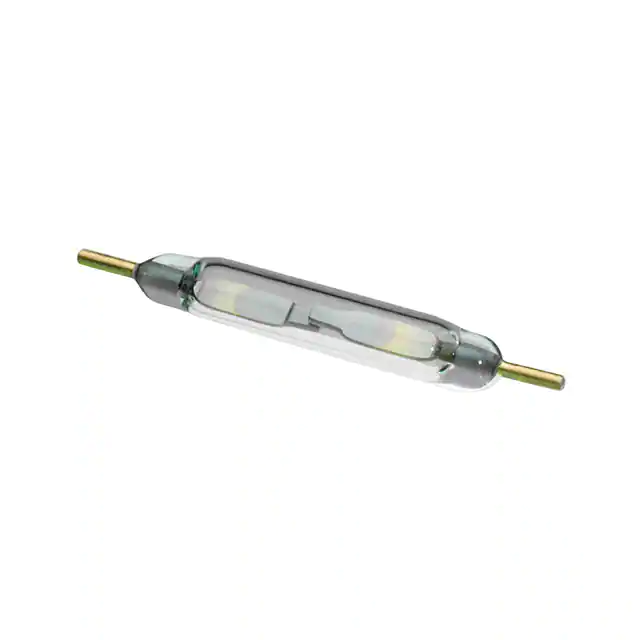

PMC-1001S2025SWITCH REED SPST-NO 700MA 130V |
2,378 | 0.98 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Glass Body Reed | SPST-NO | 20 ~ 25AT | 4AT | 700mA (AC/DC) | 130 V | 180 V | 10W | 0.5 ms | 0.3 ms | Surface Mount | Axial | 0.512" (13.00mm) | 0.071" Dia x 0.394" L (1.80mm x 10.00mm) | - | -40°C ~ 125°C | - | 1A (AC/DC) |
|
|
RI-60SMDM-1520-G1SWITCH REED SPST-NO 500MA 140V |
1,362 | 1.06 |
|
Datasheet |
RI-60SMDM | Tape & Reel (TR) | Active | Molded Body Reed | SPST-NO | 15 ~ 20AT | 4 ~ 18AT | 500mA (AC/DC) | 140 V | 200 V | 10W | - | - | Surface Mount | Gull Wing | 0.639" (16.23mm) | 0.452" L x 0.090" W x 0.090" H (11.48mm x 2.29mm x 2.29mm) | 0.107" (2.72mm) | -40°C ~ 125°C | 0.25 pF | 500mA (DC) |
|
FLEX-14-15-20SWITCH REED SPST-NO 350MA 140V |
1,383 | 1.22 |
|
Datasheet |
FLEX-14 | Box | Active | Glass Body Reed | SPST-NO | 15 ~ 20AT | - | 350mA (AC), 500mA (DC) | 140 V | 200 V | 10W | 0.55 ms | 0.2 ms | Through Hole | Axial | 1.744" (44.30mm) | 0.090" Dia x 0.551" L (2.28mm x 14.00mm) | - | -40°C ~ 125°C | 0.2 pF | 1A (DC) |
