PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

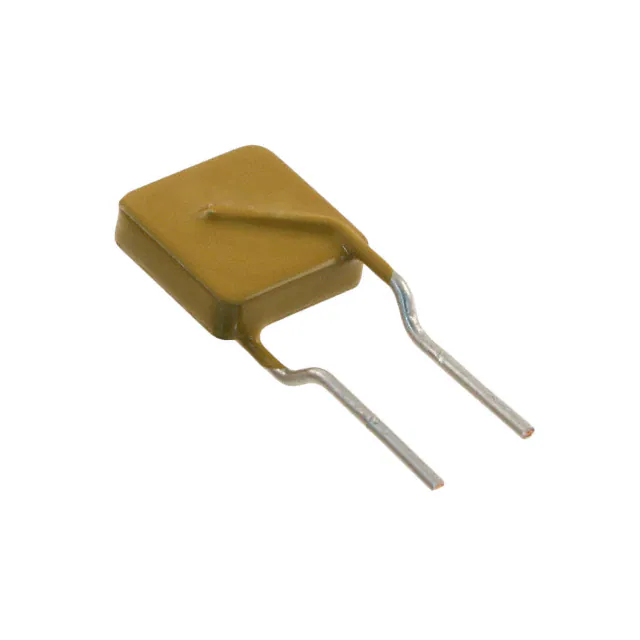

TRF600-150-RB-2PTC RESET FUSE 250V 150MA RADIAL |
6,918 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF600 | Tape & Reel (TR) | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 40 A | 3 s | 9 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
PTGL09ARR33M1B51B0PTC RESET FUSE 16V 875MA RADIAL |
8,346 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 875 mA | 1.625 A | 7 A | - | - | - | 330 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
PFME.190.2PTC RESET FUSE 16V 1.9A 4520 |
2,977 | 0.00 |
|
Datasheet |
4520 (11350 Metric) | PMFE | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.9 A | 3.8 A | 100 A | 2 s | 17 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.446" L x 0.200" W (11.33mm x 5.08mm) | - | 0.025" (0.63mm) | - |
|

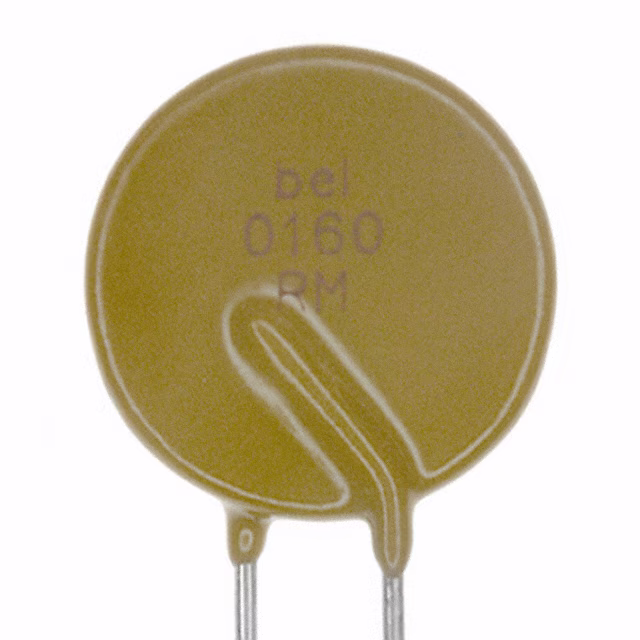

0ZRM0160FF1APTC RESET FUSE 120V 1.6A RADIAL |
3,845 | 0.47 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 1.6 A | 3.2 A | 12 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" Dia x 0.161" T (17.50mm x 4.10mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
|
PTGL09AS2R2K3B51A0PTC RESET FUSE 51V 522MA RADIAL |
8,294 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 51V | 522 mA | 694 mA | 4 A | - | - | - | 2.2 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.366" Dia x 0.138" T (9.30mm x 3.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|
|
MF-LR730PTC RESET FUSE 10V 7.3A STRAP |
3,936 | 0.50 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 10V | 7.3 A | 14.1 A | 100 A | 5 s | 6 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.163" L x 0.569" W (29.55mm x 14.45mm) | - | 0.039" (1.00mm) | - |
|
PTGL10ARR27M1B51A0PTC RESET FUSE 16V 1.025A RADIAL |
8,797 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 1.025 A | 1.9 A | 8 A | - | - | - | 270 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.398" Dia x 0.138" T (10.10mm x 3.50mm) | 0.591" (15.00mm) | - | 0.197" (5.00mm) |
|
PTR030V0400-TR1PTC RESET FUSE 30V 4A RADIAL |
6,181 | 0.41 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.969" (24.60mm) | - | 0.197" (5.00mm) |
|
|
MF-RG900-2-14PTC RESETTABLE 9A 16V RADIAL LEA |
2,511 | 0.50 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Reel (TR) | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RG900-AP-14PTC RESETTABLE 9A 16V RADIAL LEA |
8,015 | 0.50 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RG | Tape & Box (TB) | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.854" (21.70mm) | - | 0.201" (5.10mm) |
|
B59970C0120A051PTC RESET FUSE 80V 150MA RADIAL |
6,543 | 0.54 |
|
Datasheet |
Radial, Disc | B59970 | Tape & Reel (TR) | Active | Ceramic | 80V | 150 mA | 300 mA | 3 A | - | - | - | 9.4 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
PTGL07AR220M3P51A0PTC RESET FUSE 56V 115MA RADIAL |
6,670 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 115 mA | 205 mA | 1 A | - | - | - | 22 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
PFMF.250.16.2PTC RESET FUSE 16V 2.5A 1812 |
3,721 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2.5 A | 5 A | 100 A | 5 s | 15 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.063" (1.60mm) | - |
.jpg)
|
NANOSMD200LR-2PTC RESET FUSE 6V 2A 1206 |
4,597 | 0.00 |
|
Datasheet |
1206 (3216 Metric) | PolySwitch®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2 A | 6 A | 50 A | 3 s | 6 mOhms | - | - | - | - | - | - | Surface Mount | 0.127" L x 0.063" W (3.22mm x 1.60mm) | - | 0.039" (1.00mm) | - |
|

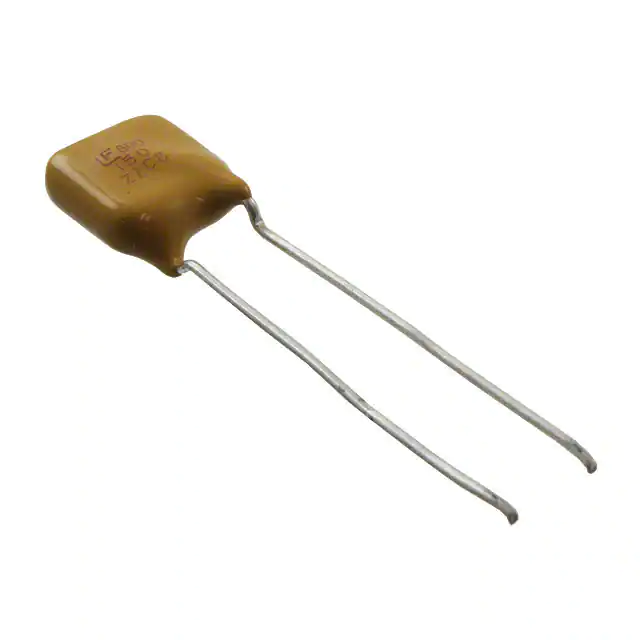

600R150-RAZRPTC RESET FUSE 60V 150MA RADIAL |
9,822 | 1.12 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Cut Tape (CT) | Obsolete | Polymeric | 60V (600V Int) | 150 mA | 300 mA | 3 A | 4 s | 7 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
|
|
PTR030V0500-TR1PTC RESET FUSE 30V 5A RADIAL |
9,321 | 0.42 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.047" (26.60mm) | - | 0.394" (10.00mm) |
|
|
TRF250-145-B-0.5PTC RESET FUSE 60V 145MA RADIAL |
7,137 | 0.51 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Bag | Active | Polymeric | 60V (250V Int) | 145 mA | 290 mA | 3 A | 5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
PTGL07BD6R8N2B51A0PTC RESET FUSE 24V 139MA RADIAL |
5,725 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 139 mA | 296 mA | 2 A | - | - | - | 6.8 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
PTGL05AR151H8P52B0PTC RESET FUSE 265V 35MA RADIAL |
5,212 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 35 mA | 65 mA | 200 mA | - | - | - | 150 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.236" Dia x 0.236" T (6.00mm x 6.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL12AR0R2M1B51A0PTC RESET FUSE 16V 1.3A RADIAL |
6,886 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 1.3 A | 2.41 A | 9 A | - | - | - | 200 mOhms | -10°C ~ 60°C | - | - | - | Through Hole | 0.445" Dia x 0.138" T (11.30mm x 3.50mm) | 0.630" (16.00mm) | - | 0.197" (5.00mm) |
