PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTGLASARR27M1B51B0PTC RESET FUSE 16V 1.025A RADIAL |
8,796 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 16V | 1.025 A | 1.9 A | 8 A | - | - | - | 270 mOhms | -30°C ~ 85°C | - | - | - | Through Hole | 0.398" Dia x 0.138" T (10.10mm x 3.50mm) | 0.591" (15.00mm) | - | 0.197" (5.00mm) |
|
MINISMDC050-2PTC RESET FUSE 24V 500MA 1812 |
5,320 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | Polymeric | 24V | 500 mA | - | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
|
MINISMDC075-2PTC RESET FUSE 13.2V 750MA 1812 |
6,215 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
|
MINISMDC014-2PTC RESET FUSE 60V 140MA 1812 |
5,116 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 140 mA | - | 10 A | 8 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.89mm) | - |
|
MINISMDC150-2PTC RESET FUSE 6V 1.5A 1812 |
4,935 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.019" (0.48mm) | - |
|
NANOSMDM100-2POLYSWITCH 1.00A RESET FUSE SMD |
7,328 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 1 A | 1.8 A | 40 A | 300 ms | 60 mOhms | 210 mOhms | - | - | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.047" (1.20mm) | - |
|
|
NANOSMDC150-2PTC RESET FUSE 6V 1.5A 1206 |
3,836 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 100 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.64mm) | - | 0.055" (1.40mm) | - |
|
600R150URPTC RESET FUSE 60V 150MA RADIAL |
3,194 | 0.00 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 600R | Tape & Box (TB) | Obsolete | Polymeric | 60V (600V Int) | 150 mA | 300 mA | 3 A | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.354" L x 0.181" W (9.00mm x 4.60mm) | 0.492" (12.50mm) | - | 0.201" (5.10mm) |
|

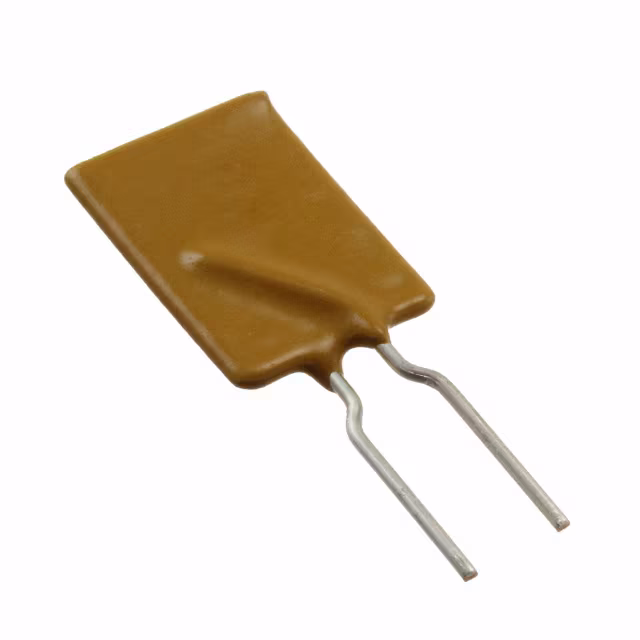

0ZRN0650FF1APTC RESET FUSE 16V 6.5A RADIAL |
2,463 | 0.50 |
|
Datasheet |
Radial, Disc | 0ZRN | Bulk | Active | Polymeric | 16V | 6.5 A | 12 A | 100 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.874" (22.20mm) | - | 0.201" (5.10mm) |
|
MF-R015/600-2-99PTC RESET FUSE 250V 150MA RADIAL |
8,736 | 0.00 |
|
Datasheet |
Radial, Box | Multifuse®, MF-R/600 | Tape & Reel (TR) | Obsolete | Polymeric | 250V (600V Int) | 150 mA | 300 mA | 3 A | 5 s | 6 Ohms | 22 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.531" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
|
LR4-560FPTC RESET FUSE 20V 5.6A STRAP |
2,288 | 0.00 |
|
- |
Strap | PolySwitch®, LR4 | Bulk | Obsolete | Polymeric | 20V | 5.6 A | - | 100 A | - | - | - | - | - | - | - | - | User Defined | 0.984" L x 0.559" W (25.00mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
|
LR4-600-C100FPTC RESET FUSE 20V 6A STRAP |
7,234 | 0.00 |
|
- |
Strap | PolySwitch®, LR4 | Bulk | Discontinued at Digi-Key | Polymeric | 20V | 6 A | 11.7 A | 100 A | 5 s | - | - | - | - | - | - | - | User Defined | - | - | - | - |
|
1812L260ZRPTC RESET FUSE 8V 2.6A 1812 |
3,306 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 2.6 A | 5.2 A | 100 A | 2.5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.34mm) | - |
|
|
1812L200DRPTC RESET FUSE 8V 2A 1812 |
8,830 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 2 A | 3.5 A | 100 A | 2 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.60mm) | - |
|
0ZCD0030FF2CPTC RESET FUSE 60V 300MA 2920 |
8,233 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 300 mA | 600 mA | 10 A | 3 s | 1 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.061" (1.55mm) | - |
|
MF-RHT800-APPTC RESET FUSE 16V 8A RADIAL |
4,673 | 0.53 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 8 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.630" L x 0.118" W (16.00mm x 3.00mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT900-APPTC RESET FUSE 16V 9A RADIAL |
4,669 | 0.53 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT800-0-14PTC 8.0A 16V RADIAL LEADED HI-TE |
7,325 | 0.53 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 8 A | 15 A | 100 A | 8 s | 8 mOhms | 20 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.886" (22.50mm) | - | 0.201" (5.10mm) |
|
|
MF-RHT900-0-14PTC 9.0A 16V RADIAL LEADED HI-TE |
4,617 | 0.53 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 9 A | 16.5 A | 100 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.012" (25.70mm) | - | 0.201" (5.10mm) |
|
PTGL10AR3R9M3B51B0PTC RESET FUSE 56V 390MA RADIAL |
7,113 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 390 mA | 680 mA | 2 A | - | - | - | 3.9 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
