PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PRG21BC4R7MS5RAPTC RESET FUSE |
3,716 | 0.65 |
|
- |
- | * | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MF-MSMD020-2PTC RESET FUSE 30V 200MA 1812 |
3,239 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 200 mA | 400 mA | 80 A | 60 ms | 400 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.027" W (4.55mm x 0.68mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD050-2PTC RESET FUSE 15V 500MA 1812 |
3,048 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.020" W (4.55mm x 0.50mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD075-2PTC RESET FUSE 13.2V 750MA 1812 |
3,525 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.020" W (4.55mm x 0.50mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD110-2PTC RESET FUSE 6V 1.1A 1812 |
6,481 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.020" W (4.55mm x 0.50mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD014-2PTC RESET FUSE 60V 140MA 1812 |
3,831 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 140 mA | 340 mA | 40 A | 150 ms | 400 mOhms | 6.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.027" W (4.55mm x 0.68mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD125-2PTC RESET FUSE 6V 1.25A 1812 |
5,713 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.25 A | 2.5 A | 100 A | 400 ms | 35 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.015" W (4.55mm x 0.39mm) | - | 0.134" (3.41mm) | - |
|
|
MF-MSMD150-2PTC RESET FUSE 6V 1.5A 1812 |
7,071 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | Multifuse®, MF-MSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.015" W (4.55mm x 0.39mm) | - | 0.134" (3.41mm) | - |
|
1812L125DRPTC RESET FUSE 15V 1.25A 1812 |
8,217 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Digi-Reel® | Obsolete | Polymeric | 15V | 1.25 A | 2.5 A | 100 A | 0.4 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|

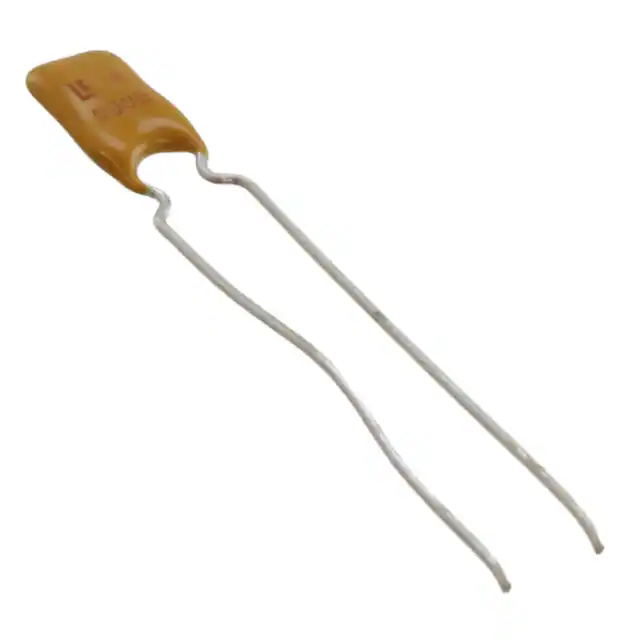

16R090BPRPTC RESET FUSE 16V 900MA RADIAL |
9,872 | 0.54 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Cut Tape (CT) | Obsolete | Polymeric | 16V | 900 mA | 1.8 A | 40 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.480" (12.20mm) | - | 0.201" (5.10mm) |
|

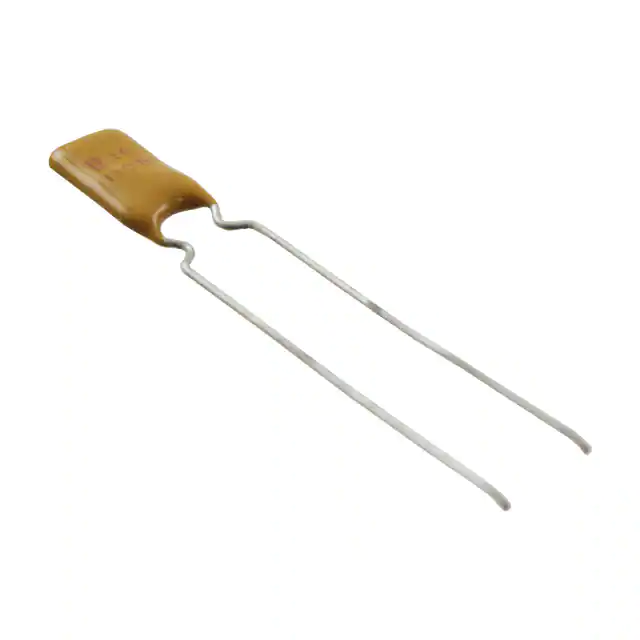

16R110BPRPTC RESET FUSE 16V 1.1A RADIAL |
6,712 | 0.54 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Cut Tape (CT) | Obsolete | Polymeric | 16V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|

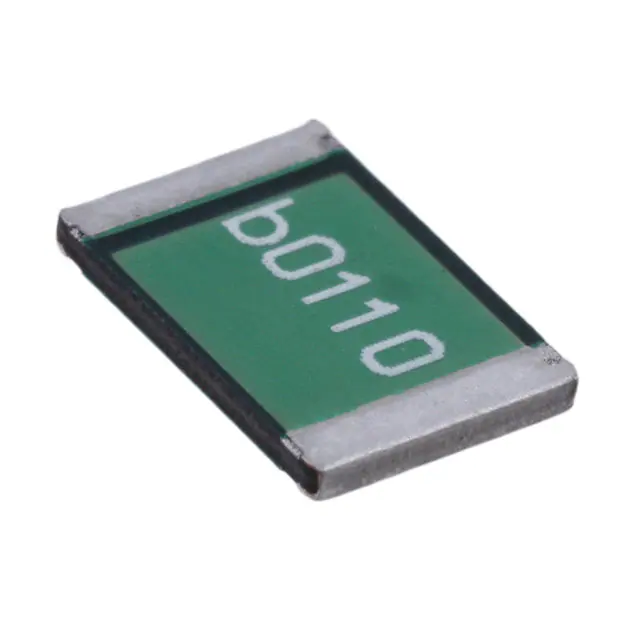

0ZCD0200FF2CPTC RESET FUSE 16V 2A 2920 |
9,942 | 0.00 |
|
Datasheet |
2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2 A | 4 A | 40 A | 4.5 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
TRF600-160-RA-B-0.5-LPTC RESET FUSE 250V 160MA RADIAL |
3,575 | 0.00 |
|
Datasheet |
Radial, Disc | PolySwitch® | Bag | Obsolete | Polymeric | 250V | 160 mA | 320 mA | 3 A | 9.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.630" L x 0.236" W (16.00mm x 6.00mm) | 0.496" (12.60mm) | - | 0.200" (5.08mm) |
|
PTGL10AR3R9M3P51B0PTC RESET FUSE 56V 260MA RADIAL |
2,050 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 56V | 260 mA | 470 mA | 2 A | - | - | - | 3.9 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.413" Dia x 0.157" T (10.50mm x 4.00mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
PTGL07AR450H8B52A0PTC RESET FUSE 265V 105MA RADIAL |
5,526 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 105 mA | 200 mA | 1 A | - | - | - | 45 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
|
2016L500DR-APTC 6V POLYFUSE SURF MOUNT 2016 |
3,478 | 0.00 |
|
- |
2016 (5041 Metric), Concave | POLY-FUSE®, 2016L | Tape & Reel (TR) | Active | Polymeric | 6V | 5 A | 10 A | 100 A | 2 s | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.200" L x 0.160" W (5.08mm x 4.07mm) | - | 0.063" (1.60mm) | - |
|

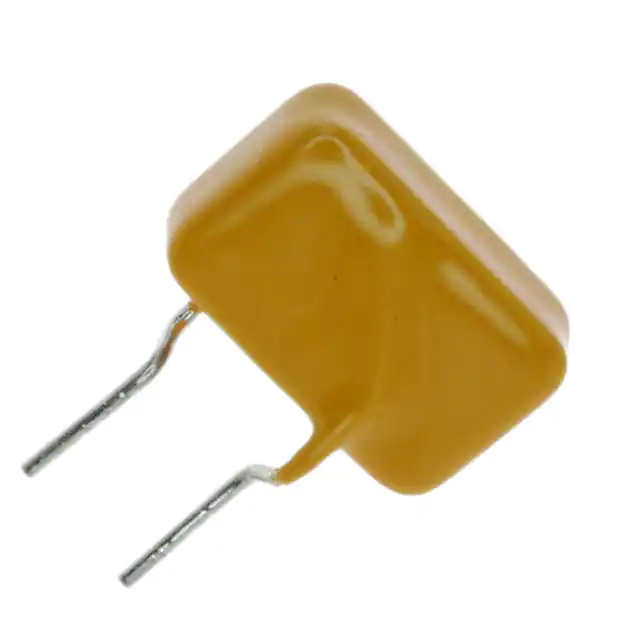

TR600-150-RA-B-0.5PTC RESET FUSE RADIAL DISC |
6,815 | 0.00 |
|
- |
Radial, Disc | PolySwitch®, TR600 | Bulk | Obsolete | Polymeric | - | - | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.532" L x 0.236" W (13.50mm x 6.00mm) | 0.496" (12.60mm) | - | 0.197" (5.00mm) |
|
PTCCL05H760HTEPTC RESET FUSE 265V 76MA RADIAL |
5,641 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 76 mA | 115 mA | 550 mA | - | - | - | 85 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.217" T (5.00mm x 5.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
PTGL07BD6R8N2B51B0PTC RESET FUSE 24V 139MA RADIAL |
5,761 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 24V | 139 mA | 296 mA | 2 A | - | - | - | 6.8 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.291" Dia x 0.157" T (7.40mm x 4.00mm) | 0.528" (13.40mm) | - | 0.197" (5.00mm) |
|
MINIASMDC110F/16-2PTC RESET FUSE 16V 1.1A 1812 |
1,186 | 0.61 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniASMD | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.181" L x 0.128" W (4.60mm x 3.24mm) | - | 0.019" (0.48mm) | - |
