PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTCCL05H110HTEPTC RESET FUSE 265V 11MA RADIAL |
2,429 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 11 mA | 17 mA | 80 mA | - | - | - | 3 kOhms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.118" T (5.00mm x 3.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|

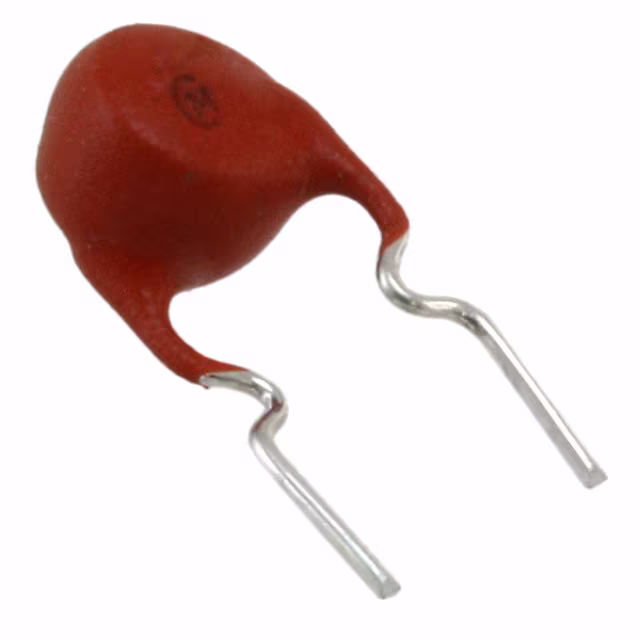

PTGL05AR181M9N51B0PTC RESET FUSE 265V 37MA RADIAL |
9,543 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 37 mA | 60 mA | 300 mA | - | - | - | 180 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.256" T (6.50mm x 6.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
RXEF040-APPTC RESET FUSE 72V 400MA RADIAL |
6,427 | 0.51 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.299" Dia x 0.118" T (7.60mm x 3.00mm) | 0.532" (13.50mm) | - | 0.199" (5.05mm) |
|
1206L400SLTH-VYRPTC RESET FUSE 6V 4A 1206 |
9,506 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4 A | 8 A | 50 A | 2 s | 1 mOhms | 16 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
|
1206L450SL-VYRPTC RESET FUSE 6V 4.5A 1206 |
2,250 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|
1206L500SL-VYRPTC RESET FUSE 6V 5A 1206 |
4,733 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
1210L450SLTH-VYRPTC RESET FUSE 6V 4.5A 1210 |
6,915 | 0.00 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.031" (0.80mm) | - |
|
PTGL10BB120N0P52A0PTC RESET FUSE 250V 130MA RADIAL |
2,377 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 250V | 130 mA | 250 mA | 600 mA | - | - | - | 12 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.433" Dia x 0.236" T (11.00mm x 6.00mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|
PTGL7SAS150K6B51A0PTC RESET FUSE 140V 187MA RADIAL |
5,141 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 187 mA | 249 mA | 1.5 A | - | - | - | 15 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.287" Dia x 0.177" T (7.30mm x 4.50mm) | 0.484" (12.30mm) | - | 0.197" (5.00mm) |
|
|
PTGL9SAS2R2K3B51A0PTC RESET FUSE 51V 522MA RADIAL |
8,575 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 51V | 522 mA | 694 mA | 4 A | - | - | - | 2.2 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.366" Dia x 0.138" T (9.30mm x 3.50mm) | 0.563" (14.30mm) | - | 0.197" (5.00mm) |
|
0ZRN0600FF2BPTC RESET FUSE 16V 6A RADIAL |
9,450 | 0.56 |
|
Datasheet |
Radial, Disc | 0ZRN | Tape & Reel (TR) | Active | Polymeric | 16V | 6 A | 10.8 A | 100 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.827" (21.00mm) | - | 0.201" (5.10mm) |
|
PTR016V0900-TR1PTC RESET FUSE 16V 9A RADIAL |
3,525 | 0.48 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 9 A | 15.3 A | 100 A | 5.5 s | 5 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.122" W (14.00mm x 3.10mm) | 0.945" (24.00mm) | - | 0.197" (5.00mm) |
|
1812L050PRTPTC RESET FUSE 15V 500MA 1812 |
3,278 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|
|
1812L075PRTPTC RESET FUSE 13.2V 750MA 1812 |
3,814 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 100 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.030" (0.75mm) | - |
|
|
1812L110PRTPTC RESET FUSE 8V 1.1A 1812 |
7,236 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.71mm) | - |
|
|
1812L150PRTPTC RESET FUSE 8V 1.25A 1812 |
6,738 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.25 A | 3 A | 100 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.71mm) | - |
|
RF4510-000LR4-550LF |
9,983 | 0.00 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PTGL07AR6R8M2B51B0THERMISTOR PTC 6.8 OHM 120C |
3,702 | 0.00 |
|
Datasheet |
Radial, Disc | Posistor® | Bulk | Obsolete | Ceramic | - | - | - | - | - | - | - | 6.8 Ohms | - | - | - | - | Through Hole | - | - | - | - |
|
|
PTR016V1300-TRPTC RESET FUSE 16V 13A RADIAL |
2,560 | 0.48 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 13 A | 22.1 A | 100 A | 8.5 s | 2 mOhms | 8 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.850" L x 0.122" W (21.60mm x 3.10mm) | 1.142" (29.00mm) | - | 0.394" (10.00mm) |
|
|
LR4-700XHFPTC RESET FUSE 20V 7A STRAP |
7,695 | 0.00 |
|
- |
Strap | PolySwitch®, LR4 | Bulk | Obsolete | Polymeric | 20V | 7 A | - | 100 A | 5 s | - | - | - | - | - | - | - | User Defined | - | - | - | - |
