PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B59975C0120A054PTC RESET FUSE 30V 450MA RADIAL |
4,794 | 0.00 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 30V | 450 mA | 900 mA | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
PTGL12AR1R2H2B51B0PTC RESET FUSE 30V 645MA RADIAL |
6,886 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 30V | 645 mA | 1.225 A | 4.3 A | - | - | - | 1.2 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.472" Dia x 0.157" W (12.00mm x 4.00mm) | 0.709" (18.00mm) | - | 0.197" (5.00mm) |
|
PTGL07AR450H8B52B0PTC RESET FUSE 265V 105MA RADIAL |
2,050 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 105 mA | 200 mA | 1 A | - | - | - | 45 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) | 0.591" (15.00mm) | - | 0.197" (5.00mm) |
|
|
PTGL07AR700H8B52B0PTC RESET FUSE 265V 85MA RADIAL |
3,591 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 85 mA | 160 mA | 400 mA | - | - | - | 70 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) | 0.551" (14.00mm) | - | 0.197" (5.00mm) |
|
MF-RHT750-APPTC RESET FUSE 16V 7.5A RADIAL |
9,804 | 0.59 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Tape & Box (TB) | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.114" (2.90mm) |
|
MF-RHT750-0-14PTC 7.5A 16V RADIAL LEADED HI-TE |
4,250 | 0.59 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.862" (21.90mm) | - | 0.201" (5.10mm) |
|
|
TD0710-B33-2JBPTC RESET FUSE |
5,836 | 0.59 |
|
- |
- | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PTCTL3MR250HTEPTC RESET FUSE 250V 70MA RADIAL |
6,431 | 0.66 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 250V | 70 mA | 175 mA | 3.2 A | 1.3 s | - | - | 25 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.276" Dia x 0.157" T (7.00mm x 4.00mm) | 0.386" (9.80mm) | - | 0.197" (5.00mm) |
|
|
PTGL12AS4R7K6B51A0PTC RESET FUSE 140V 393MA RADIAL |
4,650 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 393 mA | 523 mA | 3.5 A | - | - | - | 4.7 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.177" T (11.50mm x 4.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|

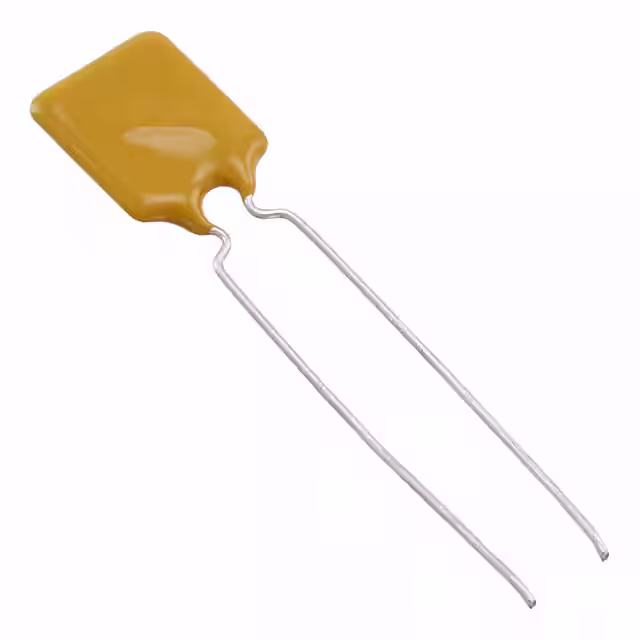

16R185BPRPTC RESET FUSE 16V 1.85A RADIAL |
9,954 | 0.59 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, USBR | Cut Tape (CT) | Obsolete | Polymeric | 16V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|

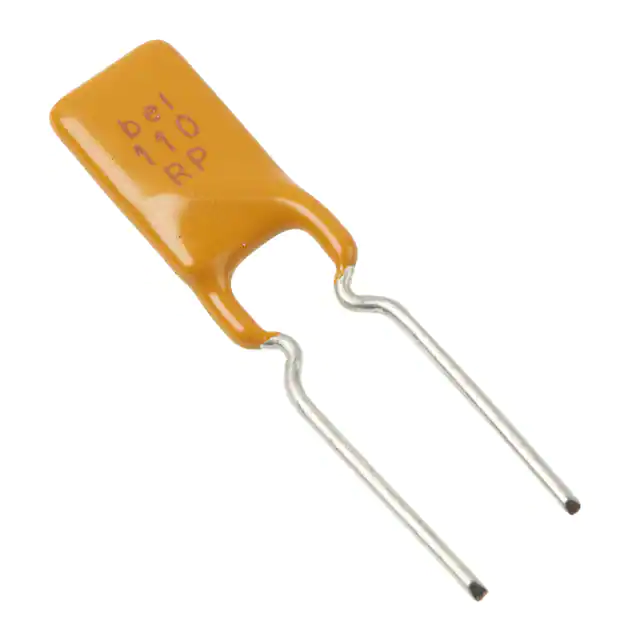

0ZRP0110FF2BPTC RESET FUSE 60V 1.1A RADIAL |
9,822 | 0.55 |
|
Datasheet |
Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 1.1 A | 2.2 A | 40 A | 3 s | 170 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" L x 0.161" W (7.60mm x 4.10mm) | 0.591" (15.00mm) | - | 0.201" (5.10mm) |
|

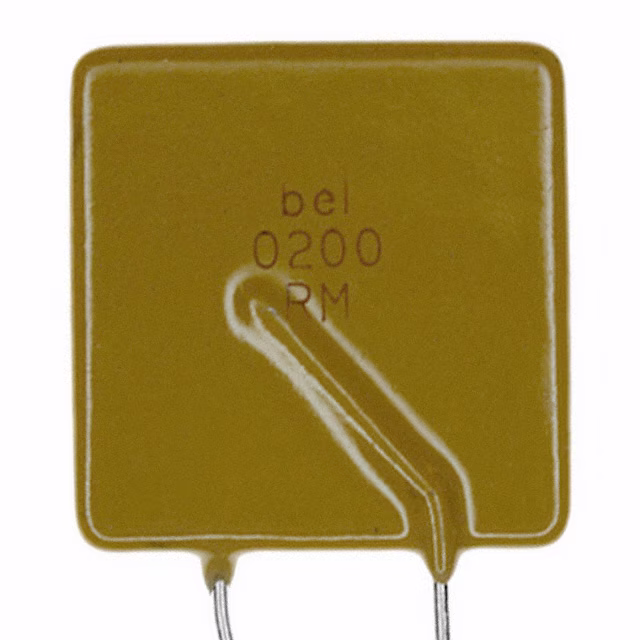

0ZRM0200FF1APTC RESET FUSE 120V 2A RADIAL |
9,250 | 0.57 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 2 A | 4.2 A | 20 A | 36 s | 80 mOhms | 210 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.161" W (23.50mm x 4.10mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|
PTR016V1000-TR1PTC RESET FUSE 16V 10A RADIAL |
6,783 | 0.50 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 10 A | 17 A | 100 A | 6 s | 4 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.122" W (16.50mm x 3.10mm) | 1.102" (28.00mm) | - | 0.197" (5.00mm) |
|
|
CMF-SDP50A-15-2CERAMIC PTC |
4,166 | 0.59 |
|
Datasheet |
4-SMD Cube | CMF-SDP | Tape & Reel (TR) | Active | Ceramic | 230V | 90 mA | 190 mA | 2.5 A | 200 ms | 1 Ohms | 50 Ohms | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.344" L x 0.283" W (8.75mm x 7.20mm) | - | 0.402" (10.20mm) | - |
|
PTGL07AR150M5B51B0THERMISTOR PTC 15 OHM 120C |
6,481 | 0.00 |
|
Datasheet |
Radial, Disc | Posistor® | Bulk | Obsolete | Ceramic | - | - | - | - | - | - | - | 15 Ohms | - | - | - | - | Through Hole | - | - | - | - |
|
PTCCL07H171FBEPTC RESET FUSE 145V 170MA RADIAL |
9,906 | 0.67 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 170 mA | 255 mA | 1 A | - | - | - | 19 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL07H211FBEPTC RESET FUSE 145V 210MA RADIAL |
4,091 | 0.67 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 210 mA | 315 mA | 1.4 A | - | - | - | 12 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL09H271FBEPTC RESET FUSE 145V 270MA RADIAL |
4,734 | 0.67 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 270 mA | 405 mA | 2.2 A | - | - | - | 8 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.197" T (8.50mm x 5.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
|
PTGL12AS2R2K4B51A0PTC RESET FUSE 60V 556MA RADIAL |
9,401 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 60V | 556 mA | 739 mA | 5 A | - | - | - | 2.2 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
|
PTGL12AS0R8K2B51A0PTC RESET FUSE 30V 867MA RADIAL |
6,801 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 30V | 867 mA | 1.153 A | 7 A | - | - | - | 800 mOhms | -30°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
