PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTGL12AS1R2K3B51A0PTC RESET FUSE 51V 749MA RADIAL |
3,802 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Tape & Box (TB) | Obsolete | Ceramic | 51V | 749 mA | 996 mA | 5 A | - | - | - | 1.2 Ohms | -30°C ~ 85°C | - | - | - | Through Hole | 0.453" Dia x 0.138" T (11.50mm x 3.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
|
YPAL0013NPTC RESET FUSE 30V 120MA RADIAL |
4,609 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Obsolete | Ceramic | 30V | 120 mA | 240 mA | 700 mA | - | - | - | 13 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.217" (5.50mm) | - | 0.200" (5.08mm) |
|
|
YPBL0055NPTC RESET FUSE 80V 50MA RADIAL |
9,637 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Obsolete | Ceramic | 80V | 50 mA | 100 mA | 700 mA | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.217" (5.50mm) | - | 0.200" (5.08mm) |
|
|
YPBJ0025TPTC RESET FUSE 80V 50MA RADIAL |
8,360 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 50 mA | 110 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.138" T (6.50mm x 3.50mm) | 0.315" (8.00mm) | - | 0.200" (5.08mm) |
|
|
YPBJ0055TPTC RESET FUSE 80V 30MA RADIAL |
2,888 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 80V | 30 mA | 60 mA | 700 mA | - | - | - | 55 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.157" Dia x 0.138" T (4.00mm x 3.50mm) | 0.217" (5.50mm) | - | 0.200" (5.08mm) |
|
MINISMDC200-2PTC RESET FUSE 8V 2A 1812 |
3,361 | 0.00 |
|
Datasheet |
1812 (4532 Metric), Concave | PolySwitch®, miniSMD | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 2 A | 4 A | 100 A | 5 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.048" (1.22mm) | - |
|

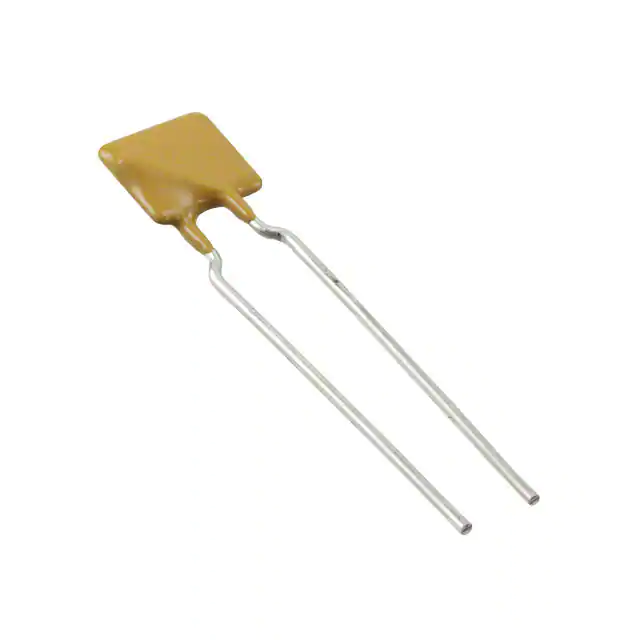

AGRF1400-2PTC RESET FUSE 16V 14A RADIAL |
6,141 | 0.66 |
|
Datasheet |
Radial, Disc | PolySwitch®, AGRF | Tape & Reel (TR) | Active | Polymeric | 16V | 14 A | 27.3 A | 100 A | 9 s | 2.2 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
PTCTZ3MR500MTEPTC RESET FUSE 425V 90MA 2SMD |
2,621 | 0.00 |
|
Datasheet |
2-SMD | PTCTZ | Tape & Reel (TR) | Obsolete | Ceramic | 425V | 90 mA | 150 mA | 700 mA | 800 ms | - | - | 50 Ohms | - | - | - | - | Surface Mount | 0.283" L x 0.394" W (7.20mm x 10.00mm) | - | 0.142" (3.60mm) | - |
|

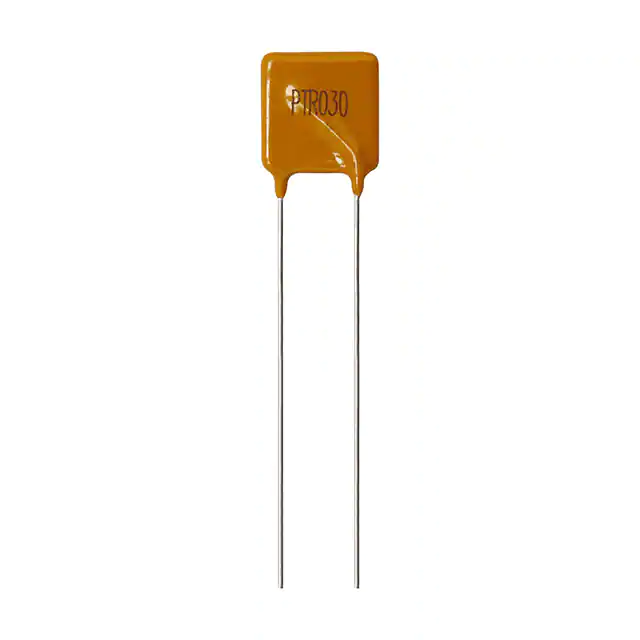

PTR030V0700-TR1PTC RESET FUSE 30V 7A RADIAL |
8,685 | 0.50 |
|
Datasheet |
Radial, Disc | PTR030V | Tape & Reel (TR) | Active | Polymeric | 30V | 7 A | 14 A | 100 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.228" (31.20mm) | - | 0.394" (10.00mm) |
|
MF-LR550/20-0PTC RESETTABLE 5.5A 20V AXIAL ST |
9,560 | 0.58 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 20V | 5.5 A | 10.5 A | 100 A | 5 s | 9 mOhms | 22 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | User Defined | 1.417" L x 0.283" W (36.00mm x 7.20mm) | - | 0.039" (1.00mm) | - |
|

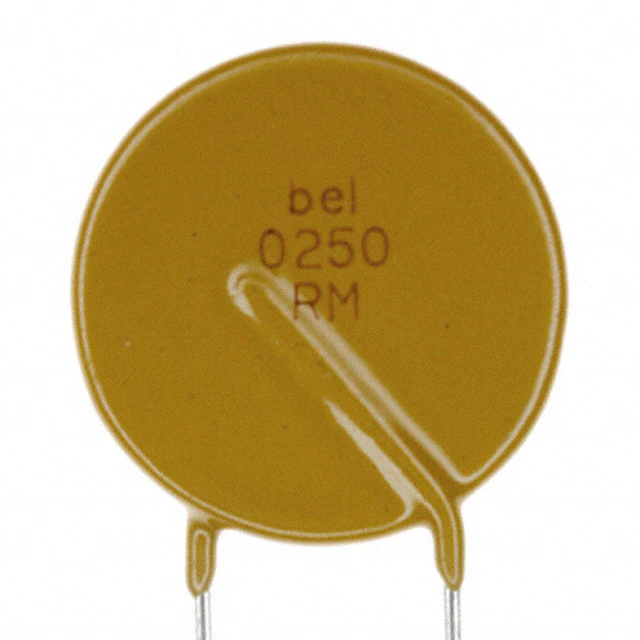

0ZRM0250FF1APTC RESET FUSE 120V 2.5A RADIAL |
3,746 | 0.59 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 2.5 A | 5 A | 15 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.886" Dia x 0.161" T (22.50mm x 4.10mm) | 1.083" (27.50mm) | - | 0.402" (10.20mm) |
|
MINISMD050-2PTC RESET FUSE 500MA 1812 |
4,051 | 0.00 |
|
- |
1812 (4532 Metric), Concave | PolySwitch® | Tape & Reel (TR) | Obsolete | - | - | 500 mA | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|
|
MINISMD075-2PTC RESET FUSE 750MA 1812 |
7,018 | 0.00 |
|
- |
1812 (4532 Metric), Concave | PolySwitch® | Tape & Reel (TR) | Obsolete | - | - | 750 mA | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.024" (0.62mm) | - |
|

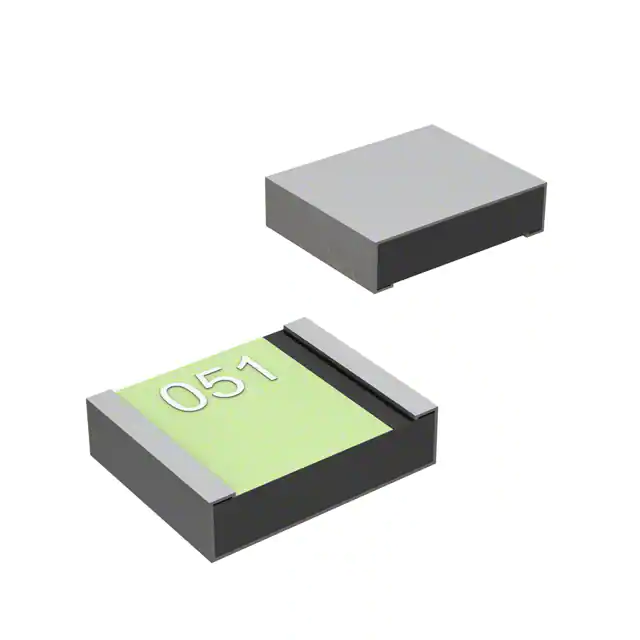

MF-USMD035-2PTC RESET FUSE 6V 350MA 1210 |
4,938 | 0.00 |
|
Datasheet |
1210 (3225 Metric) | Multifuse®, MF-USMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 350 mA | 750 mA | 40 A | 200 ms | 200 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.024" (0.62mm) | - |
|
MICROSMD110-2PTC RESET FUSE 6V 1.1A 1210 |
9,635 | 0.00 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch®, microSMD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 40 A | 200 ms | 70 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.019" (0.48mm) | - |
|
NANOSMDM050-2POLYSWITCH 0.50A RESET FUSE SMD |
7,360 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 500 mA | 1 A | 40 A | 100 ms | 150 mOhms | 700 mOhms | - | - | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.047" (1.20mm) | - |
|
|
NANOSMDM075-2POLYSWITCH 0.75A RESET FUSE SMD |
5,899 | 0.00 |
|
Datasheet |
1206 (3216 Metric), Concave | PolySwitch®, nanoSMD | Cut Tape (CT) | Obsolete | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 100 mOhms | 290 mOhms | - | - | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.59mm) | - | 0.047" (1.20mm) | - |
|
MF-MSMD110/16-2FUSE RESETTABLE 1.1A 16V SMD |
5,414 | 0.00 |
|
Datasheet |
1812 (4532 Metric) | MF-MSMD | Cut Tape (CT) | Obsolete | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 0.3 s | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.020" W (4.55mm x 0.50mm) | - | 0.134" (3.41mm) | - |
|
|
MF-USMD005-2PTC RESET FUSE 30V 50MA 1210 |
7,374 | 0.00 |
|
Datasheet |
1210 (3225 Metric) | Multifuse®, MF-USMD | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 50 mA | 150 mA | 10 A | 1.5 s | 2.8 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
|
|
MF-USMD010-2PTC RESET FUSE 30V 100MA 1210 |
2,627 | 0.00 |
|
Datasheet |
1210 (3225 Metric) | Multifuse®, MF-USMD | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 100 mA | 300 mA | 10 A | 600 ms | 800 mOhms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
