PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-USHT125KX-2PTC RESET FUSE 12V 1.25A 1210 |
5,952 | 0.40 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USHT | Tape & Reel (TR) | Obsolete | Polymeric | 12V | 1.25 A | 3.75 A | 40 A | 5 s | 30 mOhms | 300 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.063" (1.60mm) | - |
.jpg)
|
MF-PSML110/6-2PTC RESET FUSE 6V 1.1A 0805 |
8,939 | 0.47 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2.2 A | 50 A | 300 ms | 30 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.028" (0.70mm) | - |
|
|
MF-PSML175/6-2PTC RESET FUSE 6V 1.75A 0805 |
8,839 | 0.47 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 1 s | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.028" (0.70mm) | - |
|
0805L035YRHFPTC RESET FUSE 6V 350MA 0805 |
7,377 | 0.00 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 350 mA | 750 mA | 100 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
YPCL0015NPTC RESET FUSE 265V 140MA RADIAL |
8,372 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Obsolete | Ceramic | 265V | 140 mA | 280 mA | 1.5 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
|
YPCJ0015TPTC RESET FUSE 265V 90MA RADIAL |
9,726 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Tape & Reel (TR) | Obsolete | Ceramic | 265V | 90 mA | 180 mA | 1.5 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.200" (5.08mm) |
|
YQD120N0045PTC RESET FUSE 265V 105MA RADIAL |
5,515 | 0.89 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 105 mA | 200 mA | 800 mA | - | - | - | 45 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|

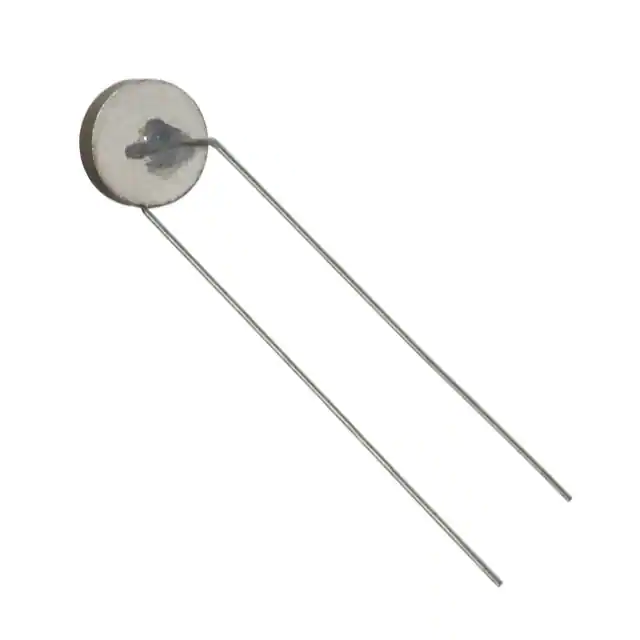

RL4010-50-110-50-PTFPTC RESET FUSE 50V 110MA RADIAL |
4,397 | 0.00 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 50V | 110 mA | 170 mA | - | - | - | - | 50 Ohms | - | - | - | - | Through Hole | 0.449" Dia x 0.201" T (11.40mm x 5.10mm) | 0.449" (11.40mm) | - | 0.331" (8.40mm) |
|

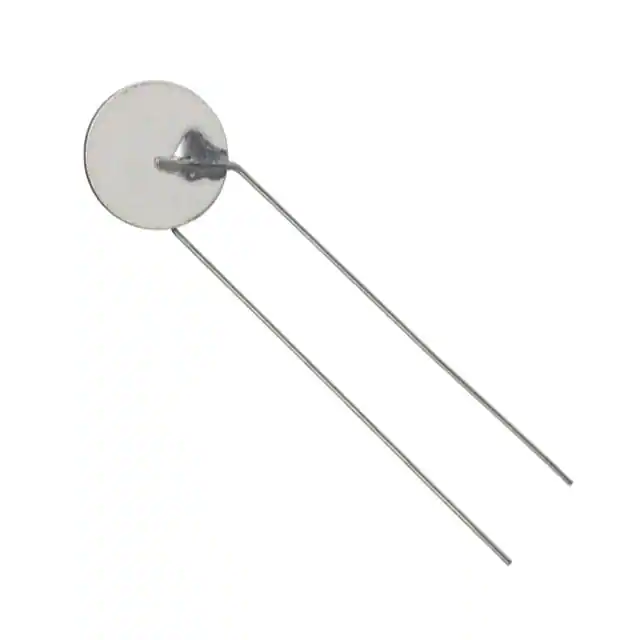

RL5506-5.0-110-50-PTFPTC RESET FUSE 50V 390MA RADIAL |
3,443 | 0.00 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 50V | 390 mA | 580 mA | - | - | - | - | 5 Ohms | - | - | - | - | Through Hole | 0.600" Dia x 0.161" T (15.24mm x 4.10mm) | 0.600" (15.24mm) | - | 0.331" (8.40mm) |
|
|
RL4006-10-110-50-PTFPTC RESET FUSE 50V 230MA RADIAL |
2,024 | 0.00 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 50V | 230 mA | 340 mA | - | - | - | - | 10 Ohms | - | - | - | - | Through Hole | 0.449" Dia x 0.169" T (11.40mm x 4.30mm) | 0.449" (11.40mm) | - | 0.252" (6.40mm) |
|
|
RL5305-2.5-110-12-PTFPTC RESET FUSE 12V 550MA RADIAL |
5,792 | 0.00 |
|
Datasheet |
Radial, Disc | PTF | Bulk | Obsolete | Ceramic | 12V | 550 mA | 820 mA | - | - | - | - | 2.5 Ohms | - | - | - | - | Through Hole | 0.600" Dia x 0.160" T (15.24mm x 4.06mm) | 0.600" (15.24mm) | - | 0.330" (8.38mm) |
|
|
YQD120N0070PTC RESET FUSE 265V 65MA RADIAL |
4,890 | 0.00 |
|
Datasheet |
Radial, Disc | YQ | Bulk | Active | Ceramic | 265V | 65 mA | 130 mA | 300 mA | - | - | - | 70 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | - | - | 0.201" (5.10mm) |
|
|
YQS8122PTC RESET FUSE 30V 600MA RADIAL |
5,073 | 0.00 |
|
Datasheet |
Radial, Disc | YP | Bulk | Active | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.236" (6.00mm) |
|

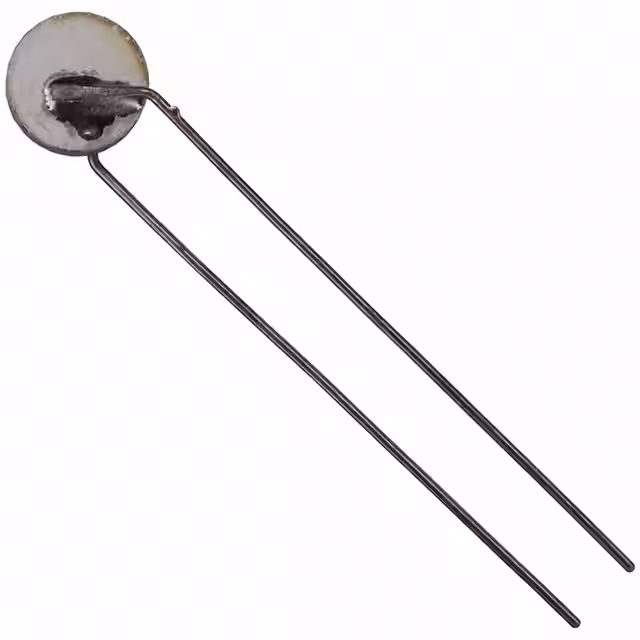

RL3312-200-110-50-PTOPTC RESET FUSE 50V RADIAL DISC |
8,693 | 0.00 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 50V | - | - | - | 45 s | - | - | 200 Ohms | - | - | - | - | Through Hole | 0.400" Dia x 0.230" T (10.16mm x 5.84mm) | 0.400" (10.16mm) | - | 0.250" (6.35mm) |
|
RL3020-5K-100-480-PTOPTC RESET FUSE 480V RADIAL DISC |
2,250 | 0.00 |
|
Datasheet |
Radial, Disc | PTO | Bulk | Obsolete | Ceramic | 480V | - | - | - | 60 s | - | - | 5 kOhms | - | - | - | - | Through Hole | 0.350" Dia x 0.310" T (8.89mm x 7.87mm) | 0.350" (8.89mm) | - | 0.250" (6.35mm) |
|

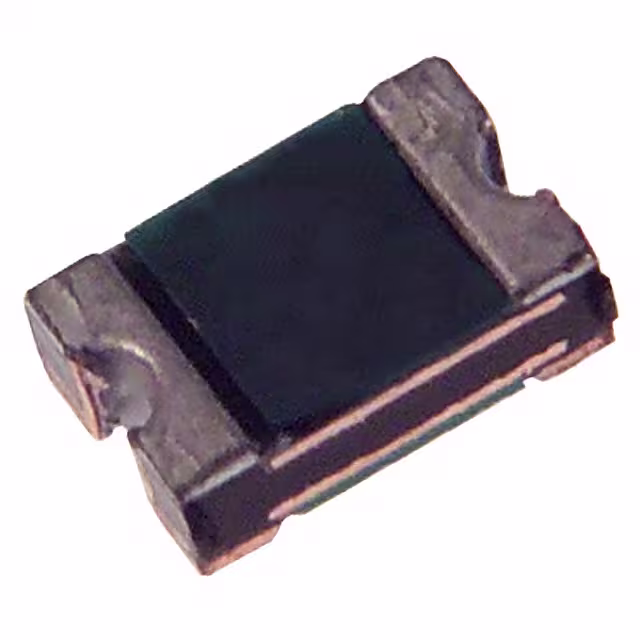

SMD0805P010TFAPTC RESET FUSE 15V 100MA 0805 |
7,171 | 0.00 |
|
- |
0805 (2012 Metric), Concave | POLY-FUSE®, SMD0805 | Tape & Reel (TR) | Obsolete | Polymeric | 15V | 100 mA | 300 mA | 40 A | 1.5 s | 1 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
SMD0805P020TFAPTC RESET FUSE 9V 200MA 0805 |
3,105 | 0.00 |
|
- |
0805 (2012 Metric), Concave | POLY-FUSE®, SMD0805 | Tape & Reel (TR) | Obsolete | Polymeric | 9V | 200 mA | 500 mA | 40 A | 20 ms | 650 mOhms | 3.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
|
SMD0805P035TFAPTC RESET FUSE 6V 350MA 0805 |
8,013 | 0.00 |
|
- |
0805 (2012 Metric), Concave | POLY-FUSE®, SMD0805 | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 350 mA | 750 mA | 40 A | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.024" (0.60mm) | - |
|
|
PTGL14AR0R5M1C01B0THERMISTOR PTC 125V 0.5 OHM 120C |
4,749 | 0.00 |
|
Datasheet |
Radial, Disc | Posistor® | Bulk | Obsolete | Ceramic | - | - | - | - | - | - | - | 500 mOhms | - | - | - | - | Through Hole | - | - | - | - |
|
PTGLCSAS4R7K6B51B0PTC RESET FUSE 140V 393MA RADIAL |
5,707 | 0.00 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 140V | 393 mA | 523 mA | 3.5 A | - | - | - | 4.7 Ohms | -30°C ~ 125°C | - | - | - | Through Hole | 0.453" Dia x 0.177" T (11.50mm x 4.50mm) | 0.650" (16.50mm) | - | 0.197" (5.00mm) |
