PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B59850C0130A070PTC RESET FUSE 265V 200MA RADIAL |
2,142 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 200 mA | 320 mA | 1.5 A | - | - | - | 13 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|

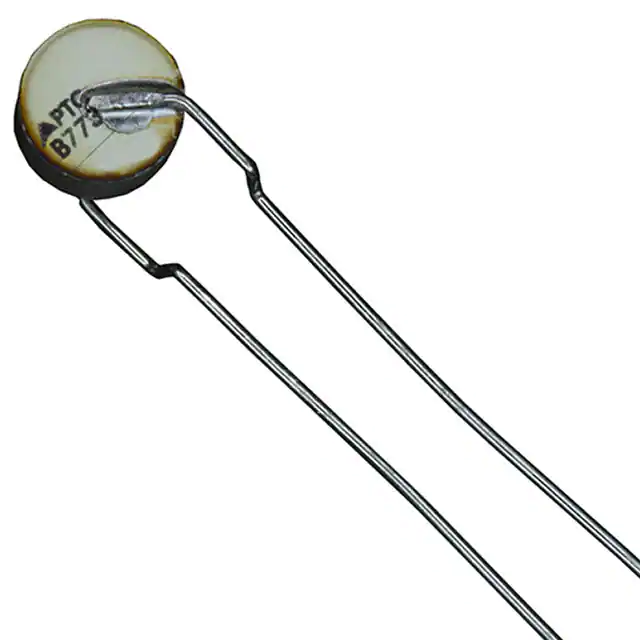

B59773B0120A070PTC RESET FUSE 550V RADIAL DISC |
371 | 2.82 |
|
Datasheet |
Radial, Disc | B59773 | Bulk | Active | Ceramic | 550V | - | 48 mA | 1 A | 3 s | - | - | 500 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.335" Dia x 0.276" T (8.50mm x 7.00mm) | 0.197" (5.00mm) | - | 0.197" (5.00mm) |
|
RHEF1500PTC RESET FUSE 16V 15A RADIAL |
609 | 1.75 |
|
Datasheet |
Radial, Disc | PolySwitch®, RHEF | Bag | Active | Polymeric | 16V | 15 A | 28 A | 100 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.925" L x 0.142" W (23.50mm x 3.60mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
30R600UMRPTC RESET FUSE 30V 6A RADIAL |
3,214 | 0.84 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 6 A | 12 A | 40 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 1.055" (26.80mm) | - | 0.402" (10.20mm) |
|
B59860C0120A070PTC RESET FUSE 265V 140MA RADIAL |
1,298 | 1.89 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 140 mA | 280 mA | 1.5 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
B59950C0120A070PTC RESET FUSE 80V 320MA RADIAL |
1,265 | 1.64 |
|
Datasheet |
Radial, Disc | B59950 | Bulk | Active | Ceramic | 80V | 320 mA | 640 mA | 5.5 A | - | - | - | 3.7 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.532" Dia x 0.138" T (13.50mm x 3.50mm) | 0.669" (17.00mm) | - | 0.197" (5.00mm) |
|

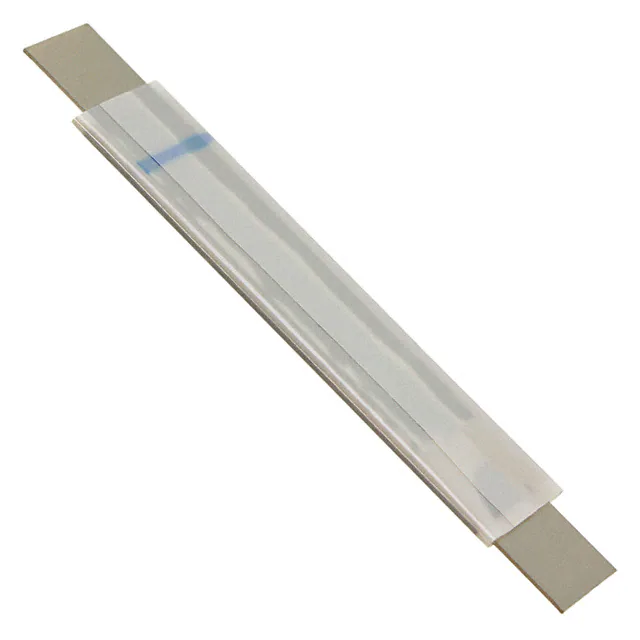

LR4-900FPTC RESET FUSE 20V 9A STRAP |
23,986 | 1.79 |
|
Datasheet |
Strap | PolySwitch®, LR4 | Bag | Active | Polymeric | 20V | 9 A | 16.7 A | 100 A | 5 s | 6 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.831" L x 0.323" W (46.50mm x 8.20mm) | - | 0.039" (1.00mm) | - |
|

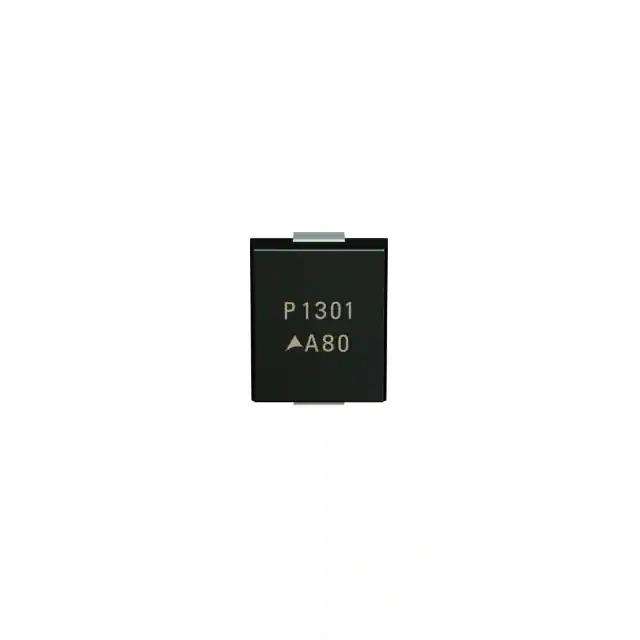

B59301P1120A062PTC RESET FUSE 24V 310MA 4032 |
1,915 | 2.29 |
|
Datasheet |
4032 (1080 Metric) | B59301 | Tape & Reel (TR) | Active | Ceramic | 24V | 310 mA | 640 mA | 1.6 A | - | 1.85 Ohms | - | 3.1 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.394" L x 0.315" W (10.00mm x 8.00mm) | - | 0.150" (3.80mm) | - |
|
60R185XFPTC RESET FUSE 60V 1.85A RADIAL |
1,479 | 0.60 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.660" Dia x 0.122" T (16.76mm x 3.10mm) | 0.906" (23.00mm) | - | 0.201" (5.10mm) |
|
AHEF750PTC RESET FUSE 32V 7.5A RADIAL |
1,195 | 1.70 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 7.5 A | 15 A | 100 A | 13 s | 7.4 mOhms | 23 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.830" L x 0.150" W (21.10mm x 3.80mm) | 0.980" (24.90mm) | - | 0.400" (10.15mm) |
|

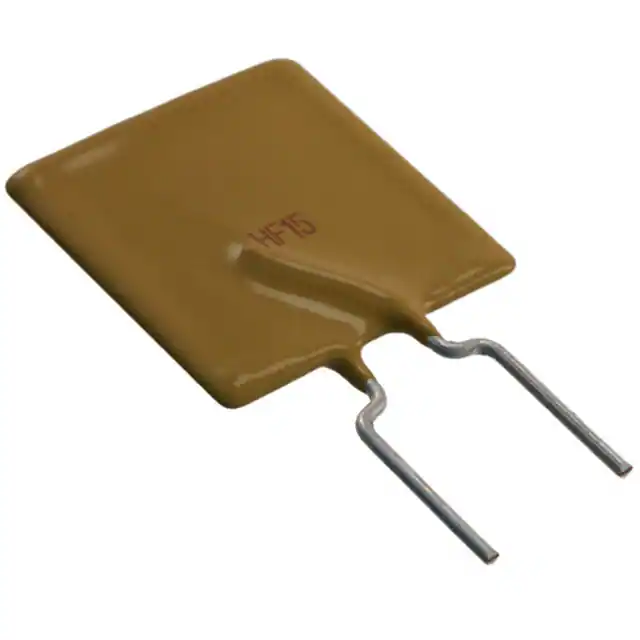

AHRF1500PTC RESET FUSE 16V 15A RADIAL |
2,131 | 1.86 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHRF | Bulk | Active | Polymeric | 16V | 15 A | 33 A | 100 A | 20 s | 2.7 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 1.130" (28.70mm) | - | 0.400" (10.15mm) |
|
|
B59860C0120A051PTC RESET FUSE 265V 140MA RADIAL |
3,988 | 1.88 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Active | Ceramic | 265V | 140 mA | 280 mA | 1.5 A | - | - | - | 15 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.433" Dia x 0.197" T (11.00mm x 5.00mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
1812L050/60MR-APTC RESET FUSE 60V 500MA 1812 |
956 | 1.76 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 10 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.071" (1.80mm) | - |
|
30R700UMRPTC RESET FUSE 30V 7A RADIAL |
1,195 | 0.91 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 7 A | 14 A | 40 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.126" (28.60mm) | - | 0.402" (10.20mm) |
|

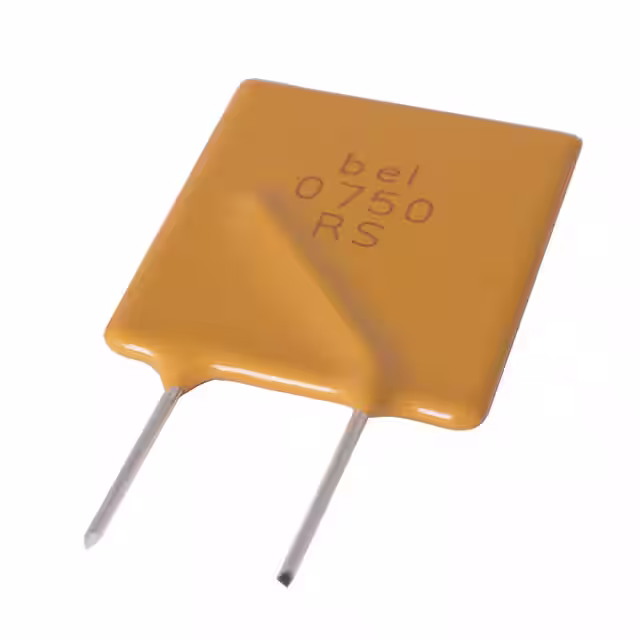

0ZRS0750FF1APTC RESET FUSE 32V 7.5A RADIAL |
9,147 | 1.67 |
|
Datasheet |
Radial, Disc | 0ZRS | Bulk | Active | Polymeric | 32V | 7.5 A | 15 A | 100 A | 13 s | 7.4 mOhms | 23 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.831" L x 0.150" W (21.10mm x 3.80mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|

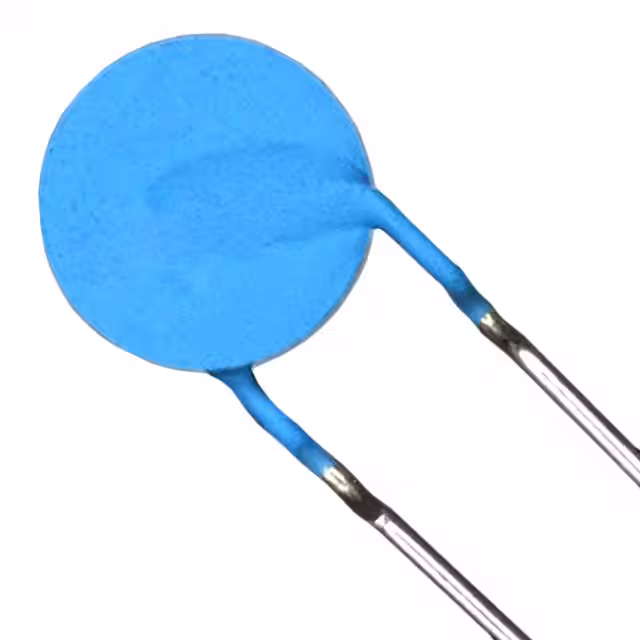

B59840C0120A070PTC RESET FUSE 265V 330MA RADIAL |
415 | 2.05 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 330 mA | 660 mA | 4.1 A | - | - | - | 6 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.689" Dia x 0.197" T (17.50mm x 5.00mm) | 0.827" (21.00mm) | - | 0.197" (5.00mm) |
|

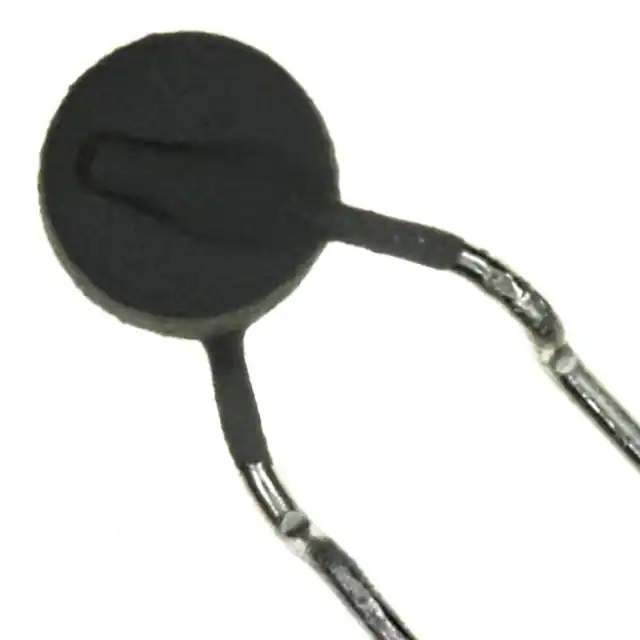

PTCCL10H010SBEPTC RESET FUSE 600V 10MA RADIAL |
2,185 | 2.62 |
|
Datasheet |
Radial, Disc | PTCCL - 600V | Bulk | Active | Ceramic | 600V | 10 mA | 50 mA | 2 A | - | - | - | 400 Ohms | -20°C ~ 85°C | - | - | - | Through Hole | 0.394" Dia x 0.256" T (10.00mm x 6.50mm) | 0.532" (13.50mm) | - | 0.320" (8.12mm) |
|
MF-LSMF330/24X-22920 RESETTABLE SMD PPTC 3.3A/24 |
527 | 1.75 |
|
Datasheet |
2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 24V | 3.3 A | - | - | - | - | - | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | - | - |
|
0805L175SLYRPTC RESET FUSE 6V 1.75A 0805 |
11,815 | 1.61 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.75 A | 3.5 A | 50 A | 600 ms | 5 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.024" (0.60mm) | - |
|
30R900UMRPTC RESET FUSE 30V 9A RADIAL |
20,550 | 0.87 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 9 A | 18 A | 40 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.950" L x 0.120" W (24.10mm x 3.00mm) | 1.244" (31.60mm) | - | 0.402" (10.20mm) |
