PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTR016V1500-TRPTC RESET FUSE 16V 15A RADIAL |
700 | 1.20 |
|
Datasheet |
Radial, Disc | PTR016V | Tape & Reel (TR) | Active | Polymeric | 16V | 15 A | 25.5 A | 100 A | 10 s | 2 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.989" L x 0.122" W (25.10mm x 3.10mm) | 1.142" (29.00mm) | - | 0.394" (10.00mm) |
|
RKEF500-2PTC RESET FUSE 60V 5A RADIAL |
116 | 1.41 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Tape & Reel (TR) | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.140" L x 0.120" W (29.00mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|
1210L005/90WR1210L |
3,573 | 1.37 |
|
Datasheet |
1210 (3225 Metric), Concave | PolySwitch® 1210L | Tape & Reel (TR) | Active | Polymeric | 90V | 50 mA | 150 mA | 10 A | 200 ms | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.049" (1.25mm) | - |
|
30R500UMRPTC RESET FUSE 30V 5A RADIAL |
3,097 | 0.82 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 30R | Cut Tape (CT) | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 1.008" (25.60mm) | - | 0.402" (10.20mm) |
|
PTCTL7MR100SBEPTC RESET FUSE 600V 175MA RADIAL |
2,684 | 2.26 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 600V | 175 mA | 400 mA | 1 A | 7 s | - | - | 10 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.512" Dia x 0.217" T (13.00mm x 5.50mm) | 0.709" (18.00mm) | - | 0.197" (5.00mm) |
|

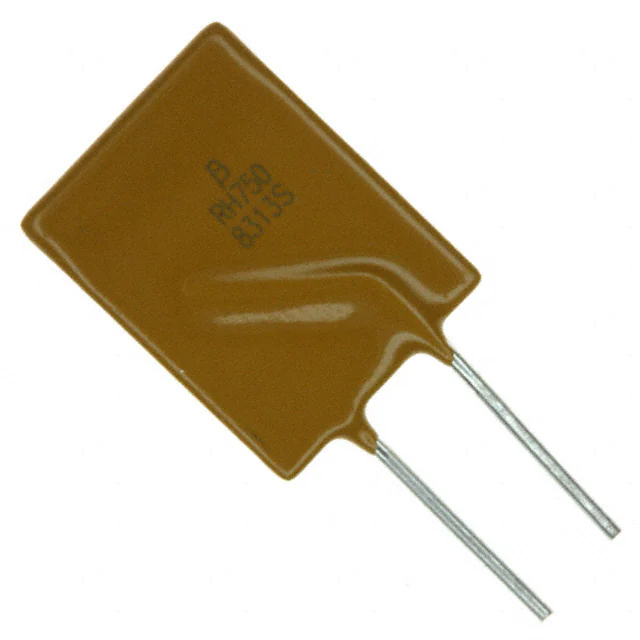

MF-RHT750-0PTC RESET FUSE 16V 7.5A RADIAL |
2,800 | 1.33 |
|
Datasheet |
Radial, Disc | Multifuse®, MF-RHT | Bulk | Active | Polymeric | 16V | 7.5 A | 13.1 A | 100 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.925" (23.50mm) | - | 0.114" (2.90mm) |
|
|
RKEF500K-2PTC RESET FUSE 60V 5A RADIAL |
6,522 | 1.41 |
|
Datasheet |
Radial, Disc | PolySwitch®, RKEF | Tape & Reel (TR) | Active | Polymeric | 60V | 5 A | 10 A | 40 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.140" L x 0.120" W (29.00mm x 3.00mm) | 1.142" (29.00mm) | - | 0.400" (10.15mm) |
|

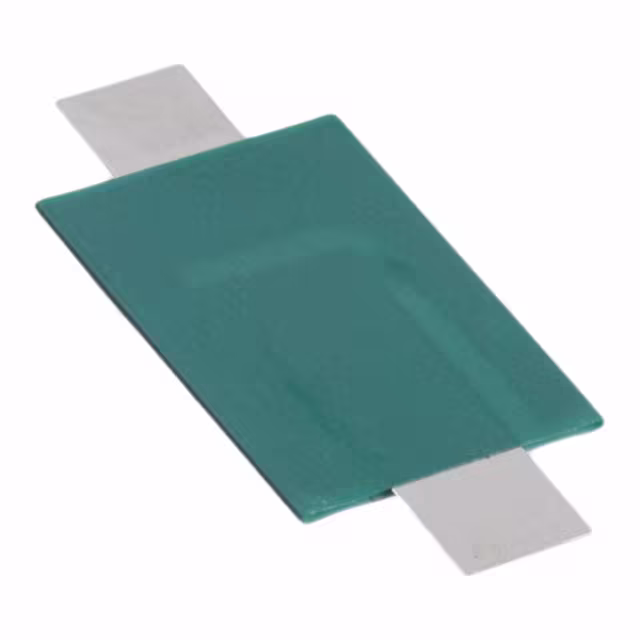

MF-LR730/20-0PTC RESET FUSE 20V 7.3A STRAP |
3,449 | 1.69 |
|
Datasheet |
Strap | Multifuse®, MF-LR | Bulk | Active | Polymeric | 20V | 7.3 A | 14.1 A | 100 A | 5 s | 6 mOhms | 15 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.106" L x 0.559" W (28.10mm x 14.20mm) | - | 0.039" (1.00mm) | - |
|
B59870C0160A070PTC RESET FUSE 160V 125MA RADIAL |
1,141 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 160V | 125 mA | 250 mA | 1 A | - | - | - | 25 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.354" Dia x 0.197" T (9.00mm x 5.00mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
MF-ASML020/6-2PTC RESET FUSE 6V 200MA 0402 |
10,279 | 1.45 |
|
Datasheet |
0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 200 mA | 500 mA | 50 A | 1 s | 100 mOhms | 1.6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
.jpg)
|
MF-PSML300/12-2PTC RESET FUSE 12V 3A 0805 |
19,725 | 1.39 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
.jpg)
|

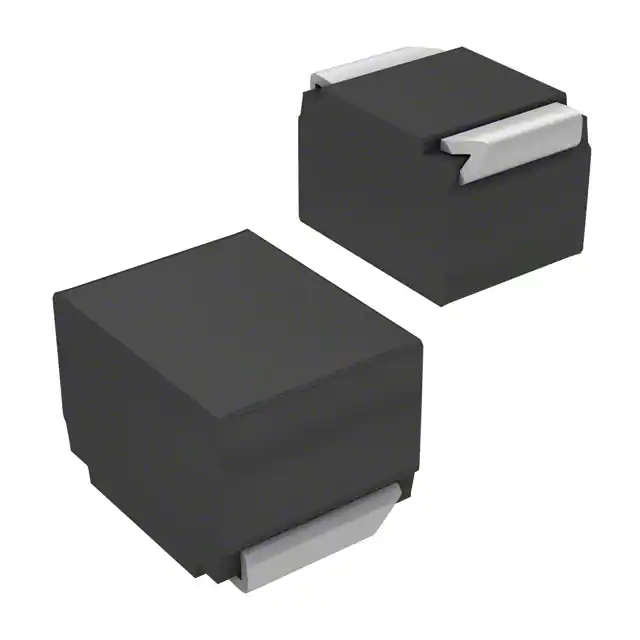

B59215P1120A062THERMISTOR PTC 25 OHM 25% 2SMD |
8,732 | 2.14 |
|
Datasheet |
2-SMD | B59215 | Tape & Reel (TR) | Active | Ceramic | 80V | 100 mA | 210 mA | 1 A | - | 15 Ohms | 25 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
B59965C0120A070PTC RESET FUSE 30V 600MA RADIAL |
1,914 | 1.52 |
|
Datasheet |
Radial, Disc | B59965 | Bulk | Active | Ceramic | 30V | 600 mA | 1.2 A | 4.3 A | - | - | - | 1.2 Ohms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.433" Dia x 0.138" T (11.00mm x 3.50mm) | 0.571" (14.50mm) | - | 0.197" (5.00mm) |
|
|
MF-PSML200/12-2PTC RESET FUSE 12V 2A 0805 |
1,431 | 1.39 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML/X | Tape & Reel (TR) | Active | Polymeric | 12V | 2 A | 4 A | 50 A | 2 s | 5 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
B59975C0120A070PTC RESET FUSE 30V 450MA RADIAL |
9,587 | 1.54 |
|
Datasheet |
Radial, Disc | B59975 | Bulk | Active | Ceramic | 30V | 450 mA | 900 mA | 3 A | - | - | - | 1.8 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.354" Dia x 0.138" T (9.00mm x 3.50mm) | 0.492" (12.50mm) | - | 0.197" (5.00mm) |
|
B59885C0120A070PTC RESET FUSE 550V 15MA RADIAL |
3,237 | 1.54 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 550V | 15 mA | 30 mA | 100 mA | - | - | - | 1.2 kOhms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
MF-ASML050/6-2PTC RESET FUSE 6V 500MA 0402 |
22,663 | 1.45 |
|
Datasheet |
0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1 A | 50 A | 100 ms | 500 mOhms | 500 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|
|
MF-ASML035/6-2PTC RESET FUSE 6V 350MA 0402 |
8,645 | 1.45 |
|
Datasheet |
0402 (1005 Metric), Concave | Multifuse®, MF-ASML/X | Tape & Reel (TR) | Active | Polymeric | 6V | 350 mA | 700 mA | 50 A | 100 ms | 50 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|

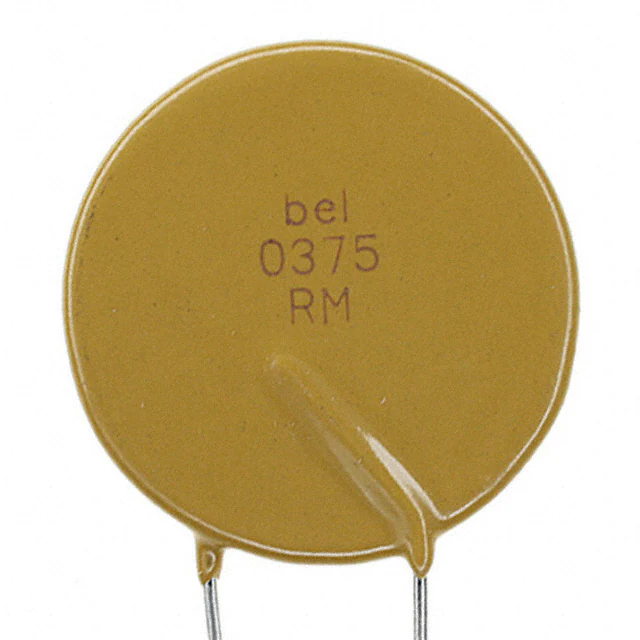

0ZRM0375FF1APTC RESET FUSE 120V 3.75A RADIAL |
4,550 | 1.50 |
|
Datasheet |
Radial, Disc | 0ZRM | Box | Active | Polymeric | 120V | 3.75 A | 7.5 A | 20 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.161" Dia x 0.161" T (29.50mm x 4.10mm) | 1.339" (34.00mm) | - | 0.402" (10.20mm) |
|

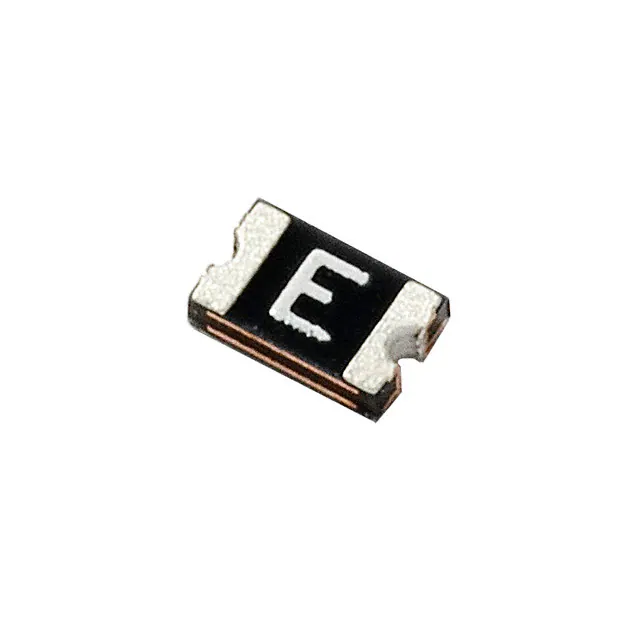

0805L400SLWRPTC RESET FUSE 4.0A 6V 0805 |
40,340 | 2.19 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 4 A | 9 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.055" (1.40mm) | - |
