PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF-LSMF500/16X-22920 RESETTABLE SMD PPTC 5.0A/16 |
2,713 | 1.75 |
|
Datasheet |
2920 (7351 Metric), Concave | Multifuse®, MF-LSMF | Tape & Reel (TR) | Active | Polymeric | 16V | 5 A | - | - | - | - | - | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | - | - |
|
PTCTL8NR100HBEPTC RESET FUSE 250V 100MA RADIAL |
600 | 1.39 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 250V | 100 mA | 450 mA | 10 A | 40 s | - | - | 10 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.535" Dia x 0.236" T (13.60mm x 6.00mm) | 0.732" (18.60mm) | - | 0.197" (5.00mm) |
|
1206L150SLYRPTC RESET FUSE 6V 1.5A 1206 |
10,983 | 1.85 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3.9 A | 50 A | 300 ms | 10 mOhms | 65 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
0805L200SLTHYRPTC RESET FUSE 6V 2A 0805 |
10,219 | 1.85 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 1 s | 5 mOhms | 45 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|

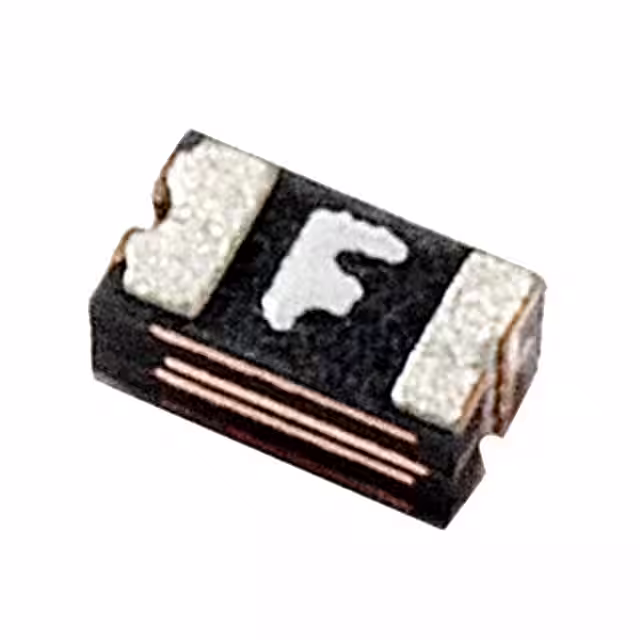

0603L200SL-VYRPTC RESET FUSE 2.0A 6V 0603 |
7,435 | 1.85 |
|
Datasheet |
0603 (1608 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 1 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
1206L380SLTHYRPTC RESET FUSE 6V 2.82A 1206 |
6,840 | 1.85 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2.82 A | 8 A | 50 A | 5 s | 2 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.028" (0.70mm) | - |
|
|
1206L200SLYRPTC RESET FUSE 6V 2A 1206 |
5,032 | 1.85 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 2 A | 4 A | 50 A | 500 ms | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.024" (0.60mm) | - |
|

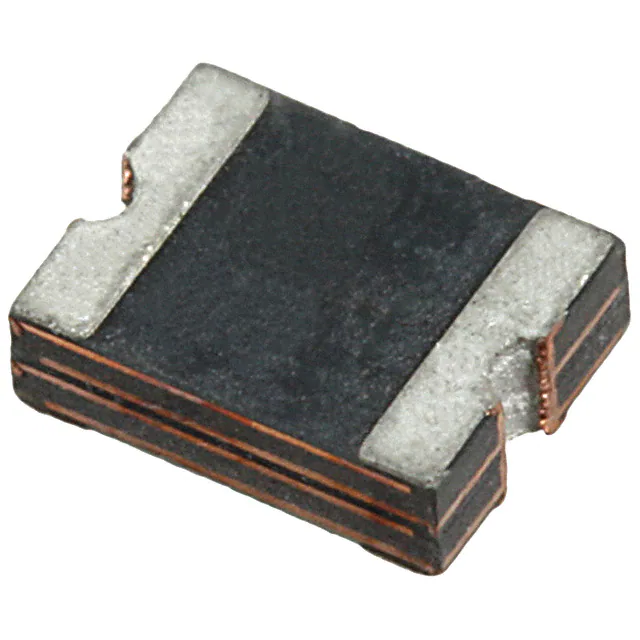

1210L300SLWRPTC RESET FUSE 6V 3A 1210 |
983 | 1.85 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 2 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
B59115P1080A062PTC RESET FUSE 80V 40MA 3225 |
20,959 | 1.67 |
|
Datasheet |
3225 (8063 Metric) | B59115 | Tape & Reel (TR) | Active | Ceramic | 80V | 40 mA | 85 mA | 700 mA | - | - | - | 55 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
|
B59215P1080A062PTC RESET FUSE 80V 65MA 3225 |
20,079 | 1.67 |
|
Datasheet |
3225 (8063 Metric) | B59215 | Tape & Reel (TR) | Active | Ceramic | 80V | 65 mA | 135 mA | 1 A | - | - | - | 25 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|

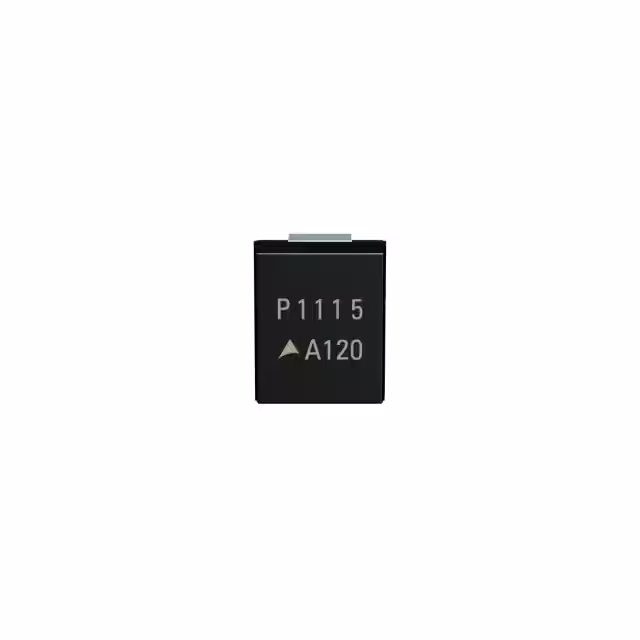

B59101P1120A062PTC RESET FUSE 24V 355MA 2SMD |
6,743 | 1.87 |
|
Datasheet |
2-SMD | B59101 | Tape & Reel (TR) | Active | Ceramic | 24V | 355 mA | - | 170 mA | - | 7.8 Ohms | 13 Ohms | - | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.398" L x 0.138" W (10.10mm x 3.50mm) | - | 0.150" (3.80mm) | - |
|
|
B59201P1080A062PTC RESET FUSE 30V 165MA 3225 |
1,952 | 1.67 |
|
Datasheet |
3225 (8063 Metric) | B59201 | Tape & Reel (TR) | Active | Ceramic | 30V | 165 mA | 340 mA | 1 A | - | - | - | 4.6 Ohms | -40°C ~ 60°C | Automotive | AEC-Q200 | - | Surface Mount | 0.315" L x 0.248" W (8.00mm x 6.30mm) | - | 0.150" (3.80mm) | - |
|
1812L300MRPTC RESET FUSE 6V 3A 1812 |
3,520 | 1.91 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 5 A | 100 A | 4 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.059" (1.50mm) | - |
|
|
1812L010/60DRPTC RESET FUSE 60V 100MA 1812 |
2,081 | 1.91 |
|
Datasheet |
1812 (4532 Metric), Concave | POLY-FUSE®, 1812L | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 300 mA | 10 A | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.049" (1.25mm) | - |
|

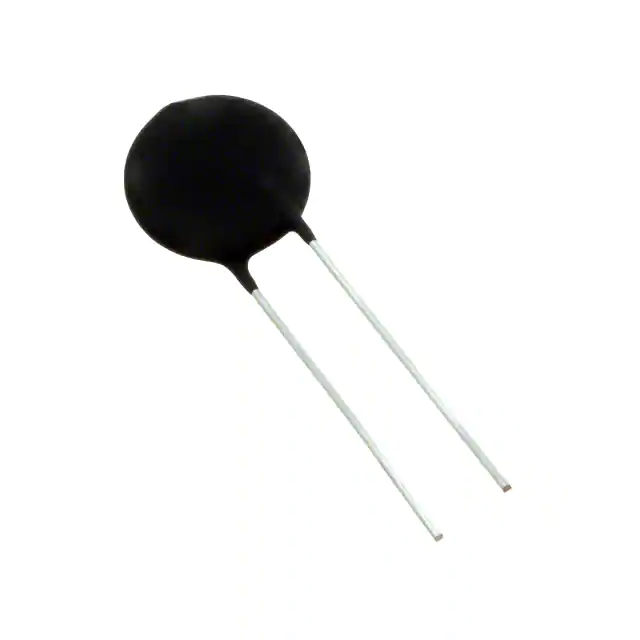

CL20 250120PTC RESET FUSE 480V 300MA RADIAL |
3,601 | 3.78 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | - | 480V | 300 mA | 600 mA | - | - | - | - | 25 Ohms | - | - | - | - | Through Hole | 0.866" Dia x 0.236" T (22.00mm x 6.00mm) | - | - | 0.307" (7.80mm) |
|
B59940C0120A070PTC RESET FUSE 80V 450MA RADIAL |
580 | 2.05 |
|
Datasheet |
Radial, Disc | B59940 | Bulk | Active | Ceramic | 80V | 450 mA | 900 mA | 8 A | - | - | - | 2.3 Ohms | -40°C ~ 125°C | - | - | - | Through Hole | 0.866" Dia x 0.138" T (22.00mm x 3.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
|
0805L150/12SLYRLOW RHO SMD |
2,719 | 2.19 |
|
Datasheet |
0805 (2012 Metric), Concave | PolySwitch® Low Rho | Tape & Reel (TR) | Active | Polymeric | 12V | 1.5 A | 3 A | 50 A | 500 ms | 7 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
0603L003/36YR-APTC 36V POLYFUSE SMD 0603 .030A |
2,299 | 2.19 |
|
Datasheet |
0603 (1608 Metric), Concave | POLY-FUSE®, 0603L | Tape & Reel (TR) | Active | Polymeric | 36V | 30 mA | 90 mA | 40 A | 1 s | 6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (1.00mm) | - |
|
2920L330/24MR-APTC RESET FUSE 24V 3.3A 2920 |
2,007 | 2.19 |
|
Datasheet |
2920 (7351 Metric), Concave | POLY-FUSE®, 2920L | Tape & Reel (TR) | Active | Polymeric | 24V | 3.3 A | 5.5 A | 40 A | 5 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.079" (2.00mm) | - |
|
AHEF1000PTC RESET FUSE 32V 10A RADIAL |
579 | 2.14 |
|
Datasheet |
Radial, Disc | PolySwitch®, AHEF | Bag | Active | Polymeric | 32V | 10 A | 20 A | 100 A | 15 s | 6 mOhms | 16 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.157" W (23.50mm x 4.00mm) | 1.098" (27.90mm) | - | 0.400" (10.15mm) |
