PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1210L350SLWRPTC RESET FUSE 6V 3.5A 1210 |
426 | 2.19 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3.5 A | 7 A | 50 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.028" (0.70mm) | - |
|
1210L500/12SLWRPTC RESET FUSE 5.0A 12V 1210 |
6,653 | 2.19 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.055" (1.40mm) | - |
|
1206L450SLWRPTC RESET FUSE 6V 4.5A 1206 |
6,642 | 2.19 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 4.5 A | 9 A | 50 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.047" (1.20mm) | - |
|
NANOSMDH075F-02PTC RESET FUSE 6V 750MA 1206 |
2,582 | 2.36 |
|
Datasheet |
1206 (3216 Metric) | PolySwitch®, nanoSMD | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 2 A | 10 A | 100 ms | 100 mOhms | 360 mOhms | - | -40°C ~ 125°C | - | - | - | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | - | 0.039" (1.00mm) | - |
|
0805L300SLWRPTC RESET FUSE 6V 3A 0805 |
3,664 | 2.19 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 3 A | 6 A | 50 A | 5 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.055" (1.40mm) | - |
|
|
1206L300/12SLYRPTC RESET FUSE 3.0A 12V 1206 |
2,527 | 2.19 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 3 A | 6 A | 50 A | 4 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
|
1206L500/12SLPRPTC RESET FUSE 5.0A 12V 1206 |
1,462 | 2.19 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 5 A | 10 A | 50 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|

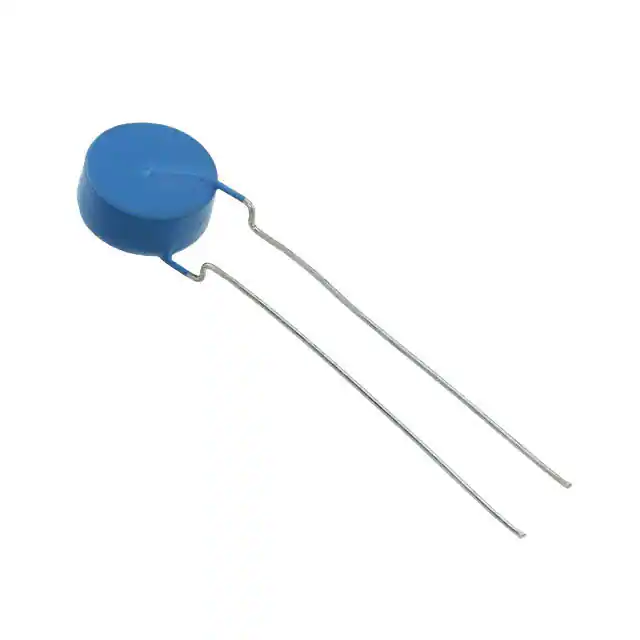

B59751C0120A070PTC RESET FUSE 440V 87MA RADIAL |
19,064 | 4.30 |
|
Datasheet |
Radial, Disc | B59751 | Bulk | Active | Ceramic | 440V | 87 mA | 173 mA | 4 A | - | - | - | 50 Ohms | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.512" Dia x 0.295" T (13.00mm x 7.50mm) | 0.709" (18.00mm) | - | 0.197" (5.00mm) |
|

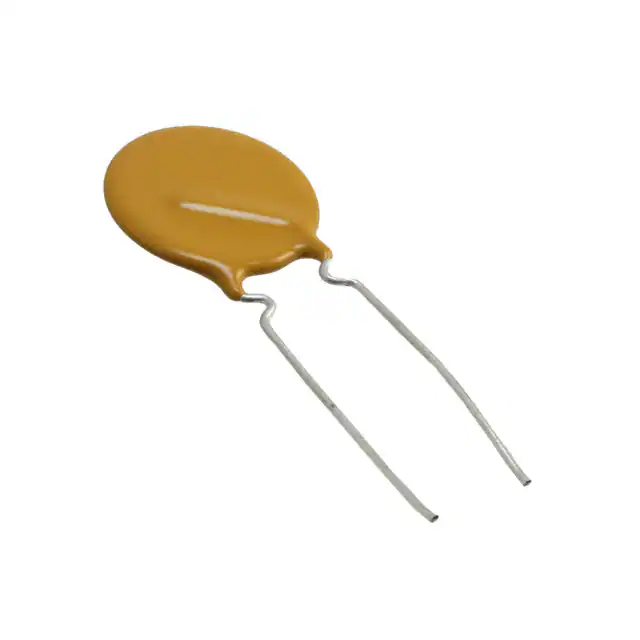

60R250XFPTC RESET FUSE 60V 2.5A RADIAL |
567 | 0.68 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 60R | Bulk | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.785" Dia x 0.122" T (19.93mm x 3.10mm) | 1.032" (26.20mm) | - | 0.402" (10.20mm) |
|
B59935C0120A070PTC RESET FUSE 30V 1.8A RADIAL |
1,636 | 2.31 |
|
Datasheet |
Radial, Disc | B59935 | Bulk | Active | Ceramic | 30V | 1.8 A | 3.6 A | 10 A | - | - | - | 300 mOhms | -40°C ~ 85°C | - | - | - | Through Hole | 0.866" Dia x 0.138" T (22.00mm x 3.50mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
|
B59830C0120A070PTC RESET FUSE 265V 460MA RADIAL |
639 | 2.46 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 265V | 460 mA | 920 mA | 7 A | - | - | - | 3.7 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.866" Dia x 0.197" T (22.00mm x 5.00mm) | 1.004" (25.50mm) | - | 0.197" (5.00mm) |
|
SMDC310F/18-02PTC RESET FUSE 18V 3.1A 2920 |
964 | 2.66 |
|
Datasheet |
2920 (7351 Metric), Concave | SMDC | Tape & Reel (TR) | Active | Polymeric | 18V | 3.1 A | 6 A | 50 A | 25 s | - | - | - | - | - | - | - | Surface Mount | 0.295" L x 0.201" W (7.50mm x 5.10mm) | - | 0.067" (1.70mm) | - |
|
CL20 7R0120PTC RESET FUSE 350V 850MA RADIAL |
345 | 3.78 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | - | 350V | 850 mA | 1.6 A | - | - | - | - | 7 Ohms | - | - | - | - | Through Hole | 0.827" Dia x 0.236" T (21.00mm x 6.00mm) | - | - | 0.307" (7.80mm) |
|
|
0805L110WRPTC RESET FUSE 6V 1.1A 0805 |
6,714 | 0.95 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 1.1 A | 2 A | 100 A | 100 ms | 50 mOhms | 160 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.043" (1.10mm) | - |
|
|
0805L075WRPTC RESET FUSE 6V 750MA 0805 |
3,488 | 0.86 |
|
Datasheet |
0805 (2012 Metric), Concave | POLY-FUSE®, 0805L | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.030" (0.75mm) | - |
|
16R1400GHPTC RESET FUSE 16V 14A RADIAL |
10,724 | 1.28 |
|
Datasheet |
Radial, Disc | POLY-FUSE®, 16R | Bulk | Active | Polymeric | 16V | 14 A | 23.8 A | 100 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.925" L x 0.138" W (23.50mm x 3.50mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|
0402L075SLKRPTC 6V POLYFUSE SMT 0402 SL 0.75 |
34,844 | 2.80 |
|
Datasheet |
0402 (1005 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 100 ms | 30 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.039" L x 0.020" W (1.00mm x 0.50mm) | - | 0.024" (0.60mm) | - |
|

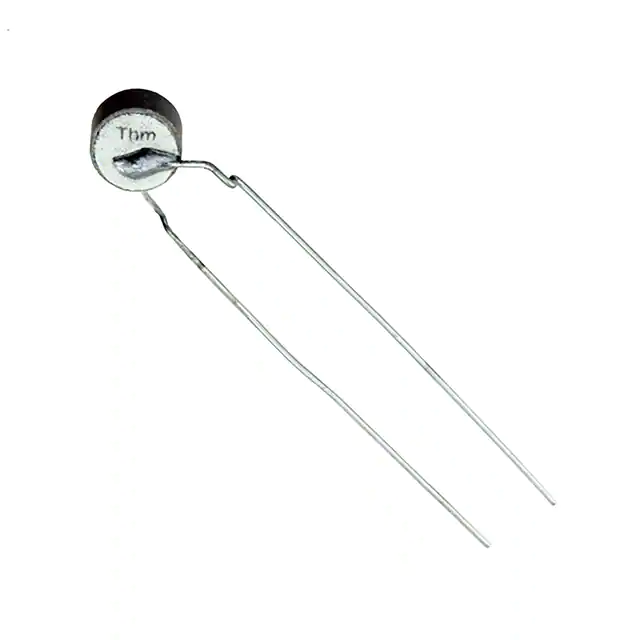

YS4020PTC RESET FUSE 1.0KV RADIAL DISC |
888 | 4.09 |
|
Datasheet |
Radial, Disc | YS | Bulk | Active | Ceramic | 1.0kV | - | - | - | - | - | - | 1.1 kOhms | -20°C ~ 60°C | - | - | - | Through Hole | 0.315" Dia x 0.236" T (8.00mm x 6.00mm) | 0.472" (12.00mm) | - | 0.295" (7.50mm) |
|
1206L110/12SLYRPTC RESET FUSE 12V 1.1A 1206 |
2,918 | 2.84 |
|
Datasheet |
1206 (3216 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 12V | 1.1 A | 2.2 A | 50 A | 300 ms | 15 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.126" L x 0.065" W (3.20mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|

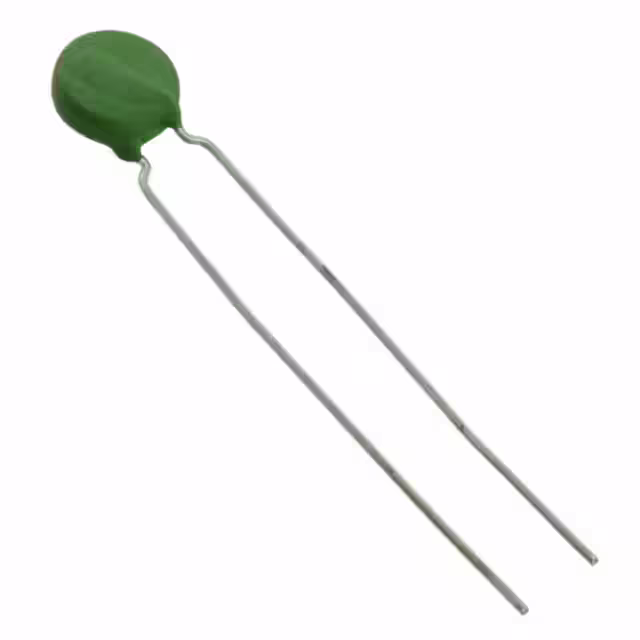

YQS8065PTC RESET FUSE 265V 168MA RADIAL |
5,798 | 3.30 |
|
Datasheet |
Radial, Disc | YM | Bulk | Active | Ceramic | 265V | 168 mA | 265 mA | 1.3 A | - | - | - | 20 Ohms | 0°C ~ 55°C | - | - | - | Through Hole | 0.374" Dia x 0.177" T (9.50mm x 4.50mm) | 0.591" (15.00mm) | - | 0.197" (5.00mm) |
