PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
,-Concave.jpg)
|
0ZCG0035FF2CPTC RESET FUSE 16V 350MA 1812 |
3,391 | 0.15 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 16V | 350 mA | 700 mA | 40 A | 100 ms | 320 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.028" (0.70mm) | - |
|
SMD0603B010TFPTC RESET FUSE 15V 100MA 0603 |
2,404 | 0.20 |
|
Datasheet |
0603 (1608 Metric), Concave | SMD0603 | Tape & Reel (TR) | Active | Polymeric | 15V | 100 mA | 300 mA | 40 A | 1 s | 900 mOhms | 6 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.063" L x 0.031" W (1.60mm x 0.80mm) | - | 0.039" (0.98mm) | - |
|
SMD1812B125TF/16PTC RESET FUSE 16V 1.25A 1812 |
5,553 | 0.19 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.059" (1.50mm) | - |
|
PTS06039V020PTC RESET FUSE 200MA 9V 0603 |
3,049 | 0.18 |
|
Datasheet |
0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 9V | 200 mA | 500 mA | 4 A | 600 ms | 300 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.035" W (1.60mm x 0.90mm) | - | 0.031" (0.80mm) | - |
|
|
PTS06039V016PTC RESET FUSE 160MA 9V 0603 |
2,037 | 0.18 |
|
Datasheet |
0603 (1608 Metric), Concave | PTS0603 | Tape & Reel (TR) | Active | - | 9V | 160 mA | 400 mA | 4 A | 1 s | 400 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.065" L x 0.031" W (1.65mm x 0.80mm) | - | 0.031" (0.80mm) | - |
|
|
SMD1812B075TF/24PTC RESET FUSE 24V 750MA 1812 |
1,475 | 0.19 |
|
Datasheet |
1812 (4532 Metric), Concave | SMD1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 750 mA | 1.5 A | 100 A | 200 ms | 100 mOhms | 290 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|

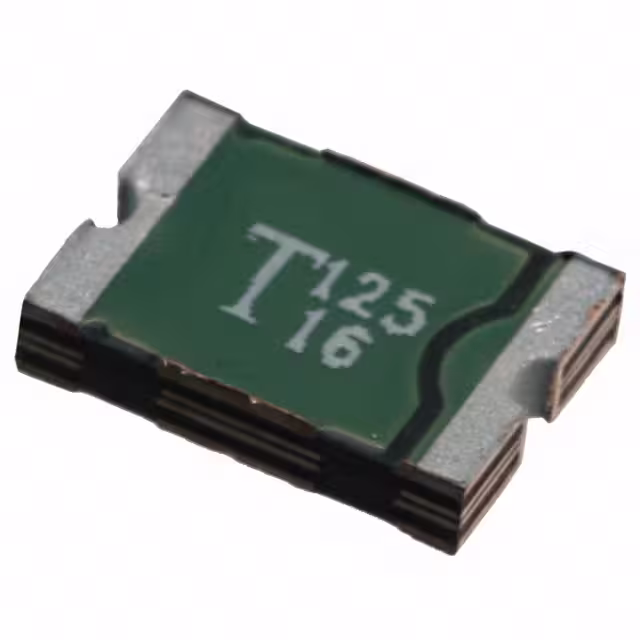

PTS181216V125PTC RESET FUSE 16V 1.25A 1812 |
2,179 | 0.20 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 1.25 A | 2.5 A | 100 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|

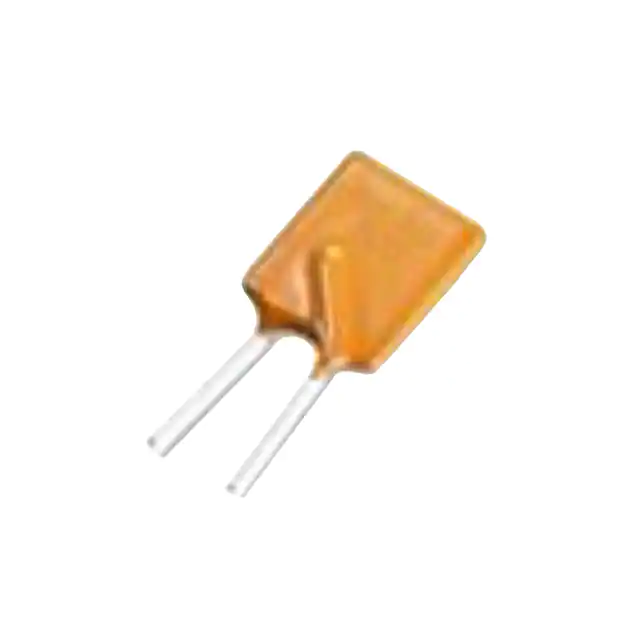

BK30-185-SIPTC RESET FUSE 30V 1.85A RAD |
17,956 | 0.22 |
|
Datasheet |
Radial, Disc | BK30 | Bulk | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 35 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.386" L x 0.122" W (9.80mm x 3.10mm) | 0.732" (18.60mm) | - | 0.201" (5.10mm) |
|

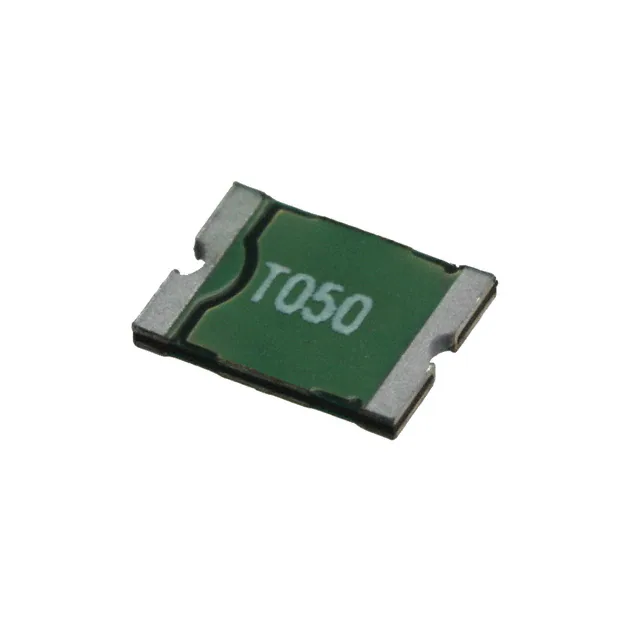

PTS181216V050PTC RESET FUSE 16V 500MA 1812 |
7,952 | 0.21 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 16V | 500 mA | 1 A | 100 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.027" (0.68mm) | - |
|
|
SMD2920B185TFPTC RESET FUSE 33V 1.85A 2920 |
3,548 | 0.32 |
|
Datasheet |
2920 (7351 Metric), Concave | SMD2920 | Tape & Reel (TR) | Active | Polymeric | 33V | 1.85 A | 3.7 A | 40 A | 2.5 s | 30 mOhms | 150 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.049" (1.25mm) | - |
|
PTS08056V075PTC RESET FUSE 6V 750MA 0805 |
3,343 | 0.19 |
|
Datasheet |
0805 (2012 Metric) | PTS0805 | Tape & Reel (TR) | Active | - | 6V | 750 mA | 1.5 A | 100 A | 0.3 s | - | - | - | - | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
0ZRC0010FF1EPTC RESET FUSE 90V 100MA RADIAL |
15,730 | 0.35 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
0ZCH0110FF2EPTC RESET FUSE 8V 1.1A 1210 |
10,863 | 0.23 |
|
Datasheet |
1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 8V | 1.1 A | 2.2 A | 100 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCG0160AF2CPTC RESET FUSE 12V 1.6A 1812 |
7,201 | 0.23 |
|
Datasheet |
1812 (4532 Metric), Concave | 0ZCG | Tape & Reel (TR) | Active | Polymeric | 12V | 1.6 A | 3.2 A | 100 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.053" (1.35mm) | - |
|
PFMF.075.2PTC RESET FUSE 13.2V 750MA 1812 |
7,933 | 0.29 |
|
Datasheet |
1812 (4532 Metric), Concave | PFMF | Tape & Reel (TR) | Active | Polymeric | 13.2V | 750 mA | 1.5 A | 100 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.033" (0.85mm) | - |
|

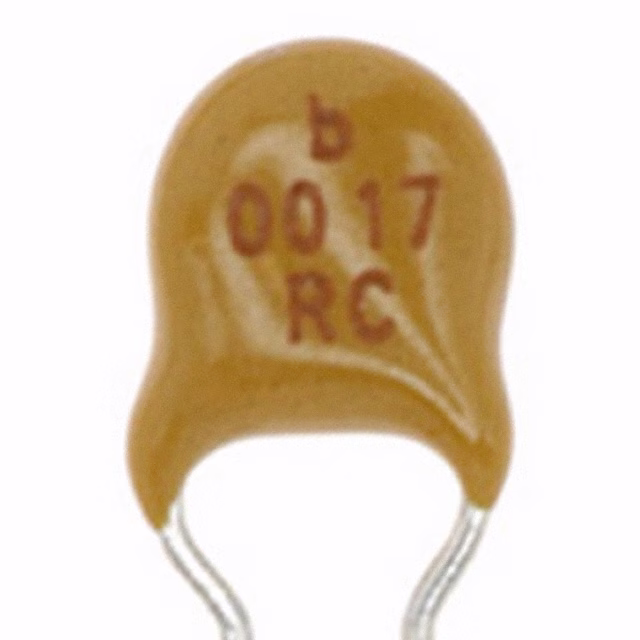

0ZRC0017FF1EPTC RESET FUSE 90V 170MA RADIAL |
2,892 | 0.27 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

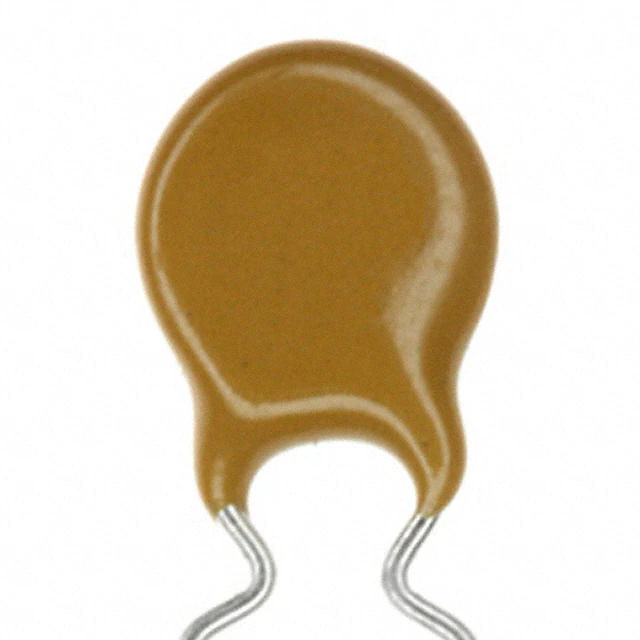

0ZRC0035FF1EPTC RESET FUSE 90V 350MA RADIAL |
1,391 | 0.28 |
|
Datasheet |
Radial, Disc | 0ZRC | Box | Active | Polymeric | 90V | 350 mA | 750 mA | 40 A | 10 s | 700 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
PTS181224V110PTC RESET FUSE 24V 1.1A 1812 |
6,049 | 0.26 |
|
Datasheet |
1812 (4532 Metric), Concave | PTS1812 | Tape & Reel (TR) | Active | Polymeric | 24V | 1.1 A | 2.2 A | 20 A | 500 ms | 60 mOhms | 200 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.039" (1.00mm) | - |
|

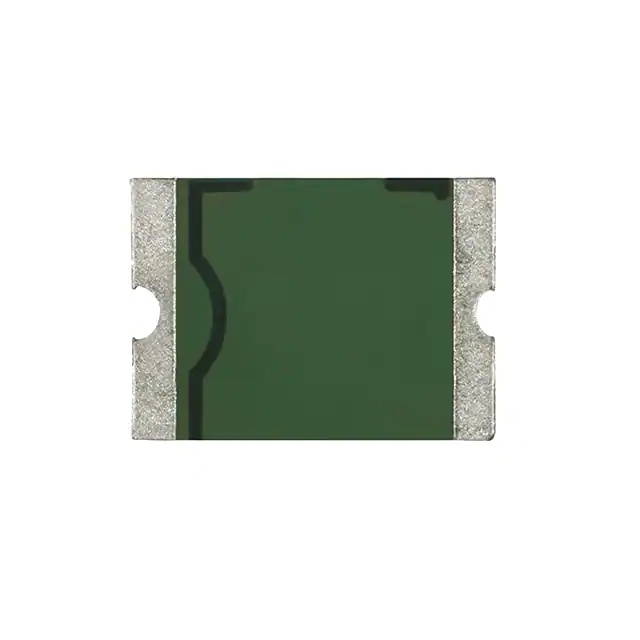

PTSA181224V150PTC RESET FUSE 1.5A 24V 1812 |
2,619 | 0.41 |
|
Datasheet |
1812 (4532 Metric), Concave | PTSA1812 | Tape & Reel (TR) | Active | - | 24V | 1.5 A | 3 A | 40 A | 1.5 s | 30 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.178" L x 0.126" W (4.53mm x 3.20mm) | - | 0.067" (1.70mm) | - |
|
RXEF050-APPTC RESET FUSE 72V 500MA RADIAL |
17,705 | 0.48 |
|
Datasheet |
Radial, Disc | PolySwitch®, RXEF | Cut Tape (CT) | Active | Polymeric | 72V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.311" Dia x 0.118" T (7.90mm x 3.00mm) | 0.539" (13.70mm) | - | 0.199" (5.05mm) |
