PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

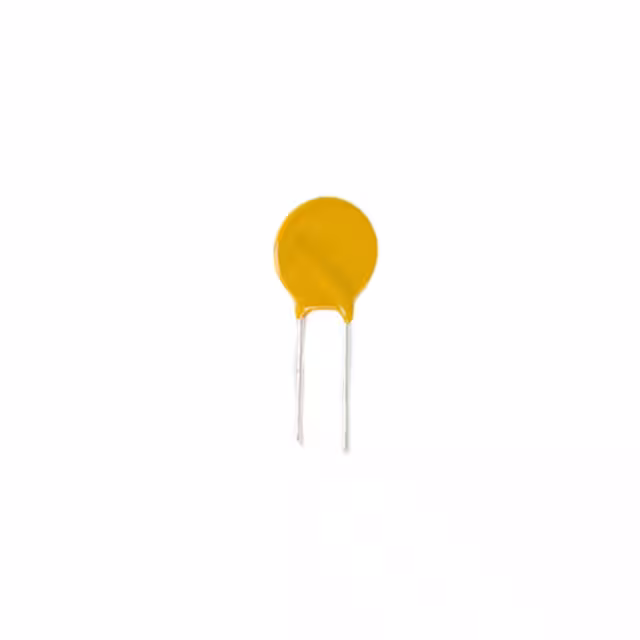

RS90-185PTC RESET FUSE 72V 1.85A RADIAL |
469 | 0.60 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.701" Dia x 0.122" T (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|
RS16HT-300PTC RESET FUSE 16V 3A RADIAL |
799 | 0.69 |
|
Datasheet |
Radial, Disc | RS16HT | Bulk | Active | Polymeric | 16V | 3 A | 6 A | 100 A | 5 s | 33 mOhms | 79 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.346" L x 0.118" W (8.80mm x 3.00mm) | 0.543" (13.80mm) | - | 0.201" (5.10mm) |
|
B59884C0120A054PTC RESET FUSE 420V 21MA RADIAL |
5,256 | 1.23 |
|
Datasheet |
Radial, Disc | - | Tape & Reel (TR) | Obsolete | Ceramic | 420V | 21 mA | 39 mA | 200 mA | - | - | - | 600 Ohms | 0°C ~ 60°C | - | - | - | Through Hole | 0.256" Dia x 0.197" T (6.50mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
PTCCL11H321FTEPTC RESET FUSE 145V 320MA RADIAL |
2,834 | 2.06 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Tape & Reel (TR) | Active | Ceramic | 145V | 320 mA | 480 mA | 3 A | - | - | - | 6.7 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.197" T (10.50mm x 5.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL11H251HTEPTC RESET FUSE 265V 250MA RADIAL |
2,711 | 2.06 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 250 mA | 375 mA | 1.5 A | - | - | - | 12 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.217" T (10.50mm x 5.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL13H411FTEPTC RESET FUSE 145V 410MA RADIAL |
1,311 | 2.06 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Tape & Reel (TR) | Active | Ceramic | 145V | 410 mA | 615 mA | 4.5 A | - | - | - | 4.6 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.492" Dia x 0.197" T (12.50mm x 5.00mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL13H451FTEPTC RESET FUSE 145V 450MA RADIAL |
489 | 2.06 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Tape & Reel (TR) | Active | Ceramic | 145V | 450 mA | 675 mA | 5 A | - | - | - | 3.8 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.492" Dia x 0.197" T (12.50mm x 5.00mm) | 0.689" (17.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL11H211HTEPTC RESET FUSE 265V 210MA RADIAL |
322 | 2.06 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 210 mA | 315 mA | 1.3 A | - | - | - | 17 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.217" T (10.50mm x 5.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
RS60SB-250PTC RESET FUSE 60V 2.5A RADIAL |
6,079 | 1.14 |
|
Datasheet |
Radial, Disc | RS60SB | Bulk | Active | Polymeric | 60V | 2.5 A | 5 A | 40 A | 15.6 s | 40 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.811" (20.60mm) | - | 0.201" (5.10mm) |
|

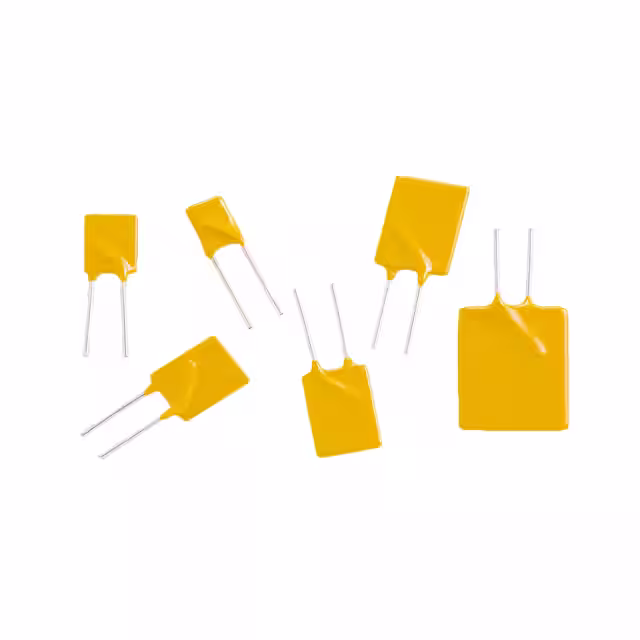

RS16-800PTC RESET FUSE 16V 8A RADIAL |
1,999 | 1.14 |
|
Datasheet |
Radial, Disc | RS16 | Bulk | Active | Polymeric | 16V | 8 A | 13.6 A | 100 A | 9 s | 5 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.500" L x 0.118" W (12.70mm x 3.00mm) | 0.823" (20.90mm) | - | 0.201" (5.10mm) |
|
MF-PSML150-2PTC RESET FUSE 6V 1.5A 0805 |
6,422 | 0.73 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | - | - | - | - | 15 mOhms | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.024" (0.60mm) | - |
|
|
MF-PSML200-2PTC RESET FUSE 6V 2A 0805 |
9,594 | 0.63 |
|
Datasheet |
0805 (2012 Metric), Concave | Multifuse®, MF-PSML | Tape & Reel (TR) | Obsolete | Polymeric | 6V | - | - | - | - | - | - | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.024" (0.60mm) | - |
|
1210L050/30WR-APTC 30V POLYFUSE SMT 1210 0.5A |
5,401 | 1.53 |
|
Datasheet |
1210 (3225 Metric), Concave | POLY-FUSE®, LoRho | Tape & Reel (TR) | Active | Polymeric | 30V | 500 mA | 1 A | 40 A | 150 ms | 220 mOhms | 900 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | - | - | 0.049" (1.25mm) | - |
.jpg)
|
RS120-110PTC RESET FUSE 120V 1.1A RADIAL |
819 | 1.17 |
|
Datasheet |
Radial, Disc | RS120 | Bulk | Active | Polymeric | 120V (135V Int) | 1.1 A | 2.2 A | 8 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.524" Dia x 0.161" T (13.30mm x 4.10mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|

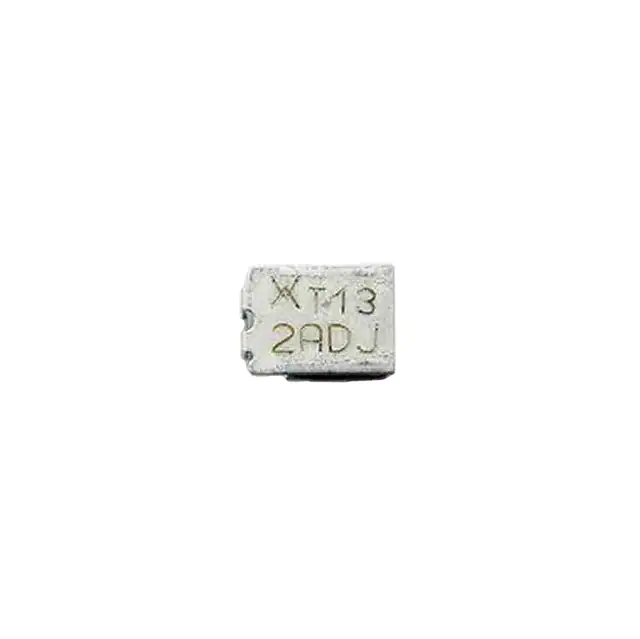

TS250-130F-B-0.5-2PPTC-TLINE-PSW |
14,927 | 1.29 |
|
Datasheet |
2-SMD | TS | Tape & Reel (TR) | Active | Polymeric | 60V (600V Int) | 130 mA | 260 mA | 3 A | 900 ms | 6.5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.352" L x 0.291" W (8.95mm x 7.40mm) | - | 0.134" (3.40mm) | - |
|
RS30-600PTC RESET FUSE 30V 6A RADIAL |
276 | 0.75 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 6 A | 12 A | 100 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
.jpg)
|

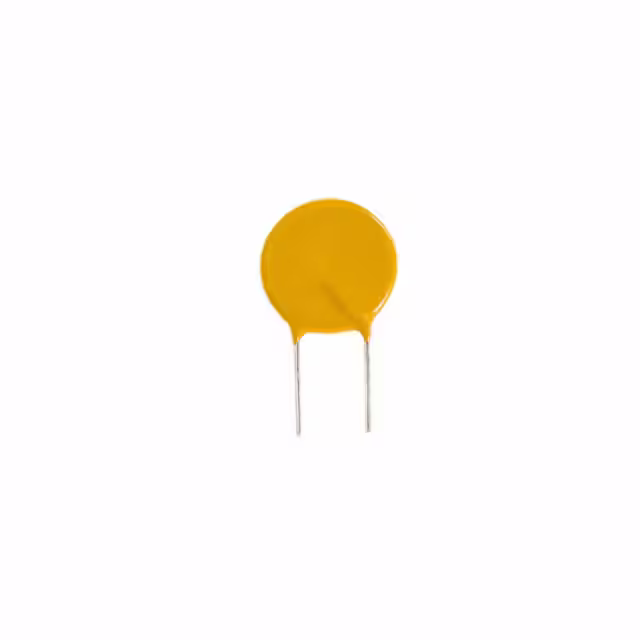

RS90-300PTC RESET FUSE 72V 3A RADIAL |
499 | 0.77 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.980" Dia x 0.122" T (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
.jpg)
|
RS30-700PTC RESET FUSE 30V 7A RADIAL |
1,747 | 0.82 |
|
Datasheet |
Radial, Disc | RS30 | Bulk | Active | Polymeric | 30V | 7 A | 14 A | 100 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.752" L x 0.118" W (19.10mm x 3.00mm) | 1.051" (26.70mm) | - | 0.402" (10.20mm) |
|
|
RS90-375PTC RESET FUSE 72V 3.75A RADIAL |
499 | 0.84 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 1.122" Dia x 0.122" T (28.50mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
.jpg)
|

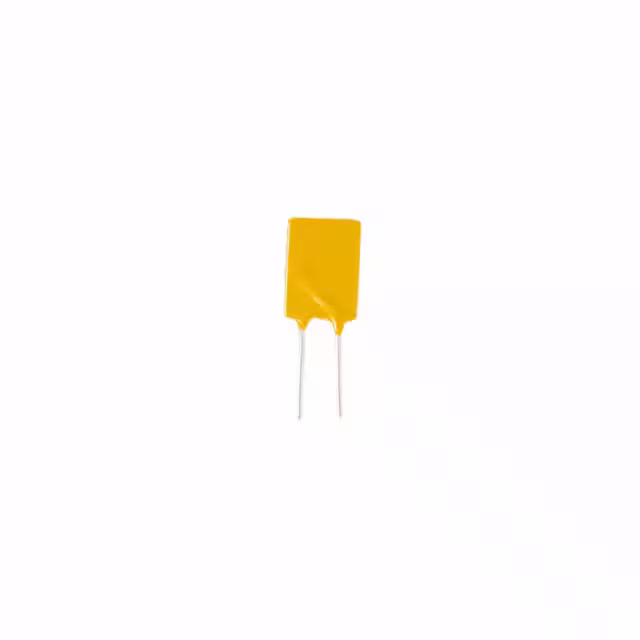

RS16HT-550PTC RESET FUSE 16V 5.5A RADIAL |
699 | 0.85 |
|
Datasheet |
Radial, Disc | RS16HT | Bulk | Active | Polymeric | 16V | 5.5 A | 10 A | 100 A | 6 s | 15 mOhms | 37 mOhms | - | -40°C ~ 125°C | - | - | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.744" (18.90mm) | - | 0.201" (5.10mm) |
