PTC Resettable Fuses
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP350DFPOLYSWITCH PTC RESET 3.5A STRAP |
9,977 | 1.14 |
|
Datasheet |
Strap | PolySwitch® | Bulk | Active | Polymeric | 30V | 3.5 A | 6.3 A | 100 A | 3 s | 17 mOhms | 31 mOhms | - | -40°C ~ 85°C | - | - | - | Holder | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
|
TRF250-120T-RC-B-0.5-2PTC RESET FUSE 60V 130MA RADIAL |
2,926 | 1.00 |
|
Datasheet |
Radial, Disc | PolySwitch®, TRF250 | Tape & Reel (TR) | Active | Polymeric | 60V (250V Int) | 130 mA | 260 mA | 3 A | 3 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.256" L x 0.181" W (6.50mm x 4.60mm) | 0.433" (11.00mm) | - | 0.197" (5.00mm) |
|
RS16-400PTC RESET FUSE 16V 4A RADIAL |
2,594 | 0.79 |
|
Datasheet |
Radial, Disc | RS16 | Bulk | Active | Polymeric | 16V | 4 A | 6.8 A | 100 A | 3.5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.504" (12.80mm) | - | 0.201" (5.10mm) |
|
PTCCL05H470FTEPTC RESET FUSE 145V 47MA RADIAL |
19,487 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Tape & Reel (TR) | Active | Ceramic | 145V | 47 mA | 70 mA | 200 mA | - | - | - | 240 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.197" T (5.00mm x 5.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H271DTEPTC RESET FUSE 30V 270MA RADIAL |
1,350 | 1.54 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 270 mA | 405 mA | 2.5 A | - | - | - | 6 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.197" Dia x 0.157" T (5.00mm x 4.00mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL05H190HTEPTC RESET FUSE 265V 19MA RADIAL |
1,149 | 1.40 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 19 mA | 29 mA | 140 mA | - | - | - | 1.2 kOhms | 0°C ~ 70°C | - | - | - | Through Hole | 0.197" Dia x 0.217" T (5.00mm x 5.50mm) | 0.394" (10.00mm) | - | 0.197" (5.00mm) |
|
PTGL07AR820M9A51B0PTC RESET FUSE 265V 75MA RADIAL |
14,177 | 1.57 |
|
Datasheet |
Radial, Disc | POSISTOR®, PTGL | Bulk | Obsolete | Ceramic | 265V | 75 mA | 125 mA | 500 mA | - | - | - | 82 Ohms | -10°C ~ 60°C | - | - | - | Through Hole | 0.323" Dia x 0.256" T (8.20mm x 6.50mm) | 0.559" (14.20mm) | - | 0.197" (5.00mm) |
|

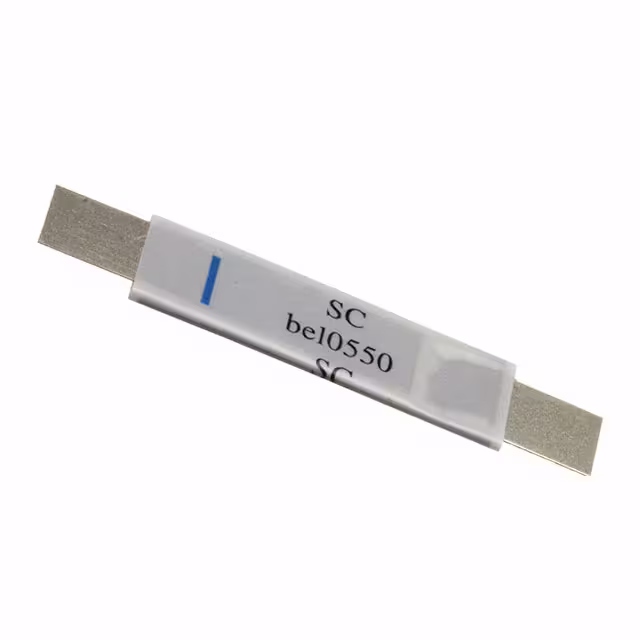

0ZSC0550FF1EPTC RESET FUSE 20V 5.5A STRAP |
891 | 0.94 |
|
Datasheet |
Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 5.5 A | 10.5 A | 100 A | 5 s | 9 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.417" L x 0.283" W (36.00mm x 7.20mm) | - | 0.039" (1.00mm) | - |
|
MF-USHT110KX-2PTC RESET FUSE 16V 1.1A 1210 |
453 | 0.94 |
|
Datasheet |
1210 (3225 Metric), Concave | Multifuse®, MF-USHT | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.1 A | 5.5 A | 20 A | 5 s | 60 mOhms | 500 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.063" (1.60mm) | - |
|

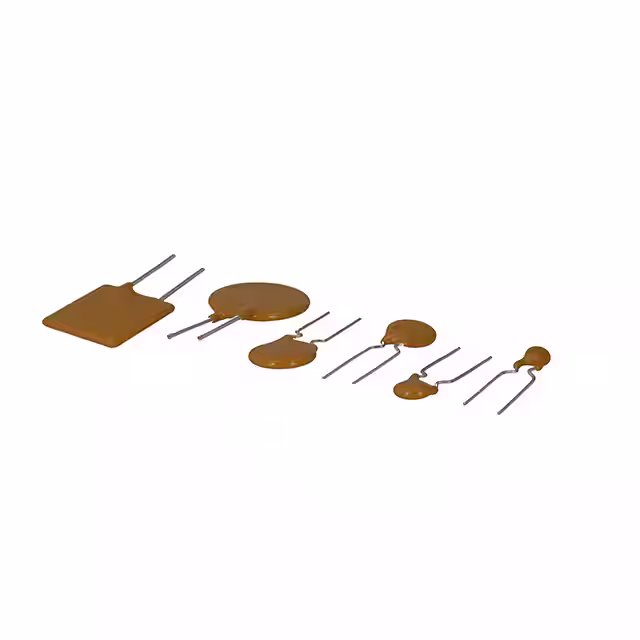

RS60RB-160PTC RESET FUSE 60V 1.6A RADIAL |
9,684 | 0.88 |
|
Datasheet |
Radial, Disc | RS60RB | Bulk | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.122" T (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|

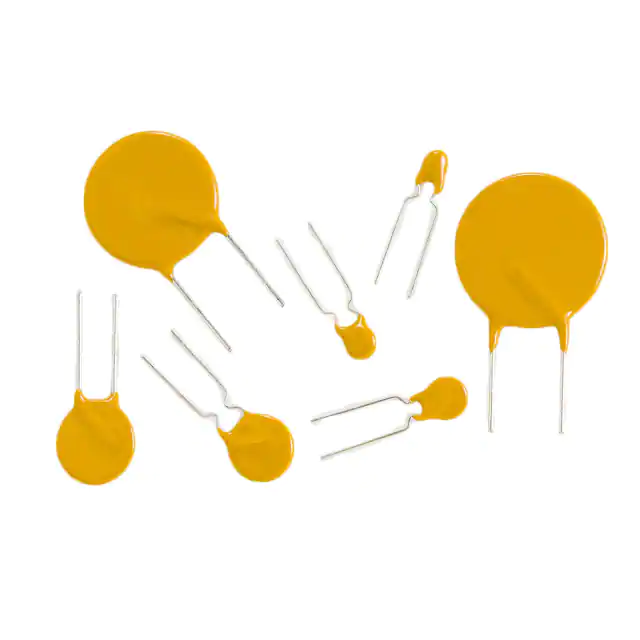

RS90-160PTC RESET FUSE 72V 1.6A RADIAL |
489 | 0.55 |
|
Datasheet |
Radial, Disc | RS90 | Bulk | Active | Polymeric | 72V (90V Int) | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.642" Dia x 0.122" T (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
|
PTCCL11H321FBEPTC RESET FUSE 145V 320MA RADIAL |
620 | 2.12 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Bulk | Active | Ceramic | 145V | 320 mA | 480 mA | 3 A | - | - | - | 6.7 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.413" Dia x 0.197" T (10.50mm x 5.00mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
PTCTL6NR160GTEPTC RESET FUSE 245V 140MA RADIAL |
975 | 1.76 |
|
Datasheet |
Radial, Disc | - | Bulk | Active | Ceramic | 245V | 140 mA | 270 mA | 1.6 A | 8 s | - | - | 16 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.433" Dia x 0.177" T (11.00mm x 4.50mm) | 0.610" (15.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL09H191HTEPTC RESET FUSE 265V 190MA RADIAL |
1,479 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 190 mA | 285 mA | 1 A | - | - | - | 18 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.335" Dia x 0.217" T (8.50mm x 5.50mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL09H471DTEPTC RESET FUSE 30V 470MA RADIAL |
1,475 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 470 mA | 705 mA | 5 A | - | - | - | 2.5 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.335" Dia x 0.157" T (8.50mm x 4.00mm) | 0.532" (13.50mm) | - | 0.197" (5.00mm) |
|
|
PTCCL07H171FTEPTC RESET FUSE 145V 170MA RADIAL |
1,435 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Tape & Reel (TR) | Active | Ceramic | 145V | 170 mA | 255 mA | 1 A | - | - | - | 19 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL07H321DTEPTC RESET FUSE 30V 320MA RADIAL |
1,096 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 30V | Tape & Reel (TR) | Active | Ceramic | 30V | 320 mA | 480 mA | 3.5 A | - | - | - | 5 Ohms | -40°C ~ 85°C | - | - | - | Through Hole | 0.276" Dia x 0.157" T (7.00mm x 4.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL07H211FTEPTC RESET FUSE 145V 210MA RADIAL |
866 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 145V | Tape & Reel (TR) | Active | Ceramic | 145V | 210 mA | 315 mA | 1.4 A | - | - | - | 12 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.276" Dia x 0.197" T (7.00mm x 5.00mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|
|
PTCCL07H141HTEPTC RESET FUSE 265V 140MA RADIAL |
684 | 1.85 |
|
Datasheet |
Radial, Disc | PTCCL - 265V | Tape & Reel (TR) | Active | Ceramic | 265V | 140 mA | 210 mA | 800 mA | - | - | - | 29 Ohms | 0°C ~ 70°C | - | - | - | Through Hole | 0.276" Dia x 0.217" T (7.00mm x 5.50mm) | 0.472" (12.00mm) | - | 0.197" (5.00mm) |
|

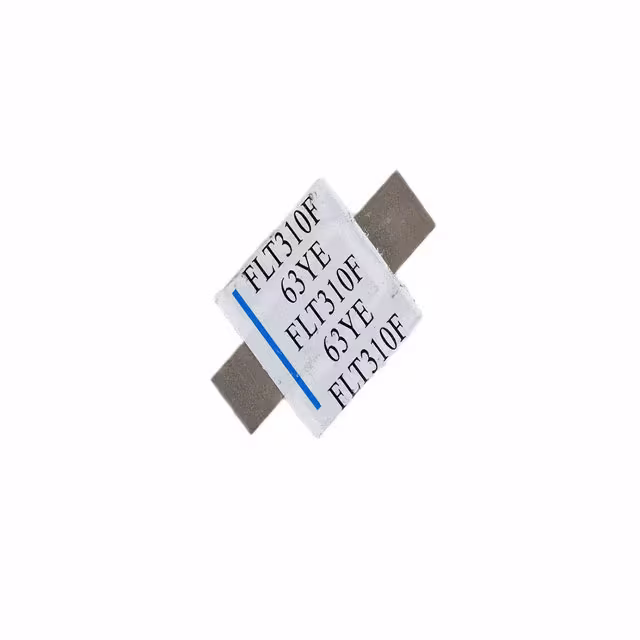

RALT-300PTC RESET FUSE 24V 3A STRAP |
1,589 | 1.90 |
|
Datasheet |
Strap | RALT | Bulk | Active | Polymeric | 24V | 3 A | 6.3 A | 100 A | - | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 1.185" L x 0.522" W (30.10mm x 13.25mm) | - | 0.043" (1.10mm) | - |
