Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG88-S020NXRLTRISO MOD 10BASE-T QUAD 1C:2C/1:1 |
1,924 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG98-1505NZRLTRISO MOD T1 DUAL 1C:1.36C/1C:1C |
3,003 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.36CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG85-S002NZRLTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
4,240 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG75-1505NZRLTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,194 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG43-1505NZRLTRISO MOD T1 DUAL 1C:1.41C X-TEMP |
2,252 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.41CT Transmitter, 1CT:1.41CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG36-1505NZRLTRISO MOD T1 DUAL 1:1.15 X-TEMP |
4,676 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:1.15CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG85-1505NZRLTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,625 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG48-1505NZRLTRISO MOD T1 DUAL 1C:2C X-TEMP 24P |
3,099 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG97-1505NZRLTRISO MOD T1 DUAL 1C:1.36C/1C:2C |
3,619 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.36CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG59-S020NXLFTRISO MOD 10BASE-T QUAD 1C:1C 40P |
3,800 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG59-S010NXLFTRISO MOD 10BASE-T QUAD 1C:1C 40P |
3,145 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-S020NXLFTRISO MOD 10BASE-T QUAD 1C:1.41C |
3,322 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-S010NXLFTRISO MOD 10BASE-T QUAD 1C:1.41C |
2,179 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG59-1006NXLFTRISO MOD 10BASE-T QUAD 1C:1C 40P |
3,926 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-1406NXLFTRISO MOD 10BASE-T QUAD 1C:1.41C |
4,095 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG89-2006NXLFTRISO MOD 10BASE-T QUAD 1C:2C/1:1 |
3,698 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG89-S010NXLFTRISO MOD 10BASE-T QUAD 1C:2C/1:1 |
1,203 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG89-S020NXLFTRISO MOD 10BASE-T QUAD 1C:2C/1:1 |
1,924 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|

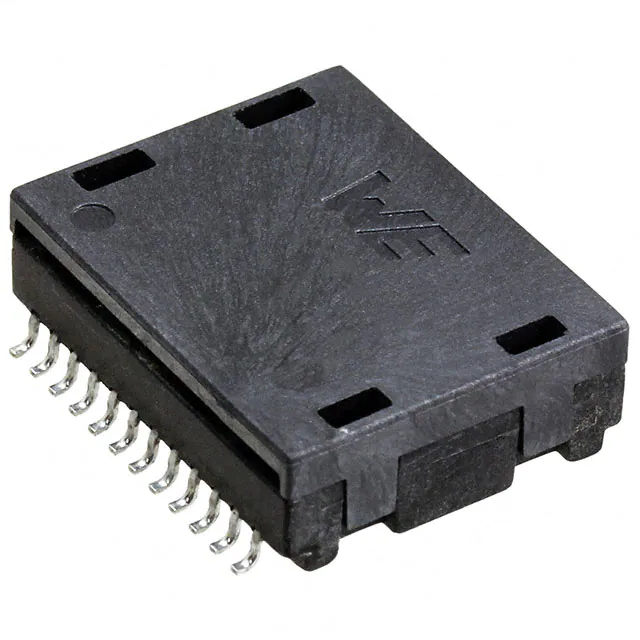

7490200136LAN XFRM SMD 10/100/1000 POE |
4,747 | 6.99 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Obsolete | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 0.705" L x 0.551" W (17.91mm x 14.00mm) | 0.230" (5.84mm) | 0°C ~ 70°C | - | - |
|
|
TG41-S010NXRLTRISO MOD 10BASE-T QUAD 1C:2.5C |
1,012 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 35µH, 200µH | - | 1CT:2.5CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
