Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TG59-S020NXRLTRISO MOD 10BASE-T QUAD 1C:1C 40P |
4,836 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG59-S010NXRLTRISO MOD 10BASE-T QUAD 1C:1C 40P |
4,761 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-S010NXRLTRISO MOD 10BASE-T QUAD 1C:1.41C |
4,295 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-S020NXRLTRISO MOD 10BASE-T QUAD 1C:1.41C |
2,193 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG89-2006NXRLTRISO MOD 10BASE-T QUAD 1C:2C/1:1 |
1,081 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG89-S010NXRLTRISO MOD 10BASE-T QUAD 1C:2C/1:1 |
1,827 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 50µH, 200µH | - | 1CT:2CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG59-1006NXRLTRISO MOD 10BASE-T QUAD 1C:1C 40P |
4,893 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 100µH | - | 1CT:1CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG46-1406NXRLTRISO MOD 10BASE-T QUAD 1C:1.41C |
1,985 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10 Base-T | 140µH | - | 1CT:1.41CT Transmitter, 1:1 Receiver | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
T1105TPULSE XFMR 1:2CT TX/RX 1.2MH |
2,245 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | T1/E1 (Quad) | 1.2mH, 1.2mH | - | 1:2CT Transmitter, 1:2CT Receiver | Surface Mount | 1.125" L x 0.485" W (28.58mm x 12.32mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|

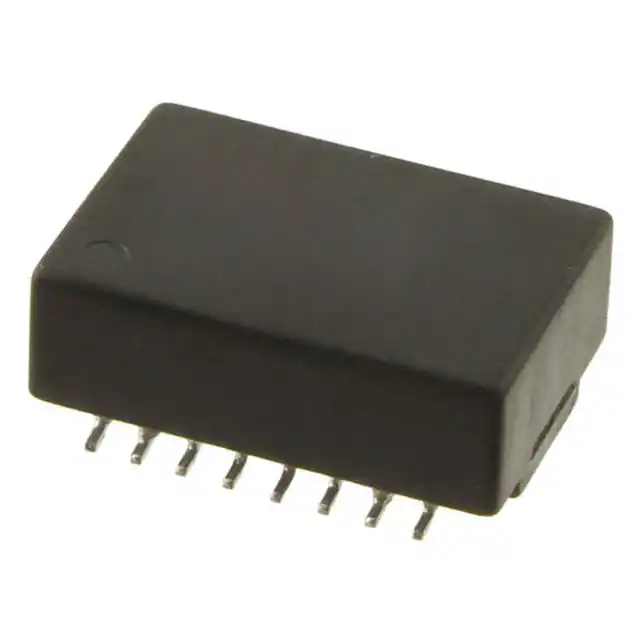

EX2024FNLTPULSE XFMR 1CT:2.5CT 1CT:1CT |
3,845 | 5.18 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10 Base-T | 35µH, 200µH | - | 1CT:2.5CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.498" L x 0.350" W (12.65mm x 8.89mm) | 0.200" (5.08mm) | -40°C ~ 85°C | - | - |
|

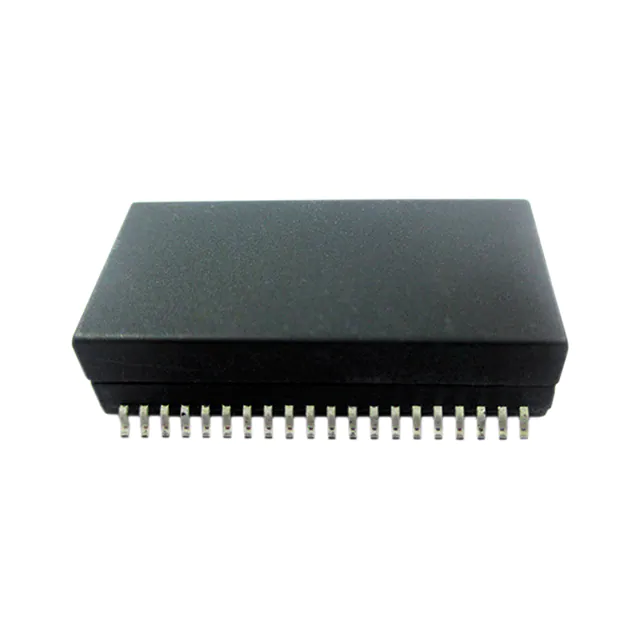

ALAN-409PULSE XFMR 1CT:1CT 350UH |
4,269 | 5.02 |
|
Datasheet |
ALAN-409 | Strip | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Surface Mount | 1.085" L x 0.525" W (27.55mm x 13.34mm) | 0.304" (7.73mm) | -40°C ~ 85°C | - | - |
|
|
TG1G-S205NV6LFISO MOD 1G DUAL 48P SMD |
1,612 | 0.00 |
|
Datasheet |
- | Tube | Active | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.625" W (27.94mm x 15.88mm) | 0.280" (7.11mm) | 0°C ~ 70°C | - | - |
|
|
TGR23-3755V12LFISO MOD T1 1C:2.42C REINF 3.75KV |
2,252 | 0.00 |
|
Datasheet |
- | Tube | Active | Interface | 1.5mH | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TG111-S201NWLFISO MOD 1G DUAL 50P SMD |
1,425 | 0.00 |
|
Datasheet |
- | Tube | Active | Isolation and Data Interface (Encapsulated) | 350µH | - | - | Surface Mount | 1.100" L x 0.300" W (27.94mm x 7.62mm) | 0.340" (8.64mm) | 0°C ~ 70°C | - | - |
|
|
HM0068BNLMDL SIN 100D 1:1 SMT TU |
3,369 | 5.26 |
|
- |
- | Tube | Active | LAN 100 Base-T | - | - | 1:1CT, 1:1CT | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|
TLA-3T107LFXFRMR LAN 1:1.41TR 130UH 16SOP |
3,569 | 5.13 |
|
Datasheet |
TLA | Tray | Active | LAN | 130µH | - | 1:1.41 | Surface Mount | 0.457" L x 0.268" W (11.60mm x 6.80mm) | 0.232" (5.90mm) | 0°C ~ 70°C | - | - |
|
|
PL2064TPOWER |
2,742 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Gate Drive | 162µH | 10.88VµS | 1:2.5:2.5 | Surface Mount | - | - | -40°C ~ 130°C | - | - |
|
|
PL2064NLTPOWER |
2,001 | 0.00 |
|
- |
- | Tape & Reel (TR) | Active | Gate Drive | 162µH | 11.2VµS | 1:2.5:2.5 | Surface Mount | 0.465" L x 0.425" W (11.81mm x 10.80mm) | 0.270" (6.86mm) | -40°C ~ 130°C | - | - |
_R5001NL(T)_iNRCORE_Product-Image.jpg)
|
R1001NLTXFRMR ETHERNET MOD IND 10/100B-T |
4,782 | 3.76 |
|
- |
- | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.192" (4.88mm) | -40°C ~ 85°C | - | - |
|
|
TG10G-S12NZ5LFTRISO MOD 10G POE 0.35A 24P SMD T/ |
4,908 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.722" L x 0.487" W (18.34mm x 12.37mm) | 0.255" (6.48mm) | 0°C ~ 70°C | - | - |
