Pulse Transformers
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H1121NLTXFRMR MAGNT 1PORT 1:1.414 10/100 |
2,288 | 4.96 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1.414 Transmitter, 1:1 Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.245" (6.22mm) | 0°C ~ 70°C | - | - |
|

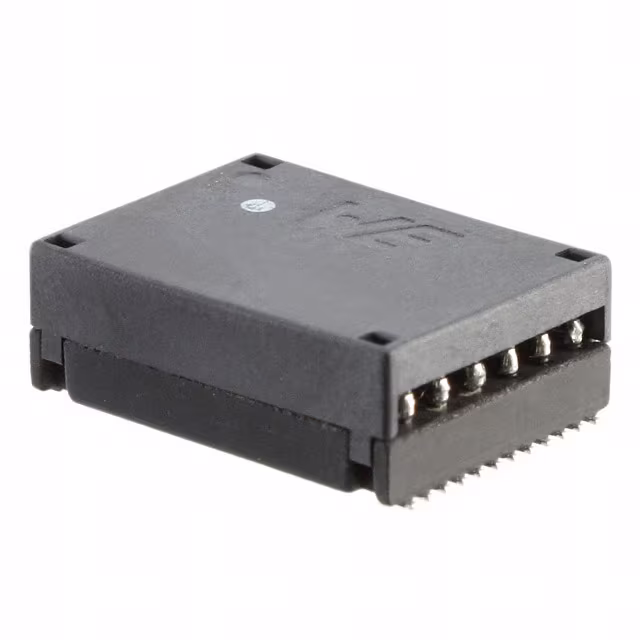

749020015TRANSFORMER WE-LAN 10/100/1000BT |
3,405 | 5.91 |
|
Datasheet |
WE-LAN | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.540" L x 0.709" W (13.72mm x 18.01mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
|
TG5G-E12NZ5LFTRISO MOD 5G POE 0.35A X-TEMP 24P |
1,163 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | LAN 5G Base-T, Power over Ethernet (PoE) | - | - | 1:1 | Surface Mount | 0.722" L x 0.485" W (18.33mm x 12.32mm) | 0.255" (6.48mm) | -40°C ~ 85°C | - | - |
|
|
TGR28-3755V12LFTRISO MOD T1 1C:1.36/1C:1C REINF |
2,598 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Interface | 1.5mH | - | 1CT:1CT Transmitter, 1CT:1.36CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TGR74-3755V12LFTRISO MOD T1 1C:1C/1C:2C REINF |
4,503 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.5mH | - | 1CT:1CT, 1CT:2CT | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TGR38-3755V12LFTRISO MOD T1 1C:1.15C REINF 3.75KV |
1,722 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Interface | 1.5mH | - | 1CT:1.15CT Transmitter, 1CT:1.15CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TGR27-3755V12LFTRISO MOD T1 1C:2C/1C:1.36C REINF |
2,103 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Interface | 1.5mH | - | 1CT:2CT Transmitter, 1CT:1.36CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TGR26-3755V12LFTRISO MOD T1 1C:2C REINF 3.75KV |
4,346 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Interface | 1.5mH | - | 1CT:2CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TGR04-3755V12LFTRISO MOD T1 1C:1C REINF 3.75KV |
2,424 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | Interface | 1.5mH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.675" L x 0.560" W (17.15mm x 14.22mm) | 0.390" (9.91mm) | -40°C ~ 85°C | - | - |
|
|
TGSP-S225NZLFTRISO MOD T1 DUAL 1C:2.4C/1C:1C |
2,083 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Active | T1/E1 (Dual) | - | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
TG110-EMX6NXRLTRISO MOD 10/100 QUAD X-TEMP 40P S |
2,141 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | LAN 10/100 Base-T | - | - | - | Surface Mount | 1.100" L x 0.480" W (27.94mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TGSP-S225NZRLISO MOD T1 DUAL 1C:2.4C/1C:1C 24 |
3,458 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2.4CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | -40°C ~ 85°C | - | - |
|
|
TG93-1505NZRLISO MOD T1 DUAL 1C:2.42C X-TEMP |
1,866 | 0.00 |
|
Datasheet |
- | Tube | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:2.42CT Transmitter, 1CT:2.42CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
HCTSM80910BAL-E1XFRMR POWER 9:10 300UH SMD |
1,956 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | - | 300µH | 11.0VµS | 9:10 | Surface Mount | 0.598" L x 0.425" W (15.20mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
HCTSM80403AAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
3,182 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 250µH | 11.0VµS | 4:3 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|
|
HCTSM80305BAL-E1XFMR 3.3-5V/3.3-15V,350MA PK TR |
1,043 | 3.13 |
|
Datasheet |
HCT | Tape & Reel (TR) | Discontinued at Digi-Key | Isolation and Data Interface (Encapsulated) | 300µH | 11.0VµS | 3:5 | Surface Mount | 0.484" L x 0.425" W (12.30mm x 10.80mm) | 0.256" (6.50mm) | -40°C ~ 125°C | - | - |
|

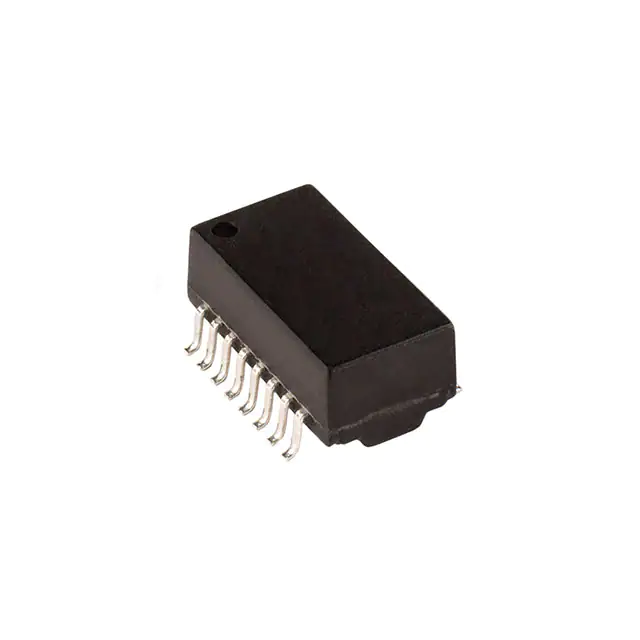

SM13100ELLAN 10/100 BASE T XFORMER 250VRM |
2,669 | 4.40 |
|
Datasheet |
SM | Tape & Reel (TR) | Obsolete | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | - | - | 0.504" (12.80mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
B78416A2360A003EP6 SMD TRANSFORMER |
1,217 | 5.13 |
|
Datasheet |
B7416A | Tape & Reel (TR) | Active | - | 3mH | - | 1:1:8.42 | Surface Mount | 0.260" L x 0.260" W (6.60mm x 6.60mm) | 0.280" (7.10mm) | -40°C ~ 85°C | - | - |
|
|
TGSP-S281NZRLTRISO MOD T1 DUAL 1C:2C/1C:1.15C |
1,079 | 0.00 |
|
Datasheet |
- | Tape & Reel (TR) | Not For New Designs | T1/E1 (Dual) | - | - | 1CT:1.15CT Transmitter, 1CT:2CT Receiver | Surface Mount | 0.700" L x 0.480" W (17.78mm x 12.19mm) | 0.230" (5.84mm) | - | - | - |
|
|
GH5208RY LFMDL 1G DIP QUAD PORTS N/A |
4,744 | 5.06 |
|
Datasheet |
- | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1CT Transmitter, 1:1CT Receiver | Through Hole | 1.142" L x 1.043" W (29.00mm x 26.50mm) | 0.512" (13.00mm) | 0°C ~ 70°C | - | - |
